Wisenet XNV-8081R 5 Megapixel Outdoor Network Camera - Color - Dome - White

SKU: 5710155

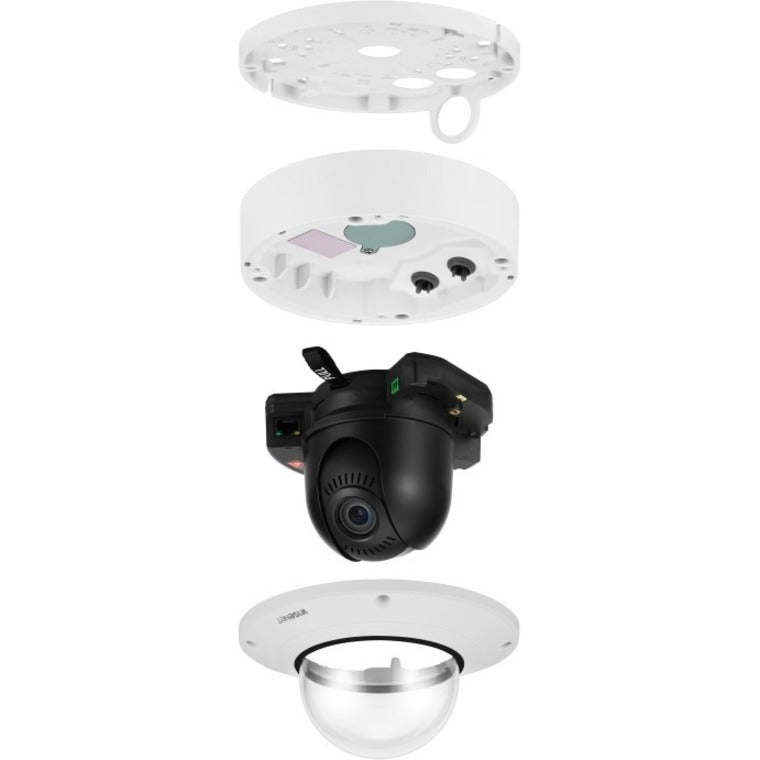

The Wisenet X Plus powered by Wisenet 5 network outdoor vandal dome camera features a modular structure, 5MP @ 30fps, motorized vari-focal lens 2.6x (3.6~9.4mm) (102.5°~38.7°). 164 foot IR viewable range for low light/no light monitoring. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additioanl features include 120dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, defog detection, DIS (Gyro), 12VDC/PoE, optional 24VAC, IP67/IP66/IP6K9K, IK10+, NEMA 4X, -50°C ~ +60°C (-58°F ~ +140°F), white color, ivory skin included, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.

  • 5 megapixel resolution
  • 2.6x (3.6~9.4mm) motorized varifocal lens
  • 164 foot IR viewable range for low light/no light monitoring
  • 30fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • Day & Night (ICR), WDR (120dB), Defog
  • Shock detection, Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
  • Motion detection, Handover, Audio event playback
  • Dual SD/SDHC/SDXC memory slots (Max. 512GB)
  • Hallway view, WiseStreamII support, IP67/IP66/IP6K9K, IK10+, NEMA 4X

Call for Availability

Regular price $1,800

Shipping calculated at checkout

Details

The Wisenet X Plus powered by Wisenet 5 network outdoor vandal dome camera features a modular structure, 5MP @ 30fps, motorized vari-focal lens 2.6x (3.6~9.4mm) (102.5°~38.7°). 164 foot IR viewable range for low light/no light monitoring. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additioanl features include 120dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, defog detection, DIS (Gyro), 12VDC/PoE, optional 24VAC, IP67/IP66/IP6K9K, IK10+, NEMA 4X, -50°C ~ +60°C (-58°F ~ +140°F), white color, ivory skin included, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.

  • 5 megapixel resolution
  • 2.6x (3.6~9.4mm) motorized varifocal lens
  • 164 foot IR viewable range for low light/no light monitoring
  • 30fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • Day & Night (ICR), WDR (120dB), Defog
  • Shock detection, Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
  • Motion detection, Handover, Audio event playback
  • Dual SD/SDHC/SDXC memory slots (Max. 512GB)
  • Hallway view, WiseStreamII support, IP67/IP66/IP6K9K, IK10+, NEMA 4X
Specifications
Color Family:
White
Color Supported:
Color
Connectivity Technology:
Wired
Diameter:
7.1"
Durability:
Vandal Resistant
Effective Camera Resolution:
5 Megapixel
Features:
SD Card Local Storage,Day/Night,Defog,Digital Image Stabilization,Digital Noise Reduction,Wide Dynamic Range,Back Light Compensation (BLC),Audio Compression,Gain Control,White Balance
Field of View:
H : 92.1°(Wide)~38.7°(Tele) / V : 67.2°(Wide)~29.0°(Tele) / D : 119.9°(Wide)~48.6°(Tele)
Form Factor:
Dome
HD Recording:
Yes
Image Sensor Type:
CMOS
Impact Protection Rating:
IK10+
Indoor/Outdoor:
Outdoor
Ingress Protection Rating:
IP66,IP67,IP6K9K
Input Voltage:
12 V DC,24 V AC
Lens Included:
Yes
Lens Type:
Varifocal
Limited Warranty:
3 Year
Longest Shutter Speed:
2 Second
Manufacturer:
Hanwha Group
Manufacturer Website Address:
http://www.hanwha.com
Maximum Aperture:
f/1.3
Maximum Focal Length:
9.40 mm
Maximum Frame Rate:
30 fps
Maximum Operating Humidity:
90%
Maximum Operating Temperature:
140°F (60°C)
Maximum Video Resolution:
2560 x 1920
Minimum Focal Length:
3.90 mm
Minimum Operating Temperature:
-58°F (-50°C)
Mount Type:
Hanging Mount,Pendant Mount,Wall Mount,Pole Mount,Box Mount,Parapet Mount,Gooseneck
Network (RJ-45):
Yes
Night Vision:
Yes
Night Vision Distance:
164.04 ft
Night Vision Type:
Infrared
Optical Zoom:
2.6x
Package Contents:
  • 5 MP Vandal-Resistant IR Outdoor Network Dome Camera
  • Weathercap
  • Ivory Skin
Power Source Type:
PoE,DC,AC
Product Color:
White
Product Model:
XNV-8081R
Product Series:
X
Product Type:
Network Camera
Remote Management:
Yes
Shortest Shutter Speed:
1/12000 Second
Storage Type:
Memory Card
Video Formats:
MJPEG,H.264,H.265
