Wisenet

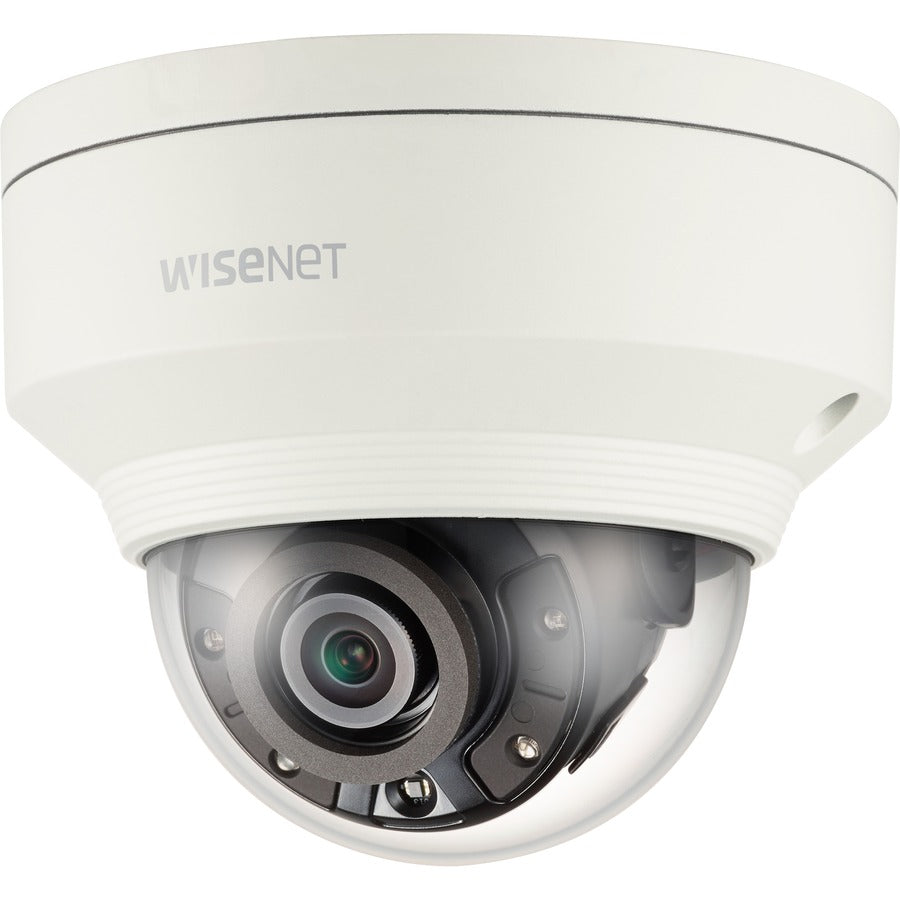

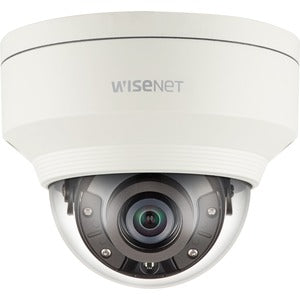

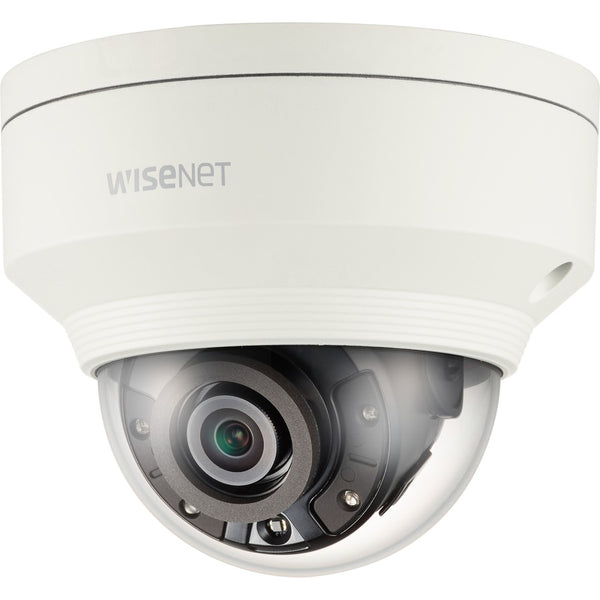

Wisenet XNV-8020R 5 Megapixel Outdoor Network Camera - Color - Dome

SKU: XNV-8020R

WiseNet X powered by WiseNet 5 network IR outdoor vandal dome camera, 5MP @30fps WDR off/on, 3.7mm fixed focal lens (97.5°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification, High powered IR LEDs range of 98', True D/N, dual SD card, hallway view, HLC, defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, Nema 4X

  • IR viewable length 30m, IP67/IP66, IK10
  • Motion detection, Handover
  • Hallway view, WiseStreamII support
  • Loitering, Directional detection, Fog detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering
  • Max. 30fps@all resolutions (H.265/H.264)
  • Built-in 3.7mm fixed lens

4 in stock

Regular price $837 Sale price $900
On Sale

Shipping calculated at checkout

Submit Purchase Order
Request A Quote
Return & Refund Policy
Details

WiseNet X powered by WiseNet 5 network IR outdoor vandal dome camera, 5MP @30fps WDR off/on, 3.7mm fixed focal lens (97.5°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification, High powered IR LEDs range of 98', True D/N, dual SD card, hallway view, HLC, defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, Nema 4X

  • IR viewable length 30m, IP67/IP66, IK10
  • Motion detection, Handover
  • Hallway view, WiseStreamII support
  • Loitering, Directional detection, Fog detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering
  • Max. 30fps@all resolutions (H.265/H.264)
  • Built-in 3.7mm fixed lens
 Specifications
Color Family:
White
Color Supported:
Color
Connectivity Technology:
Wired
Diameter:
4.7"
Durability:
Vandal Resistant
Effective Camera Resolution:
5 Megapixel
Field of View:
H : 97.5 ? / V : 71.9 ? / D : 126.2
Form Factor:
Dome
HD Recording:
Yes
Image Sensor Type:
CMOS
Impact Protection Rating:
IK10
Indoor/Outdoor:
Outdoor
Ingress Protection Rating:
IP66,IP67
Input Voltage:
12 V DC
Lens Included:
Yes
Lens Type:
Fixed
Limited Warranty:
3 Year
Longest Shutter Speed:
2 Second
Manufacturer:
Hanwha Group
Manufacturer Website Address:
http://www.hanwha.com
Maximum Aperture:
f/1.6
Maximum Focal Length:
3.70 mm
Maximum Frame Rate:
30 fps
Maximum Video Resolution:
2560 x 1920
Mount Type:
Wall Mount,Parapet Mount,Pole Mount,Corner Mount
Network (RJ-45):
Yes
Night Vision:
Yes
Night Vision Distance:
98.43 ft
Night Vision Type:
Infrared
Power Source Type:
DC,PoE
Product Color:
Ivory
Product Model:
XNV-8020R
Product Series:
X
Product Type:
Network Camera
Remote Management:
Yes
Shortest Shutter Speed:
1/12000 Second
Storage Type:
Memory Card
Video Formats:
MJPEG,H.264,H.265,MPEG-4 AVC
