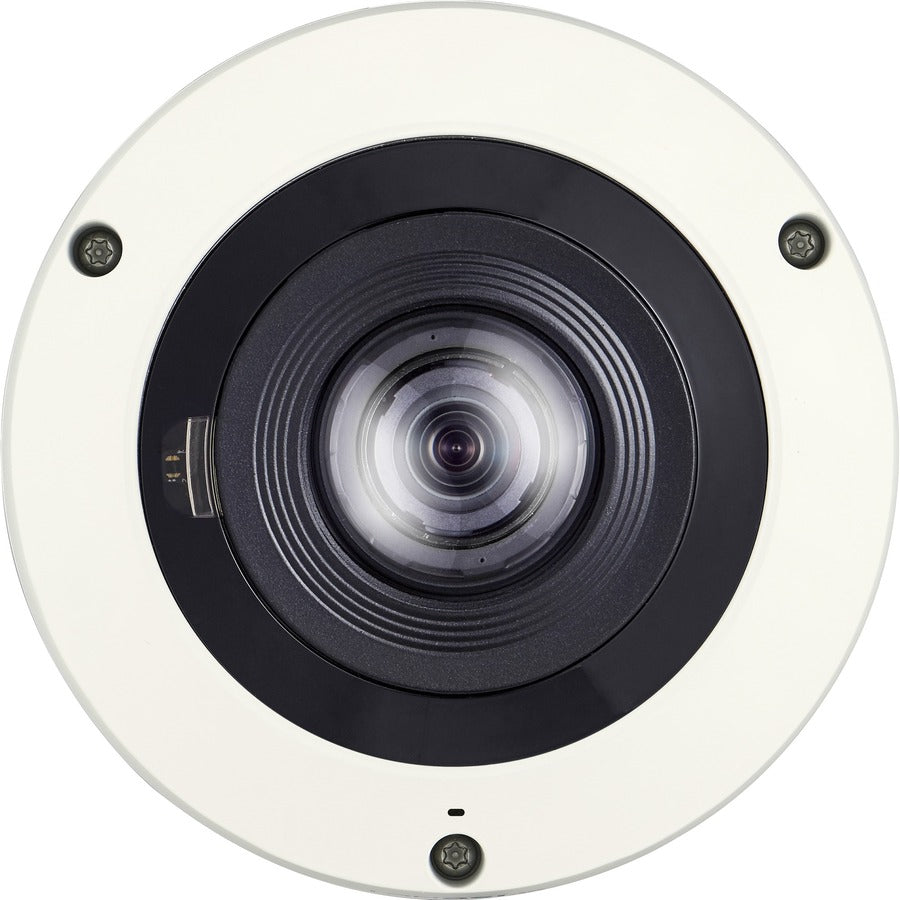

Wisenet XNF-8010RV 6 Megapixel Outdoor Network Camera - Color - Fisheye

SKU: XNF-8010RV

Wisenet X powered by Wisenet 5 network outdoor vandal fisheye, 6 MP CMOS sensor, 2048x2048 @ 30fps with WDR off/on(120dB), 1.6mm fixed lens (192°), H.265/H.264/MJPEG, WiseStream II compression technology, true WDR, USB port for easy installation, advanced video/audio and business analytics, simple focus, dual SD card, HLC, Defog detection, DIS , 12VDC/PoE, IP66, IK10

  • SD / SDHC / SDXC memory slot (Max. 512GB), 12V DC / PoE
  • M12 connector (XNF-8010RVM)
  • IP66 / IK10 (XNF-8010RV/8010RVM)
  • Motion deteciton, Handover
  • True WDR (120dB), WiseStream? support
  • Tampering, Loitering, Directional detection, Audio detection, Sound classification, Heatmap, People counting, Queue management
  • On board dewarping, Digital PTZ (8x), Bi-directional audio
  • H.265, H.264, MJPEG codec supported
  • Variable view mode (Fisheye, Single panorama, Double panorama, Quad view)
  • Max. 2048 x 2048 resolution

Call for Availability

Regular price $1,150

Shipping calculated at checkout

Details

Wisenet X powered by Wisenet 5 network outdoor vandal fisheye, 6 MP CMOS sensor, 2048x2048 @ 30fps with WDR off/on(120dB), 1.6mm fixed lens (192°), H.265/H.264/MJPEG, WiseStream II compression technology, true WDR, USB port for easy installation, advanced video/audio and business analytics, simple focus, dual SD card, HLC, Defog detection, DIS , 12VDC/PoE, IP66, IK10

  • SD / SDHC / SDXC memory slot (Max. 512GB), 12V DC / PoE
  • M12 connector (XNF-8010RVM)
  • IP66 / IK10 (XNF-8010RV/8010RVM)
  • Motion deteciton, Handover
  • True WDR (120dB), WiseStream? support
  • Tampering, Loitering, Directional detection, Audio detection, Sound classification, Heatmap, People counting, Queue management
  • On board dewarping, Digital PTZ (8x), Bi-directional audio
  • H.265, H.264, MJPEG codec supported
  • Variable view mode (Fisheye, Single panorama, Double panorama, Quad view)
  • Max. 2048 x 2048 resolution
Specifications
Color Supported:
Color
Connectivity Technology:
Wired
Diameter:
5.7"
Durability:
Vandal Resistant
Effective Camera Resolution:
6 Megapixel
Features:
Built-in IR LED,SD Card Local Storage,Highlight Compensation (HLC),Back Light Compensation (BLC),Day/Night
Field of View:
H : 192 ? / V : 192 ? / D : 192 ?
Form Factor:
Fisheye
HD Recording:
Yes
Image Sensor Type:
CMOS
Impact Protection Rating:
IK10
Indoor/Outdoor:
Outdoor
Ingress Protection Rating:
IP66
Input Voltage:
12 V DC
Lens Included:
Yes
Lens Type:
Fixed
Limited Warranty:
3 Year
Longest Shutter Speed:
2 Second
Manufacturer:
Hanwha Group
Manufacturer Website Address:
http://www.hanwha.com
Maximum Aperture:
f/1.6
Maximum Focal Length:
1.60 mm
Maximum Frame Rate:
30 fps
Maximum Operating Humidity:
90%
Maximum Operating Temperature:
131°F (55°C)
Maximum Video Resolution:
2048 x 2048
Minimum Operating Temperature:
-40°F (-40°C)
Mount Type:
Gooseneck,Wall Mount,Pendant Mount,Parapet Mount,Ceiling Mount,Pole Mount,Corner Mount,Flush Mount
Network (RJ-45):
Yes
Night Vision:
Yes
Night Vision Distance:
49.21 ft
Night Vision Type:
Infrared
Power Source Type:
DC,PoE
Product Model:
XNF-8010RV
Product Series:
X
Product Type:
Network Camera
Remote Management:
Yes
Shortest Shutter Speed:
1/12000 Second
Storage Type:
Memory Card
Video Formats:
H.265,H.264,MJPEG
