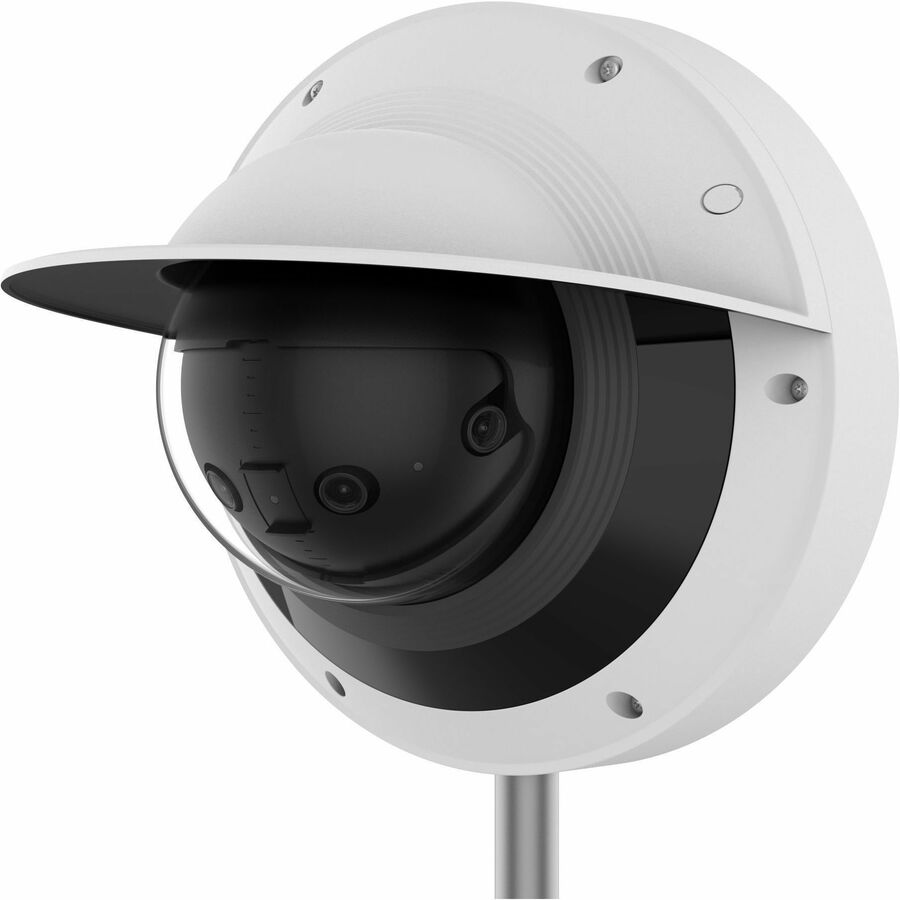

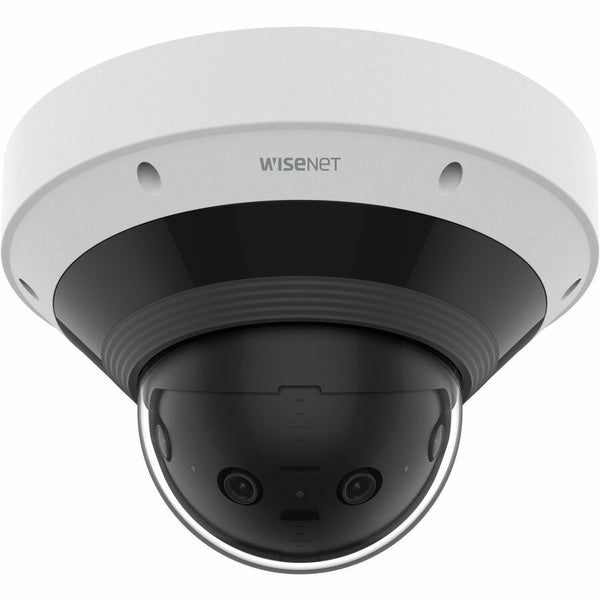

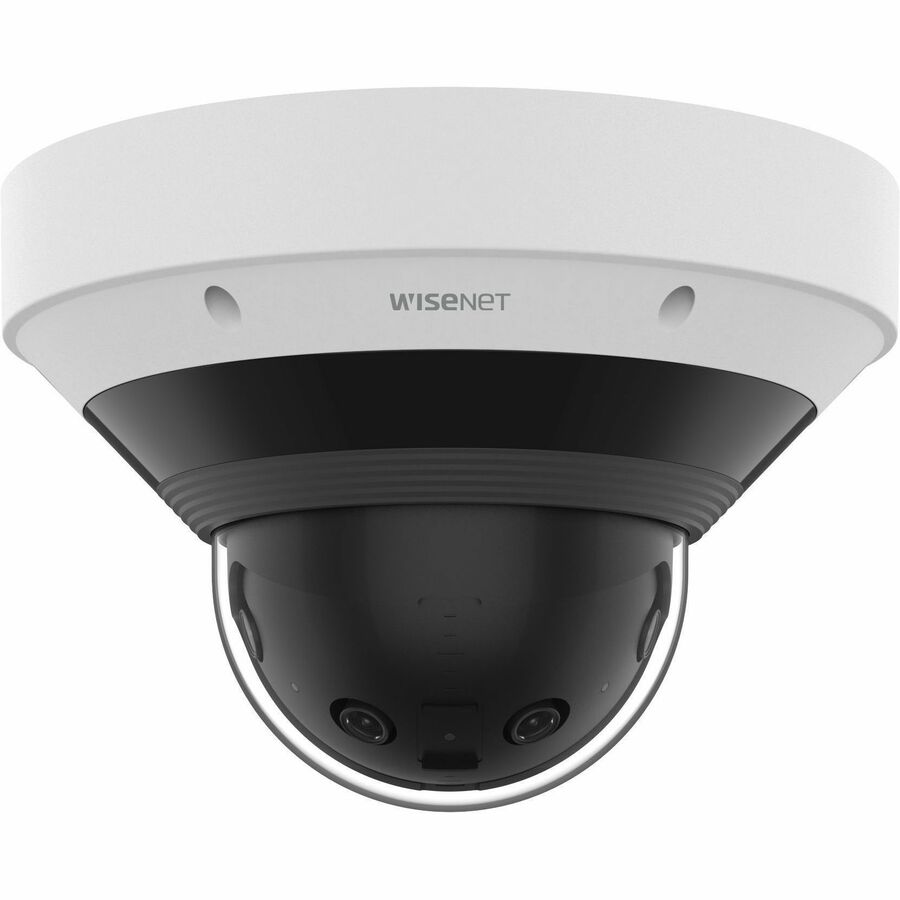

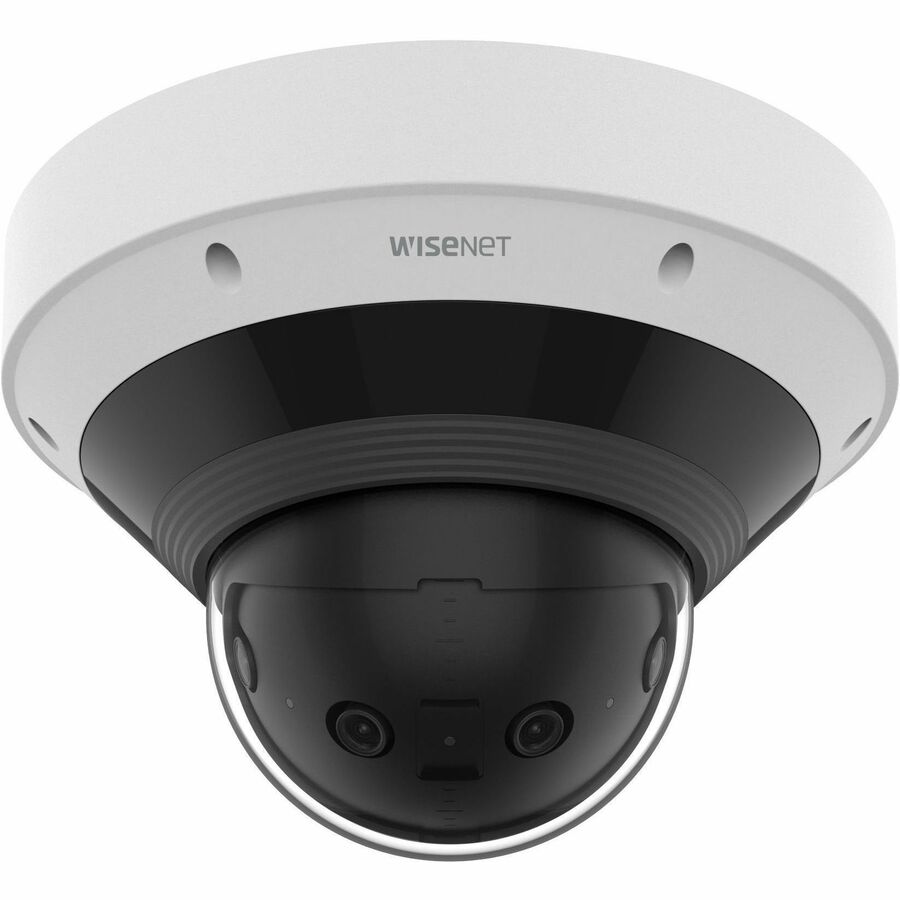

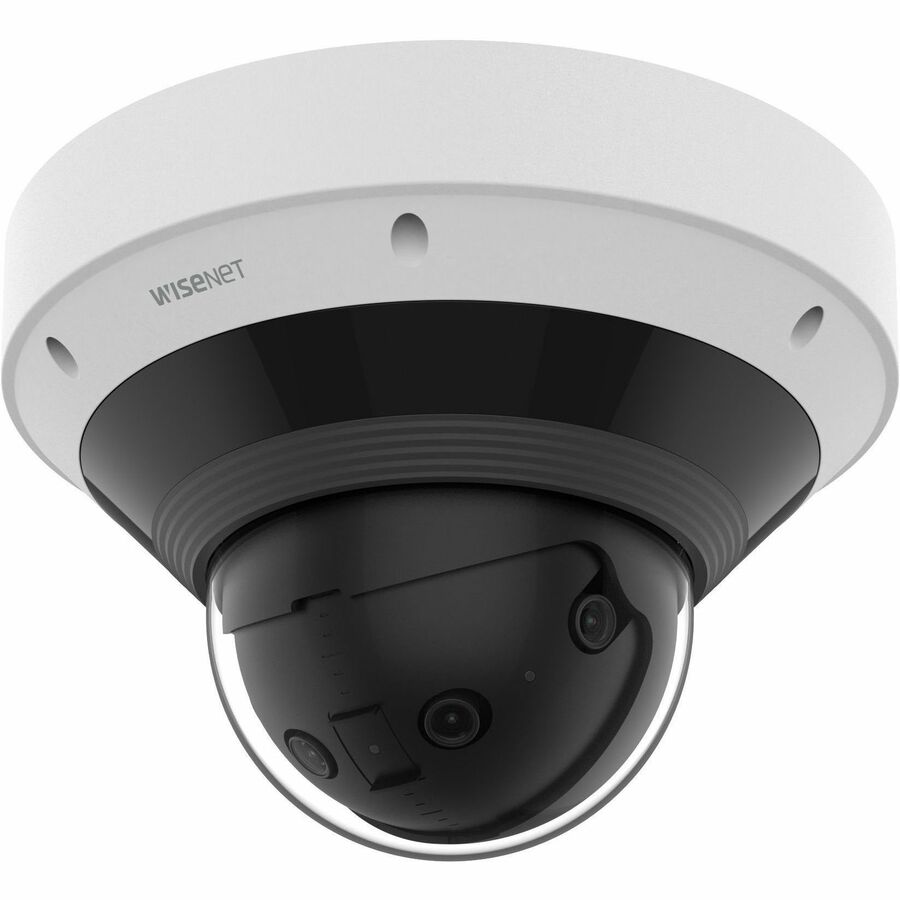

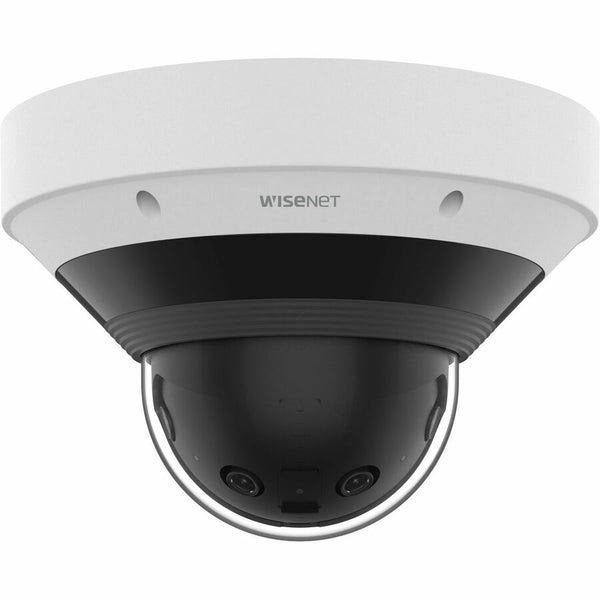

Wisenet PNM-C9022RV 8 Megapixel Outdoor Network Camera - Color - Dome - White - TAA Compliant
SKU: PNM-C9022RV/KEX
Wisenet PNM-C9022RV 8 Megapixel Outdoor Network Camera - Color - Dome - White - TAA Compliant - 65.62 ft Infrared Night Vision - H.265, H.264, MJPEG, H.264M, H.264B, H.264H, H.265B, H.265M, H.265H - 5120 x 1568 - 2.80 mm Fixed Lens - 20 fps - CMOS - Gigabit Ethernet - USB - IK10 - IP66
- 8MP 5120X1568 resolution
- 209° panoramic stitching image
- IR viewable length Maximum 20m (65.6ft), WiseIR
- 20fps at all resolutions (H.265/H.264/MJPEG)
- H.265, H.264, MJPEG codec, WiseStream III supported
- WiseNR?(Based on AI engine)
- Analytics events based on AI engine : Object classification (Person/Vehicle), Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit)
- Standard analytic events: Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear)
- micro SD/SDHC/SDXC 2 slots, PoE+/12v DC, IP66, IK10
- Hard-coated dome bubble
- TPM 2.0 with FIPS 140-2, Secure OS/Boot/Storage, Verify firmware forgery
- USB connector for easy setup with optional Wi-Fi adapter
Call for Availability
Regular price
$2,050
Shipping calculated at checkout
Wisenet PNM-C9022RV 8 Megapixel Outdoor Network Camera - Color - Dome - White - TAA Compliant - 65.62 ft Infrared Night Vision - H.265, H.264, MJPEG, H.264M, H.264B, H.264H, H.265B, H.265M, H.265H - 5120 x 1568 - 2.80 mm Fixed Lens - 20 fps - CMOS - Gigabit Ethernet - USB - IK10 - IP66
- 8MP 5120X1568 resolution
- 209° panoramic stitching image
- IR viewable length Maximum 20m (65.6ft), WiseIR
- 20fps at all resolutions (H.265/H.264/MJPEG)
- H.265, H.264, MJPEG codec, WiseStream III supported
- WiseNR?(Based on AI engine)
- Analytics events based on AI engine : Object classification (Person/Vehicle), Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit)
- Standard analytic events: Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear)
- micro SD/SDHC/SDXC 2 slots, PoE+/12v DC, IP66, IK10
- Hard-coated dome bubble
- TPM 2.0 with FIPS 140-2, Secure OS/Boot/Storage, Verify firmware forgery
- USB connector for easy setup with optional Wi-Fi adapter
Color Family:
White
Color Supported:
Color
Connectivity Technology:
Wired
Country of Origin:
Korea
Diameter:
10"
Effective Camera Resolution:
8 Megapixel
Ethernet Technology:
Gigabit Ethernet
Features:
Day/Night,Video Content Analytics,Human Detection,Vehicle Detection,Motion Detection,Tamper Detection,Audio Detection,Wide Dynamic Range,Back Light Compensation (BLC),Noise Reduction,Gain Control
Field of View:
H: 209°, V: 60°
Form Factor:
Dome
HD Recording:
Yes
Image Sensor Size:
1/2.8"
Image Sensor Type:
CMOS
Impact Protection Rating:
IK10
Indoor/Outdoor:
Outdoor
Ingress Protection Rating:
IP66
Input Voltage:
12 V DC
Lens Included:
Yes
Lens Type:
Fixed
Limited Warranty:
3 Year
Longest Shutter Speed:
2 Second
Manufacturer:
Hanwha Group
Manufacturer Website Address:
http://www.hanwha.com
Maximum Aperture:
f/2.0
Maximum Focal Length:
2.80 mm
Maximum Frame Rate:
20 fps
Maximum Operating Humidity:
95%
Maximum Operating Temperature:
131°F (55°C)
Maximum Video Resolution:
5120 x 1568
Minimum Operating Temperature:
-40°F (-40°C)
Network (RJ-45):
Yes
Night Vision:
Yes
Night Vision Distance:
65.62 ft
Night Vision Type:
Infrared
Number of Sensors:
4
Power Source Type:
DC,PoE+
Product Color:
White
Product Model:
PNM-C9022RV
Product Series:
P
Product Type:
Network Camera
Remote Management:
Yes
Shortest Shutter Speed:
1/12000 Second
Storage Type:
Memory Card
TAA Compliant:
Yes
USB:
Yes
Video Formats:
H.265,H.264,MJPEG,H.264M,H.264B,H.264H,H.265B,H.265M,H.265H
