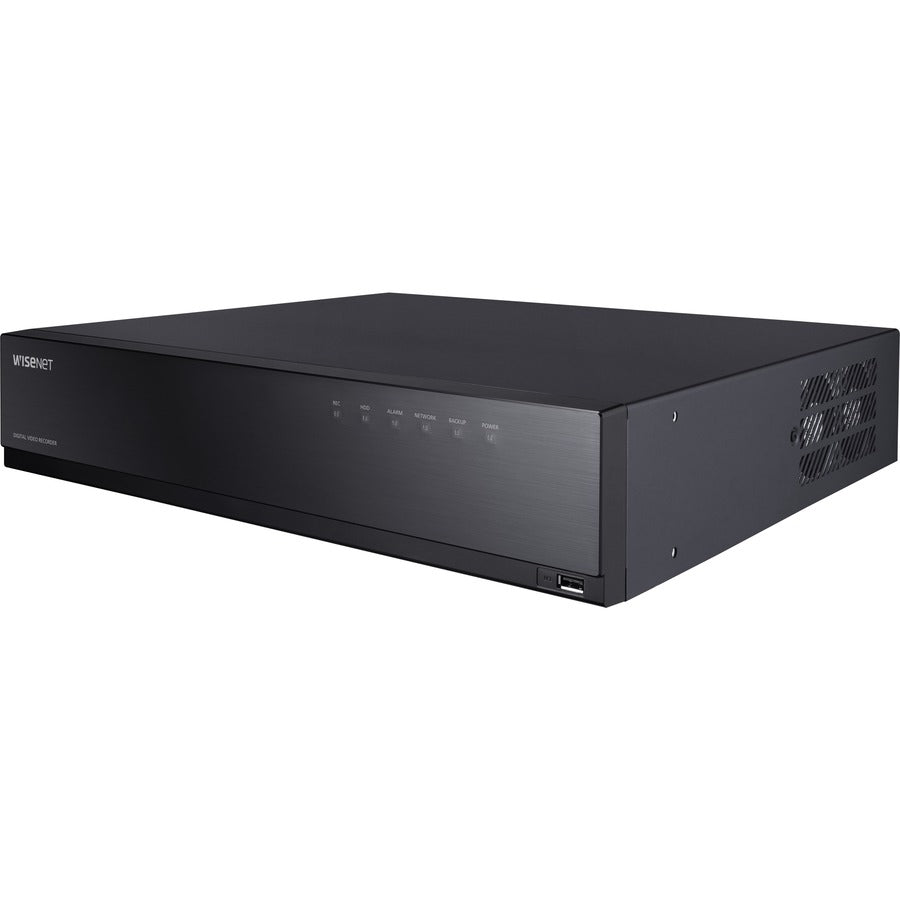

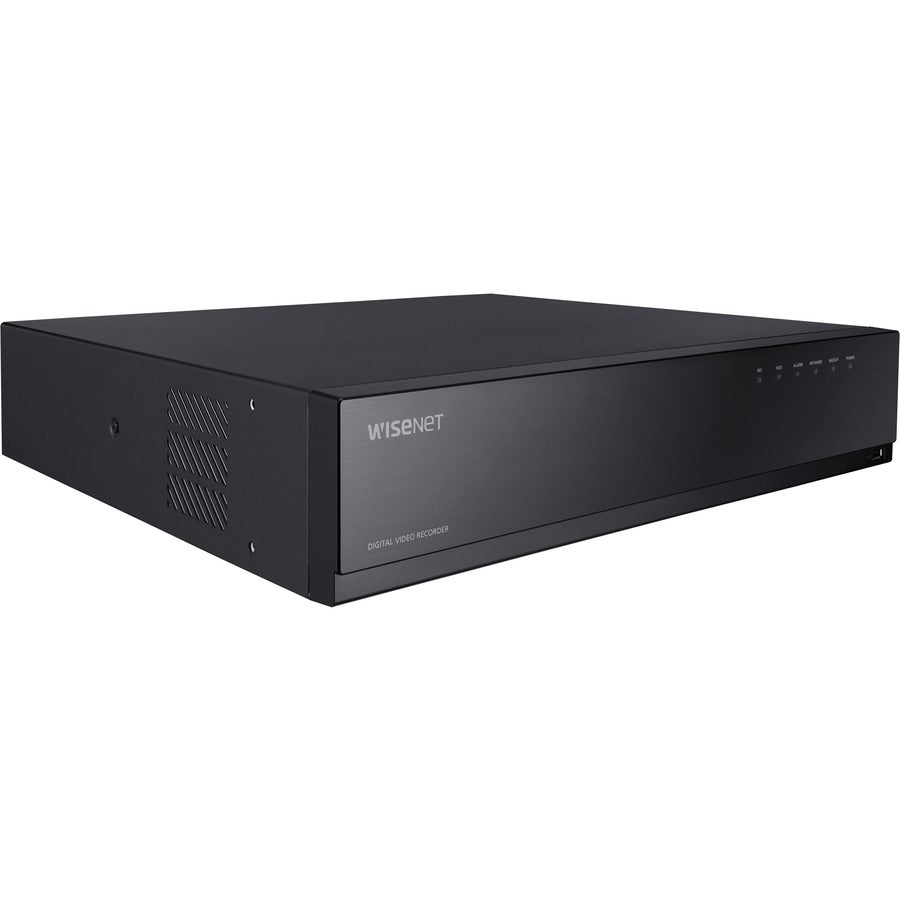

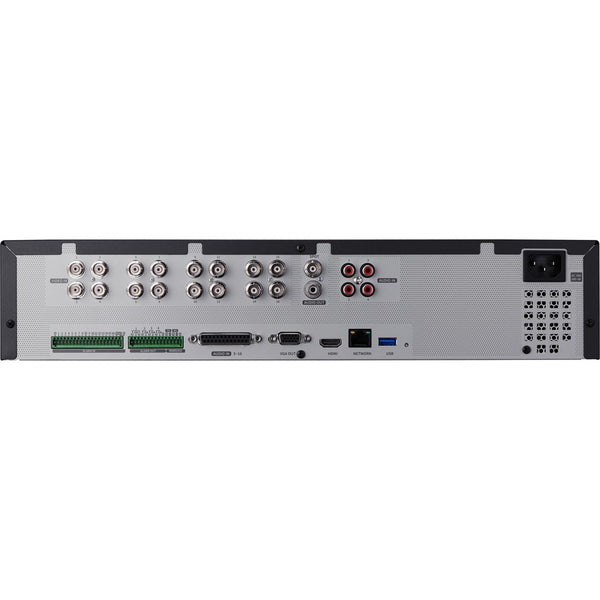

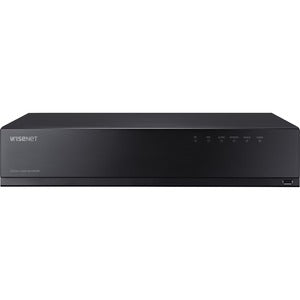

Wisenet 16CH Pentabrid DVR - 4 TB HDD
SKU: HRX-1635-4TB
Wisenet 16CH Pentabrid DVR - 4 TB HDD - Digital Video Recorder - HDMI - 4K Recording
- 5-in-1 16CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 18 Channels (Analog Maximum 16 channel + Network Maximum 2 channels supported), up to 8MP
- H.265, H.264, MJPEG codec
- Recording Analog Camera up 8MP(15fps), 5MP(20fps), 4MP(30fps), 2MP(30fps),1MP(30fps), 960H(or 720H)(30fps) , per channel
- Recording Bandwidth Max. 128Mbps, Playback Bandwidth 32Mbps.
- 4 channel audio input/ 1 channel audio output, 16 alarm input and 4 relay output
- Coaxial control
- Up to 8 SATA HDDs (6TB/HDD)
- HDMI/VGA video output, 1 X spot monitor output
Call for Availability
Regular price
$1,351.27
Sale price
$1,847.00
On Sale
Shipping calculated at checkout
Wisenet 16CH Pentabrid DVR - 4 TB HDD - Digital Video Recorder - HDMI - 4K Recording
- 5-in-1 16CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 18 Channels (Analog Maximum 16 channel + Network Maximum 2 channels supported), up to 8MP
- H.265, H.264, MJPEG codec
- Recording Analog Camera up 8MP(15fps), 5MP(20fps), 4MP(30fps), 2MP(30fps),1MP(30fps), 960H(or 720H)(30fps) , per channel
- Recording Bandwidth Max. 128Mbps, Playback Bandwidth 32Mbps.
- 4 channel audio input/ 1 channel audio output, 16 alarm input and 4 relay output
- Coaxial control
- Up to 8 SATA HDDs (6TB/HDD)
- HDMI/VGA video output, 1 X spot monitor output
Composite Video In:
Yes
Composite Video Out:
Yes
Connectivity Technology:
Wired
DVR Weight:
16.98 lb
Ethernet:
Yes
Hard Drive Capacity:
4 TB
HDMI:
Yes
HD Recording:
Yes
Limited Warranty:
3 Year
Manufacturer:
Hanwha Group
Manufacturer Website Address:
http://www.hanwha.com
Maximum Frame Rate:
30 fps
Maximum Resolution:
8MP
Number of VGA Out:
1
Power Consumption:
200 W
Product Model:
HRX-1635
Product Type:
Video Surveillance Station
Recording Formats:
4K
Remote Management:
Yes
System Components:
Digital Video Recorder
Total Number of Audio In Ports:
4
Total Number of Audio Out Ports:
1
Total Number of Channels:
16
USB:
Yes
Video Formats:
H.265,H.264,Motion JPEG
Video Signal Format:
PAL,NTSC
