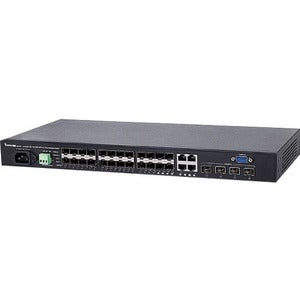

Vivotek L2 Plus Managed Switch 20xGE SFP + 4xCombo GE + 4x1G/10G SFP+
SKU: AW-GTS-287A
VIVOTEK's AW-GTS-287A L2 Plus Managed Switch is a next-generation Fiber Switch offering a full suite of L2 Plus features and additional 1G/10G SFP+ uplink connections. The AW-GTS-287A L2 Plus includes advanced L3 features such as Static Route that delivers a better cost-performance ratio and a lower total cost of ownership in both Enterprise networks and backbone via fiber or copper connections.
With high Gigabit port densities and Gigabit SFP, 1G/10G SFP+ support, the GTS-287A switch can act as either a departmental access layer or as an aggregation switch to form a multilevel network. Service providers can take advantage of the high SFP density to structure the aggregation of Fiber to the Building (FTTB) networks that can be extended to subscribers' sites.
The AW-GTS-287A can be programmed for a number of advanced switch management functions, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control, IGMP/MLD snooping, GARP VLAN Registration Protocol (GVRP) and sFlow. Through link-aggregation of supporting ports, the AW-GTS-287A allows the operation of a high-speed trunk to combine with multiple ports. It enables a maximum of 14 trunk groups, with up to 16 ports in each group, and also supports connection fail-over.
The AW-GTS-287A is also specially equipped with one 100~240V AC power supply unit and one 24~72V DC power supply unit to provide enhanced reliability and enable scalable redundant power supply installation. The continuous power system is designed to fulfill the specific demands of high tech facilities requiring the highest power integrity and stability.
With high Gigabit port densities and Gigabit SFP, 1G/10G SFP+ support, the GTS-287A switch can act as either a departmental access layer or as an aggregation switch to form a multilevel network. Service providers can take advantage of the high SFP density to structure the aggregation of Fiber to the Building (FTTB) networks that can be extended to subscribers' sites.
The AW-GTS-287A can be programmed for a number of advanced switch management functions, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control, IGMP/MLD snooping, GARP VLAN Registration Protocol (GVRP) and sFlow. Through link-aggregation of supporting ports, the AW-GTS-287A allows the operation of a high-speed trunk to combine with multiple ports. It enables a maximum of 14 trunk groups, with up to 16 ports in each group, and also supports connection fail-over.
The AW-GTS-287A is also specially equipped with one 100~240V AC power supply unit and one 24~72V DC power supply unit to provide enhanced reliability and enable scalable redundant power supply installation. The continuous power system is designed to fulfill the specific demands of high tech facilities requiring the highest power integrity and stability.
- Ethernet Switch ensures productivity by providing an efficient, hassle-free connection
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Rack mounting enables you to organize wires & secure cables for professional installation
- Management capability allows maximum efficiency and with unrestricted control
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Call for Availability
Regular price
$2,099.35
Sale price
$2,300
On Sale
Shipping calculated at checkout
VIVOTEK's AW-GTS-287A L2 Plus Managed Switch is a next-generation Fiber Switch offering a full suite of L2 Plus features and additional 1G/10G SFP+ uplink connections. The AW-GTS-287A L2 Plus includes advanced L3 features such as Static Route that delivers a better cost-performance ratio and a lower total cost of ownership in both Enterprise networks and backbone via fiber or copper connections.
With high Gigabit port densities and Gigabit SFP, 1G/10G SFP+ support, the GTS-287A switch can act as either a departmental access layer or as an aggregation switch to form a multilevel network. Service providers can take advantage of the high SFP density to structure the aggregation of Fiber to the Building (FTTB) networks that can be extended to subscribers' sites.
The AW-GTS-287A can be programmed for a number of advanced switch management functions, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control, IGMP/MLD snooping, GARP VLAN Registration Protocol (GVRP) and sFlow. Through link-aggregation of supporting ports, the AW-GTS-287A allows the operation of a high-speed trunk to combine with multiple ports. It enables a maximum of 14 trunk groups, with up to 16 ports in each group, and also supports connection fail-over.
The AW-GTS-287A is also specially equipped with one 100~240V AC power supply unit and one 24~72V DC power supply unit to provide enhanced reliability and enable scalable redundant power supply installation. The continuous power system is designed to fulfill the specific demands of high tech facilities requiring the highest power integrity and stability.
With high Gigabit port densities and Gigabit SFP, 1G/10G SFP+ support, the GTS-287A switch can act as either a departmental access layer or as an aggregation switch to form a multilevel network. Service providers can take advantage of the high SFP density to structure the aggregation of Fiber to the Building (FTTB) networks that can be extended to subscribers' sites.
The AW-GTS-287A can be programmed for a number of advanced switch management functions, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control, IGMP/MLD snooping, GARP VLAN Registration Protocol (GVRP) and sFlow. Through link-aggregation of supporting ports, the AW-GTS-287A allows the operation of a high-speed trunk to combine with multiple ports. It enables a maximum of 14 trunk groups, with up to 16 ports in each group, and also supports connection fail-over.
The AW-GTS-287A is also specially equipped with one 100~240V AC power supply unit and one 24~72V DC power supply unit to provide enhanced reliability and enable scalable redundant power supply installation. The continuous power system is designed to fulfill the specific demands of high tech facilities requiring the highest power integrity and stability.
- Ethernet Switch ensures productivity by providing an efficient, hassle-free connection
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Rack mounting enables you to organize wires & secure cables for professional installation
- Management capability allows maximum efficiency and with unrestricted control
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Ethernet Technology:
Gigabit Ethernet,10 Gigabit Ethernet
Expansion Slot Type:
SFP
Form Factor:
Rack-mountable
Layer Supported:
2
Manageable:
Yes
Manufacturer:
Vivotek, Inc
Manufacturer Website Address:
http://www.vivotek.com
Media Type Supported:
Optical Fiber,Twisted Pair
Modular:
Yes
Network Technology:
1000Base-X,10GBase-X,10/100/1000Base-T
Number of SFP+ Slots:
4
Number of SFP Slots:
24
Package Contents:
- L2 Plus Managed Switch 20xGE SFP + 4xCombo GE + 4x1G/10G SFP+
- Power Cord
- QIG
- CD Manual
- Rack Mount Kit
- Console cable
Port/Expansion Slot Details:
24 x Gigabit Ethernet Expansion Slot,4 x Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot
Power Source:
Power Supply
Product Model:
AW-GTS-287A
Product Type:
Ethernet Switch
Redundant Power Supply Supported:
No
Shared SFP Slot:
Yes
Stack Port:
No
TAA Compliant:
Yes
Total Number of Expansion Slots:
28.0
Total Number of Network Ports:
4
Uplink Port:
No
