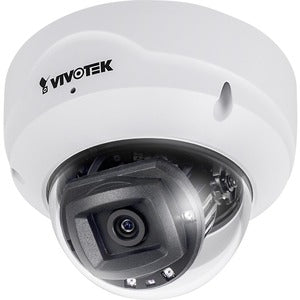

Vivotek FD9189-HT-v2 5 Megapixel Indoor Network Camera - Color - Dome - TAA Compliant

SKU: FD9189-HT-V2

VIVOTEK's FD9189-v2 series is a H.265 indoor dome network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9189-v2 series is capable of capturing high-quality imagery in both high-contrast and low-light environments.

The FD9189-v2 series offers two lens options for different user scenarios: fixed-focal and remote focus lenses. The camera is equipped with IR illuminators with a 30-meter effective range for better night visibility.

The FD9189-v2 series comes with VIVOTEK's Smart Stream III technology and H.265 codec support. It is capable of reducing bandwidth consumption to 90% while maintaining supreme image quality. Additionally, VIVOTEK's VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market.

  • 30 fps @ 2560x1920, 60 fps @ 1920x1080 (WDR Pro on)
  • WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Smart IR Technology to Avoid Overexposure
  • Trend Micro IoT Security
  • 2.8 ~ 10mm Motorized Lens

Call for Availability

Regular price $540

Shipping calculated at checkout

Details

VIVOTEK's FD9189-v2 series is a H.265 indoor dome network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9189-v2 series is capable of capturing high-quality imagery in both high-contrast and low-light environments.

The FD9189-v2 series offers two lens options for different user scenarios: fixed-focal and remote focus lenses. The camera is equipped with IR illuminators with a 30-meter effective range for better night visibility.

The FD9189-v2 series comes with VIVOTEK's Smart Stream III technology and H.265 codec support. It is capable of reducing bandwidth consumption to 90% while maintaining supreme image quality. Additionally, VIVOTEK's VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market.

  • 30 fps @ 2560x1920, 60 fps @ 1920x1080 (WDR Pro on)
  • WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Smart IR Technology to Avoid Overexposure
  • Trend Micro IoT Security
  • 2.8 ~ 10mm Motorized Lens
Specifications
Color Supported:
Color
Connectivity Technology:
Wired
Diameter:
5.1"
Effective Camera Resolution:
5 Megapixel
Features:
Wide Dynamic Range,Built-in Infrared Illuminator,Day/Night,White Balance,Defog,3D Noise Reduction,Electronic Image Stabilization,Back Light Compensation (BLC),Highlight Compensation (HLC),Gain Control,Privacy Masking,Audio Compression,Built-in Microphone,Password Protection,Cross Line Detection,Face Detection,Motion Detection,Audio Detection,SD Card Local Storage,Shock Detection
Field of View:
95° ~ 41° (Horizontal), 69° ~ 31° (Vertical), 127° ~ 51° (Diagonal)
Form Factor:
Dome
HD Recording:
Yes
Image Sensor Type:
CMOS
Indoor/Outdoor:
Indoor
Lens Included:
Yes
Lens Type:
Varifocal
Limited Warranty:
36 Month
Longest Shutter Speed:
1/5 Second
Manufacturer:
Vivotek, Inc
Manufacturer Website Address:
http://www.vivotek.com
Maximum Aperture:
f/2.74
Maximum Focal Length:
10 mm
Maximum Frame Rate:
60 fps
Maximum Operating Humidity:
90%
Maximum Operating Temperature:
122°F (50°C)
Maximum Video Resolution:
2560 x 1920
Minimum Aperture:
f/1.8
Minimum Focal Length:
2.80 mm
Minimum Operating Temperature:
14°F (-10°C)
Network (RJ-45):
Yes
Night Vision:
Yes
Night Vision Distance:
98.43 ft
Night Vision Type:
Infrared
Number of IR LEDs:
4
Optical Zoom:
3.6x
Package Contents:
  • FD9189-HT-v2 Network Camera
  • Quick Installation Guide
  • Alignment Sticker
  • Screw Pack
Product Model:
FD9189-HT-v2
Product Series:
FD9189-v2
Product Type:
Network Camera
Remote Management:
Yes
Shortest Shutter Speed:
1/32000 Second
Storage Type:
Memory Card
TAA Compliant:
Yes
Video Formats:
H.264,MJPEG,H.265
