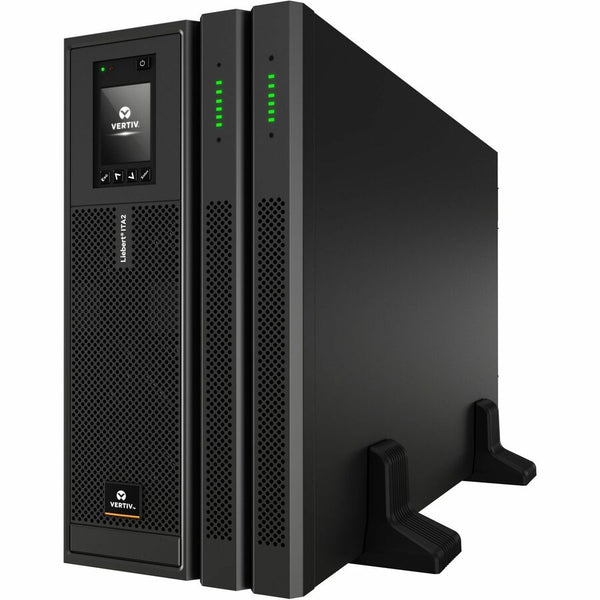

Vertiv Liebert ITA2 UPS 8kVA/7.2kW; 208/120VAC (220/127VAC) - 3-phase 4 Wire with SNMP card, 1 pair of ITA2 Li-ion battery (ITA2LI-08KRT2085UN)
SKU: ITA2LI-08KRT2085UN
The Vertiv Liebert ITA2 is a compact, rack-tower convertible uninterruptible power system (UPS) that employs true online, double-conversion technology that continuously conditions and regulates its output voltage. The Liebert ITA2 is designed to supply microcomputers, servers, networking, and other sensitive equipment with clean sine wave input power. It offers economical, efficient, and reliable three-phase power for critical loads up to 8kVA. In rackmount or tower configuration, this intelligent UPS has scalable battery runtimes, output distribution options, a high power factor and an optional maintenance bypass cabinet. It is easy to install and operate. It has a 2-year warranty. The Vertiv MPL for Liebert ITA2 External Battery Cabinet System has a rackmount or tower configuration. The EBC System consists of (2) 1U cabinets per string (total 2U per string) and provides the Liebert ITA2 UPS with extended battery runtimes. It is easy to install and operate. It has a 5-year warranty.
- Reliable 3-phase power protection for critical systems
- Online Double Conversion UPS Technology
- High operating efficiency (>93% in double conversion mode, 99% in eco mode)
- Advanced battery monitoring
- 0.9 Output Power Factor rating, Energy Star 2.0 certification
Call for Availability
Regular price
$24,745
Shipping calculated at checkout
The Vertiv Liebert ITA2 is a compact, rack-tower convertible uninterruptible power system (UPS) that employs true online, double-conversion technology that continuously conditions and regulates its output voltage. The Liebert ITA2 is designed to supply microcomputers, servers, networking, and other sensitive equipment with clean sine wave input power. It offers economical, efficient, and reliable three-phase power for critical loads up to 8kVA. In rackmount or tower configuration, this intelligent UPS has scalable battery runtimes, output distribution options, a high power factor and an optional maintenance bypass cabinet. It is easy to install and operate. It has a 2-year warranty. The Vertiv MPL for Liebert ITA2 External Battery Cabinet System has a rackmount or tower configuration. The EBC System consists of (2) 1U cabinets per string (total 2U per string) and provides the Liebert ITA2 UPS with extended battery runtimes. It is easy to install and operate. It has a 5-year warranty.
- Reliable 3-phase power protection for critical systems
- Online Double Conversion UPS Technology
- High operating efficiency (>93% in double conversion mode, 99% in eco mode)
- Advanced battery monitoring
- 0.9 Output Power Factor rating, Energy Star 2.0 certification
Additional Warranty Information:
2 year standard; 1 & 3 Additional years optional
Alarm:
Alarm
Application/Usage:
Server,Network Workstation,Network Closet,VoIP Device,Large Network Peripheral,IOT Device,Electronic
Backup/Run Time (Full Load):
14 Minute
Backup/Run Time (Half Load):
28 Minute
Battery Chemistry:
Lithium Ion (Li-Ion)
Circuit Breaker:
Yes
Country of Origin:
China
EMI/RFI Noise Filter:
Yes
Energy Efficiency Certification:
ENERGY STAR 2.0
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) 2
EPO Port:
Yes
Features:
Built-in Bypass Switch
Form Factor:
Rack/Tower
Hot Swappable:
Yes
Input Current:
24 A
Input Voltage:
120 V AC,230 V AC
Input Voltage Range:
166 V AC - 249 V AC
Limited Warranty:
2 Year
Load Capacity (VA):
8000 VA
Load Capacity (Watt):
7200 W
Manufacturer:
Vertiv
Manufacturer Website Address:
http://www.vertiv.com/
Maximum Operating Temperature:
122°F (50°C)
Minimum Operating Temperature:
32°F (0°C)
Network (RJ-45):
Yes
Network Management:
SNMP,Modbus TCP,Network Card
Output Power Factor:
0.9
Output Voltage:
208 V AC,120 V AC,220 V AC,127 V AC
Overload Protection:
Yes
Packaged Quantity:
1
Package Contents:
- ITA2LI-08KRT2085UN UPS
- USB Cable
- Rack Handles & Associated Hardware
- Rack Rail Kit & Associated Hardware
- Wiring Boxes with Knockouts Installed on Back of Module
- 4 x Support Base ends for Tower Mount Application
- 2 x Support Base Extension
- Quick Start Guide (install & Start-up)/Safety Instruction Booklet
- IS-Unity-DP Intellislot Communication Card Installed
- Power Cable Kit - UPS to 1st Battery String
- Communication Cable - UPS to 1st Battery String
- 1 x string Li-ion Battery Cabinets
Phase:
Three Phase
Plug/Connector Type:
Hardwired
Product Color:
Black,Gray
Product Condition:
New
Product Series:
ITA2
Product Type:
Double Conversion Online UPS
Rack Height:
3U
Receptacle Type:
Hardwired
Replaceable Battery:
Yes
Serial Port:
Yes
Sound Emission (A-Weighted):
58 dB(A)
Surge Energy Rating:
80 J
Surge Suppression:
Yes
TAA Compliant:
No
Thermal Dissipation:
533.10 W
Transfer Time:
0 ns
Typical Battery Recharge Time:
2 Hour
USB:
Yes
Waveform Type:
Pure Sine Wave
