Vertiv Geist Rack Transfer Switch PDU with Next-Generation IMD - 1U| 30A| 208V| 4.9kW| (2) NEMA L6-30P Plug| (1) NEMA L6-30C Outlet| VA4N31A0
SKU: VA4N31A0
The Vertiv Geist Rack Transfer Switch VA4N31A0 is a 30A, 208V, single phase unit level monitored rPDU with (1) NEMA L6-30C outlet and (2) NEMA L6-30P plug that provides 4.9kW of power capacity. This unit provides backup power to single-corded devices and helps ensure continuity in the event of power loss. It quickly detects power loss on the main source and automatically switches to the secondary source within less than 4 to 8 milliseconds. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- Vertiv Geist Rack Transfer Switch gives backup power to single corded devices in case of power loss
- VA4N31A0 is a 30A, 208V, rPDU with 4.9kW power capacity, NEMA L6-30C outlet, and 2 NEMA L6-30P plug

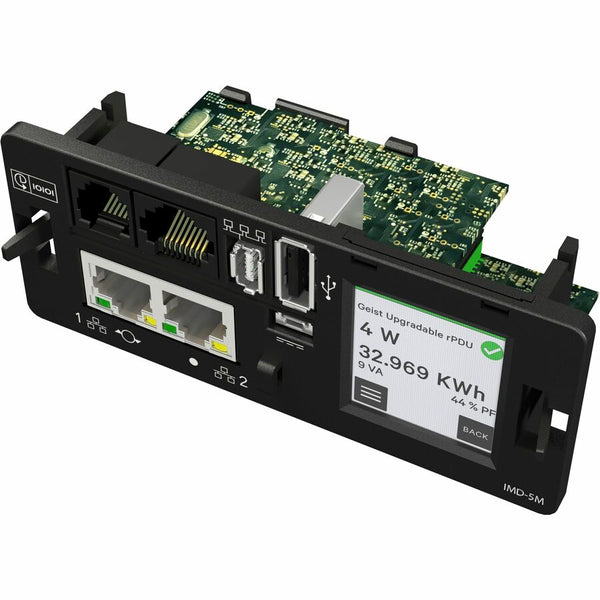

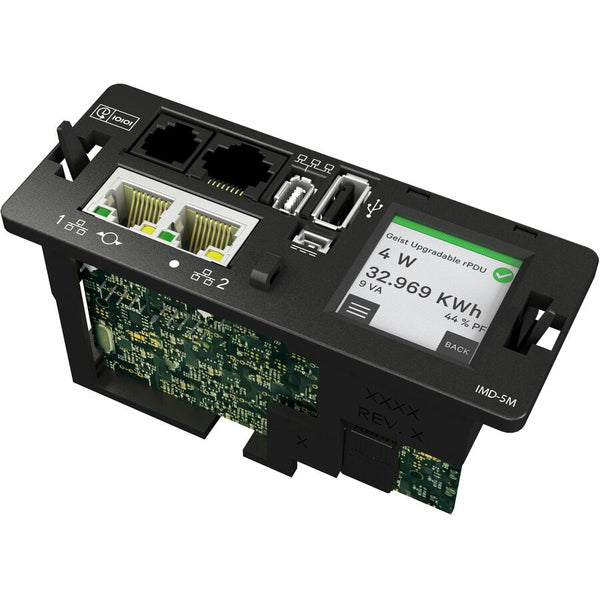

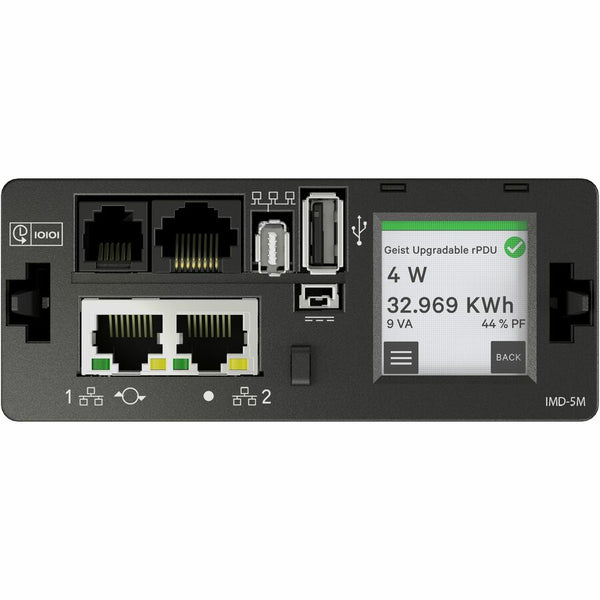

- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
Call for Availability
Regular price
$2,310
Shipping calculated at checkout
The Vertiv Geist Rack Transfer Switch VA4N31A0 is a 30A, 208V, single phase unit level monitored rPDU with (1) NEMA L6-30C outlet and (2) NEMA L6-30P plug that provides 4.9kW of power capacity. This unit provides backup power to single-corded devices and helps ensure continuity in the event of power loss. It quickly detects power loss on the main source and automatically switches to the secondary source within less than 4 to 8 milliseconds. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- Vertiv Geist Rack Transfer Switch gives backup power to single corded devices in case of power loss
- VA4N31A0 is a 30A, 208V, rPDU with 4.9kW power capacity, NEMA L6-30C outlet, and 2 NEMA L6-30P plug
- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Cord Length:
20 ft
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS)
Features:
LCD Display,Touch Screen Display
Form Factor:
Rack
Input Current:
30 A
Input Voltage:
230 V AC
Input Voltage Range:
200 V AC - 240 V AC
Limited Warranty:
5 Year
Management:
Manufacturer:
Vertiv
Manufacturer Website Address:
http://www.vertiv.com/
Mounting Orientation:
Horizontal
Mount Type:
Rack-mountable
Network (RJ-45):
Yes
Output Voltage Range:
200 V AC - 240 V AC
PDU Type:
Monitored
Phase:
Single Phase
Plug/Connector Detail:
2 x NEMA L6-30P
Plug/Connector Type:
NEMA L6-30P
Power Rating (Watt):
4900 W
Product Color:
Black
Product Line:
Geist Upgradeable
Product Model:
AN03E1R5-11TL68-3TL6TL6A011-D
Product Series:
N
Product Type:
PDU
Rack Height:
1U
Receptacle Detail:
1 x NEMA L6-30C
Receptacle Type:
NEMA L6-30C
Remote Outlet Switching:
No
TAA Compliant:
Yes
