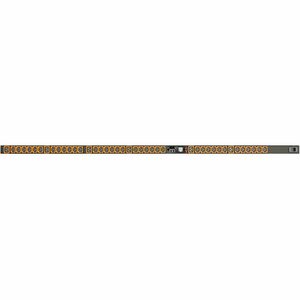

Vertiv Geist Monitored VP4UV0A1 PDU
SKU: VP4UV0A1
The Vertiv Geist Monitored RPDU VP4UV0A1 is a 16A/20A, 120V/208V/230V, 0U, horizontal rack power distribution unit with input power monitoring and outlet level switching. It has (36) IEC C13 and (6) IEC C19 outlets, a C20 inlet, and 1.9kW/3.3kW/3.6kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next Generation IMD which displays power data via its 128x128 high-visibility touchscreen LCD. The touchscreen interface allows users to provision their rPDU without a need for a network connection. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with secure boot is added in the device to help ensure data and operations are protected. The units are CE Marked and individually tested for functionality and reliability.
- PDU is reliable for power protection and management solutions
- Before critical input source become overloaded always be warned with monitored PDUs
- U-Lock IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- Single Phase phase PDU for reliable performance with maximum productivity
- IEC 60320 C20 plug/connector type for better, dependable connectivity and desired power output
- 230 V AC input voltage for optimal performance with maximum usability
Call for Availability
Regular price
$1,400
Shipping calculated at checkout
The Vertiv Geist Monitored RPDU VP4UV0A1 is a 16A/20A, 120V/208V/230V, 0U, horizontal rack power distribution unit with input power monitoring and outlet level switching. It has (36) IEC C13 and (6) IEC C19 outlets, a C20 inlet, and 1.9kW/3.3kW/3.6kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next Generation IMD which displays power data via its 128x128 high-visibility touchscreen LCD. The touchscreen interface allows users to provision their rPDU without a need for a network connection. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with secure boot is added in the device to help ensure data and operations are protected. The units are CE Marked and individually tested for functionality and reliability.
- PDU is reliable for power protection and management solutions
- Before critical input source become overloaded always be warned with monitored PDUs
- U-Lock IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- Single Phase phase PDU for reliable performance with maximum productivity
- IEC 60320 C20 plug/connector type for better, dependable connectivity and desired power output
- 230 V AC input voltage for optimal performance with maximum usability
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Application/Usage:
IT Equipment
Cord Length:
10 ft
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS)
Features:
Touch Screen Display,LCD Display
Input Current:
20 A
Input Frequency:
60 Hz
Input Voltage:
230 V AC
Input Voltage Range:
100 V AC - 240 V AC
Length:
70"
Limited Warranty:
5 Year
Load Capacity (Watt):
3600 W
Management:
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
Manufacturer:
Vertiv
Manufacturer Website Address:
http://www.vertiv.com/
Maximum Operating Temperature:
140°F (60°C)
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Network (RJ-45):
Yes
Output Voltage Range:
100 V AC - 240 V AC
Package Contents:
- rPDU MU05M4W0-42PZ67-2C20A9A00-S 42-Outlets PDU
- UPDU Mounting Bracket Kit
PDU Type:
Monitored
Phase:
Single Phase
Plug/Connector Detail:
1 x IEC 60320 C20
Plug/Connector Type:
IEC 60320 C20
Power Rating (Watt):
3600 W
Product Color:
Black Powder Coat
Product Line:
Geist Upgradeable
Product Model:
MU05M4W0-42PZ67-2C20A9A00-S
Product Series:
G
Product Type:
PDU
Rack Height:
0U
Receptacle Detail:
36 x U-Lock IEC 60320 C13,6 x U-Lock IEC 60320 C19
Receptacle Type:
U-Lock IEC 60320 C13,U-Lock IEC 60320 C19
Remote Outlet Switching:
No
TAA Compliant:
Yes
