Vertiv Geist Monitored RPDU with Next-Generation IMD - 0U Rack| 30A| 120V/208V WYE| 36 Combination C13/C19 outlets| L21-30P| 8.6kW| VP4N30AN
SKU: VP4N30AN
The Vertiv Geist Monitored Rack PDU VP4N30AN is a 30A, 120V/208V WYE, 3-phase upgradeable rack power distribution unit with input power monitoring. It has 36 Combination C13/C19 outlets, and an L21-30P plug providing 8.6kW of power capacity. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of downtime from accidental disconnections and are also P-Lock compatible. This unit offers remote power monitoring and environmental sensors to remotely manage the rPDU through any web browser or serial communication. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- The Monitored RPDU provides access to power usage data so you can see trends and maximize uptime
- VP4N30AN is a vertical rack mount PDU with 36 Combination C13/C19 outlets and an L21-30P plug

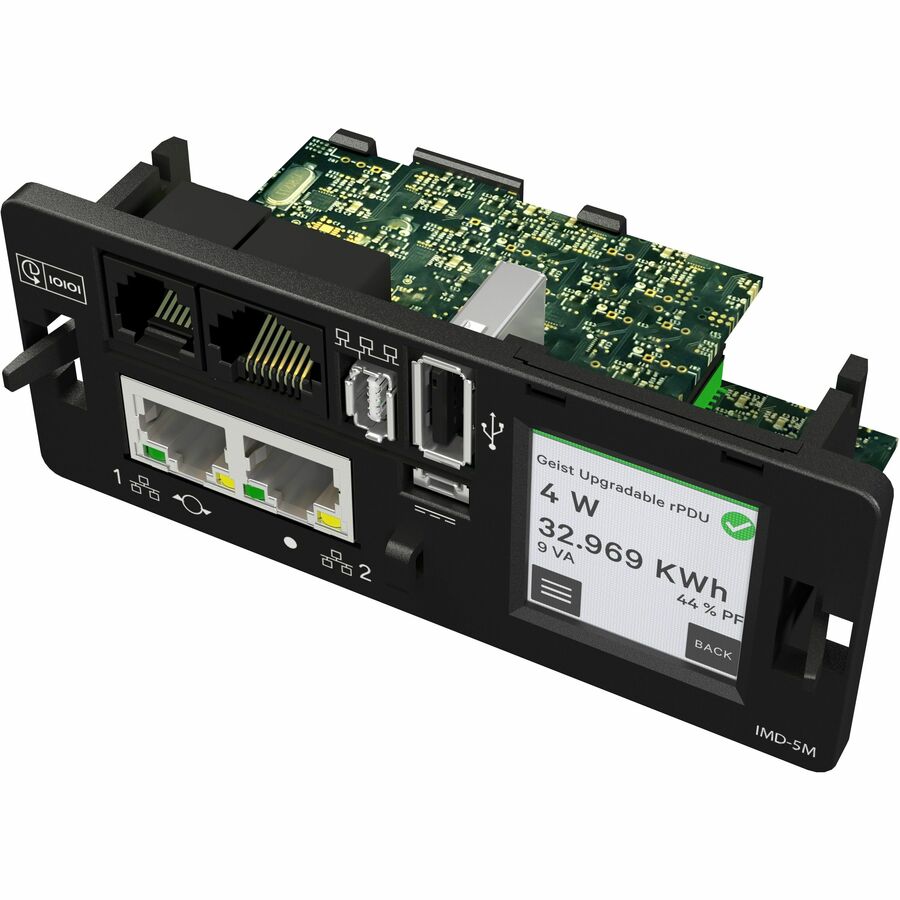

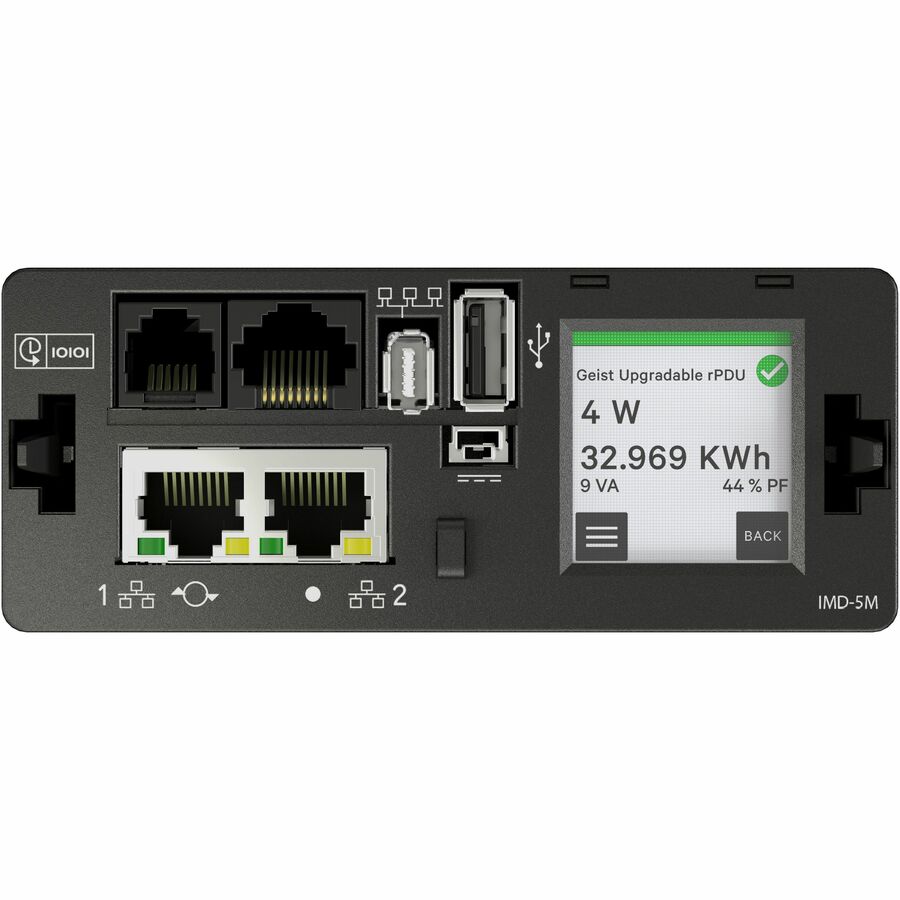

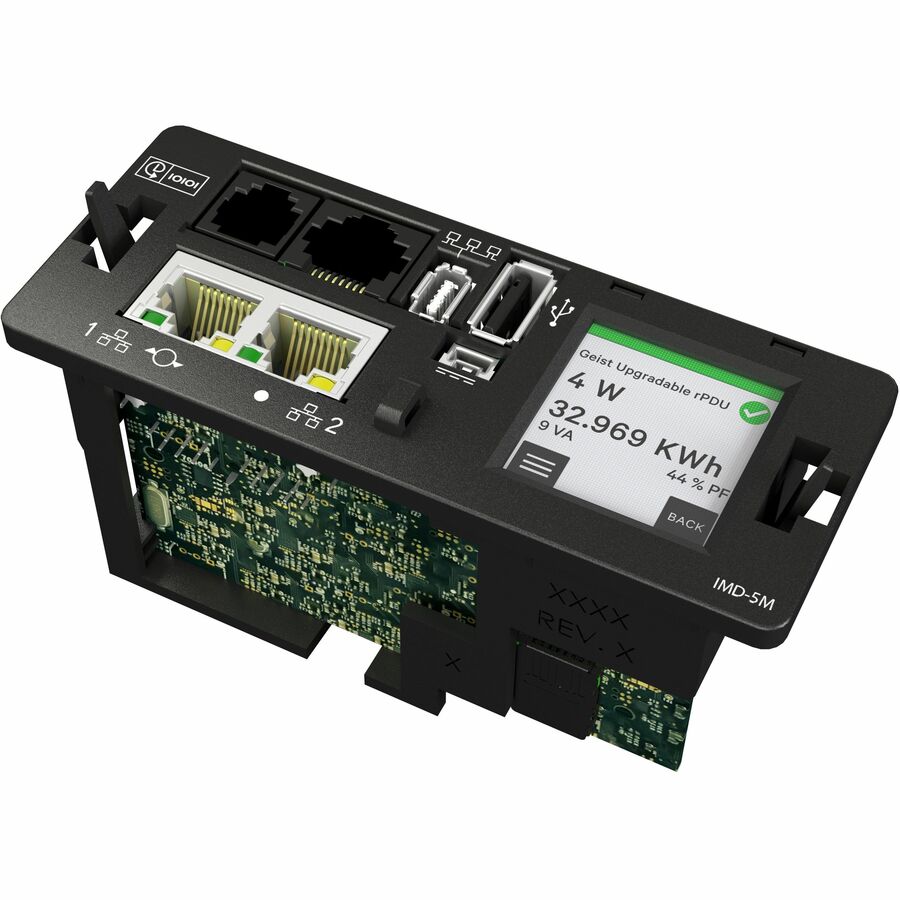

- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
Call for Availability
Regular price
$1,909
Shipping calculated at checkout
The Vertiv Geist Monitored Rack PDU VP4N30AN is a 30A, 120V/208V WYE, 3-phase upgradeable rack power distribution unit with input power monitoring. It has 36 Combination C13/C19 outlets, and an L21-30P plug providing 8.6kW of power capacity. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of downtime from accidental disconnections and are also P-Lock compatible. This unit offers remote power monitoring and environmental sensors to remotely manage the rPDU through any web browser or serial communication. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- The Monitored RPDU provides access to power usage data so you can see trends and maximize uptime
- VP4N30AN is a vertical rack mount PDU with 36 Combination C13/C19 outlets and an L21-30P plug
- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Cord Length:
10 ft
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS)
Features:
LCD Display,Touch Screen Display
Form Factor:
Rack
Input Current:
30 A
Input Voltage:
120 V AC,230 V AC
Input Voltage Range:
100 V AC - 120 V AC,200 V AC - 240 V AC
Length:
2"
Limited Warranty:
5 Year
Management:
Manufacturer:
Vertiv
Manufacturer Website Address:
http://www.vertiv.com/
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Network (RJ-45):
Yes
Output Voltage:
120 V AC,240 V AC
Output Voltage Range:
100 V AC - 120 V AC,200 V AC - 240 V AC
PDU Type:
Monitored
Phase:
Three Phase
Plug/Connector Detail:
1 x NEMA L21-30P
Plug/Connector Type:
NEMA L21-30P
Power Rating (Watt):
8600 W
Product Line:
Geist Upgradeable
Product Type:
PDU
Rack Height:
0U
Receptacle Detail:
36 x Combination C13/C19
Receptacle Type:
Combination C13/C19
Remote Outlet Switching:
No
TAA Compliant:
Yes
