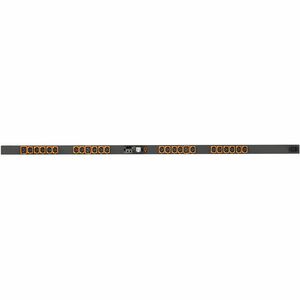

Vertiv Geist GU VP7U20A1 PDU
SKU: VP7U20A1
The Vertiv Geist Switched RPDU VP7U20A1 is a 16A/20A, 120V/208V/230V, 0U, vertical rack power distribution unit with input and outlet level power monitoring and outlet level switching. It has (21) IEC C13 and (3) IEC C19 outlets, a C20 inlet, and 1.9kW/3.3kW/3.6kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next Generation IMD which displays power data via its 128x128 high-visibility touchscreen LCD. The touchscreen interface allows users to provision their rPDU without a need for a network connection. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with secure boot is added in the device to help ensure data and operations are protected. The units are CE Marked and individually tested for functionality and reliability.
- Electric power fitted to racks of computers and networking equipment within a data center
- With switched PDU, remotely monitor, connect or disconnect data center loads
- U-Lock IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
- Single Phase phase PDU provides optimal power output with added usability
- 1P+N+E (IP44) plug/connector type for efficient connectivity and feasible power output
- 230 V AC input voltage for optimal performance with maximum usability
- 120 V AC output voltage for optimal performance with maximum feasibility
Call for Availability
Regular price
$2,688
Shipping calculated at checkout
The Vertiv Geist Switched RPDU VP7U20A1 is a 16A/20A, 120V/208V/230V, 0U, vertical rack power distribution unit with input and outlet level power monitoring and outlet level switching. It has (21) IEC C13 and (3) IEC C19 outlets, a C20 inlet, and 1.9kW/3.3kW/3.6kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next Generation IMD which displays power data via its 128x128 high-visibility touchscreen LCD. The touchscreen interface allows users to provision their rPDU without a need for a network connection. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with secure boot is added in the device to help ensure data and operations are protected. The units are CE Marked and individually tested for functionality and reliability.
- Electric power fitted to racks of computers and networking equipment within a data center
- With switched PDU, remotely monitor, connect or disconnect data center loads
- U-Lock IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
- Single Phase phase PDU provides optimal power output with added usability
- 1P+N+E (IP44) plug/connector type for efficient connectivity and feasible power output
- 230 V AC input voltage for optimal performance with maximum usability
- 120 V AC output voltage for optimal performance with maximum feasibility
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Application/Usage:
IT Equipment
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS)
Features:
Touch Screen Display,LCD Display
Input Current:
20 A
Input Frequency:
60 Hz
Input Voltage:
230 V AC
Input Voltage Range:
100 V AC - 240 V AC
Length:
66.3"
Limited Warranty:
5 Year
Load Capacity (Watt):
3600 W
Management:
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
Manufacturer:
Vertiv
Manufacturer Website Address:
http://www.vertiv.com/
Maximum Operating Temperature:
140°F (60°C)
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Network (RJ-45):
Yes
Output Voltage:
120 V AC,208 V AC,230 V AC
Output Voltage Range:
100 V AC - 240 V AC
Package Contents:
- rPDU MUU5MGB0-24PK37-2C20A9A00-S 24-Outlets PDU
- Vertical Mounting Bracket Kit
PDU Type:
Switched
Phase:
Single Phase
Plug/Connector Type:
1P+N+E (IP44)
Power Rating (Watt):
3600 W
Product Color:
Black Powder Coat
Product Line:
Geist Upgradeable
Product Model:
MUU5MGB0-24PK37-2C20A9A00-S
Product Series:
G
Product Type:
PDU
Rack Height:
0U
Receptacle Detail:
21 x U-Lock IEC 60320 C13,3 x U-Lock IEC 60320 C19
Receptacle Type:
U-Lock IEC 60320 C13,U-Lock IEC 60320 C19
Remote Outlet Switching:
No
TAA Compliant:
Yes
