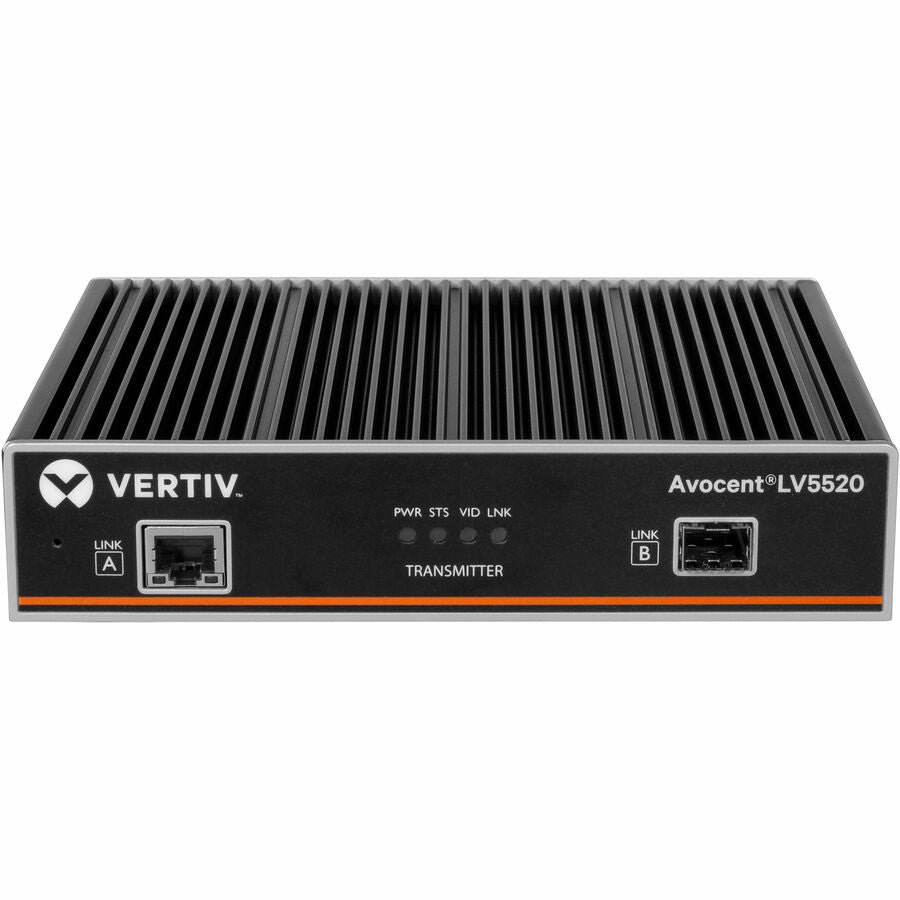

Vertiv Avocent LV5520 High-Performance KVM Extender | Transmitter

SKU: LV5520T-400

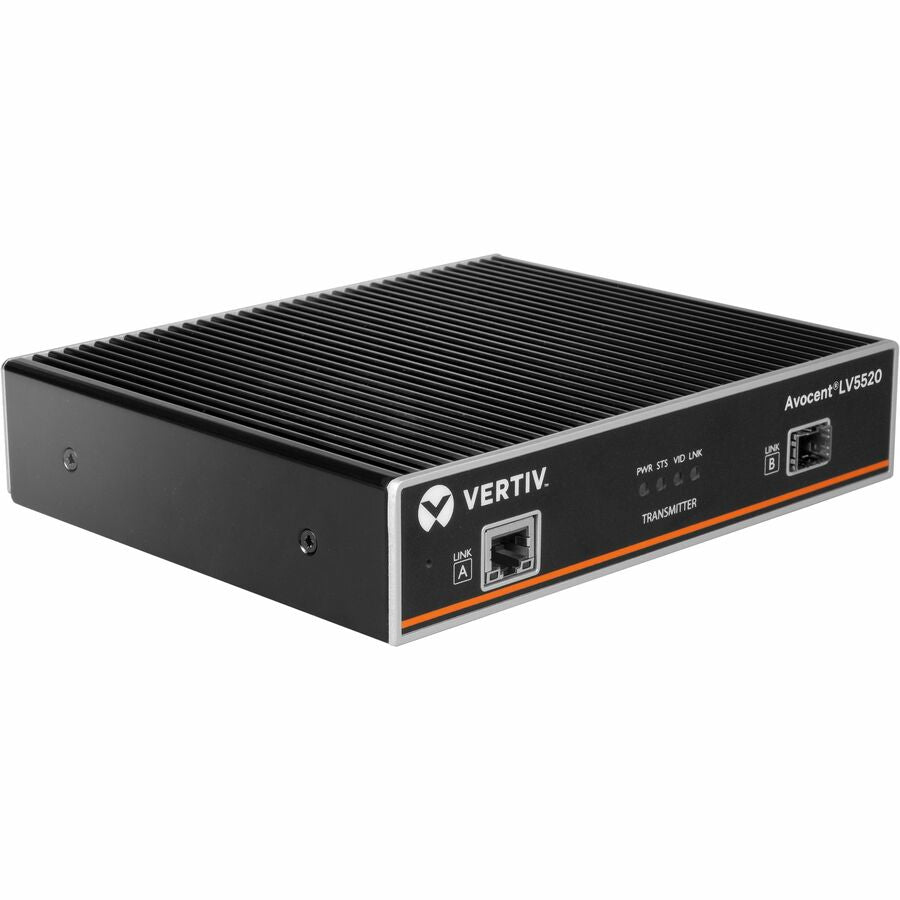

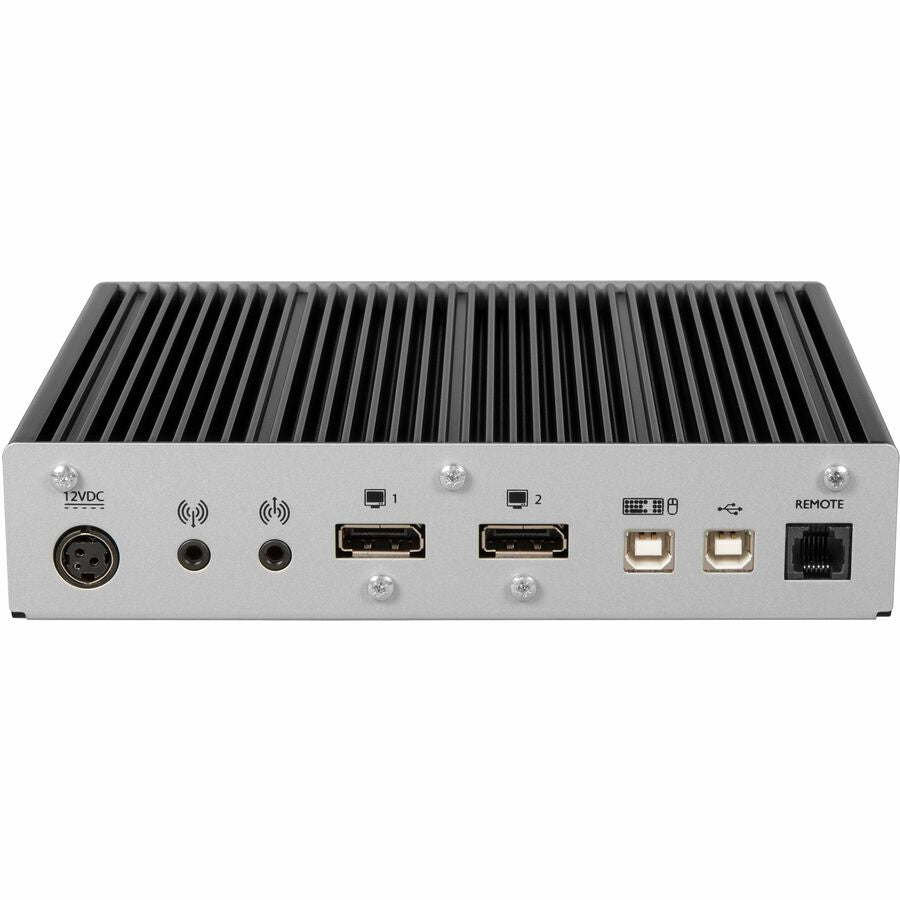

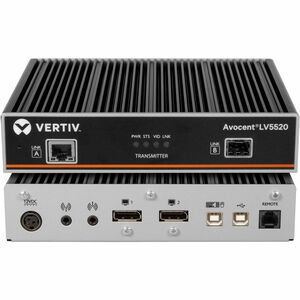

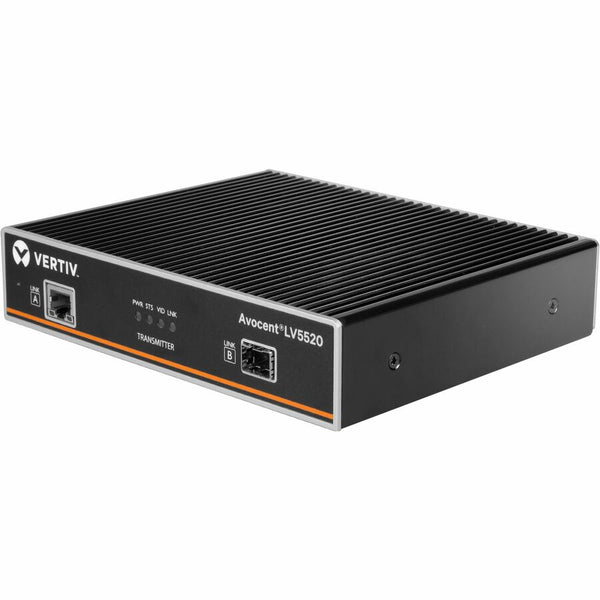

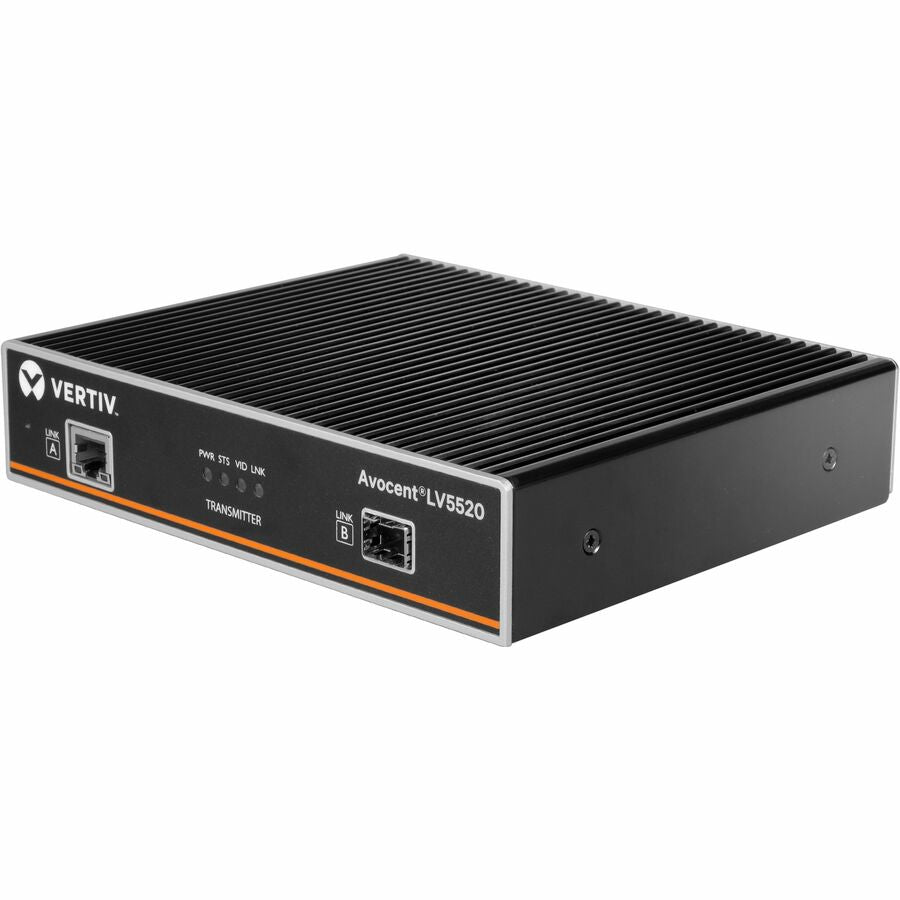

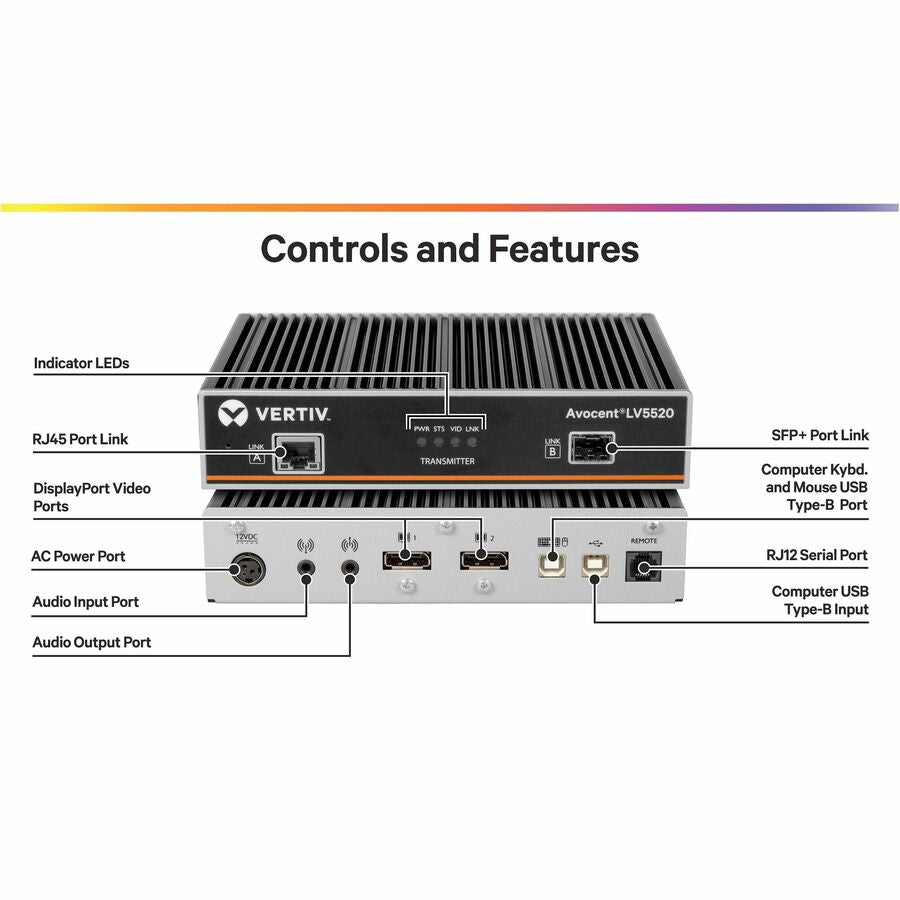

The Vertiv Avocent LongView 5520 Transmitter (LV5520T) is the latest in the Avocent high-performance KVM Extender family of products. The LV5520T comes equipped with dependable performance, along with intelligent EDID management. Coupled with the Avocent LV5520R, the LV5520T is a point-to-point high performance KVM extender that provides 24-bit color graphics over dual heads up to 4K @ 60Hz. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. It provides users with real-time access, high resolution clarity, and local console video output. The LV5520T connects either via a copper or fiber link and comes with a LED indicator that shows the quality of the link connection.

More from the Manufacturer

  • Delivers seamless KVM control and 4k video transmission.
  • Allows for greater distance with the Fiber Option.
  • Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head.
  • Plug-and-play with no drivers or software to install, and no on-site configuration required.
  • Faster throughput with updated USB.

Call for Availability

Regular price $2,133

Shipping calculated at checkout

Details

The Vertiv Avocent LongView 5520 Transmitter (LV5520T) is the latest in the Avocent high-performance KVM Extender family of products. The LV5520T comes equipped with dependable performance, along with intelligent EDID management. Coupled with the Avocent LV5520R, the LV5520T is a point-to-point high performance KVM extender that provides 24-bit color graphics over dual heads up to 4K @ 60Hz. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. It provides users with real-time access, high resolution clarity, and local console video output. The LV5520T connects either via a copper or fiber link and comes with a LED indicator that shows the quality of the link connection.

More from the Manufacturer

  • Delivers seamless KVM control and 4k video transmission.
  • Allows for greater distance with the Fiber Option.
  • Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head.
  • Plug-and-play with no drivers or software to install, and no on-site configuration required.
  • Faster throughput with updated USB.
Specifications
Color Family:
Black
Connectivity Technology:
Wired
Country of Origin:
United Kingdom
Device Type:
High Performance KVM
DisplayPort:
Yes
DVI:
No
Environmentally Friendly:
Yes
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS)
Form Factor:
Rack-mountable
Graphic Mode:
4K
HDMI:
No
Headphone:
Yes
Input Voltage:
120 V AC,230 V AC
Input Voltage Range:
100-240 VAC
KVM Technology:
Digital
Limited Warranty:
2 Year
Manufacturer:
Vertiv
Manufacturer Website Address:
http://www.vertiv.com/
Maximum Operating Distance:
13123.36 ft
Maximum Video Resolution:
4096 x 2160
Microphone:
Yes
Network (RJ-45):
Yes
Number of Computers Supported:
1
Number of DVI Ports:
0
Number of HDMI Ports:
0
Number of Local Users Supported:
1
Number of Network (RJ-45) Ports:
1
Number of PS/2 Ports:
0
Number of Remote Users Supported:
0
Number of USB Ports:
2
Number of VGA Ports:
0
Packaged Quantity:
1

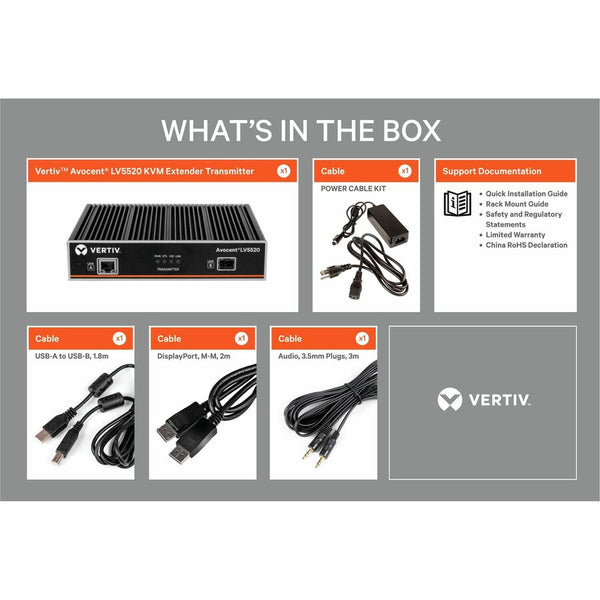

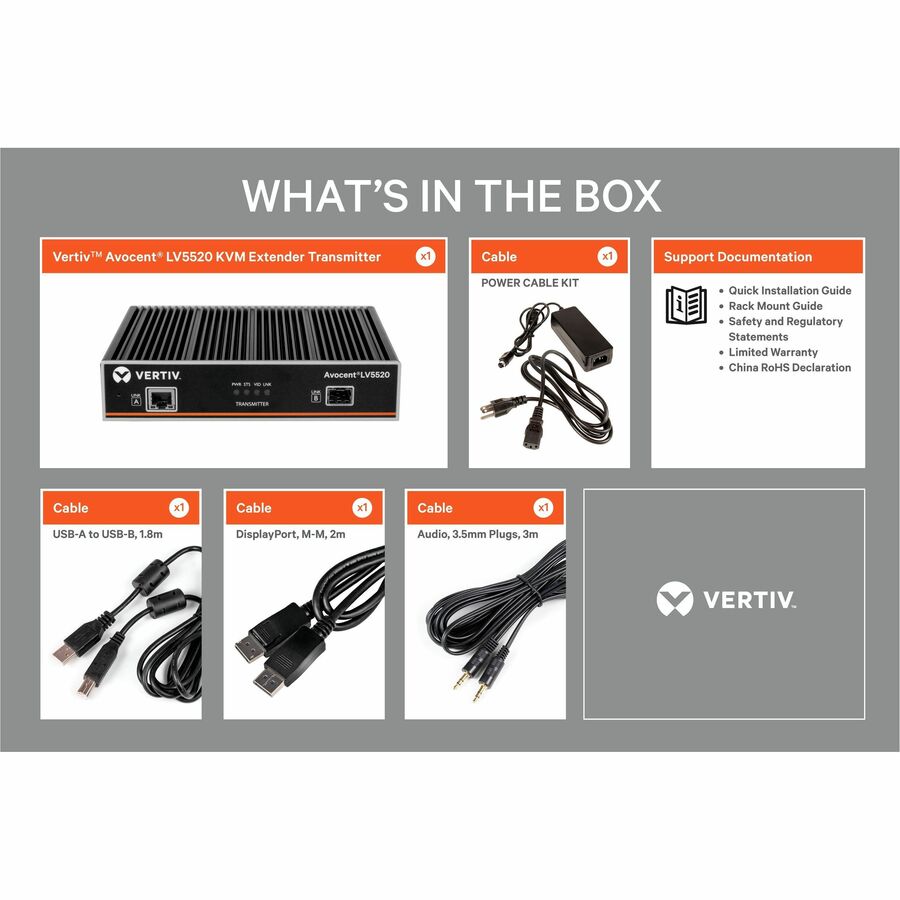

Package Contents:
  • LV5520 High-Performance KVM Extender | Transmitter
  • 1 x LV5500 Extender Quick Installation Guide
  • 1 x Extender RMK Quick Installation Guide
  • 1 x Compliance/Safety Sheet (See PLM BOM) 1 each
  • 1 x Customer Support/Warranty Card (See PLM BOM)
  • 1 x 3.5mm stereo plug to plug audio cable, 3meter
  • 2 x USB cable, Type A to Type B, 1.8meter
  • 2 x DisplayPort cable, M-M, High Bit-Rate, 2meter
  • 1 x Power supply: HK-AB-050A400-D56 or HK-25-AB-050A400-D56
  • 1 x China RoHS Declaration
  • 1 x Vertiv document wallet
Platform Supported:
PC,Mac,Unix,Sun,Linux
Power Consumption:
18 W
Product Color:
Black
Product Line:
LongView
Product Model:
LV5520T
Product Series:
5000
Product Type:
KVM Extender Receiver
Proprietary Interface:
No
PS/2 Port:
No
Rack Height:
1U
TAA Compliant:
Yes
Transmitter Depth:
5.83"
Transmitter Height:
1.54"
Transmitter Weight (Approximate):
2.84 lb
Transmitter Width:
7.32"
USB:
Yes
VGA:
No
