Vertiv Avocent LV5520 High-Performance KVM Extender | Receiver

SKU: LV5520R-400

The Vertiv Avocent LongView 5520 Receiver (LV5520R) is the latest in the Avocent high-performance KVM Extender family of products. Coupled with the Avocent LV5520T, the LV5520R is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K@60Hz. Along with providing real-time access, high-speed USB 2.0 emulation, and HD analog audio, the LV5520R provides an effortless and automatic connection over the IP network without needing extensive manual setup. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. The LV5520R is ideal for users in broadcasting, control centers, and other industries requiring high performance, 4K video.

More from the Manufacturer

  • Delivers seamless KVM control and 4k video transmission.
  • Allows for greater distance with the Fiber Option.
  • Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head.
  • Plug-and-play with no drivers or software to install, and no on-site configuration required.
  • Faster throughput with updated USB.

Call for Availability

Regular price $2,133

Shipping calculated at checkout

Details

The Vertiv Avocent LongView 5520 Receiver (LV5520R) is the latest in the Avocent high-performance KVM Extender family of products. Coupled with the Avocent LV5520T, the LV5520R is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K@60Hz. Along with providing real-time access, high-speed USB 2.0 emulation, and HD analog audio, the LV5520R provides an effortless and automatic connection over the IP network without needing extensive manual setup. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. The LV5520R is ideal for users in broadcasting, control centers, and other industries requiring high performance, 4K video.

More from the Manufacturer

  • Delivers seamless KVM control and 4k video transmission.
  • Allows for greater distance with the Fiber Option.
  • Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head.
  • Plug-and-play with no drivers or software to install, and no on-site configuration required.
  • Faster throughput with updated USB.
Specifications
Color Family:
Black
Connectivity Technology:
Wired
Country of Origin:
United Kingdom
Device Type:
High Performance KVM
DisplayPort:
Yes
DVI:
No
Environmentally Friendly:
Yes
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS)
Form Factor:
Rack-mountable
Graphic Mode:
4K
HDMI:
No
Headphone:
Yes
Input Voltage:
120 V AC,230 V AC
Input Voltage Range:
100-240 VAC
KVM Technology:
Digital
Limited Warranty:
2 Year
Manufacturer:
Vertiv
Manufacturer Website Address:
http://www.vertiv.com/
Maximum Operating Distance:
13123.36 ft
Maximum Video Resolution:
4096 x 2160
Microphone:
Yes
Network (RJ-45):
Yes
Number of Computers Supported:
1
Number of DVI Ports:
0
Number of HDMI Ports:
0
Number of Local Users Supported:
1
Number of Network (RJ-45) Ports:
1
Number of PS/2 Ports:
0
Number of Remote Users Supported:
0
Number of USB Ports:
2
Number of VGA Ports:
0
Packaged Quantity:
1

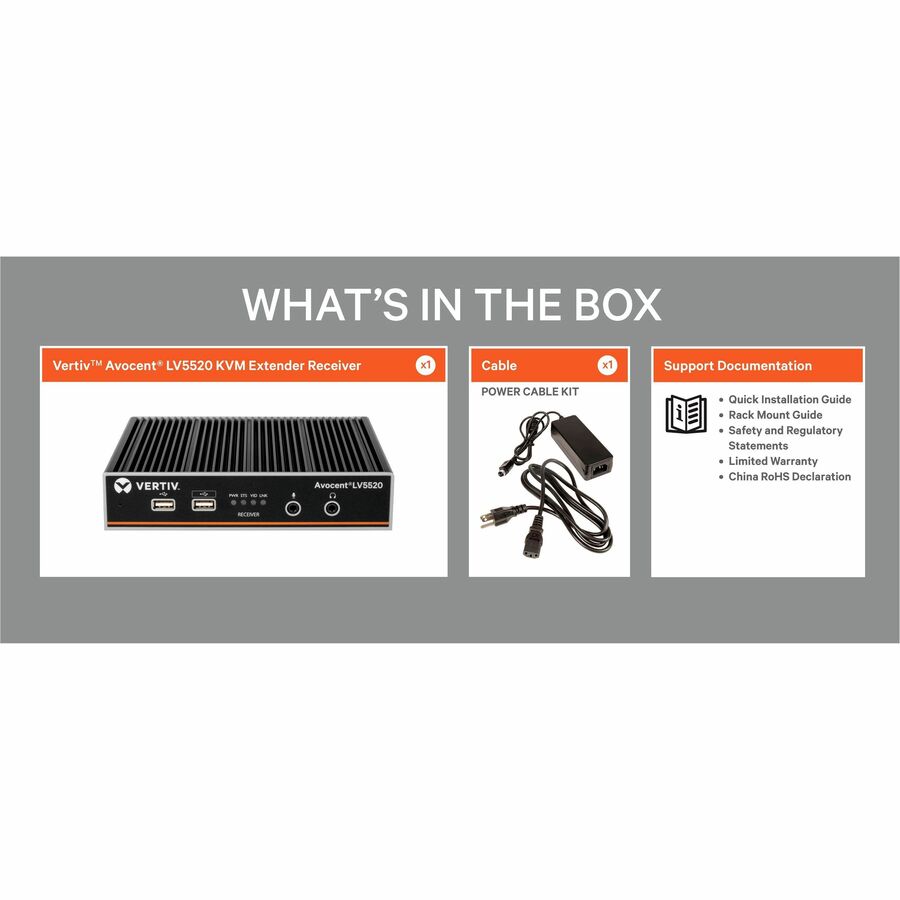

Package Contents:
  • LV5520 High-Performance KVM Extender | Receiver
  • 1 x LV5500 Extender Quick Installation Guide
  • 1 x Extender RMK Quick Installation Guide
  • 1 x Compliance/Safety Sheet (See PLM BOM) 1 each
  • 1 x Customer Support/Warranty Card (See PLM BOM)
  • 1 x 3.5mm stereo plug to plug audio cable, 3meter
  • 2 x USB cable, Type A to Type B, 1.8meter
  • 2 x DisplayPort cable, M-M, High Bit-Rate, 2meter
  • 1 x Power supply: HK-AB-050A400-D56 or HK-25-AB-050A400-D56
  • 1 x China RoHS Declaration
  • 1 x Vertiv document wallet
Platform Supported:
PC,Mac,Unix,Sun,Linux
Power Consumption:
18 W
Product Color:
Black
Product Line:
LongView
Product Model:
LV5520R
Product Series:
5000
Product Type:
KVM Extender Receiver
Proprietary Interface:
No
PS/2 Port:
No
Rack Height:
1U
Receiver Depth:
5.83"
Receiver Height:
1.54"
Receiver Weight (Approximate):
2.73 lb
Receiver Width:
7.32"
TAA Compliant:
Yes
USB:
Yes
VGA:
No
