Vertiv Avocent LV3000 | IP KVM Extender | Dual VGA, USB, Audio (LV3020P-001)
SKU: LV3020P-001

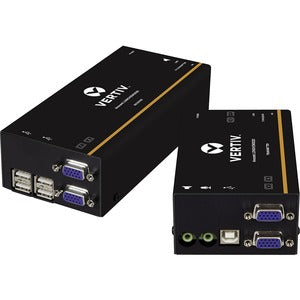

The Vertiv Avocent® Longview LV3020 KVM Extender is designed to deliver superior video quality, seamless compatibility, and high-density rack performance. This USB, VGA, and audio extender provides sharp, high-resolution dual-screen video and crisp audio for enhanced desktop productivity. With industry-leading video compensation, the LV3020 ensures excellent image quality at extended distances, using a single CATx cable. Capable of reaching up to 1,000 feet (300 meters), it features a variable noise filter to maintain clear VGA resolutions of up to 1920x1200. A local access port at the transmitter allows for easy console use, while the receiver includes a 4-port USB hub for extended peripheral connectivity. The LV3020 also supports dual-user control with two units linked to one computer, enabling simultaneous access.
- LOCAL FEED THROUGH PORT: Desktop pass-through port allows use of a local console. Also features plug-and-play design with no drivers or software to install, and no on-site configuration required.
- PRECISION VIDEO: Provides high-resolution (1920x1200) video images and high-quality audio for single and multi-screen desktops.

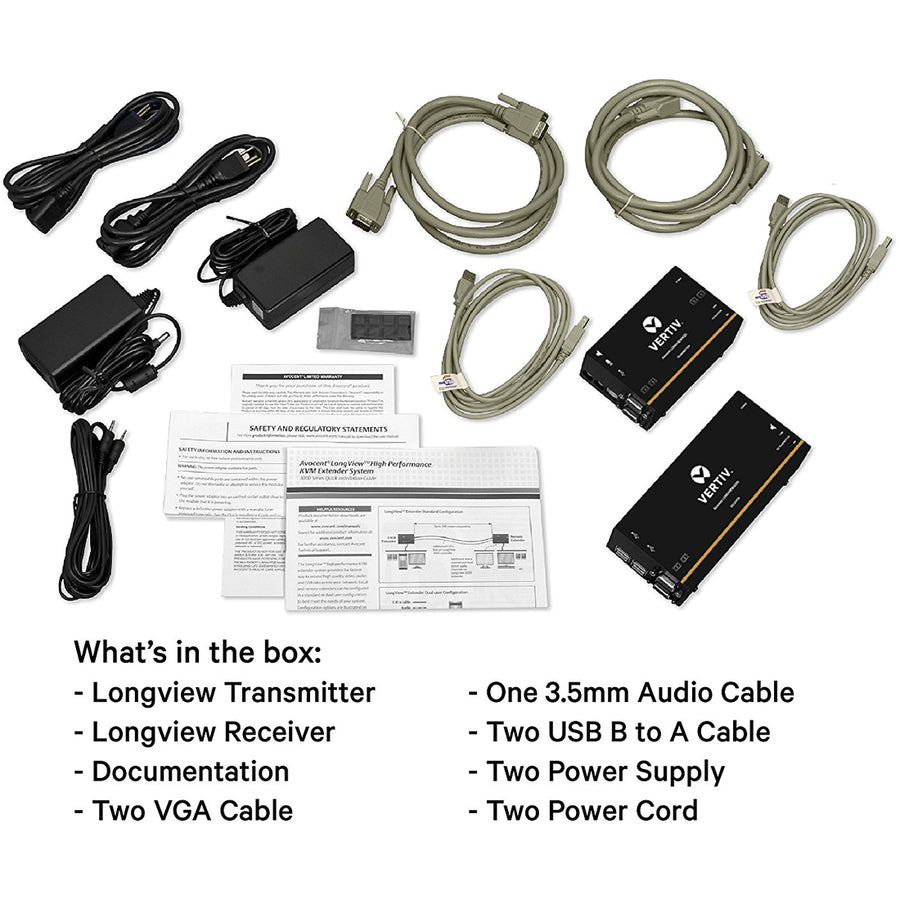

- PURCHASE INCLUDES: Includes 1x transmitter and 1x receiver, 2x VGA cables, 1x 3.5 mm audio cable, 2x USB B to A cables, and 2x power supplies with power cords.
- USB POWERED TRANSMITTER: Supports VGA transmission common to many computer monitors and also supports isochronous USB devices, such as webcams, USB audio and touchscreens.
- KVM EXTENDER: Delivers seamless KVM control while moving computing assets away from the workspace to secure, climate-controlled environments.
Call for Availability
Regular price
$3,415
Shipping calculated at checkout
The Vertiv Avocent® Longview LV3020 KVM Extender is designed to deliver superior video quality, seamless compatibility, and high-density rack performance. This USB, VGA, and audio extender provides sharp, high-resolution dual-screen video and crisp audio for enhanced desktop productivity. With industry-leading video compensation, the LV3020 ensures excellent image quality at extended distances, using a single CATx cable. Capable of reaching up to 1,000 feet (300 meters), it features a variable noise filter to maintain clear VGA resolutions of up to 1920x1200. A local access port at the transmitter allows for easy console use, while the receiver includes a 4-port USB hub for extended peripheral connectivity. The LV3020 also supports dual-user control with two units linked to one computer, enabling simultaneous access.
- LOCAL FEED THROUGH PORT: Desktop pass-through port allows use of a local console. Also features plug-and-play design with no drivers or software to install, and no on-site configuration required.
- PRECISION VIDEO: Provides high-resolution (1920x1200) video images and high-quality audio for single and multi-screen desktops.
- PURCHASE INCLUDES: Includes 1x transmitter and 1x receiver, 2x VGA cables, 1x 3.5 mm audio cable, 2x USB B to A cables, and 2x power supplies with power cords.
- USB POWERED TRANSMITTER: Supports VGA transmission common to many computer monitors and also supports isochronous USB devices, such as webcams, USB audio and touchscreens.
- KVM EXTENDER: Delivers seamless KVM control while moving computing assets away from the workspace to secure, climate-controlled environments.
Connectivity Technology:
Wired
Country of Origin:
United Kingdom
Device Type:
KVM Extender
Form Factor:
Rack-mountable
Graphic Mode:
WUXGA
Input Voltage:
120 V AC,240 V AC
Input Voltage Range:
100 - 240VAC
Limited Warranty:
2 Year
Manufacturer:
Vertiv
Manufacturer Website Address:
http://www.vertiv.com/
Maximum Operating Distance:
1000 ft
Maximum Video Resolution:
1920 x 1200
Network (RJ-45):
Yes
Number of Computers Supported:
1
Number of Network (RJ-45) Ports:
4
Number of Remote Users Supported:
1
Number of USB Ports:
4
Number of VGA Ports:
4
Packaged Quantity:
1
Platform Supported:
PC
Power Consumption:
12 W
Product Line:
LV
Product Model:
LV3020
Product Series:
3000
Product Type:
KVM Console/Extender
Rack Height:
2U

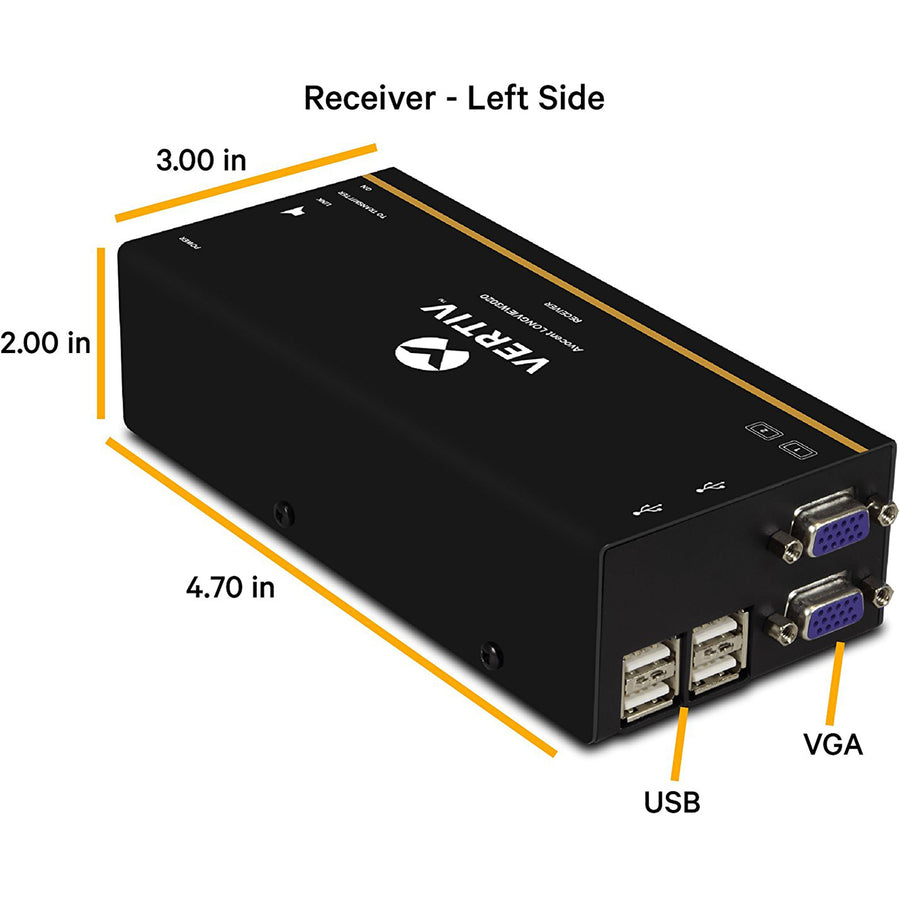

Receiver Depth:
3"
Receiver Height:
2"
Receiver Weight (Approximate):
12.35 oz
Receiver Width:
6.40"

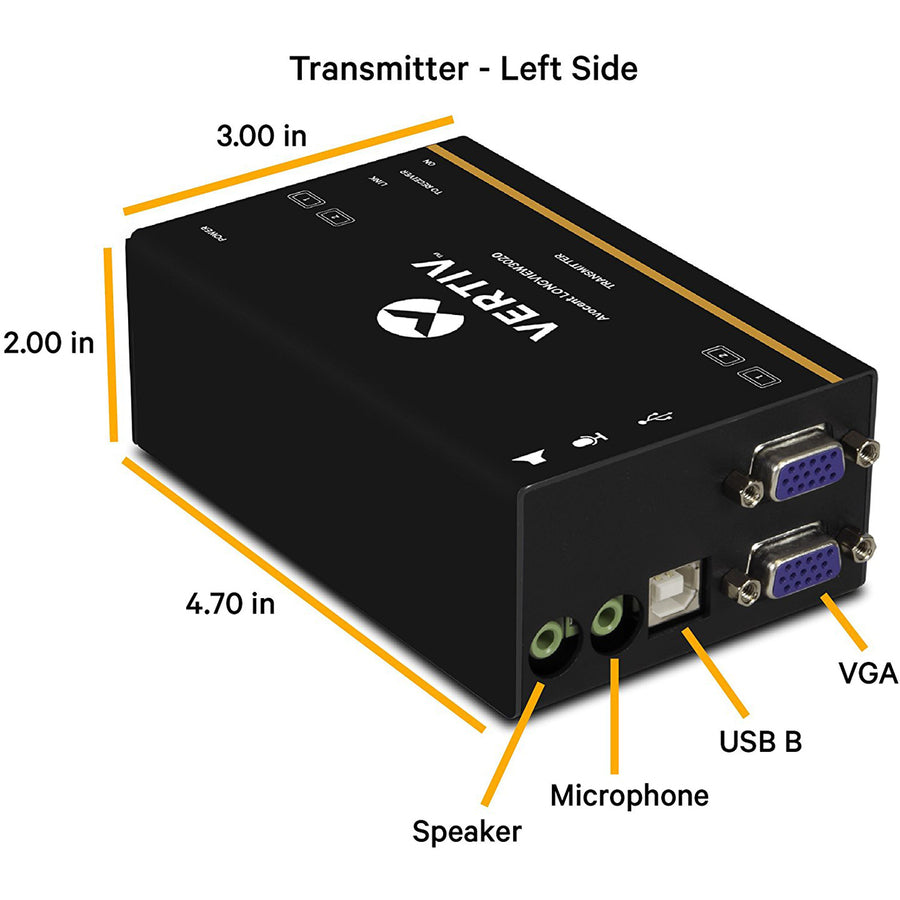

Transmitter Depth:
3"
Transmitter Height:
2"
Transmitter Weight (Approximate):
15.17 oz
Transmitter Width:
6.40"
USB:
Yes
VGA:
Yes
