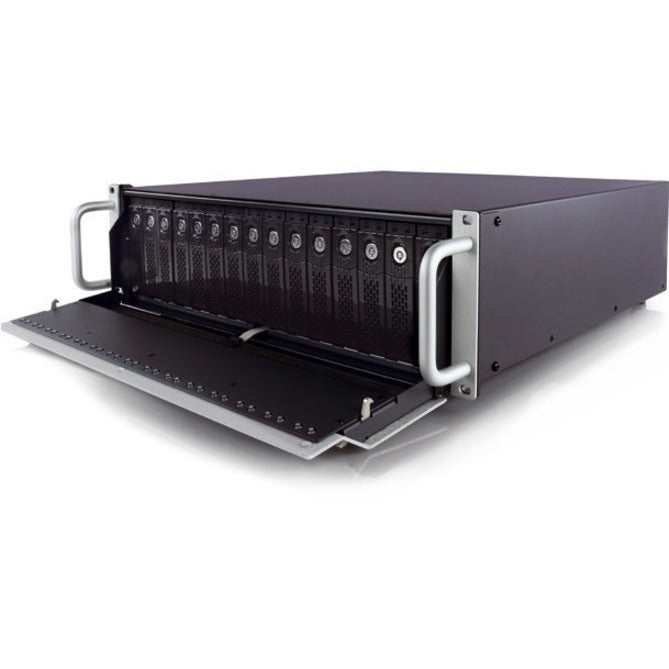

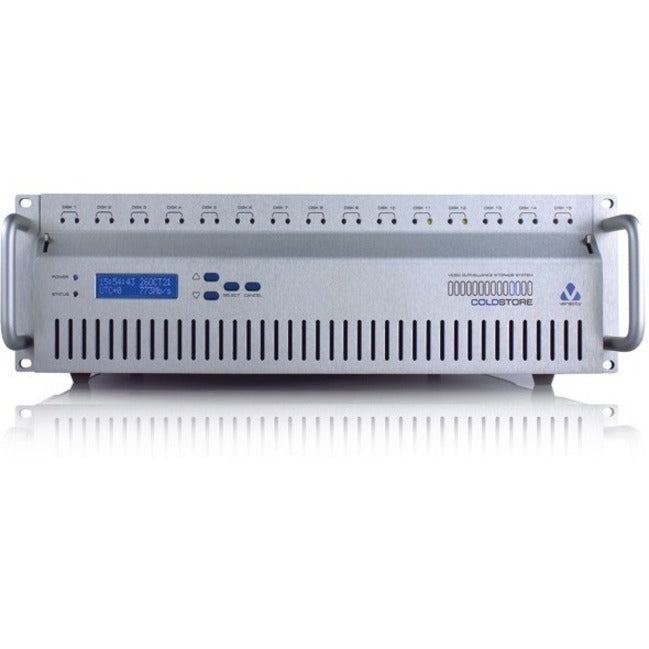

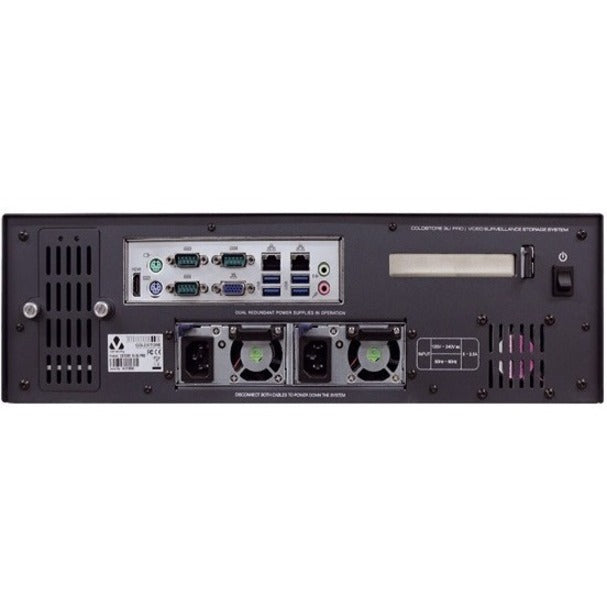

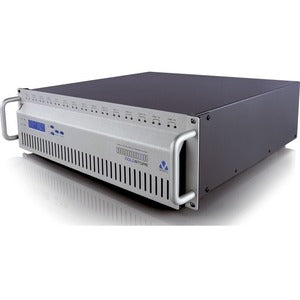

Veracity COLDSTORE 3U Pro 15-bay 3U Unit
SKU: CSTORE15-3U-PRO-US
The world's most reliable surveillance storage system with increased throughput and performance
COLDSTORE's sequential recording system SFS™ writes to hard disk in a revolutionary way and offers extreme reliability with low total cost of ownership.
COLDSTORE 3U Pro is a unique sequential surveillance storage array designed from the ground up for video surveillance
COLDSTORE 3U Pro is ideal for projects requiring affordable high storage capacity, extended disk lifetimes, long file-retention and simple system management.
Reliability Assured
Our Linear Array of Idle Disks (L.A.I.D™) technology combined with COLDSTORE's unique Sequential disk Filing System (S.F.S™) produces a powerfully simple system which can provide generous storage capacity at low cost. Whilst simple in concept, this delivers a highly reliable storage system which dramatically extends disk lifetime even if using the lowest cost disks available.
Low Power, Low Cost
This 3U Pro version of COLDSTORE provides higher performance over the standard 3U system but with the same high levels of reliability. It is aimed at the more demanding applications of high camera count and higher bit rates. With dual Gigabit Ethernet ports which can be bonded, the system can handle up to 1Gbps of video traffic.
Extended Disk Lifetimes
Disks are used sequentially, with all of the disks not in use being switched off, saving power and thus greatly reducing temperature, vibration and wear - the three primary disk killers.
The system uses a unique mirrored overlapping-pair writing pattern to provide full data redundancy during the critical writing process. This delivers the redundancy of RAID1 on write, but unlike RAID1, does not require double the number of disks.
Within the disk, the sequential disk filing system eliminates vibration from the read/write head and lowers operating temperature. Within the array, the use of sequential overlapping mirrored writing pairs requires only two active disks at any one time with the others switched off.
This greatly reduces wear and further reduces array vibration and operating temperature. Thus every disk is off, on average, for 87% of the time. Disks automatically switch on for playback, but typically playback from non-writing disks is infrequent and hardly affects the average duty cycle.
Purpose-Designed System
COLDSTORE 3U Pro is built around an industry standard main-board system with a power-efficient CPU and Veracity designed backplanes.
Even a fully populated 300TB array will use less than 60 watts. This low power consumption extends the electronic component lifetime, which, combined with extended disk lifetimes, reduced cooling costs and lower UPS purchase cost, results in a very low overall total cost of ownership.
COLDSTORE's sequential recording system SFS™ writes to hard disk in a revolutionary way and offers extreme reliability with low total cost of ownership.
COLDSTORE 3U Pro is a unique sequential surveillance storage array designed from the ground up for video surveillance
COLDSTORE 3U Pro is ideal for projects requiring affordable high storage capacity, extended disk lifetimes, long file-retention and simple system management.
Reliability Assured
Our Linear Array of Idle Disks (L.A.I.D™) technology combined with COLDSTORE's unique Sequential disk Filing System (S.F.S™) produces a powerfully simple system which can provide generous storage capacity at low cost. Whilst simple in concept, this delivers a highly reliable storage system which dramatically extends disk lifetime even if using the lowest cost disks available.
Low Power, Low Cost
This 3U Pro version of COLDSTORE provides higher performance over the standard 3U system but with the same high levels of reliability. It is aimed at the more demanding applications of high camera count and higher bit rates. With dual Gigabit Ethernet ports which can be bonded, the system can handle up to 1Gbps of video traffic.
Extended Disk Lifetimes
Disks are used sequentially, with all of the disks not in use being switched off, saving power and thus greatly reducing temperature, vibration and wear - the three primary disk killers.
The system uses a unique mirrored overlapping-pair writing pattern to provide full data redundancy during the critical writing process. This delivers the redundancy of RAID1 on write, but unlike RAID1, does not require double the number of disks.
Within the disk, the sequential disk filing system eliminates vibration from the read/write head and lowers operating temperature. Within the array, the use of sequential overlapping mirrored writing pairs requires only two active disks at any one time with the others switched off.
This greatly reduces wear and further reduces array vibration and operating temperature. Thus every disk is off, on average, for 87% of the time. Disks automatically switch on for playback, but typically playback from non-writing disks is infrequent and hardly affects the average duty cycle.
Purpose-Designed System
COLDSTORE 3U Pro is built around an industry standard main-board system with a power-efficient CPU and Veracity designed backplanes.
Even a fully populated 300TB array will use less than 60 watts. This low power consumption extends the electronic component lifetime, which, combined with extended disk lifetimes, reduced cooling costs and lower UPS purchase cost, results in a very low overall total cost of ownership.
- Uses any make/model of standard SATA drive
- Direct ONVIF Profile S and Profile G support
- Optional VIEWSTORE status monitor for large installations
- Immediate compatibility with future larger disks
- Only 60 watts power consumption
- Network attached sequential storage system designed for video
- Incorporates SFSTM and LAIDTM for high disk reliability
- Massive 300TB capacity using 20TB disk drives
Call for Availability
Regular price
$5,645.53
Sale price
$6,250
On Sale
Shipping calculated at checkout
The world's most reliable surveillance storage system with increased throughput and performance
COLDSTORE's sequential recording system SFS™ writes to hard disk in a revolutionary way and offers extreme reliability with low total cost of ownership.
COLDSTORE 3U Pro is a unique sequential surveillance storage array designed from the ground up for video surveillance
COLDSTORE 3U Pro is ideal for projects requiring affordable high storage capacity, extended disk lifetimes, long file-retention and simple system management.
Reliability Assured
Our Linear Array of Idle Disks (L.A.I.D™) technology combined with COLDSTORE's unique Sequential disk Filing System (S.F.S™) produces a powerfully simple system which can provide generous storage capacity at low cost. Whilst simple in concept, this delivers a highly reliable storage system which dramatically extends disk lifetime even if using the lowest cost disks available.
Low Power, Low Cost
This 3U Pro version of COLDSTORE provides higher performance over the standard 3U system but with the same high levels of reliability. It is aimed at the more demanding applications of high camera count and higher bit rates. With dual Gigabit Ethernet ports which can be bonded, the system can handle up to 1Gbps of video traffic.
Extended Disk Lifetimes
Disks are used sequentially, with all of the disks not in use being switched off, saving power and thus greatly reducing temperature, vibration and wear - the three primary disk killers.
The system uses a unique mirrored overlapping-pair writing pattern to provide full data redundancy during the critical writing process. This delivers the redundancy of RAID1 on write, but unlike RAID1, does not require double the number of disks.
Within the disk, the sequential disk filing system eliminates vibration from the read/write head and lowers operating temperature. Within the array, the use of sequential overlapping mirrored writing pairs requires only two active disks at any one time with the others switched off.
This greatly reduces wear and further reduces array vibration and operating temperature. Thus every disk is off, on average, for 87% of the time. Disks automatically switch on for playback, but typically playback from non-writing disks is infrequent and hardly affects the average duty cycle.
Purpose-Designed System
COLDSTORE 3U Pro is built around an industry standard main-board system with a power-efficient CPU and Veracity designed backplanes.
Even a fully populated 300TB array will use less than 60 watts. This low power consumption extends the electronic component lifetime, which, combined with extended disk lifetimes, reduced cooling costs and lower UPS purchase cost, results in a very low overall total cost of ownership.
COLDSTORE's sequential recording system SFS™ writes to hard disk in a revolutionary way and offers extreme reliability with low total cost of ownership.
COLDSTORE 3U Pro is a unique sequential surveillance storage array designed from the ground up for video surveillance
COLDSTORE 3U Pro is ideal for projects requiring affordable high storage capacity, extended disk lifetimes, long file-retention and simple system management.
Reliability Assured
Our Linear Array of Idle Disks (L.A.I.D™) technology combined with COLDSTORE's unique Sequential disk Filing System (S.F.S™) produces a powerfully simple system which can provide generous storage capacity at low cost. Whilst simple in concept, this delivers a highly reliable storage system which dramatically extends disk lifetime even if using the lowest cost disks available.
Low Power, Low Cost
This 3U Pro version of COLDSTORE provides higher performance over the standard 3U system but with the same high levels of reliability. It is aimed at the more demanding applications of high camera count and higher bit rates. With dual Gigabit Ethernet ports which can be bonded, the system can handle up to 1Gbps of video traffic.
Extended Disk Lifetimes
Disks are used sequentially, with all of the disks not in use being switched off, saving power and thus greatly reducing temperature, vibration and wear - the three primary disk killers.
The system uses a unique mirrored overlapping-pair writing pattern to provide full data redundancy during the critical writing process. This delivers the redundancy of RAID1 on write, but unlike RAID1, does not require double the number of disks.
Within the disk, the sequential disk filing system eliminates vibration from the read/write head and lowers operating temperature. Within the array, the use of sequential overlapping mirrored writing pairs requires only two active disks at any one time with the others switched off.
This greatly reduces wear and further reduces array vibration and operating temperature. Thus every disk is off, on average, for 87% of the time. Disks automatically switch on for playback, but typically playback from non-writing disks is infrequent and hardly affects the average duty cycle.
Purpose-Designed System
COLDSTORE 3U Pro is built around an industry standard main-board system with a power-efficient CPU and Veracity designed backplanes.
Even a fully populated 300TB array will use less than 60 watts. This low power consumption extends the electronic component lifetime, which, combined with extended disk lifetimes, reduced cooling costs and lower UPS purchase cost, results in a very low overall total cost of ownership.
- Uses any make/model of standard SATA drive
- Direct ONVIF Profile S and Profile G support
- Optional VIEWSTORE status monitor for large installations
- Immediate compatibility with future larger disks
- Only 60 watts power consumption
- Network attached sequential storage system designed for video
- Incorporates SFSTM and LAIDTM for high disk reliability
- Massive 300TB capacity using 20TB disk drives
Controller Type:
Serial ATA
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
Gigabit Ethernet
Form Factor:
Rack-mountable
Manufacturer:
Veracity USA, Inc
Manufacturer Website Address:
http://www.veracityusa.com
Maximum Power Supply Wattage:
320 W
Network (RJ-45):
Yes
Number of 3.5" Bays:
15
Number of Hard Drives Supported:
15
Number of Network (RJ-45) Ports:
2
Number of Power Supplies Installed:
2
Number of Total Expansion Bays:
15
Operating System:
Linux
Package Contents:
- COLDSTORE 3U Pro 15-bay 3U Unit
- US Cable
Product Line:
COLDSTORE 3U Pro
Product Type:
NAS Storage System
Rack Height:
3U
TAA Compliant:
Yes
Total Hard Drive Capacity Supported:
300 TB
