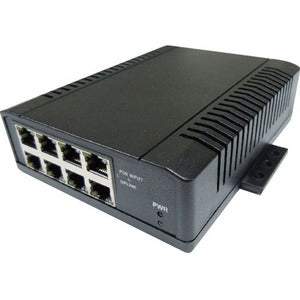

Tycon Power PoE 8 Port Switch
The TP-SW8-D Power Over Ethernet 802.3af/at (PoE) 10/100Mb switch offered by Tycon Power Systems is a fully automatic high speed 8 port Ethernet switch. The -NC version is a passive PoE model for devices which are not 802.3af/at compliant. On the -NC version the PoE output voltage = the input voltage so it is universal in its application. The DC input power range can be from 12V to 57V. The units can be powered via 2 or 4 pair PoE to port 8 (2A max). Both models supply power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.
18V, 24V and 48V 60W, 120W and 180W power supplies are available. There are 2 power inputs for attachment of primary and backup power sources.
- Ethernet Switch provides dependable and powerful connectivity for maximum usability
- Quickly and easily set up a wired network with 8 networking ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Rail-mountable form factor allows hassle-free and easy usage with increased efficiency
- Management capability allows maximum efficiency and with unrestricted control
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Call for Availability
Shipping calculated at checkout
The TP-SW8-D Power Over Ethernet 802.3af/at (PoE) 10/100Mb switch offered by Tycon Power Systems is a fully automatic high speed 8 port Ethernet switch. The -NC version is a passive PoE model for devices which are not 802.3af/at compliant. On the -NC version the PoE output voltage = the input voltage so it is universal in its application. The DC input power range can be from 12V to 57V. The units can be powered via 2 or 4 pair PoE to port 8 (2A max). Both models supply power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.
18V, 24V and 48V 60W, 120W and 180W power supplies are available. There are 2 power inputs for attachment of primary and backup power sources.
- Ethernet Switch provides dependable and powerful connectivity for maximum usability
- Quickly and easily set up a wired network with 8 networking ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Rail-mountable form factor allows hassle-free and easy usage with increased efficiency
- Management capability allows maximum efficiency and with unrestricted control
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- PoE 8 Port Switch
- DIN rail Adapters
