TRENDnet 12-Port 10G Layer 2 Managed SFP+ Switch, TL2-F7120, 12 x 10G SFP+ Ports, 240Gbps, Ethernet Splitter, NDAA & TAA Compliant, Lifetime Protection, Black
TRENDnet's 10G SFP+ switch features 12 x 10GSFP+ slots for high-speed network uplinks or downlink NAS/access server connections, providing a cost-effective solution in adding 10G link capability to an SMB network.
High-Speed 10G SFP+
Offers 12 x 10G SFP+ slots for high- speed network uplinks or downlink NAS/ access server connections providing a cost-effective solution in adding 10G link capability to an SMB network.
L2 Management
Fully configurable using the web-based management interface or CLI for management flexibility and streamlining configuration deployment to multiple switches. Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.Integration Flexibility
Free up router resources by offloading routing processes to this 10G managed SFP+ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.
FEATURES | Hardware Design
The 10Gb fiber switch provides 12 x 10G SFP+ slots, a built-in power supply, and 1U rackmount brackets
Switching Capacity
Supports a 240Gbps switch capacity
Smart Fan
The smart fan on the 10G SFP+ switch saves energy and eliminates distracting operating noise by auto adjusting the fan speed and use based on cooling needsLED Indicators
LED indicators on the 10G SFP+ switch convey port statusJumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB) for increased performance
Rackmount Design

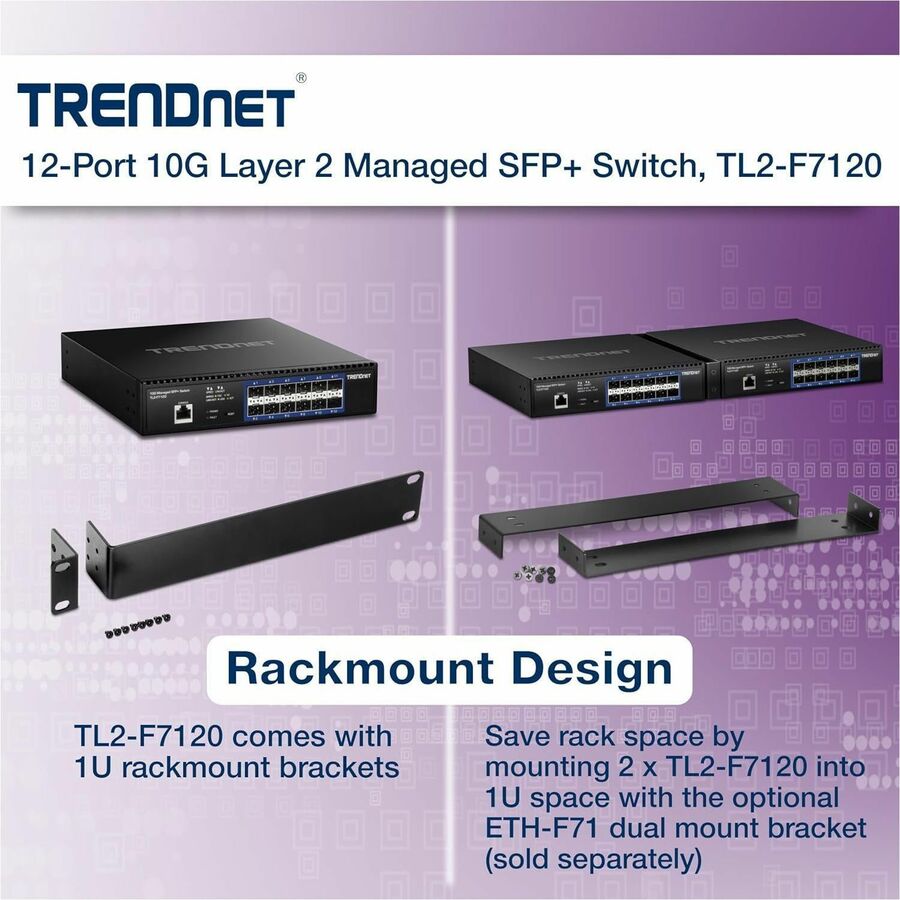

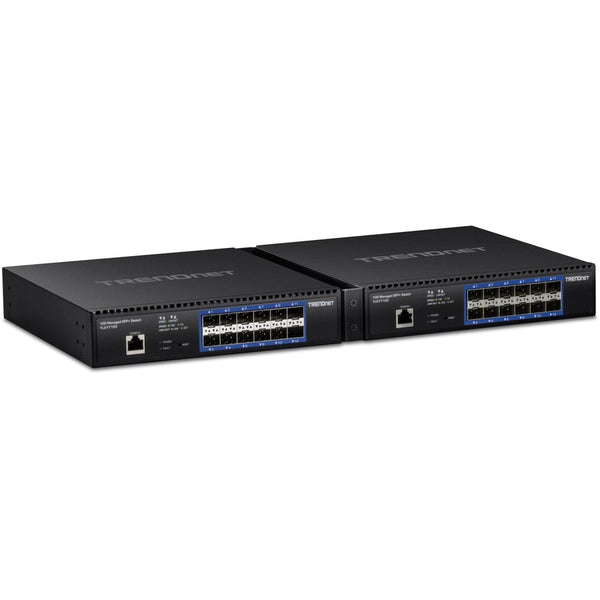

Save rack space by mounting 2 x TL2-F7120 into 1U space with the optional ETH-F71 dual mount bracket (sold separately)
IPv6 Ready
This 10G SFP+ switch supports Ipv6 configuration and Ipv6 neighbor discovery
IP Routing
Supports inter-VLAN routing and Ipv4/Ipv6 static routing

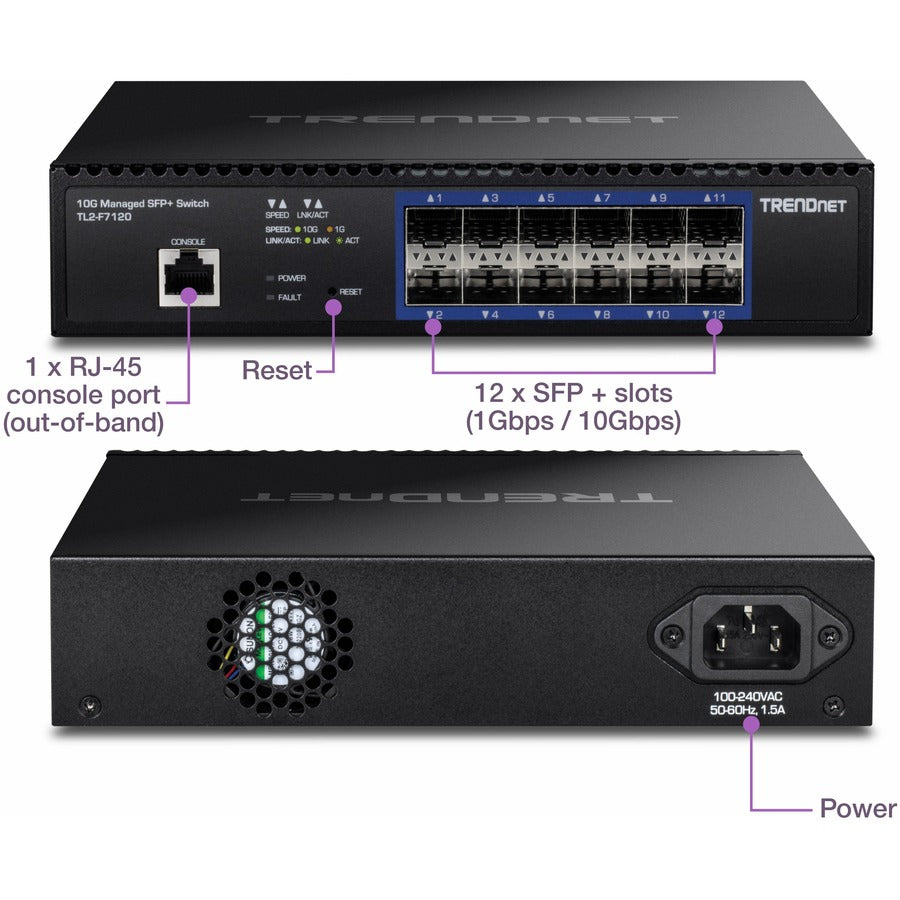

- DEVICE INTERFACE: 12 x SFP+ Ports (1Gbps / 10Gbps); 1 x RJ-45 Console Port (out-of-band); LED Indicators; Reset Button
- SWITCHING CAPACITY: 12-Port 10G Layer 2 Managed SFP+ Switch provides 240Gbps switching capacity
- LAYER 2 MANAGEMENT: The 12 Port 10G Switch is fully configurable using the web-based management interface or CLI for management flexibility and streamlining configuration deployment to multiple switches.
- HIGH SPEED 10G SFP+: The managed switch offers 12 x 10G SFP+ slots for high-speed network uplinks or downlink NAS/ access server connections providing a cost-effective solution in adding 10G link capability to an SMB network.
- INTEGRATION FLEXIBILITY: The 10G switch managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
- TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.1ax link aggregation, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling
- RACKMOUNT DESIGN: Save rack space with this network switch by mounting 2 x TL2-F7120 into 1U space with the optional ETH-F71 dual mount bracket (sold separately)
- TRENDnet LIFETIME PROTECTION: The 12 Port 10G Layer 2 Managed SFP+ Switch comes with lifetime TRENDnet Manufacturer Protection.
- NDAA / TAA compliant (U.S. and Canada only)
5 in stock
Shipping calculated at checkout
TRENDnet's 10G SFP+ switch features 12 x 10GSFP+ slots for high-speed network uplinks or downlink NAS/access server connections, providing a cost-effective solution in adding 10G link capability to an SMB network.
High-Speed 10G SFP+
Offers 12 x 10G SFP+ slots for high- speed network uplinks or downlink NAS/ access server connections providing a cost-effective solution in adding 10G link capability to an SMB network.
L2 Management
Fully configurable using the web-based management interface or CLI for management flexibility and streamlining configuration deployment to multiple switches. Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.Integration Flexibility
Free up router resources by offloading routing processes to this 10G managed SFP+ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.
FEATURES | Hardware Design
The 10Gb fiber switch provides 12 x 10G SFP+ slots, a built-in power supply, and 1U rackmount brackets
Switching Capacity
Supports a 240Gbps switch capacity
Smart Fan
The smart fan on the 10G SFP+ switch saves energy and eliminates distracting operating noise by auto adjusting the fan speed and use based on cooling needsLED Indicators
LED indicators on the 10G SFP+ switch convey port statusJumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB) for increased performance
Rackmount Design
Save rack space by mounting 2 x TL2-F7120 into 1U space with the optional ETH-F71 dual mount bracket (sold separately)
IPv6 Ready
This 10G SFP+ switch supports Ipv6 configuration and Ipv6 neighbor discovery
IP Routing
Supports inter-VLAN routing and Ipv4/Ipv6 static routing
- DEVICE INTERFACE: 12 x SFP+ Ports (1Gbps / 10Gbps); 1 x RJ-45 Console Port (out-of-band); LED Indicators; Reset Button
- SWITCHING CAPACITY: 12-Port 10G Layer 2 Managed SFP+ Switch provides 240Gbps switching capacity
- LAYER 2 MANAGEMENT: The 12 Port 10G Switch is fully configurable using the web-based management interface or CLI for management flexibility and streamlining configuration deployment to multiple switches.
- HIGH SPEED 10G SFP+: The managed switch offers 12 x 10G SFP+ slots for high-speed network uplinks or downlink NAS/ access server connections providing a cost-effective solution in adding 10G link capability to an SMB network.
- INTEGRATION FLEXIBILITY: The 10G switch managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
- TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.1ax link aggregation, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling
- RACKMOUNT DESIGN: Save rack space with this network switch by mounting 2 x TL2-F7120 into 1U space with the optional ETH-F71 dual mount bracket (sold separately)
- TRENDnet LIFETIME PROTECTION: The 12 Port 10G Layer 2 Managed SFP+ Switch comes with lifetime TRENDnet Manufacturer Protection.
- NDAA / TAA compliant (U.S. and Canada only)
- 12-Port 10G Layer 2 Managed SFP+ Switch
- Power Cord
- RJ-45 to RS-232 Console Cable (1.5m / 5 ft.)
- Rackmount Kit
