Transition Networks Self-Enclosed Managed Hardened Gigabit Ethernet PoE++ Switch

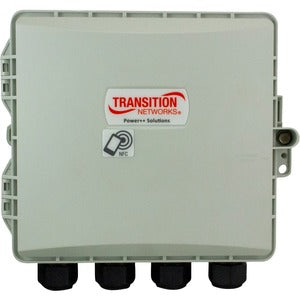

Transition Networks' SESPM1040-541-LT-xx Switch is a Layer 2 managed switch with (4) 10/100/1000Base-T IEEE 802.3bt compliant PoE++ ports and (1) combination 10/100/1000Base-T RJ-45 or 100/1000Base-X SFP port (additional optional ports available), that is ideal for use in security and surveillance, PoE lighting, digital signage and many other applications. It is self-enclosed in an outdoor NEMA 4X/IP66 rated enclosure with 6KV surge protection on the AC line. Additional fuse protection on the PoE ports and included data port eliminates the need for external circuit cross protection between the attached powered device and the switch. It can be mounted on a wall or side of a building, or optional brackets are available for mounting on a pole.

The switch is available in multiple configurations: as either an AC- or DC-powered power source (PSE) providing ≤90 Watts per port (not to exceed 180 Watts total on the AC-powered unit or 240 Watts total on the DC-powered unit), or as a PoE-powered device (PD) which is also a PSE providing up to 80 Watts of total PoE power. The PD version requires PoE power from an IEEE 802.3bt Type 4 Class 8 compliant PSE, or it can receive power over copper cable running parallel to a fiber optic cable for data (i.e. composite cable). The PD also includes a 12V Aux port which can be used to provide auxiliary power to a PC, lighting or other accessories. A second combo 10/10/1000Base-T RJ-45 maintenance or 100/1000Base-X SFP uplink port can be activated by installing an optional Combo Port Module. Alternatively, an IEEE 802.11 b/g/n wireless Ethernet extension port is available as an option to extend the Ethernet network to devices in locations where new Ethernet cable runs are not practical. An optional Digital Input/Output Module with four optical isolators configurable as either input or outputs provide connections for alarms, event notifications or other customer designated items.

All versions are equipped with Near Field Communication (NFC) to allow simple and repeatable configuration of the switch using a user-friendly app on a mobile device prior to connecting or powering up the switch. Bluetooth Low Energy (BLE) allows remote access to alarm information or to read or change equipment settings without requiring physical access using ladders or scissor lifts. The switch also incorporates integrated management software for setup, monitoring and control of connected devices.

• Management: Web GUI, CLI, SNMP
• Monitoring: SNMP, Syslog
• Jumbo Frame support 10K bytes max
• Auto-MDI/MDIX
• IPv4
• Secure Shell (SSH) / Secure Sockets Layer (SSL)
• Authentication: RADIUS/TACACS+
• Auto Power Reset (APR)
• 6 kV surge protection
• PoE port configuration/power management/power scheduling
