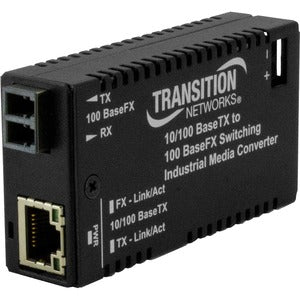

Transition Networks Hardened Mini Fast Ethernet Media Converter
SKU: M/E-ISW-FX-02(MMLC)
The M/E-ISW Series is a hardened Fast Ethernet Mini media converter that provides a cost effective, plug-and-play media conversion between 10/100Base-TX ports and 100Base-FX ports for hardened or outdoor 10/100 environments. With its supported operating temperature range of -40°C to 75°C, the Mini offers a space saving alternative for converting copper to fiber in extreme environments.
- Includes barrel connector pig-tail cable
- DC and AC power inputs via terminal block
- Automatic Link Restoration
- Far-End-Fault (FEF)
- Active Link Pass Through on SFP version
- Auto-MDI/MDIX
- Link Pass Through
- Auto-Negotiation
- Fixed Full-Duplex on fiber
- Unit and Port LEDs provide quick status
5 in stock
Regular price
$246
Shipping calculated at checkout
The M/E-ISW Series is a hardened Fast Ethernet Mini media converter that provides a cost effective, plug-and-play media conversion between 10/100Base-TX ports and 100Base-FX ports for hardened or outdoor 10/100 environments. With its supported operating temperature range of -40°C to 75°C, the Mini offers a space saving alternative for converting copper to fiber in extreme environments.
- Includes barrel connector pig-tail cable
- DC and AC power inputs via terminal block
- Automatic Link Restoration
- Far-End-Fault (FEF)
- Active Link Pass Through on SFP version
- Auto-MDI/MDIX
- Link Pass Through
- Auto-Negotiation
- Fixed Full-Duplex on fiber
- Unit and Port LEDs provide quick status
Country of Origin:
Taiwan
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Ethernet Technology:
Fast Ethernet
Fiber Mode Supported:
Multi-mode
Fiber Optic Cable Wavelength:
1300 nm
Form Factor:
Wall Mountable,Rail-mountable
Limited Warranty:
Lifetime
Manufacturer:
Transition Networks, Inc
Manufacturer Website Address:
http://www.transition.com
Maximum Distance Supported:
20 km
Media Type Supported:
Optical Fiber,Twisted Pair
Network (RJ-45):
Yes
Network Technology:
100Base-T,100Base-FX
Number of LC Ports:
1
Number of Network (RJ-45) Ports:
1
Package Contents:
- Hardened Mini Fast Ethernet Media Converter
- Barrel Connector Pig-Tail Cable
Power Source:
Power Supply
Product Model:
M/E-ISW-FX-02(MMLC)
Product Series:
M/E-ISW
Product Type:
Transceiver/Media Converter
Total Number of Ports:
2
