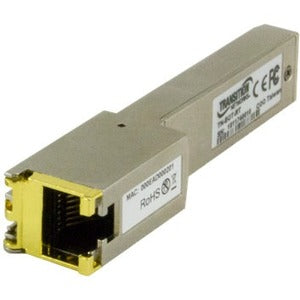

Transition Networks Ethernet Over 2-Wire / Coax Gigabit Ethernet SFP Extender
SKU: TN-EOT-RT
The TN-EOT-xx Series is an Ethernet Extender in a standard SFP form factor, it provides the ability to leverage the existing 2-Wire or Coax cable infrastructure to extend the Ethernet service. It can extend the Ethernet service on 2-wire with distances up to 400 meters at 200Mbps bi-directional data rate or extend Ethernet on Coax cabling with distances up to 500 meters at 300Mbps bidirectional data rate.
The TN-EOT-xx Series complies with MSA standards and can quickly enable any switch or media converter with a Gigabit SFP slot to connect beyond typical Ethernet distances (100 meters).
The TN-EOT-xx Series complies with MSA standards and can quickly enable any switch or media converter with a Gigabit SFP slot to connect beyond typical Ethernet distances (100 meters).
- 2KV ESD Class
- Industrial rate operating temperature -40°C to +75°C
- Based on VDSL2 technology
- Support maximum PHY rate up to 300Mbps per line
- MSA Compliant Gigabit SFP
- Plug and Play
Call for Availability
Regular price
$231
Shipping calculated at checkout
The TN-EOT-xx Series is an Ethernet Extender in a standard SFP form factor, it provides the ability to leverage the existing 2-Wire or Coax cable infrastructure to extend the Ethernet service. It can extend the Ethernet service on 2-wire with distances up to 400 meters at 200Mbps bi-directional data rate or extend Ethernet on Coax cabling with distances up to 500 meters at 300Mbps bidirectional data rate.
The TN-EOT-xx Series complies with MSA standards and can quickly enable any switch or media converter with a Gigabit SFP slot to connect beyond typical Ethernet distances (100 meters).
The TN-EOT-xx Series complies with MSA standards and can quickly enable any switch or media converter with a Gigabit SFP slot to connect beyond typical Ethernet distances (100 meters).
- 2KV ESD Class
- Industrial rate operating temperature -40°C to +75°C
- Based on VDSL2 technology
- Support maximum PHY rate up to 300Mbps per line
- MSA Compliant Gigabit SFP
- Plug and Play
Application/Usage:
Data Networking
Compatibility:
MSA Compliant
Connector Type:
RJ-45
Country of Origin:
Taiwan
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports Details:
1 x RJ-45 1000Base-X LAN
Limited Warranty:
1 Year
Manufacturer:
Transition Networks, Inc
Manufacturer Website Address:
http://www.transition.com
Media Type Supported:
Twisted Pair
Network Technology:
1000Base-X
Package Contents:
- Ethernet Over 2-Wire / Coax Gigabit Ethernet SFP Extender
- RJ to BNC Adapter
- RJ to Terminal Block Adapter
Product Model:
TN-EOT-RT
Product Series:
TN-EOT-xx
Product Type:
Extender Module
Total Number of Ports:
1
