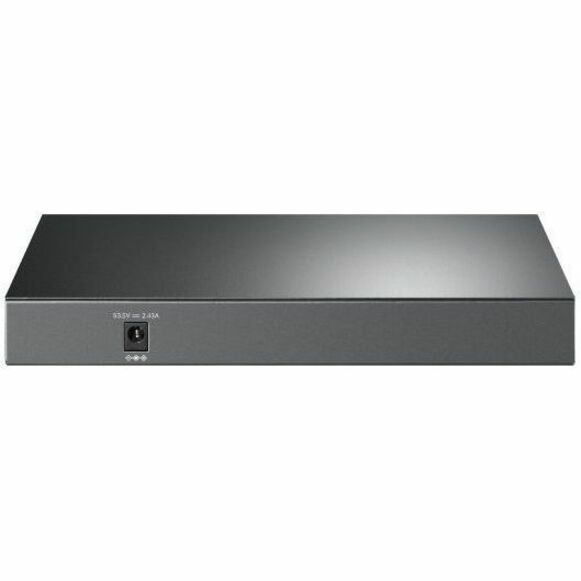

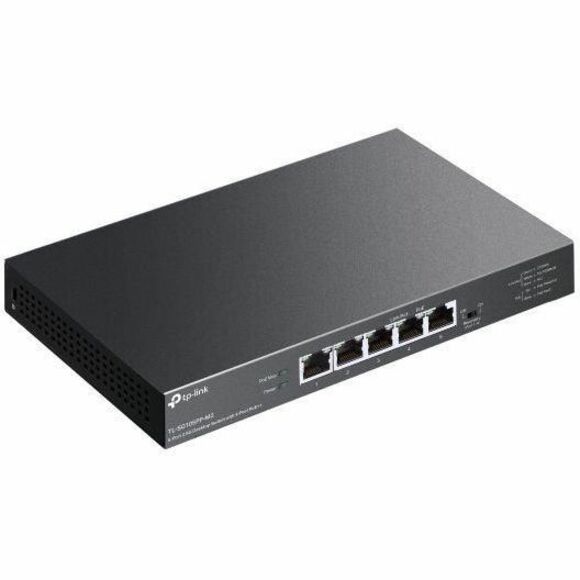

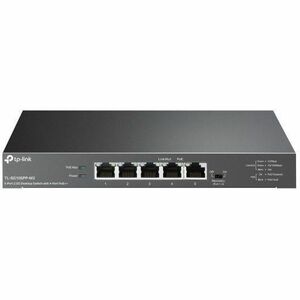

TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++

SKU: TL-SG105PP-M2
TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++ - 5.0 Ports - 2.5 Gigabit Ethernet - 2.5GBase-T - 2 Layer Supported - 143.37 W Power Consumption - 123 W PoE Budget - Twisted Pair - PoE Ports - Wall Mountable, Desktop
  • 5� 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
  • With four PoE++ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at/bt type3 compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 60 W for each PoE++ port
  • Supports PoE Power up to 123 W for all PoE ports*
  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
  • Plug and Play, no configuration and installation required

Call for Availability

Regular price $175.80

Shipping calculated at checkout

Details
TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++ - 5.0 Ports - 2.5 Gigabit Ethernet - 2.5GBase-T - 2 Layer Supported - 143.37 W Power Consumption - 123 W PoE Budget - Twisted Pair - PoE Ports - Wall Mountable, Desktop
  • 5� 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
  • With four PoE++ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at/bt type3 compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 60 W for each PoE++ port
  • Supports PoE Power up to 123 W for all PoE ports*
  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
  • Plug and Play, no configuration and installation required
Specifications
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
2.5 Gigabit Ethernet
Features:
Fanless
Form Factor:
Wall Mountable,Desktop
Input Voltage:
53.5 V DC
Layer Supported:
2
Manageable:
No
Manufacturer:
TP-LINK Technologies Co., Ltd
Manufacturer Website Address:
http://www.tp-link.com/us
Media Type Supported:
Twisted Pair
Networking Standards:
IEEE802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3
Network (RJ-45):
Yes
Network Technology:
2.5GBase-T
Package Contents:
  • 5-Port 2.5G Desktop Switch with 4-Port PoE++
  • Power Adapter
  • Installation Guide
  • Rubber Feet
PoE (RJ-45) Port:
Yes
PoE Budget:
123 W
Port/Expansion Slot Details:
5 x 2.5 Gigabit Ethernet PoE++
Power Consumption:
143.37 W
Power Source:
Power Adapter
Product Color:
Black
Product Material:
Steel
Product Model:
TL-SG105PP-M2
Product Type:
Ethernet Switch
Total Number of Network Ports:
5.0
