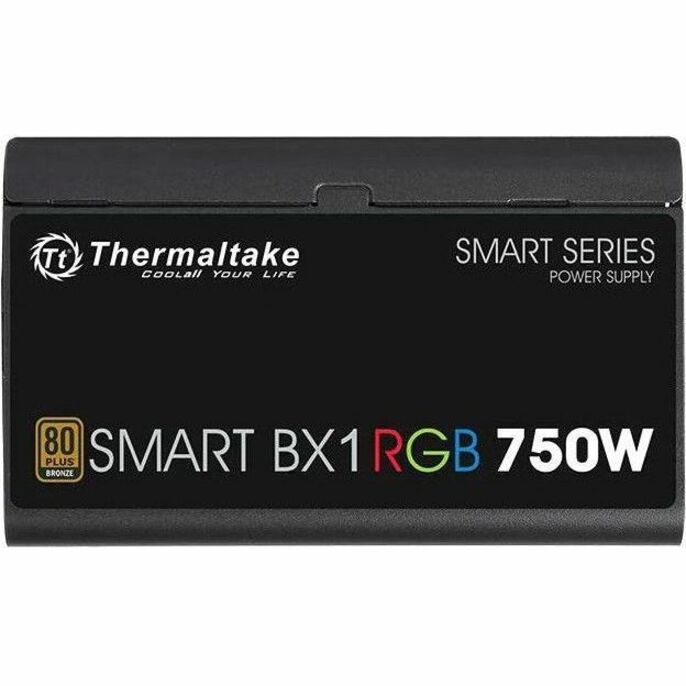

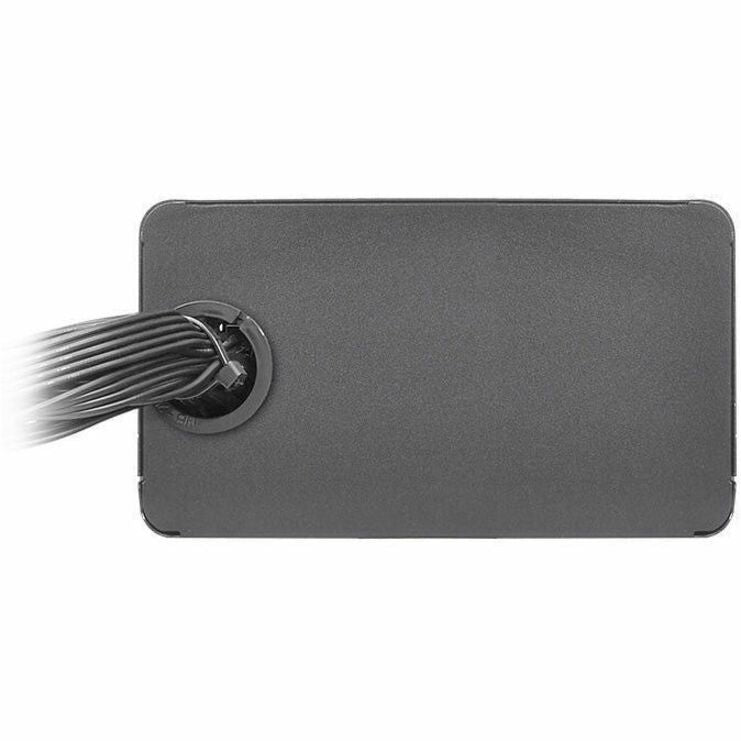

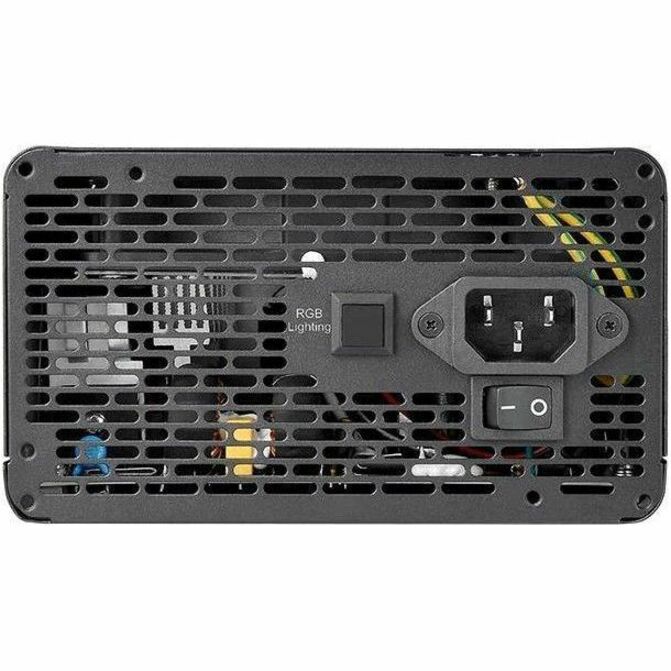

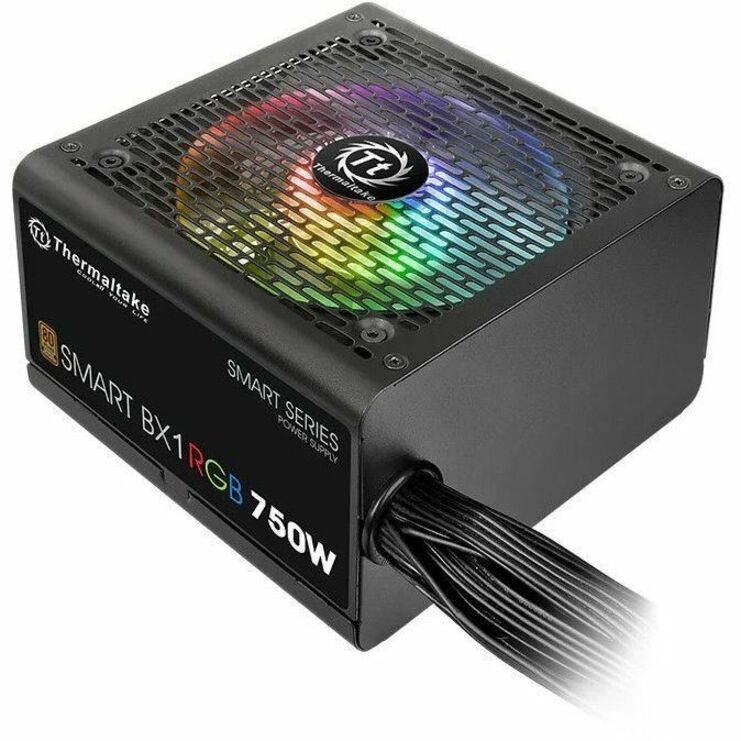

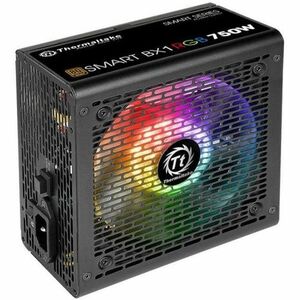

Thermaltake Smart BX1 SP-750AH2NKB 750W Power Supply

SKU: PS-SPR-0750NHFABU-1

Built to deliver 80 PLUS Bronze efficiency, Smart BX1 RGB series is available in 550W, 650W, and 750W models. The preinstalled 10 LED RGB fan provides excellent airflow, and also 3 lighting modes, 7 color options, LED Off, and a built-in memory function, which saves the colors applied and insure the same color selection every time you boot your PC. Comes with premium components, stable continuous power output at 40?, and ample 5-year warranty, its near silent operation, trouble free installation and reliable performance have made itself satisfy the market where value-oriented users are looking for a power supply with advanced features and aesthetic appeal.

10 RGB LEDs Preinstalled

The 10 RGB LEDs come preinstalled on the 120mm fan. Capable of displaying 7 colors(Red, Green, Blue, Yellow, Purple, Light Blue, and White), 3 illumination modes including Pulse, Full-lighted and RGB Cycle, and an LED Off mode.

One Button to Your Desired Color

Adding personal appeal to your build has never been so easy by just pressing one RGB lighting button! There is also a built-in memory function to save the color applied and insure the same color selection every time you boot your PC.

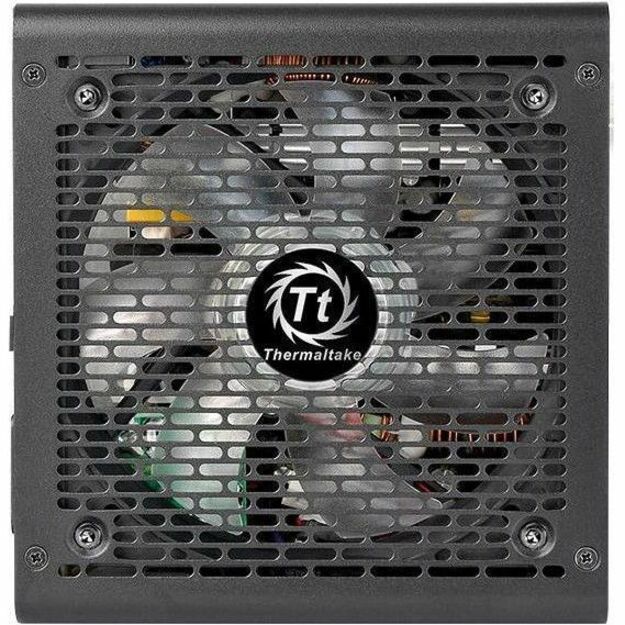

Ultra Quite 120mm Hydraulic Bearing Fan

Featuring an 120mm Hydraulic Bearing Fan with intelligent RPM control to guarantee superior cooling performance and silent operation.

? 80 mV Low Ripple Noise

All ripples are lower than 80mV for high stability on +12V, +5V, or +3.3V from 0% to 100% load to ensure a high quality power supply. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.

High Quality Japanese Main Capacitor

Greatly improves the durability and offers the highest stability and reliability.

High Amperage Single +12V Rail

Powerful single +12V rail ensures a stable and reliable supply to other PC components.

Multiple Connectors

Soft black cables come with sleeve cabling design to make cable installation an easy task while powering the system at an advantageous voltage.

80 PLUS Bronze Certified and Intel C6/C7 States Ready

Smart BX1 RGB series saves energy through its high energy efficiency up to 88% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.

RGB Lighting Gives Best Aesthetics for All Chassis

Smart BX1 RGB Series is the best idea for users to go with when they are looking for an RGB PSU that permits remarkable functionality and aesthetics in all cases.

  • Supplies power to the electrical load to keep up with the power requirements
  • The compatible output voltage of 3.3 V DC ensures that the device is ready to use when needed
  • With highly efficient supply, the 750 W output power enhances the performance

Call for Availability

Regular price $83.80

Shipping calculated at checkout

Details

Built to deliver 80 PLUS Bronze efficiency, Smart BX1 RGB series is available in 550W, 650W, and 750W models. The preinstalled 10 LED RGB fan provides excellent airflow, and also 3 lighting modes, 7 color options, LED Off, and a built-in memory function, which saves the colors applied and insure the same color selection every time you boot your PC. Comes with premium components, stable continuous power output at 40?, and ample 5-year warranty, its near silent operation, trouble free installation and reliable performance have made itself satisfy the market where value-oriented users are looking for a power supply with advanced features and aesthetic appeal.

10 RGB LEDs Preinstalled

The 10 RGB LEDs come preinstalled on the 120mm fan. Capable of displaying 7 colors(Red, Green, Blue, Yellow, Purple, Light Blue, and White), 3 illumination modes including Pulse, Full-lighted and RGB Cycle, and an LED Off mode.

One Button to Your Desired Color

Adding personal appeal to your build has never been so easy by just pressing one RGB lighting button! There is also a built-in memory function to save the color applied and insure the same color selection every time you boot your PC.

Ultra Quite 120mm Hydraulic Bearing Fan

Featuring an 120mm Hydraulic Bearing Fan with intelligent RPM control to guarantee superior cooling performance and silent operation.

? 80 mV Low Ripple Noise

All ripples are lower than 80mV for high stability on +12V, +5V, or +3.3V from 0% to 100% load to ensure a high quality power supply. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.

High Quality Japanese Main Capacitor

Greatly improves the durability and offers the highest stability and reliability.

High Amperage Single +12V Rail

Powerful single +12V rail ensures a stable and reliable supply to other PC components.

Multiple Connectors

Soft black cables come with sleeve cabling design to make cable installation an easy task while powering the system at an advantageous voltage.

80 PLUS Bronze Certified and Intel C6/C7 States Ready

Smart BX1 RGB series saves energy through its high energy efficiency up to 88% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.

RGB Lighting Gives Best Aesthetics for All Chassis

Smart BX1 RGB Series is the best idea for users to go with when they are looking for an RGB PSU that permits remarkable functionality and aesthetics in all cases.

  • Supplies power to the electrical load to keep up with the power requirements
  • The compatible output voltage of 3.3 V DC ensures that the device is ready to use when needed
  • With highly efficient supply, the 750 W output power enhances the performance
Specifications
Color Family:
Black
Efficiency:
88%
Energy Efficiency Certification:
80 Plus Bronze
Fan Bearing Type:
Hydro Bearing
Fan Diameter:
120 mm
Features:
RGB Lighting
Form Factor:
ATX,Internal
Input Voltage:
120 V AC,230 V AC
Limited Warranty:
5 Year
Manufacturer:
Thermaltake Technology Co., Ltd
Manufacturer Website Address:
http://www.thermaltakeusa.com
Maximum Operating Temperature:
104°F (40°C)
Minimum Operating Temperature:
41°F (5°C)
Modular:
No
MTBF:
100000 Hour
Number of (4+4 pin) CPU Power Connectors:
1
Number of (6+2 pin) PCI Express Power Connectors:
4
Number of +12V Rails:
1
Number of Fans:
1
Number of SATA Power Connectors:
8
Output Power:
750 W
Output Voltage:
3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB
Output Voltage Detail:
3.3 V DC @ 24 A,5 V DC @ 24 A,12 V DC @ 56 A,-12 V DC @ 0.5 A,5 V SB @ 2.5 A
PCI Express Connector:
Yes
Power Factor Correction (PFC):
Active
Product Color:
Black
Product Line:
Smart BX1
Product Model:
SP-750AH2NKB
Product Type:
Power Supply
Protection Type:
Over Voltage,Over Power,Short Circuit
Specification Compliance:
ATX12V v2.4,EPS12V v2.92
