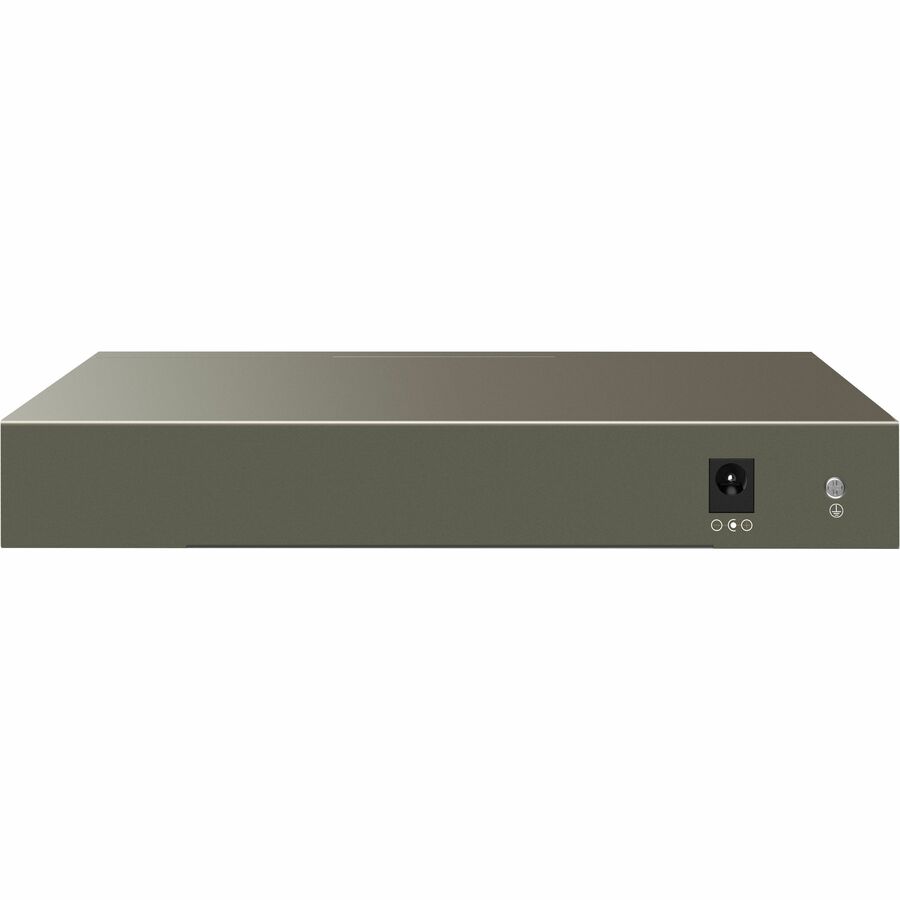

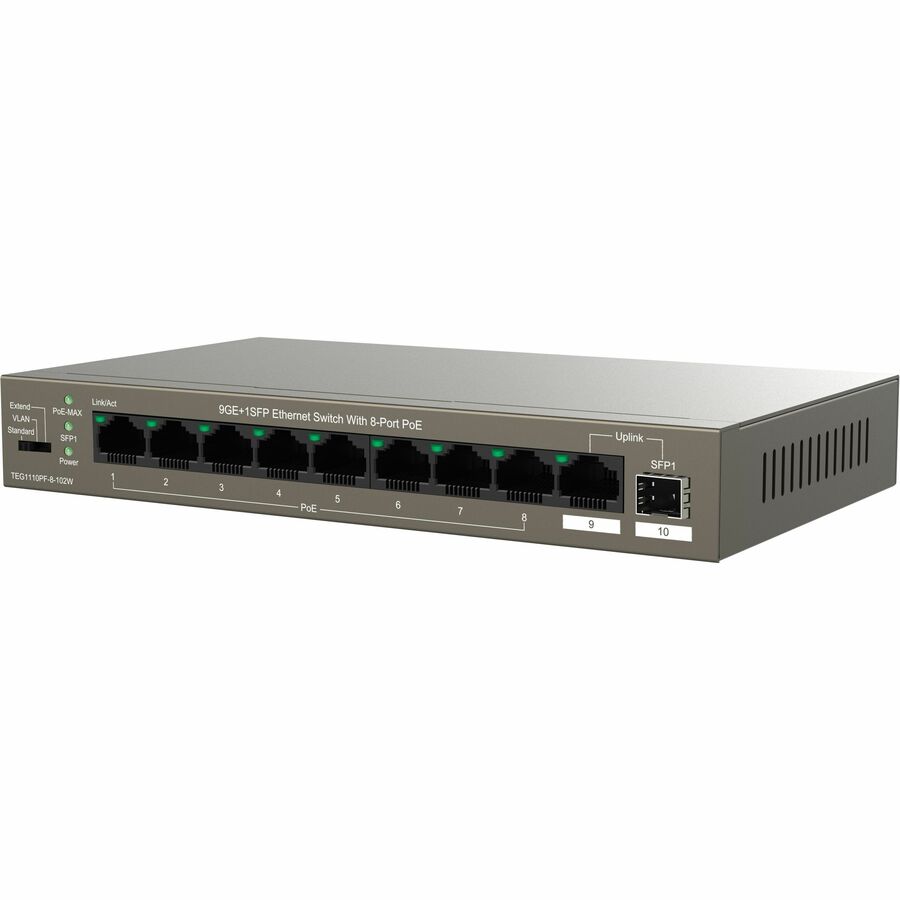

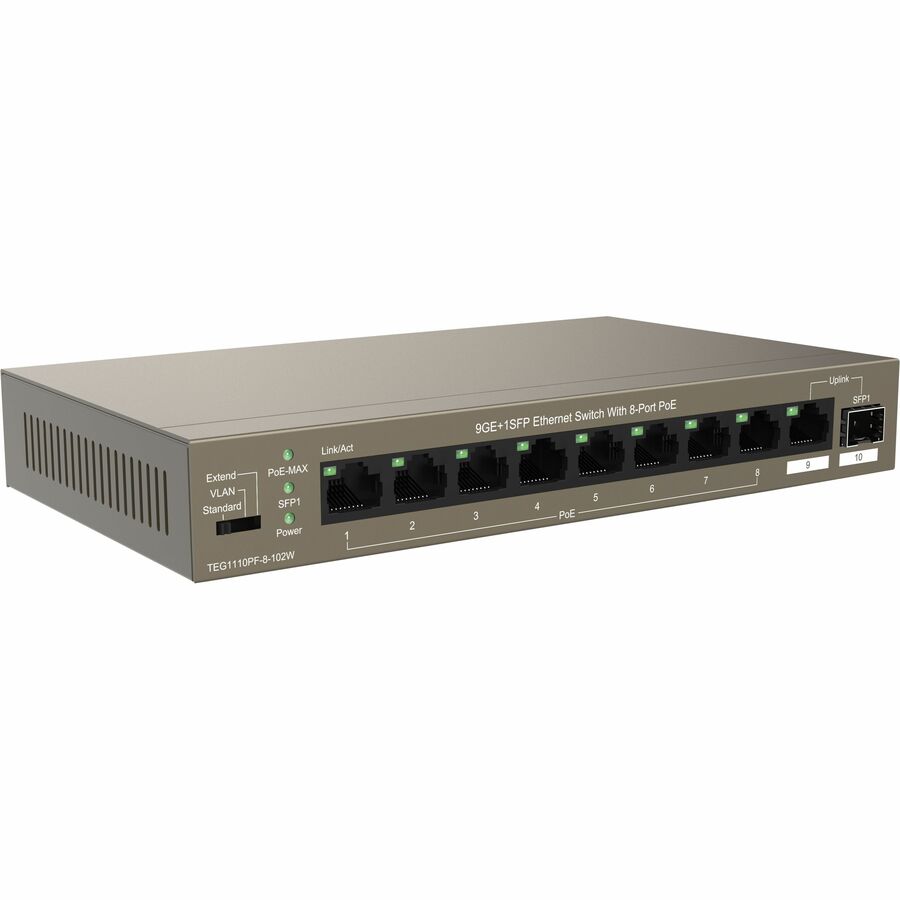

Tenda TEG1110PF-8-102W 9GE+1SFP Ethernet Switch With 8-Port PoE
The Faster, The Better Experience
Full gigabit ports, 20 Gbps non-blocking line speed forwarding, greatly improve the forwarding rate of large files, ensure smooth and stable transmission of large files and HD videos.
Working with Tenda optical fiber module TEG311SM, the networking can be as far as 20KM.
- Full gigabit ports
- 20 Gbps non-blocking line speed forwarding
Smart PoE Power Supply, Stable Transmission
The chip provides intelligent power management function. When the power supply exceeds the rated power of the PoE switch (92W), the low-priority port is automatically powered off to avoid overload and prolong the service life of the PoE switch.
- Smart PoE Power Supply
- Intelligent Power Management
GE and SFP Uplink Ports, Easier HD Monitoring With a gigabit uplink port and a gigabit uplink optical fiber port, easily complete low-cost remote networking.
3 Modes For More Scenarios, One-key To Change Smart And Easy
The switch supports 3 working modes of Standard, VLAN and Extend, realizing flexible network deployment in complex cases with lowered cost.
- Standard
- VLAN Mode
- Extend
Mode 1 : Standard Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately.
Mode 2 : VLAN In this mode, ports 1 - 8 are isolated from each other, but all of them can communicate with port 9 and SFP1. This mode helps isolate DHCP broadcast and reduce broadcast storms.
Mode 3 : Extend In this mode, all ports can communicate with each other, and the transmission distance of 1-8 ports can be extended to 250m.
6KV Professional Lightning Protection Design, Fearless Of Thunderstorm Weather
The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.
- 6KV Professional Lightning Protection
- Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af/at standards
- 8 * 10/100/1000 Mbps Base-T Ethernet ports (Data/Power), 1 * 10/100/1000 Mbps Base-T Ethernet port (Data), 1 * 100/1000 Mbps Base-X SFP port
- 16 K MAC address table and MAC address auto-learning
- IEEE 802.3x full duplex flow control and backpressure half duplex flow control 20 Gbps switching fabric for non-blocking line-speed forwarding
- Maximum PoE output of a single port: 30 W Total power consumption of the switch: 102 W
- Three-mode toggle: Standard, VLAN, Extend
- Desktop installation & Wall mounting
Call for Availability
Shipping calculated at checkout
The Faster, The Better Experience
Full gigabit ports, 20 Gbps non-blocking line speed forwarding, greatly improve the forwarding rate of large files, ensure smooth and stable transmission of large files and HD videos.
Working with Tenda optical fiber module TEG311SM, the networking can be as far as 20KM.
- Full gigabit ports
- 20 Gbps non-blocking line speed forwarding
Smart PoE Power Supply, Stable Transmission
The chip provides intelligent power management function. When the power supply exceeds the rated power of the PoE switch (92W), the low-priority port is automatically powered off to avoid overload and prolong the service life of the PoE switch.
- Smart PoE Power Supply
- Intelligent Power Management
GE and SFP Uplink Ports, Easier HD Monitoring With a gigabit uplink port and a gigabit uplink optical fiber port, easily complete low-cost remote networking.
3 Modes For More Scenarios, One-key To Change Smart And Easy
The switch supports 3 working modes of Standard, VLAN and Extend, realizing flexible network deployment in complex cases with lowered cost.
- Standard
- VLAN Mode
- Extend
Mode 1 : Standard Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately.
Mode 2 : VLAN In this mode, ports 1 - 8 are isolated from each other, but all of them can communicate with port 9 and SFP1. This mode helps isolate DHCP broadcast and reduce broadcast storms.
Mode 3 : Extend In this mode, all ports can communicate with each other, and the transmission distance of 1-8 ports can be extended to 250m.
6KV Professional Lightning Protection Design, Fearless Of Thunderstorm Weather
The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.
- 6KV Professional Lightning Protection
- Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af/at standards
- 8 * 10/100/1000 Mbps Base-T Ethernet ports (Data/Power), 1 * 10/100/1000 Mbps Base-T Ethernet port (Data), 1 * 100/1000 Mbps Base-X SFP port
- 16 K MAC address table and MAC address auto-learning
- IEEE 802.3x full duplex flow control and backpressure half duplex flow control 20 Gbps switching fabric for non-blocking line-speed forwarding
- Maximum PoE output of a single port: 30 W Total power consumption of the switch: 102 W
- Three-mode toggle: Standard, VLAN, Extend
- Desktop installation & Wall mounting
