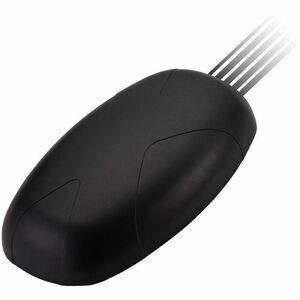

Taoglas Steedan MA350 Antenna
5-in-1 Magnetic Mount Antenna with GNSS, 2*5G/4G MIMO and 2*Wi-Fi 6
The Taoglas Steedan MA350 is a 5-in-1 next-generation low profile magnetic mount antenna for a vehicle, outdoor building, and heavy equipment roof applications. It has a fully IP65 rated waterproof robust ABS enclosure and base. This is an ideal external combination antenna solution that is used where drilling a hole through the roof of a vehicle or a metal panel is not feasible. It can be mounted on steel surfaces and its ultra-strong neodymium magnets. A soft foam cushion on the base protects the mounting surface during installation and removal. Only 48mm high it mounts discretely to the target application out of sight of most onlookers.
This outstanding antenna delivers powerful MIMO antenna technology 5G/4G and Wi-Fi 6 2.4/5.8/7.125GHz and a custom-tuned GPS/GLONASS/BeiDou patch antenna for GNSS location services. The 5 internal antennas have superior isolation. The 5G/4G antennas also include backward compatibility to work at most worldwide 3G and 2G bands.
Typical Applications:
Next Generation OEM Automotive Connectivity
Multimedia, Navigation, and Telematics Systems
V2V, V2X and Fleet Management Applications
First Net Responder Routers
The MA350 is ideal for applications that require highly sophisticated antennas for real-time streaming applications that demand high-speed video uplink and downlink into the cabin of the vehicle. These challenges are resolved by the highly efficient, high gain MIMO antennas, with high isolation, all of which is necessary to achieve the required signal to noise ratio and throughput.
The MA350 can also be customized for your particular wireless application and frequency band, subject to NRE and MOQ. There are 5x 3000mm low loss TGC-200 cables, terminating in SMA(M) connectors for LTE MIMO, and RP SMA(M) for Wi-Fi MIMO. There is a 3000mm RG-174 cable for GNSS terminating in an SMA(M) connector. All cable lengths and connector types are customizable, for further informationcontactyour regional Taoglas customer support team.
- 2* 5G/4G MIMO - 600-6000MHz
- 2* Wi-Fi 6 MIMO - 2.4GHz/5.8-7.125GHz
- 1* GPS-GLONASS-GALILEO-BeiDou
- IP65 Rated, Ruggedized PC/ABS Magnetic Mount Enclosure
- LTE: 3m TGC-200 Cable with SMA(M)ST Connector
- Wi-Fi: 3m TGC-200 Cable with RP SMA(M)ST Connector
- GNSS: 3m RG-174 Cable with SMA(M)ST Connector
- Dimensions: 247 * 144.3 * 52.8 mm
- RoHS and REACH Compliant
Call for Availability
Shipping calculated at checkout
