StarTech.com HDMI over IP Extender with Video Compression - HDMI over CAT6 Extender - 1080p

SKU: ST12MHDLNHK

Extend and control HDMI video over your existing LAN to create a state-of-the-art network of video displays in a variety of environments where digital signage is required.

Reliably Extend Compressed HDMI Video with Bandwidth Efficiency

This extender uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements.

With advanced compression technology, broadcasting your video signal requires only 6 - 12 Mbps of local area network bandwidth, when in operation for each kit.

Flexible & Scalable Deployment Options

The HDMI over LAN extender offers many configurations to accommodate your set up.

This HDMI video extender provides four ways to control your video network configurations.

  • Rotary DIP switches located on the Tx and Rx
  • Your computer connected to the transmitter or receiver via a serial cable
  • Over IP using any device equipped with a browser on the same local area network (i.e. tablet, laptop, smartphone)
  • Infrared (IR) remote control using the included receiver
  • Comprehensive Product Testing & Expert Technical Support

    StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.

    More from the Manufacturer

    More from the Manufacturer

    • Efficiently distribute video throughout your site using your local area network
    • Easily create your ideal digital signage with a versatile and scalable video distribution system
    • Deliver brilliant HD quality video with 1080p support

    Call for Availability

    Regular price $586.79

    Shipping calculated at checkout

    Details

    Extend and control HDMI video over your existing LAN to create a state-of-the-art network of video displays in a variety of environments where digital signage is required.

    Reliably Extend Compressed HDMI Video with Bandwidth Efficiency

    This extender uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements.

    With advanced compression technology, broadcasting your video signal requires only 6 - 12 Mbps of local area network bandwidth, when in operation for each kit.

    Flexible & Scalable Deployment Options

    The HDMI over LAN extender offers many configurations to accommodate your set up.

    This HDMI video extender provides four ways to control your video network configurations.

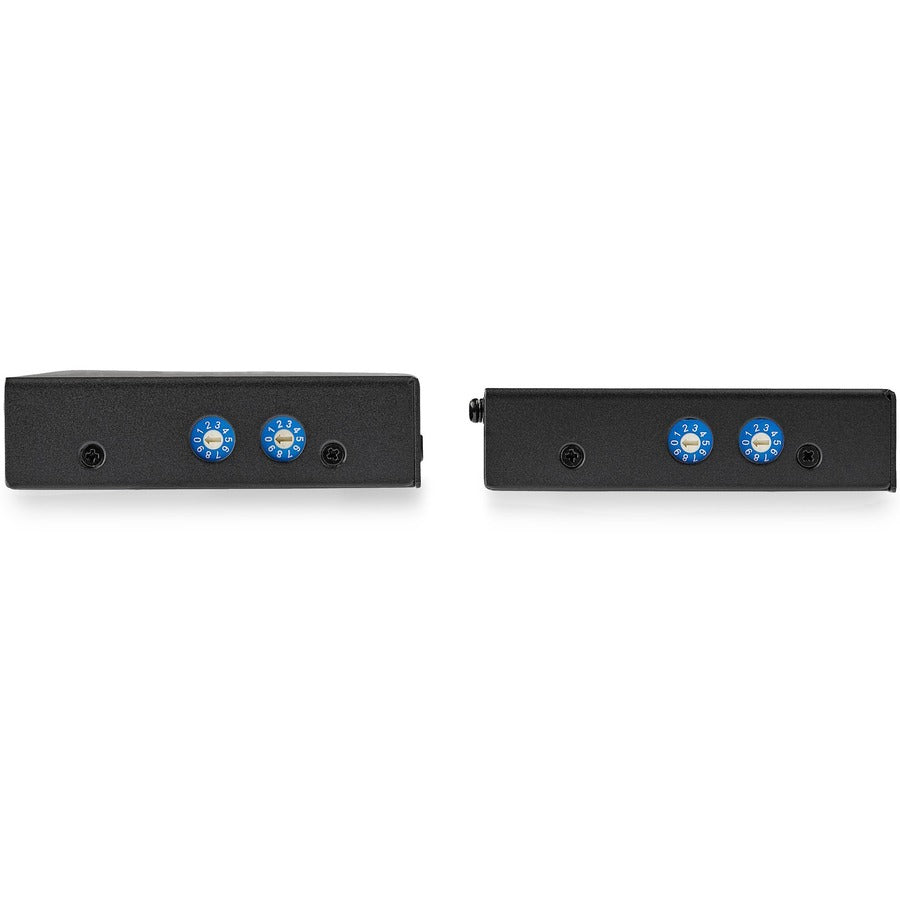

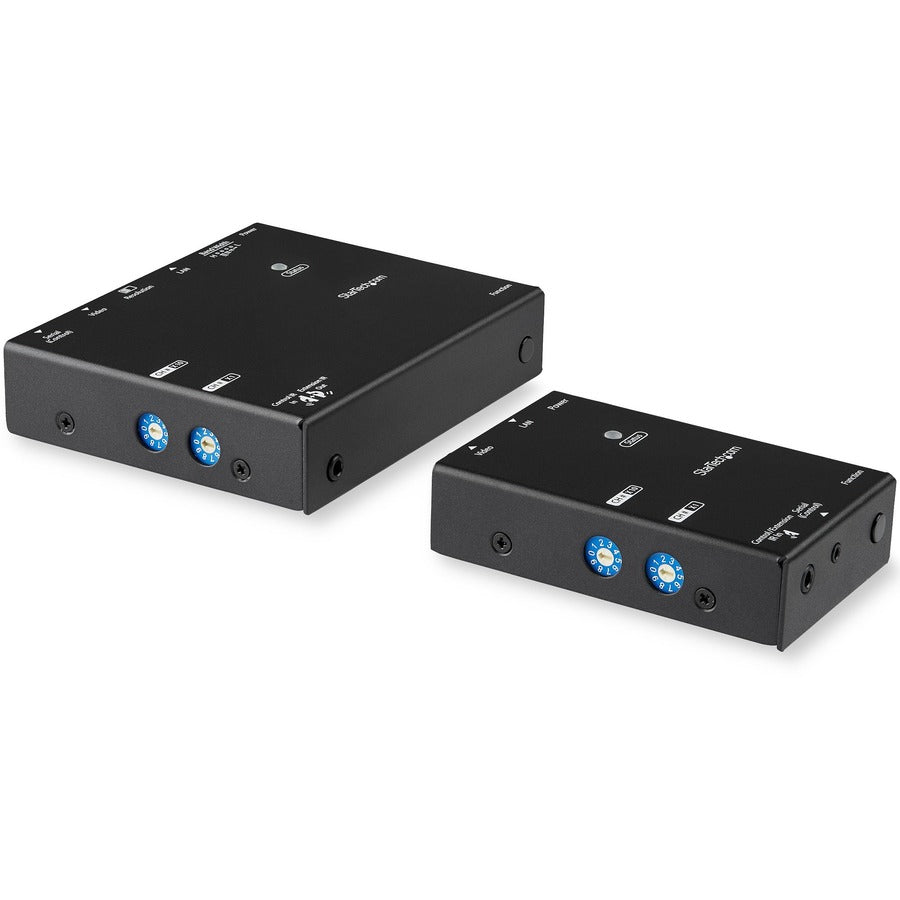

  • Rotary DIP switches located on the Tx and Rx
  • Your computer connected to the transmitter or receiver via a serial cable
  • Over IP using any device equipped with a browser on the same local area network (i.e. tablet, laptop, smartphone)
  • Infrared (IR) remote control using the included receiver
  • Comprehensive Product Testing & Expert Technical Support

    StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.

    More from the Manufacturer

    More from the Manufacturer

    • Efficiently distribute video throughout your site using your local area network
    • Easily create your ideal digital signage with a versatile and scalable video distribution system
    • Deliver brilliant HD quality video with 1080p support
    Specifications
    Color Family:
    Black
    Connectivity Technology:
    Wired
    Country of Origin:
    Taiwan
    Environmentally Friendly:
    Yes
    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    Form Factor:
    Rack-mountable,Desktop
    Graphics Modes:
    Full HD
    HDMI In:
    Yes
    HDMI Out:
    Yes
    Limited Warranty:
    2 Year
    Manufacturer:
    StarTech.com
    Manufacturer Website Address:
    http://www.startech.com
    Maximum Operating Distance:
    164.04 ft
    Maximum Video Resolution:
    1920 x 1080
    Media Type Supported:
    Twisted Pair
    Network (RJ-45):
    Yes
    Number of HDMI Inputs:
    1
    Number of HDMI Outputs:
    1
    Number of Input Devices Supported:
    1
    Number of Network (RJ-45) Ports:
    2
    Number of Output Devices Supported:
    1
    Packaged Quantity:
    1 Kit

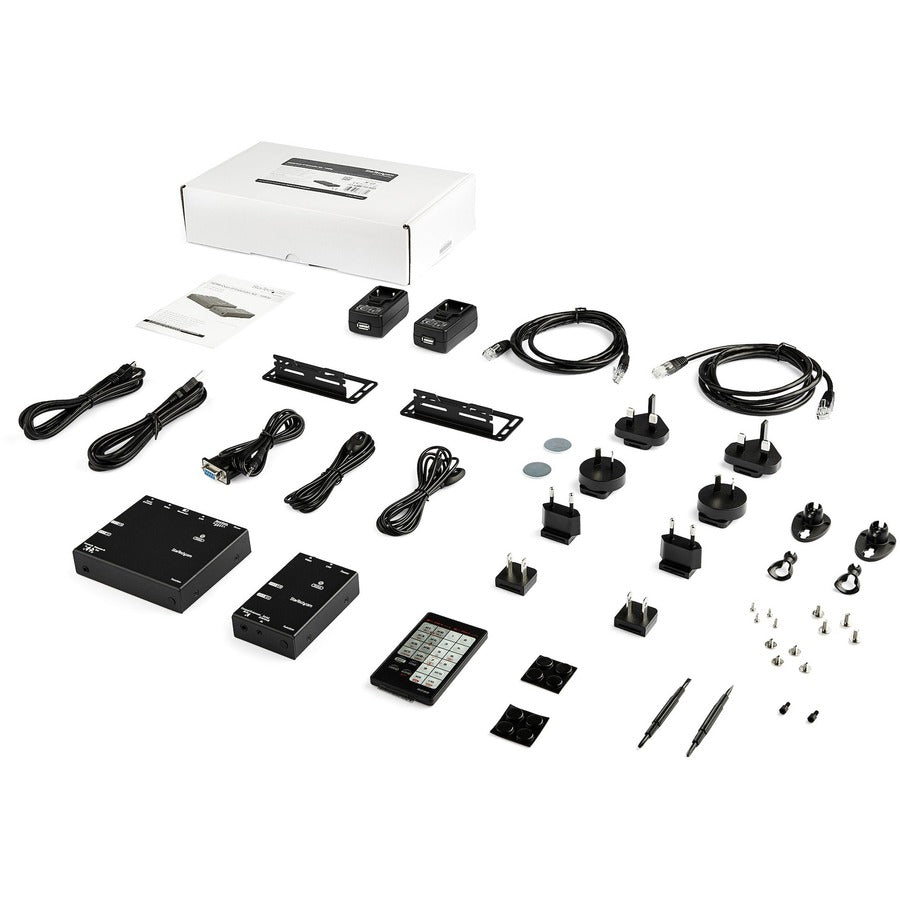

    Package Contents:
    • 1 x HDMI Over IP Transmitter
    • 1 x HDMI Over IP Receiver
    • 2 x Universal Power Adapters (NA, EU, UK, ANZ)
    • 2 x Mounting Brackets
    • 2 x CAT5 Cables
    • 1 x Plastic Screwdriver
    • 1 x IR Remote Control
    • 2 x USB-A to Mini USB-B Cable
    • 1 x DB9 to 2.5 mm Serial Adapter Cable
    • 1 x IR Blaster
    • 1 x IR Receiver
    • 8 x Rubber Feet
    • 1 x Instruction Manual
    Product Color:
    Black
    Product Type:
    Video Extender Transmitter/Receiver
    Receiver Depth:
    12.20"
    Receiver Height:
    1.10"
    Receiver Weight (Approximate):
    7.05 lb
    Receiver Width:
    7"
    TAA Compliant:
    Yes
    Transmitter Depth:
    12.20"
    Transmitter Height:
    1.10"
    Transmitter Weight (Approximate):
    7.05 lb
    Transmitter Width:
    7"
    Twisted Pair Cable Standard:
    Category 6
