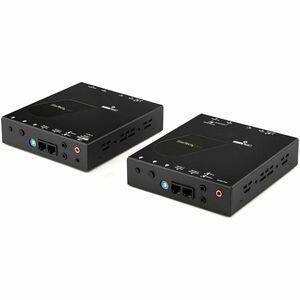

StarTech.com HDMI over IP Extender Kit with Video Wall Support - 1080p - HDMI over Cat5 / Cat6 Transmitter and Receiver Kit (ST12MHDLAN2K)

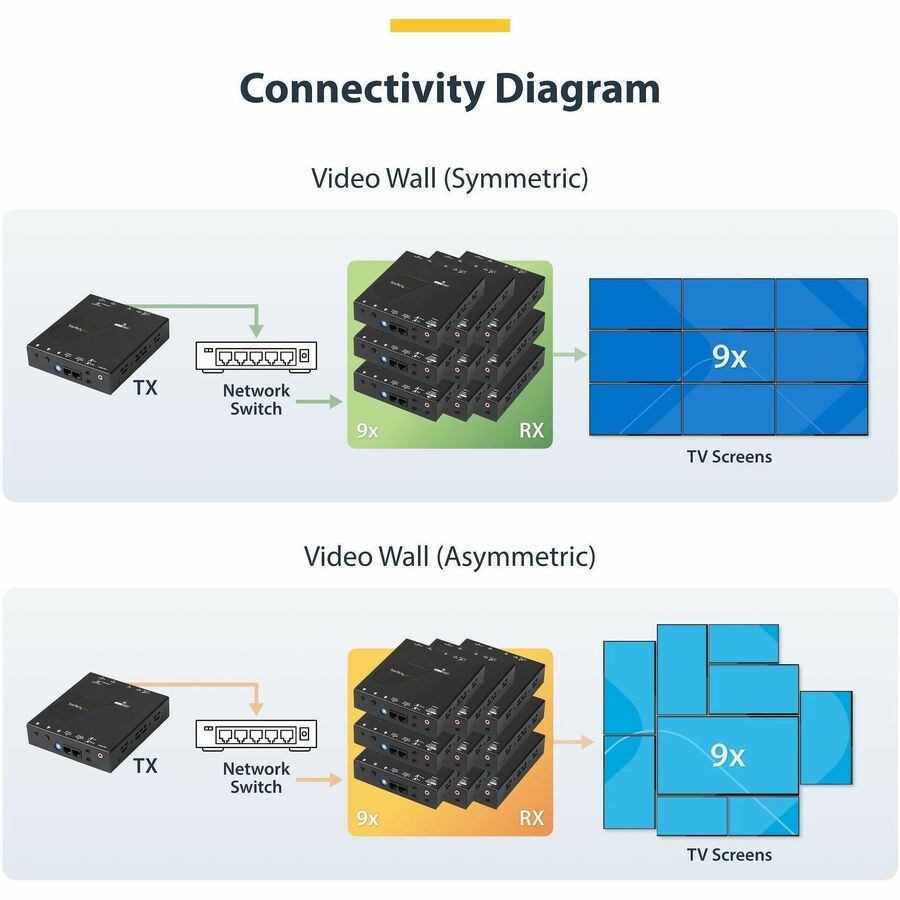

This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5e or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.

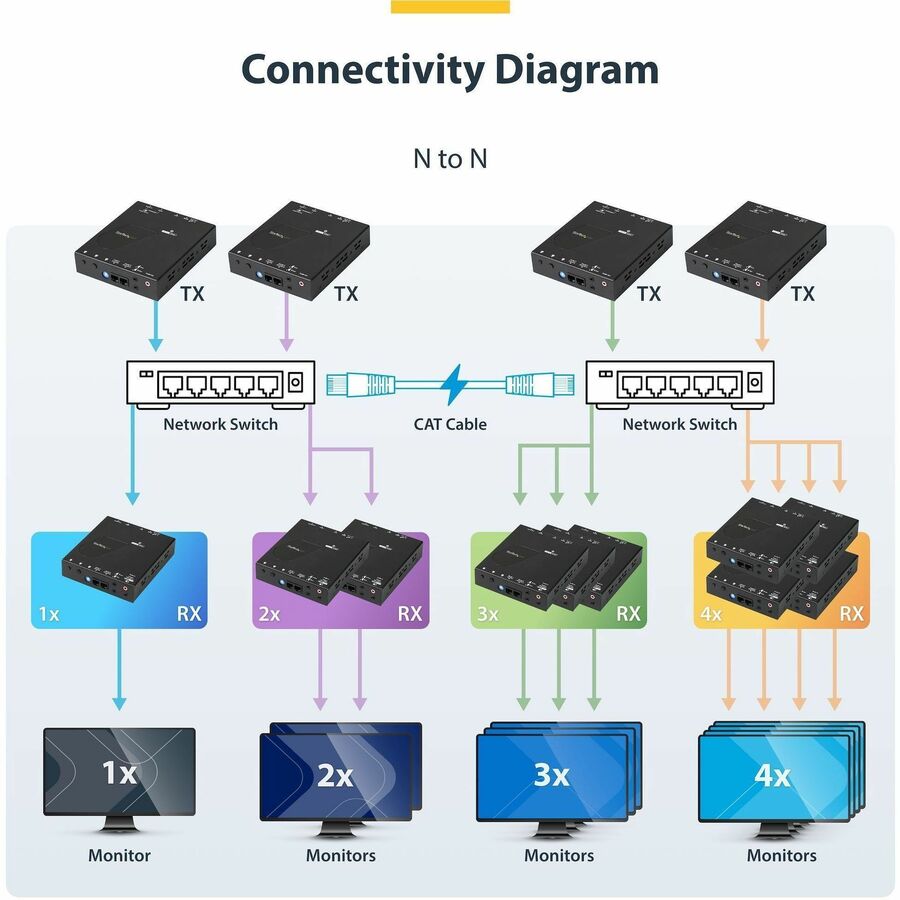

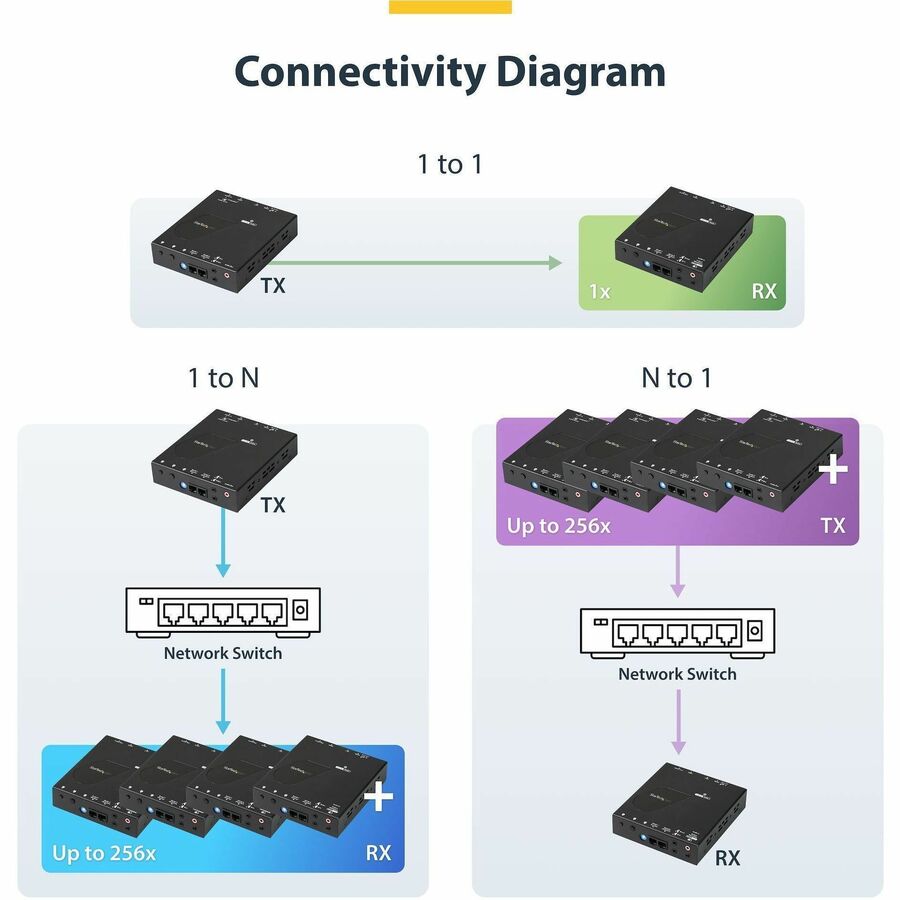

You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.
Resolutions up to 1080p, with Audio
With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.
Mobile Control Through a Free App
The kit includes an easy-to-use online app to manage your IP video distribution.
The app is available on iOS for an iPhone or iPad, and Android for a smartphone or tablet.
Download the StarTech.com Video Control software to manage your IP video distribution.
NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.
Hassle-Free Installations
The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.
ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Video Extender Transmitter/Receiver is all you need for dependable and productive audio/video transmission
- 1920 x 1080 maximum video resolution for stunning, lively result with optimal viewing usability
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- 1 input devices supported for maximum feasibility and usage convenience
- 1 output devices supported to better accommodate your specific requirements
- 328.08 ft maximum operating distance for feasible operation and optimal coverage
- Full HD graphics mode for an immersive and sharp viewing experience
- Rack-mountable form factor for your convenience and simplicity of usage
19 in stock
Shipping calculated at checkout
This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5e or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.
You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.
Resolutions up to 1080p, with Audio
With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.
Mobile Control Through a Free App
The kit includes an easy-to-use online app to manage your IP video distribution.
The app is available on iOS for an iPhone or iPad, and Android for a smartphone or tablet.
Download the StarTech.com Video Control software to manage your IP video distribution.
NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.
Hassle-Free Installations
The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.
ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Video Extender Transmitter/Receiver is all you need for dependable and productive audio/video transmission
- 1920 x 1080 maximum video resolution for stunning, lively result with optimal viewing usability
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- 1 input devices supported for maximum feasibility and usage convenience
- 1 output devices supported to better accommodate your specific requirements
- 328.08 ft maximum operating distance for feasible operation and optimal coverage
- Full HD graphics mode for an immersive and sharp viewing experience
- Rack-mountable form factor for your convenience and simplicity of usage

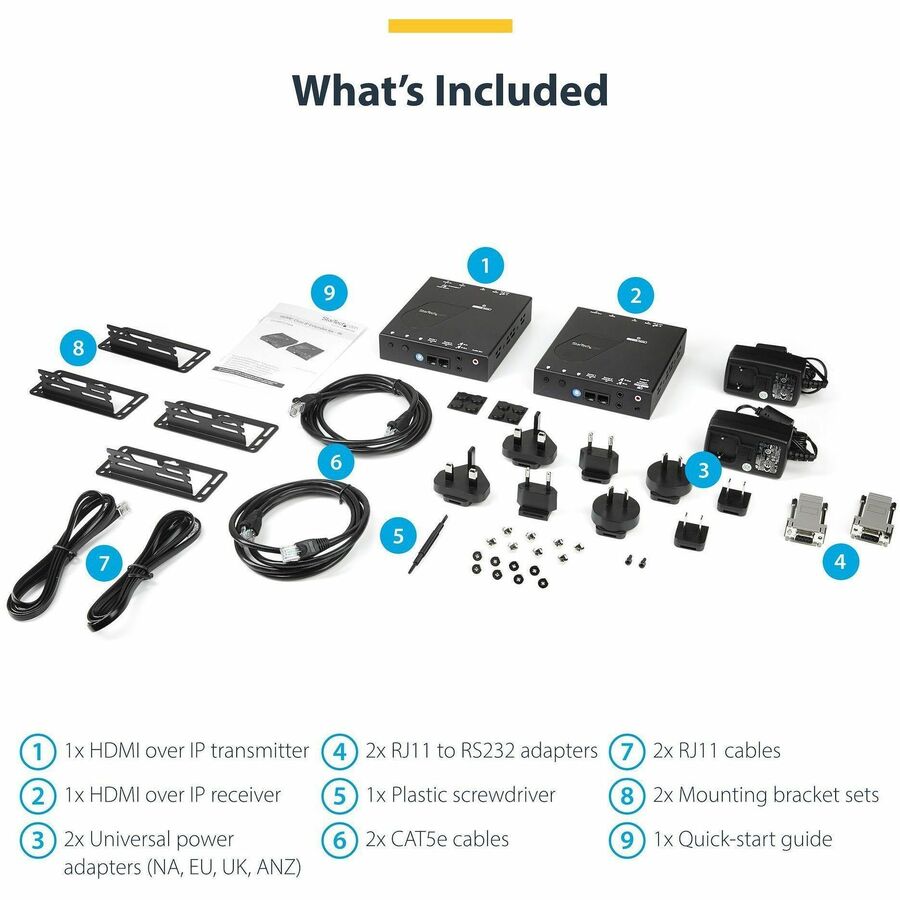

- 1 x HDMI Transmitter
- 1 x HDMI Receiver
- 1 x CAT5 Cable
- 2 x RJ-11 to RSx232 Adapters
- 2 x RJ-11 Cables
- 1 x IR Blaster
- 1 x IR Receiver
- 2 x Universal Power Adapters (NA/JP, EU, UK, ANZ)
- 1 x Hardware Kit
- 8 x Foot Pads
- 1 x User Manual
