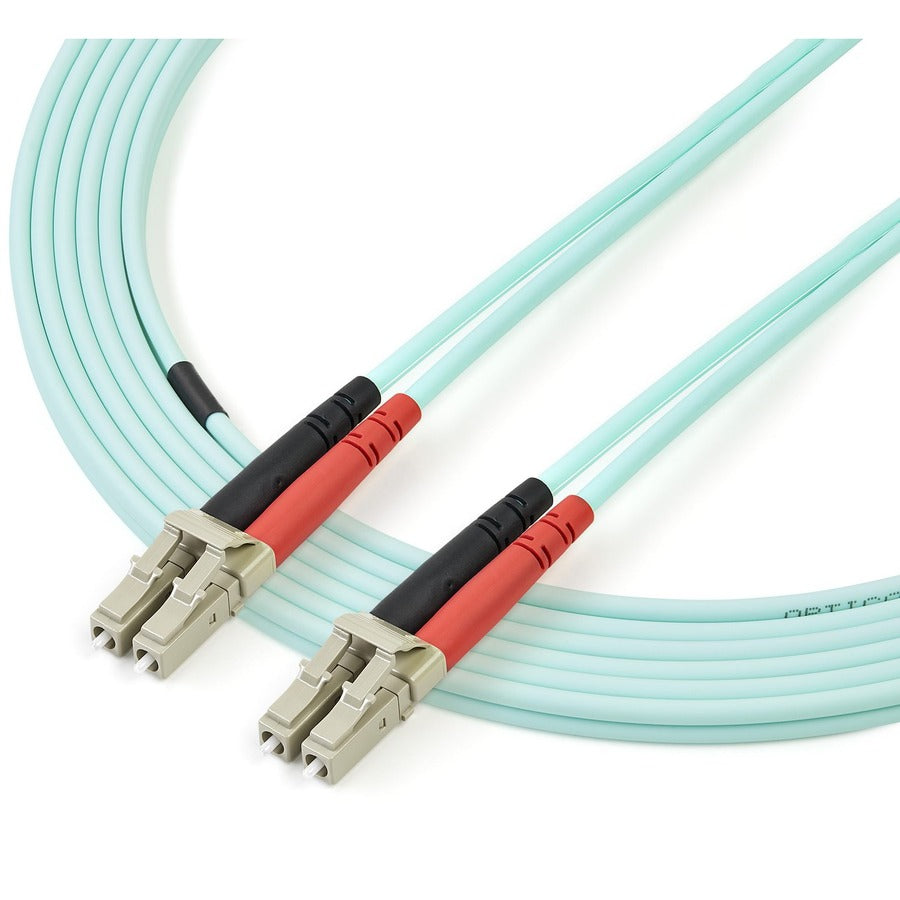

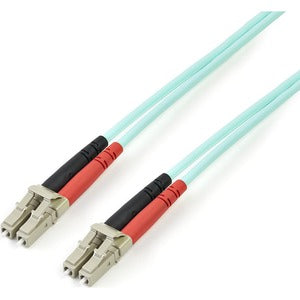

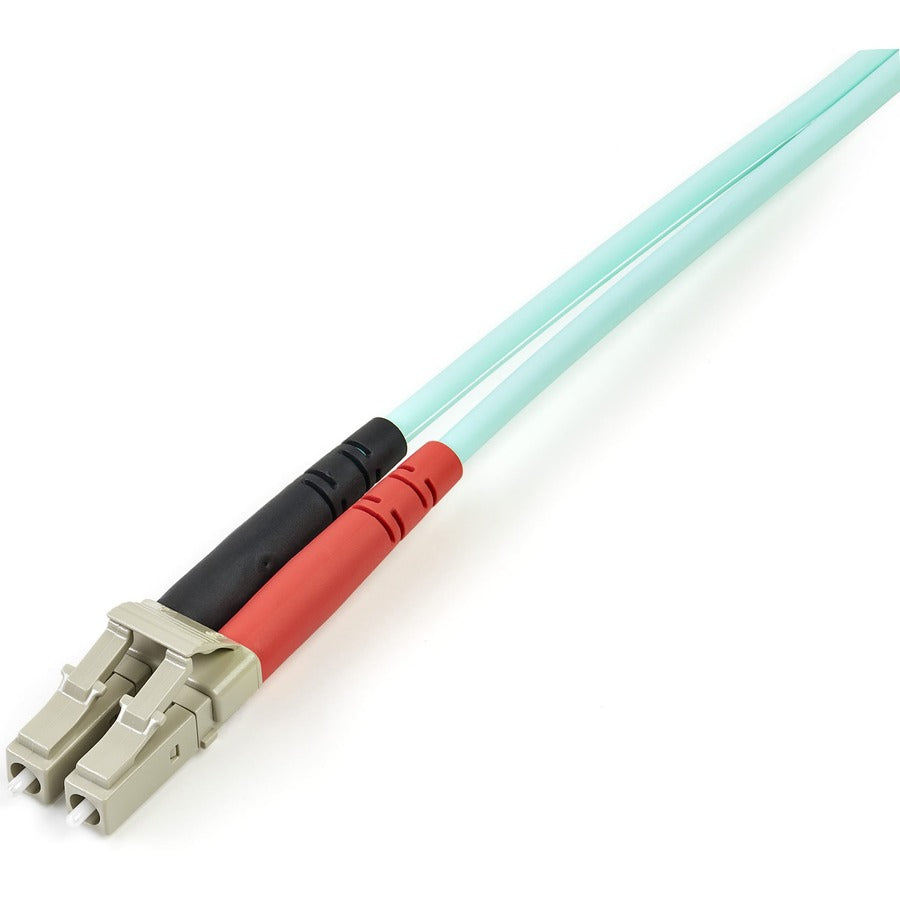

StarTech.com 3m (10ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord
SKU: 450FBLCLC3
This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP plus and QSFP plus transceivers in 40 and 100 Gigabit networks. The OM4 Duplex Multimode Fiber Optic Cable with LC connectors supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources. It is backward-compatible with your existing 50/125 equipment. Fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat in the event of a fire. Compatible with 850nm VCSEL source, the network cable is ideal for use in industrial settings, central offices and schools as well as residential settings where building codes are a consideration. Laser-optimized multimode fiber is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability.
More from the Manufacturer
- SPECS: 3m (9.8ft); Color: Aqua (OM4); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life~
- COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards
- QUALITY CONSTRUCTION: 50/125"m fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
260 in stock
Regular price
$28.38
Shipping calculated at checkout
This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP plus and QSFP plus transceivers in 40 and 100 Gigabit networks. The OM4 Duplex Multimode Fiber Optic Cable with LC connectors supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources. It is backward-compatible with your existing 50/125 equipment. Fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat in the event of a fire. Compatible with 850nm VCSEL source, the network cable is ideal for use in industrial settings, central offices and schools as well as residential settings where building codes are a consideration. Laser-optimized multimode fiber is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability.
More from the Manufacturer
- SPECS: 3m (9.8ft); Color: Aqua (OM4); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life~
- COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards
- QUALITY CONSTRUCTION: 50/125"m fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
Cable Characteristic:
Patch Cable
Cable Length:
9.84 ft
Cable Type:
Fiber Optic
Color Family:
Green
Connector Gender on First End:
Male
Connector Gender on Second End:
Male
Connector on First End Details:
2 x LC Network - Male
Connector on Second End Details:
2 x LC Network - Male
Connector Type on First End:
LC Network - Male
Connector Type on Second End:
LC Network - Male
Country of Origin:
China
Data Transfer Rate:
100 Gbit/s
Device Supported:
Network Device,Transceiver
Features:
Halogen Free,Flame Retardant,Corrosion Resistant
Fiber Optic Cable Core/Cladding Specification:
50/125 µm
Fiber Optic Mode:
Multi-mode
Jacket Type:
LSZH
Limited Warranty:
Lifetime
Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com
Packaged Quantity:
1 Each
Product Color:
Aqua
Product Type:
Network Cable
