StarTech.com 25 ft DisplayPort Cable with Latches - M/M
SKU: DISPLPORT25L
The DISPLPORT25L 25-foot DisplayPort® cable provides a connection of up to 25ft between a DisplayPort source and a DisplayPort display, with no loss of signal quality - almost/,more than double the typical DisplayPort connection distance limitation of 16ft. Its 26 gauge (AWG) pure copper wire, and Aluminum and Mylar shielding helps to eliminate EMI and RFI interference. Delivering a maximum bandwidth of 10.8 Gbps, the DISPLPORT25L is capable of providing higher performance than either HDMI® or dual link DVI and supporting next generation multimedia applications with a maximum resolution capability of up to WQXGA (2560�-1600).

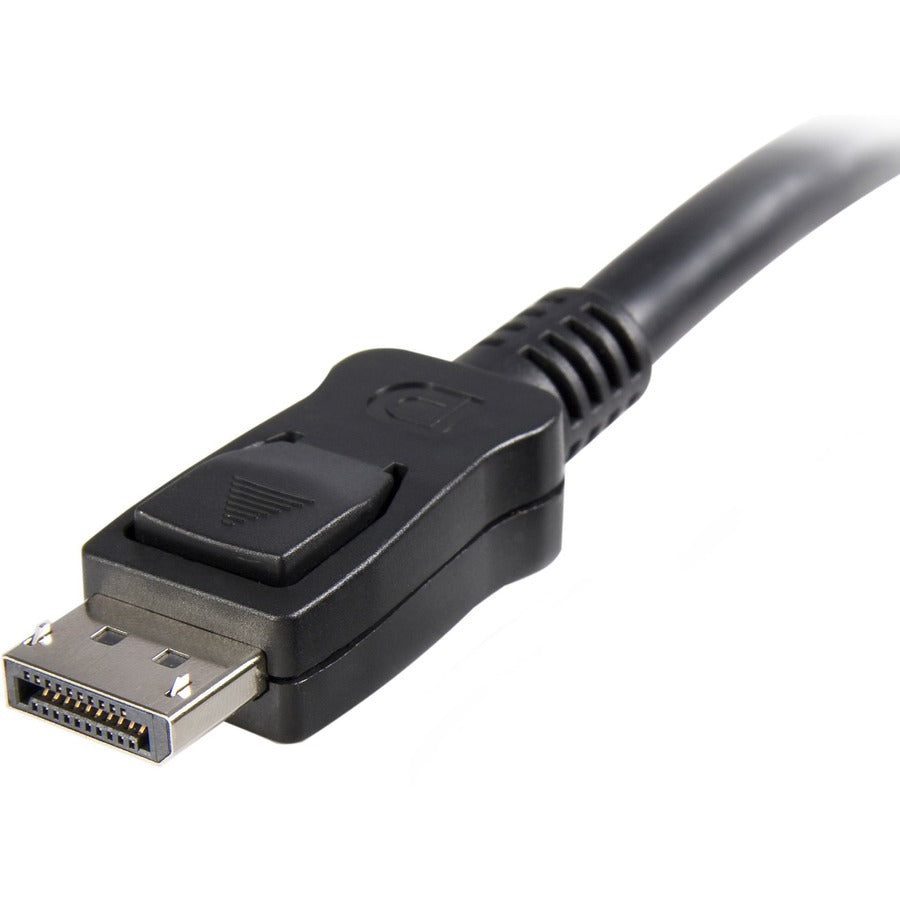

The DisplayPort cable's small, USB-sized latching connectors support two-way display connectivity and optional audio support.
The DISPLPORT25L DisplayPort cable is both HDCP and DPCP capable, ensuring that digitally protected content is displayed properly on the connected display.
More from the Manufacturer
- SPECS: 25 ft (7 m)
- Black
- DisplayPort v1.0

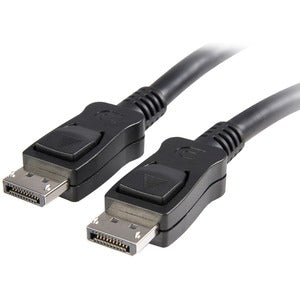

- DP Latching Male to Male
- 26 AWG
- PVC cable jacket, ABS connector shell
- Shield: Al-Mylar foil with Braid
- Protocols: MST, GTC
- Lifetime Warranty
- APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
- QUALITY CONSTRUCTION: 26AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
- HIGH PERFORMANCE CABLE: This 25ft (7m) DisplayPort to DisplayPort cable supports 2K (2560x1440p) 30Hz, Full HD (1920x1200p) 60Hz, 10.8 Gbps bandwidth, Multi-Stream Transport (MST), 5.1, 7.1 Audio Channel, GTC for precise audio channel timing & 3D Stereo
135 in stock
Regular price
$92.33
Shipping calculated at checkout
The DISPLPORT25L 25-foot DisplayPort® cable provides a connection of up to 25ft between a DisplayPort source and a DisplayPort display, with no loss of signal quality - almost/,more than double the typical DisplayPort connection distance limitation of 16ft. Its 26 gauge (AWG) pure copper wire, and Aluminum and Mylar shielding helps to eliminate EMI and RFI interference. Delivering a maximum bandwidth of 10.8 Gbps, the DISPLPORT25L is capable of providing higher performance than either HDMI® or dual link DVI and supporting next generation multimedia applications with a maximum resolution capability of up to WQXGA (2560�-1600).
The DisplayPort cable's small, USB-sized latching connectors support two-way display connectivity and optional audio support.
The DISPLPORT25L DisplayPort cable is both HDCP and DPCP capable, ensuring that digitally protected content is displayed properly on the connected display.
More from the Manufacturer
- SPECS: 25 ft (7 m)
- Black
- DisplayPort v1.0
- DP Latching Male to Male
- 26 AWG
- PVC cable jacket, ABS connector shell
- Shield: Al-Mylar foil with Braid
- Protocols: MST, GTC
- Lifetime Warranty
- APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
- QUALITY CONSTRUCTION: 26AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
- HIGH PERFORMANCE CABLE: This 25ft (7m) DisplayPort to DisplayPort cable supports 2K (2560x1440p) 30Hz, Full HD (1920x1200p) 60Hz, 10.8 Gbps bandwidth, Multi-Stream Transport (MST), 5.1, 7.1 Audio Channel, GTC for precise audio channel timing & 3D Stereo
American Wire Gauge:
26 AWG
Cable Length:
25 ft
Cable Type:
DisplayPort
Color Family:
Black
Compatibility:
AMD Graphic Cards
- FirePro S9000
- 7000
- W8100
- 7100
- 5100
- R5000
Connector Gender on First End:
Male
Connector Gender on Second End:
Male
Connector on First End Details:
1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details:
1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector Plating:
Gold
Connector Type on First End:
DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End:
DisplayPort 1.2 Digital Audio/Video - Male
Country of Origin:
China
Data Transfer Rate:
10.8 Gbit/s
Device Supported:
Audio/Video Device,Monitor,Workstation,Notebook,Projector,Graphics Card
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Features:
Molded,EMI/RF Protection,HDCP,DPCP,Strain Relief,Latching Connector,EMI Protection,Fray Resistant,Damage Resistant,Multi-Stream Transport (MST) Support,Flexible
Jacket Material:
Polyvinyl Chloride (PVC)
Jacket Type:
CMG
Limited Warranty:
Lifetime
Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com
Packaged Quantity:
1 Each
Product Color:
Black
Product Type:
Video Cable
Shielding:
Yes
Supported Resolution:
4096 x 2160
