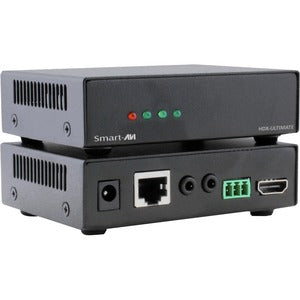

SmartAVI HDMI, IR, and RS-232 PoE Extender over a Single CAT5e/6 Cable
SKU: HDX-ULT-S
The HDX-Ultimate uses only one CAT5e cable to extend 4K HDMI signals hundreds of feet from their source. The Ultimate's HDBaseT technology is HDTV-ready and PoE, ensuring peak performance even when transmitting ultra-high quality picture resolution. The HDX-Ultimate is a crucial extender for any system, and works in tandem with SmartAVI matrixes for robust routing configurations. Control and extend setups up to 300 ft per side, and 450 ft when both are powered. Plus, with RS-232 and IR remote control, taking command is convenient and easy every time!
Whether it's for a home entertainment system or a commercial installation, the HDX-Ultimate delivers flexibility and control. Don't let the distance bring your system down: let the HDX-Ultimate extend your reach today!
Whether it's for a home entertainment system or a commercial installation, the HDX-Ultimate delivers flexibility and control. Don't let the distance bring your system down: let the HDX-Ultimate extend your reach today!
- Rack optional
- LED status indicators
- Bi-directional IR and RS-232 control
- Up to 10.2 Gbps ultra-high bandwidth
- HDCP compliant; EDID learning
- Supports 1080p/60fps and 4K/30Hz resolution
- CAT6 extends signals over 450ft
- Powered over Ethernet (PoE)
- (1) HDMI output for HDTV support
- Supports POE: Can be powered by TX or RX
Call for Availability
Regular price
$407.73
Sale price
$499
On Sale
Shipping calculated at checkout
The HDX-Ultimate uses only one CAT5e cable to extend 4K HDMI signals hundreds of feet from their source. The Ultimate's HDBaseT technology is HDTV-ready and PoE, ensuring peak performance even when transmitting ultra-high quality picture resolution. The HDX-Ultimate is a crucial extender for any system, and works in tandem with SmartAVI matrixes for robust routing configurations. Control and extend setups up to 300 ft per side, and 450 ft when both are powered. Plus, with RS-232 and IR remote control, taking command is convenient and easy every time!
Whether it's for a home entertainment system or a commercial installation, the HDX-Ultimate delivers flexibility and control. Don't let the distance bring your system down: let the HDX-Ultimate extend your reach today!
Whether it's for a home entertainment system or a commercial installation, the HDX-Ultimate delivers flexibility and control. Don't let the distance bring your system down: let the HDX-Ultimate extend your reach today!
- Rack optional
- LED status indicators
- Bi-directional IR and RS-232 control
- Up to 10.2 Gbps ultra-high bandwidth
- HDCP compliant; EDID learning
- Supports 1080p/60fps and 4K/30Hz resolution
- CAT6 extends signals over 450ft
- Powered over Ethernet (PoE)
- (1) HDMI output for HDTV support
- Supports POE: Can be powered by TX or RX
Connectivity Technology:
Wired
Country of Origin:
United States
Environmentally Friendly:
Yes
Form Factor:
Rack-mountable,Wall Mountable
Graphics Modes:
4K
HDMI In:
Yes
HDMI Out:
Yes
Limited Warranty:
1 Year
Manufacturer:
Smart Audio Video Innovation
Manufacturer Website Address:
http://www.smartavi.com
Maximum Operating Distance:
450 ft
Media Type Supported:
Twisted Pair
Network (RJ-45):
Yes
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1
Number of Input Devices Supported:
1
Number of Network (RJ-45) Ports:
2
Number of Output Devices Supported:
1
Package Contents:
- HDX-ULT-RX Receiver
- HDX-ULT-TX Transmitter
- Power Supply
Product Line:
HDX-Ultimate
Product Model:
HDX-ULT
Product Type:
Video Extender Transmitter/Receiver
Receiver Depth:
4.13"
Receiver Height:
1.13"
Receiver Weight (Approximate):
9.60 oz
Receiver Width:
5"
Transmitter Depth:
4.13"
Transmitter Height:
1.13"
Transmitter Weight (Approximate):
9.60 oz
Transmitter Width:
5"
Twisted Pair Cable Standard:
Category 6
