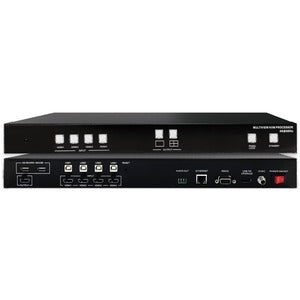

SIIG Quad-View HDMI 2.0 4K 60Hz KVM MultiView Processor
SKU: CE-H26311-S1
Allows you to control up to four computers using one keyboard and mouse, 4K resolution HDMI video signals

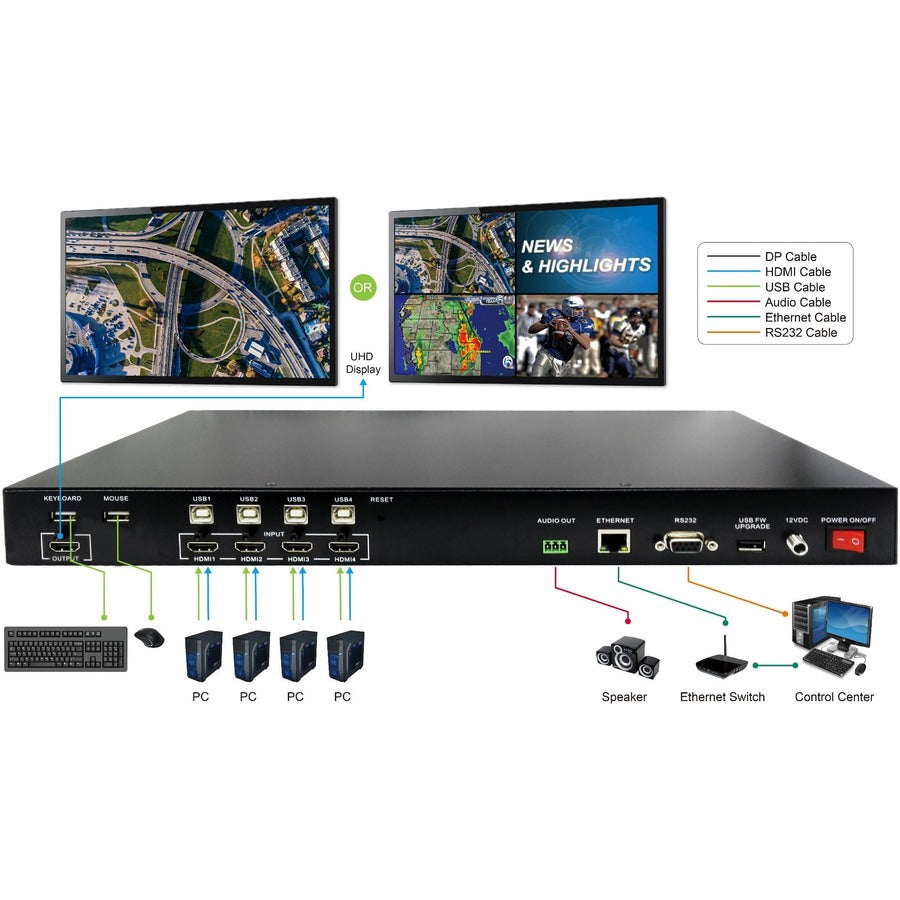

- Allows you to switch 4 HDMI video sources to one HDMI display, but also allows real time control of your 4 host device by one keyboard and mouse
- Supports mouse cursor cross-over from one system to the other, freely moving the mouse without pressing front panel button in quad view mode
- Supports video screen layout included full screen mode and the very popular full quad view display mode

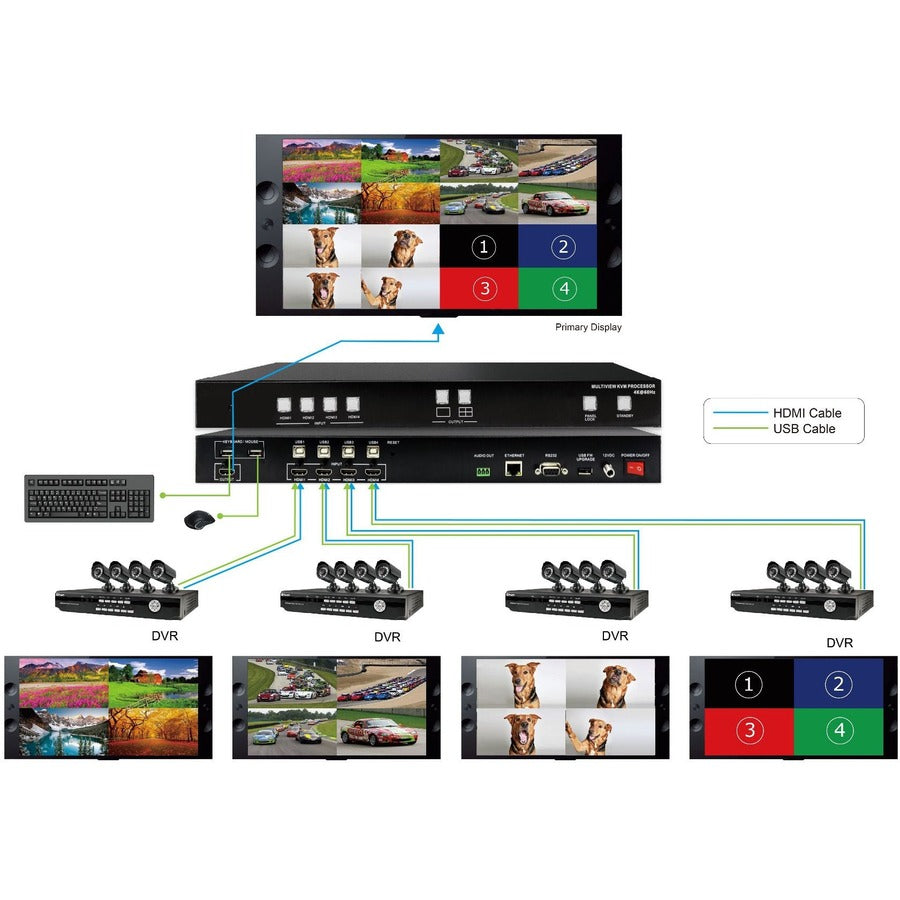

- Cascading up to 5 units, the KVM processor can support up to 16 host devices to display on a single display device
- Supports 4K@60Hz full screen and quad view layout configuration
- Supports Input/Output resolution up to 4K@60Hz YUV 4:4:4 color sampling
- Support upscaling up to 4K@60Hz YUV 4:4:4 color sampling
- Support Deep Color and HDCP 1.4/2.2
- Fast switching between the input channels or the screen layout modes
- Dolby Digital 5.1, DTS 5.1 and uncompressed 7.1 linear PCM audio including stereo analog audio input
- Support stereo audio output
- Support Keyboard/Mouse, front panel button, IR remote control, RS-232/Telnet and Web UI control
- Supports USB port firmware upgrade
- Quickly switches between sources without physical access
- Up to 3840 x 2160 video resolution
- Unhindered connections with USB-compatible devices are ensured by the built-in USB port.
- Designed to be used as a rack-mountable
Call for Availability
Regular price
$2,929.95
Shipping calculated at checkout
Allows you to control up to four computers using one keyboard and mouse, 4K resolution HDMI video signals
- Allows you to switch 4 HDMI video sources to one HDMI display, but also allows real time control of your 4 host device by one keyboard and mouse
- Supports mouse cursor cross-over from one system to the other, freely moving the mouse without pressing front panel button in quad view mode
- Supports video screen layout included full screen mode and the very popular full quad view display mode
- Cascading up to 5 units, the KVM processor can support up to 16 host devices to display on a single display device
- Supports 4K@60Hz full screen and quad view layout configuration
- Supports Input/Output resolution up to 4K@60Hz YUV 4:4:4 color sampling
- Support upscaling up to 4K@60Hz YUV 4:4:4 color sampling
- Support Deep Color and HDCP 1.4/2.2
- Fast switching between the input channels or the screen layout modes
- Dolby Digital 5.1, DTS 5.1 and uncompressed 7.1 linear PCM audio including stereo analog audio input
- Support stereo audio output
- Support Keyboard/Mouse, front panel button, IR remote control, RS-232/Telnet and Web UI control
- Supports USB port firmware upgrade
- Quickly switches between sources without physical access
- Up to 3840 x 2160 video resolution
- Unhindered connections with USB-compatible devices are ensured by the built-in USB port.
- Designed to be used as a rack-mountable
Country of Origin:
China
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Form Factor:
Rack-mountable
HDMI:
Yes
Input Voltage Range:
100V AC to 240V AC
Limited Warranty:
2 Year
Manufacturer:
SIIG, Inc
Manufacturer Website Address:
http://www.siig.com
Maximum Video Resolution:
3840 x 2160
Network (RJ-45):
Yes
Number of Computers Supported:
4
Number of HDMI Ports:
6
Number of Network (RJ-45) Ports:
1
Number of USB Ports:
7

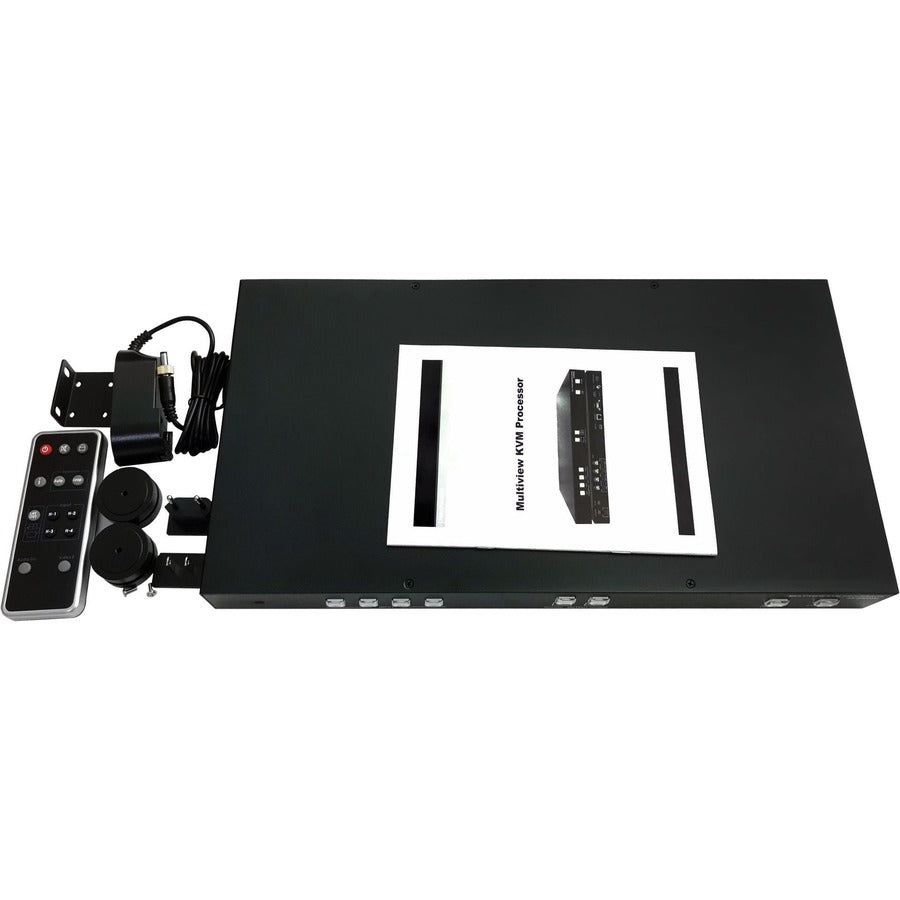

Package Contents:
- Quad-View HDMI 2.0 4K 60Hz KVM MultiView Processor
- Remote Control
- DC 12V/2A (Output) Power Adapter
- 2 x Rack Mount Bracket
- 4 x Rubber Pad
- Screw Kit
- Quick Start Guide
Product Type:
KVM Switchbox
USB:
Yes
