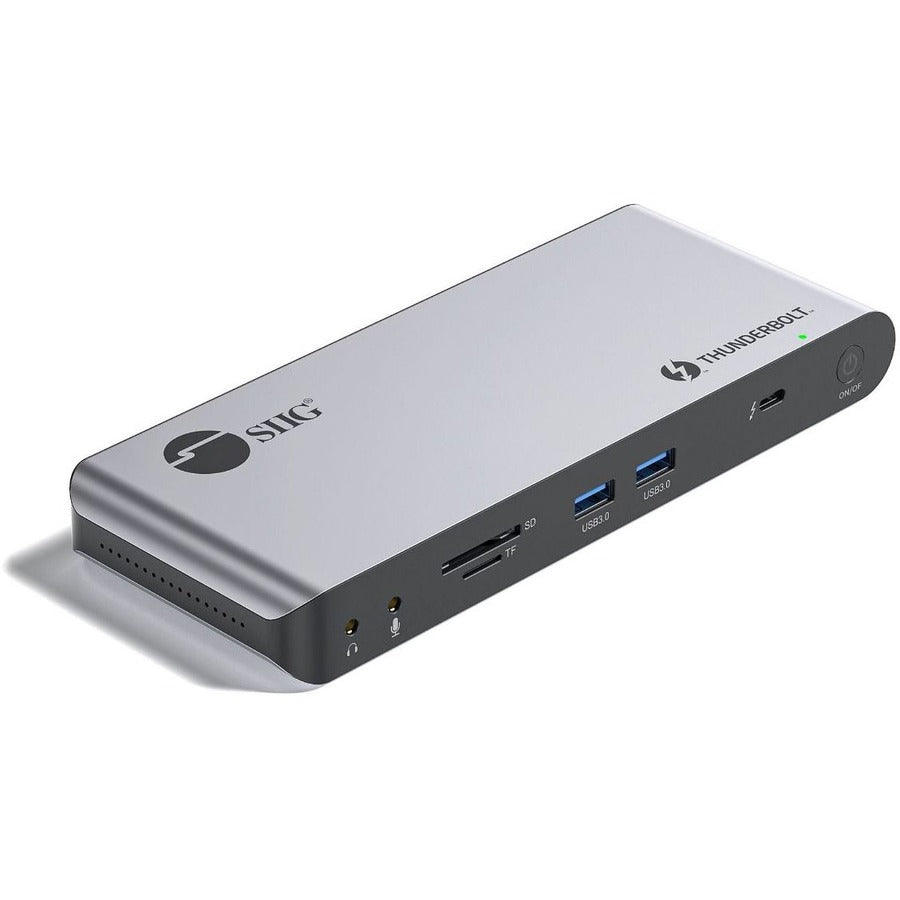

SIIG Quad Display Thunderbolt 4 Docking Station & PD
SKU: JU-DK0U11-S1
SIIG Quad Display Thunderbolt 4 Docking Station & PD - Single 8K 30Hz or 4K 144Hz / Quad Monitor 4K 60Hz on TBT4/USB 4 laptops - 3x Thunderbolt 4 USB-C- 1x DisplayPort- 1x HDMI - 2x USB-A 5G - 2x USB-A 480Mbps - Gigabit Ethernet- 1x SD 3.0 slot- 1x Micro SD (TF) 3.0 slot - 2x 3.5mm Stereo audio & microphone - come with 150W power adapter with PD 60W - Power button - Include Thunderbolt 4 cable - Metal housing - 2 years warranty - Compliant with Windows and MacOS M1/M2 system
- Advanced docking station transforms a single Thunderbolt 4 port into three Thunderbolt 4 USB-C, one DisplayPort, one HDIM, Two USB-A 5G, two USB-A 480Mbps, one Gigabit Ethernet Port, one SD 3.0 card slot, one Micro SD (TF) 3.0 card slot, one stereo audio/microphone connectivity with PD up to 60W.
- Ultra HD video output - Supports three thunderbolt 4 ports, single 8K@30Hz, or dual 4K @60Hz displays outputs through two Thunderbolt 4 port; also supports two DisplayLink video output DisplayPort and HDMI, resolution up to 4K 3840x2160p@60Hz.
- Includes 150W power adapter, supports PD charging up to 60W to charge your laptop and other 90W provide enough power for connected peripherals, such as external SSD, flash drive, smart phone or any other USB devices
- Ultra high-speed Data Transfer - Provides three Thunderbolt 4 ports with 10Gbps speed and 5V/3A power output, two USB A 5Gbps with 5V/0.9A Charging, two USB-A 480Mbps with 5V/1.5A to enhance your laptop's performance capabilities
- Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
- Integrated SD 3.0 Card Reader with SD/Micro SD slot, can work simultaneously
- Audio Capability - Includes two 3.5mm audio jack for stereo audio output and microphone capabilities, HDMI / DP up to 5.1 Channel surround sound
- Power LED - Built-in power On/Off button with LED provides easy recognition of power status
Call for Availability
Regular price
$499.99
Shipping calculated at checkout
SIIG Quad Display Thunderbolt 4 Docking Station & PD - Single 8K 30Hz or 4K 144Hz / Quad Monitor 4K 60Hz on TBT4/USB 4 laptops - 3x Thunderbolt 4 USB-C- 1x DisplayPort- 1x HDMI - 2x USB-A 5G - 2x USB-A 480Mbps - Gigabit Ethernet- 1x SD 3.0 slot- 1x Micro SD (TF) 3.0 slot - 2x 3.5mm Stereo audio & microphone - come with 150W power adapter with PD 60W - Power button - Include Thunderbolt 4 cable - Metal housing - 2 years warranty - Compliant with Windows and MacOS M1/M2 system
- Advanced docking station transforms a single Thunderbolt 4 port into three Thunderbolt 4 USB-C, one DisplayPort, one HDIM, Two USB-A 5G, two USB-A 480Mbps, one Gigabit Ethernet Port, one SD 3.0 card slot, one Micro SD (TF) 3.0 card slot, one stereo audio/microphone connectivity with PD up to 60W.
- Ultra HD video output - Supports three thunderbolt 4 ports, single 8K@30Hz, or dual 4K @60Hz displays outputs through two Thunderbolt 4 port; also supports two DisplayLink video output DisplayPort and HDMI, resolution up to 4K 3840x2160p@60Hz.
- Includes 150W power adapter, supports PD charging up to 60W to charge your laptop and other 90W provide enough power for connected peripherals, such as external SSD, flash drive, smart phone or any other USB devices
- Ultra high-speed Data Transfer - Provides three Thunderbolt 4 ports with 10Gbps speed and 5V/3A power output, two USB A 5Gbps with 5V/0.9A Charging, two USB-A 480Mbps with 5V/1.5A to enhance your laptop's performance capabilities
- Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
- Integrated SD 3.0 Card Reader with SD/Micro SD slot, can work simultaneously
- Audio Capability - Includes two 3.5mm audio jack for stereo audio output and microphone capabilities, HDMI / DP up to 5.1 Channel surround sound
- Power LED - Built-in power On/Off button with LED provides easy recognition of power status
Connectivity Technology:
Wired
Country of Origin:
China
Device Supported:
Notebook,Monitor
DisplayPort:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
Gigabit Ethernet
HDMI:
Yes
Host Interface:
Thunderbolt 4
Limited Warranty:
2 Year
Manufacturer:
SIIG, Inc
Manufacturer Website Address:
http://www.siig.com
Maximum Power Supply Wattage:
60 W
Memory Card Reader:
Yes
Memory Card Supported:
SD,microSD (TransFlash)
Network (RJ-45):
Yes
Number of DisplayPorts:
1
Number of Displays Supported:
4
Number of HDMI Ports:
1
Number of RJ-45 Ports:
1
Number of USB Type-A Ports:
4
Operating System Supported:
Windows,macOS

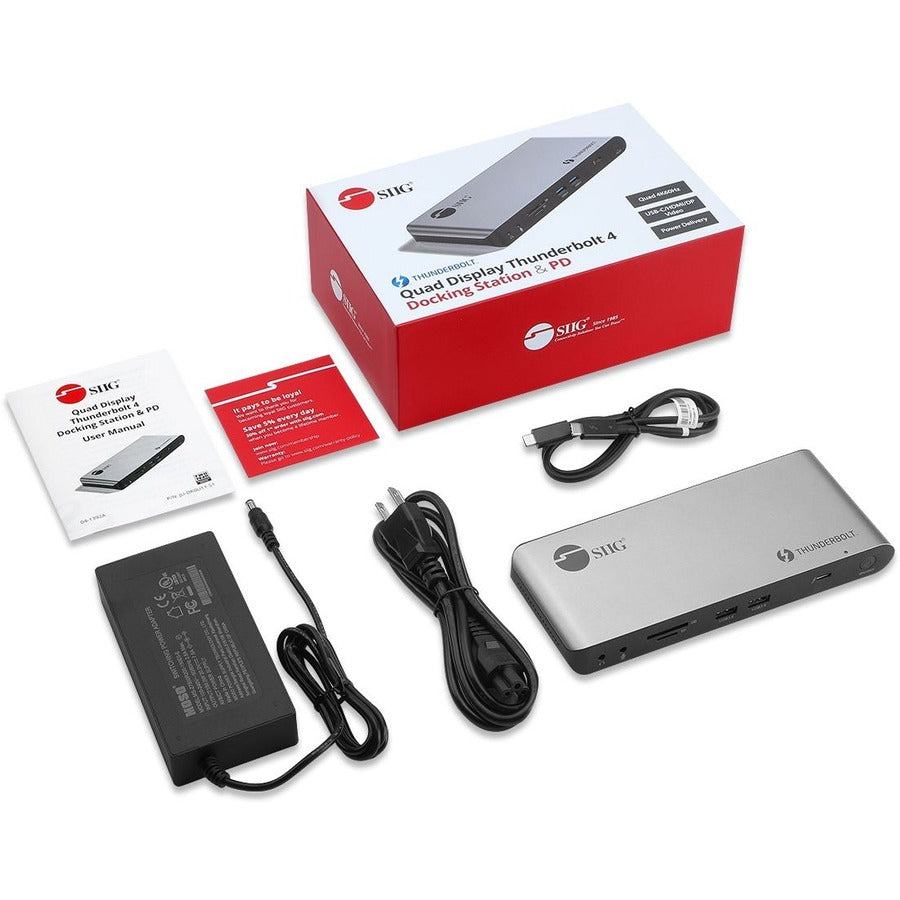

Package Contents:
- Quad Display Thunderbolt 4 Docking Station & PD
- Power Adapter 20V/7.5A
- Thunderbolt 4 Cable
- User Manual
Product Color:
Space Gray
Product Type:
Docking Station
Screen Mode Supported:
8K,4K
Supported Resolutions:
7680 x 4320,3840 x 2160
Thunderbolt:
Yes
Thunderbolt Ports Quantity:
4
USB Type-A:
Yes
