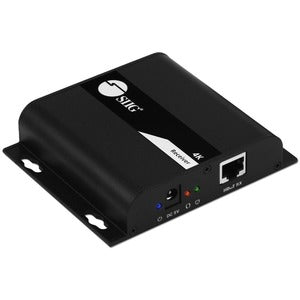

SIIG HDMI 4K30Hz HDbitT over IP Extender - Receiver
SKU: CE-H25E11-S2
SIIG HDMI 4K30Hz HDbitT over IP Extender - Receiver - Additional receiver unit for CE-H25D11-S2 kit, adds an additional display to a single transmitter within your network, 4K30Hz, 394ft/120m, HDCP 1.4, One to Many, Many-to-Many, IR Control

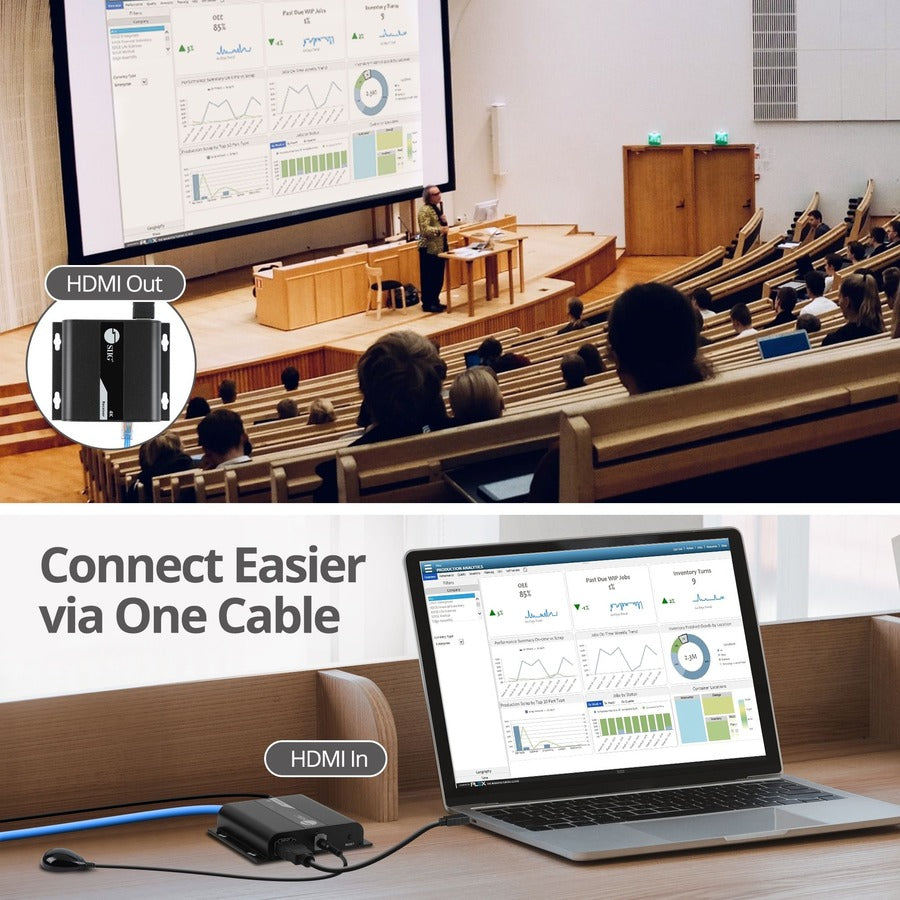

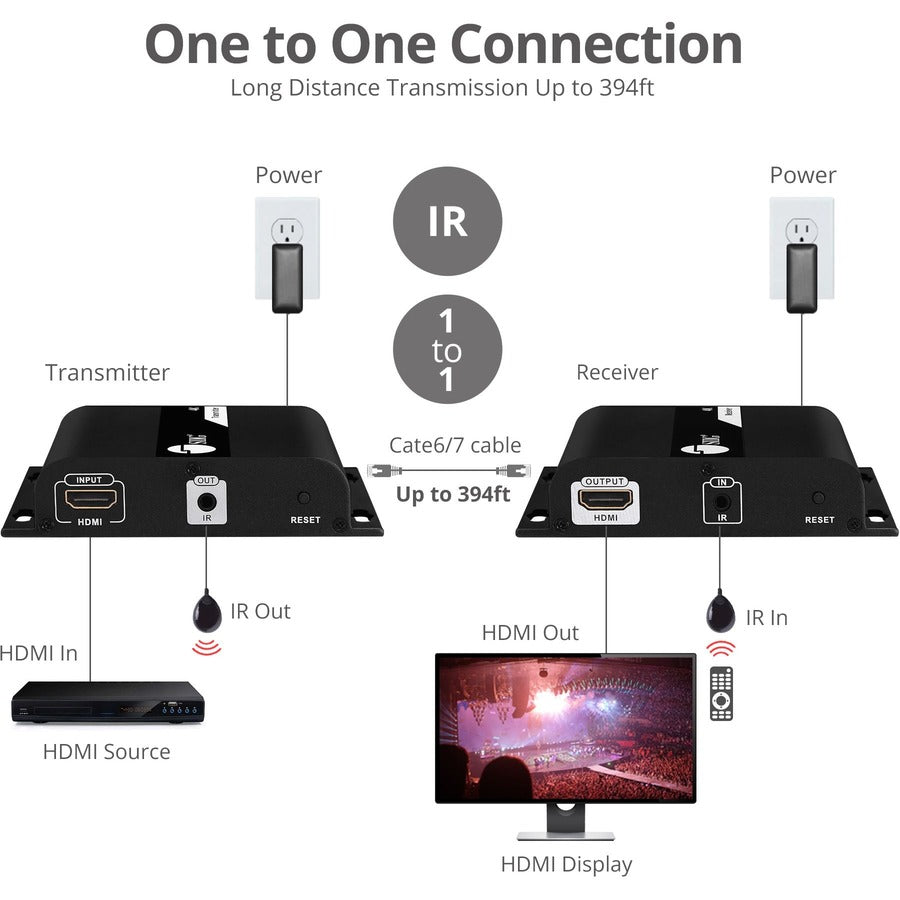

- With a single Cat6/7 cable, you can easily extend HDMI audio/video signals up to 394ft. Connect your HDMI source device (PC, Blu-ray player, media player) to the Transmitter, utilize existing Ethernet structure in your house/office to connect the transmitter to Receiver, then connect your HDTV from a remote location to the Receiver
- Supports up to 4K @30Hz and 1080p. HDCP 1.4 compliant. Supports 2-channel Stereo Audio. Auto adjustment for different cable lengths to produce the best video/audio experience. We recommend using high performance pure copper Cat6/7 cables to ensure reliable performance

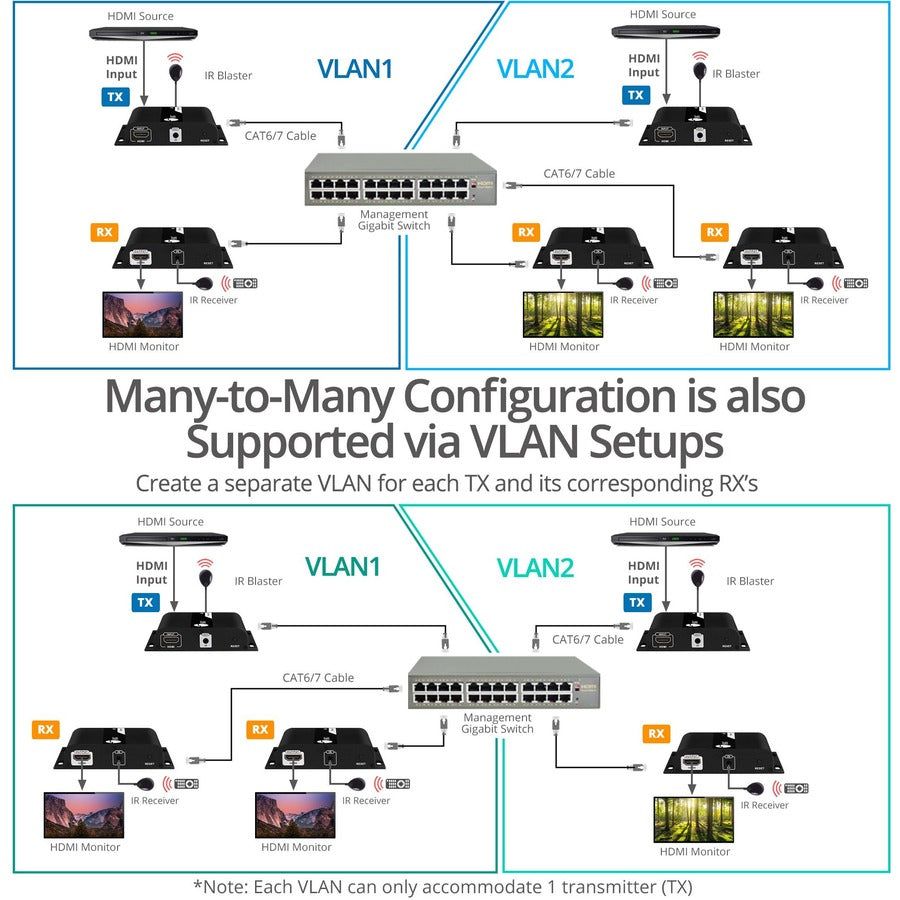

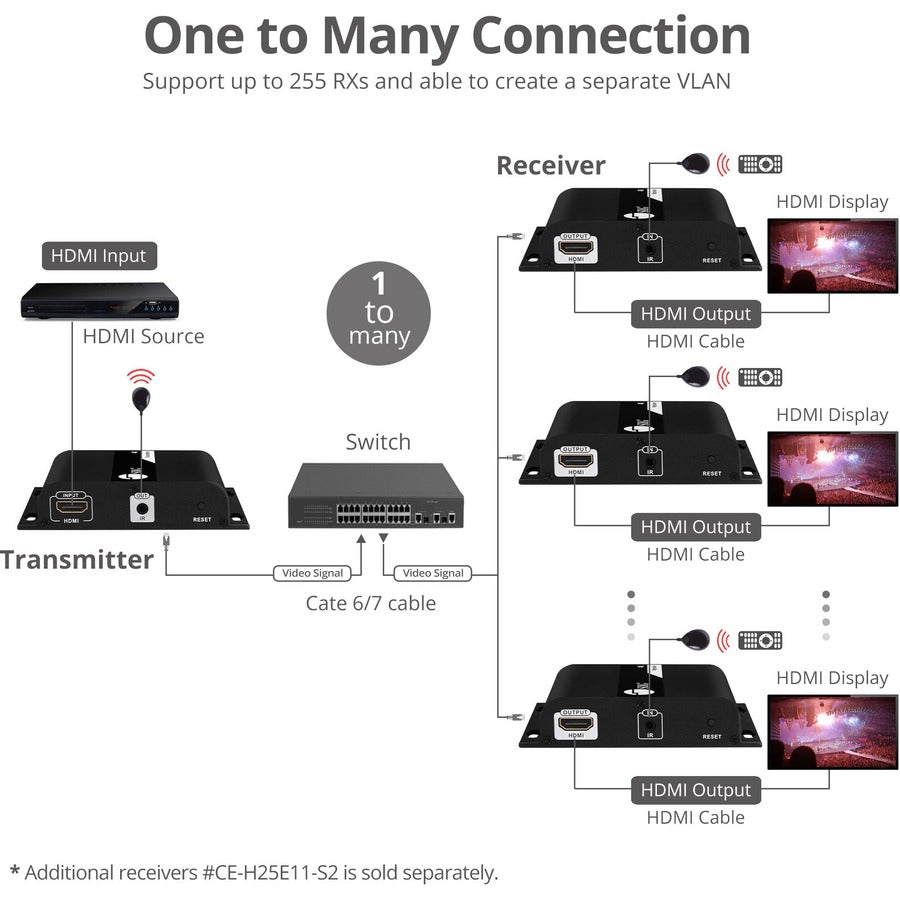

- Direct 1-to-1 connection, 1-to-many through unmanaged Gigabit network switches, or many-to-many via VLAN through a Smart Ethernet Switch. With HDBitT transport protocol, you can connect up to 255 Receivers* per Transmitter to not only extend but split HDMI signals to multiple displays. **The kit (CE-H25D11-S2) and additional Receivers (CE-H25E11-S2) are sold separately
- One-directional IR control from RX side to TX side. Allows the source device to recognize remote commands from afar. You can control the HDMI source device at a remote location with the included IR cables that forward commands over a Cat6/7 cable

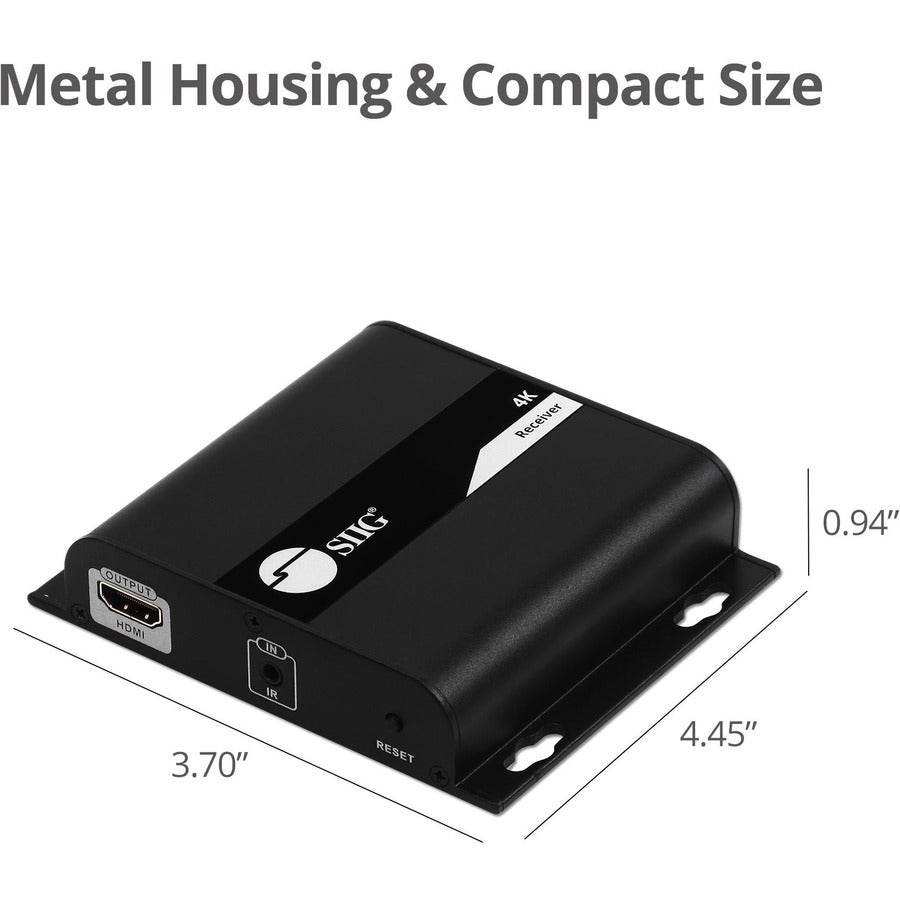

- High quality surface mountable metal housing efficiently dissipates heat build-up, to ensure system stability and trouble-free operation
Call for Availability
Regular price
$141.43
Sale price
$159.99
On Sale
Shipping calculated at checkout
SIIG HDMI 4K30Hz HDbitT over IP Extender - Receiver - Additional receiver unit for CE-H25D11-S2 kit, adds an additional display to a single transmitter within your network, 4K30Hz, 394ft/120m, HDCP 1.4, One to Many, Many-to-Many, IR Control
- With a single Cat6/7 cable, you can easily extend HDMI audio/video signals up to 394ft. Connect your HDMI source device (PC, Blu-ray player, media player) to the Transmitter, utilize existing Ethernet structure in your house/office to connect the transmitter to Receiver, then connect your HDTV from a remote location to the Receiver
- Supports up to 4K @30Hz and 1080p. HDCP 1.4 compliant. Supports 2-channel Stereo Audio. Auto adjustment for different cable lengths to produce the best video/audio experience. We recommend using high performance pure copper Cat6/7 cables to ensure reliable performance
- Direct 1-to-1 connection, 1-to-many through unmanaged Gigabit network switches, or many-to-many via VLAN through a Smart Ethernet Switch. With HDBitT transport protocol, you can connect up to 255 Receivers* per Transmitter to not only extend but split HDMI signals to multiple displays. **The kit (CE-H25D11-S2) and additional Receivers (CE-H25E11-S2) are sold separately
- One-directional IR control from RX side to TX side. Allows the source device to recognize remote commands from afar. You can control the HDMI source device at a remote location with the included IR cables that forward commands over a Cat6/7 cable
- High quality surface mountable metal housing efficiently dissipates heat build-up, to ensure system stability and trouble-free operation
Color Family:
Black
Connectivity Technology:
Wired
Country of Origin:
China
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Form Factor:
Surface-mountable
Graphics Modes:
4K
HDMI Out:
Yes
Limited Warranty:
2 Year
Manufacturer:
SIIG, Inc
Manufacturer Website Address:
http://www.siig.com
Maximum Operating Distance:
393.70 ft
Media Type Supported:
Twisted Pair
Network (RJ-45):
Yes
Number of HDMI Outputs:
1
Number of Network (RJ-45) Ports:
1
Number of Output Devices Supported:
1

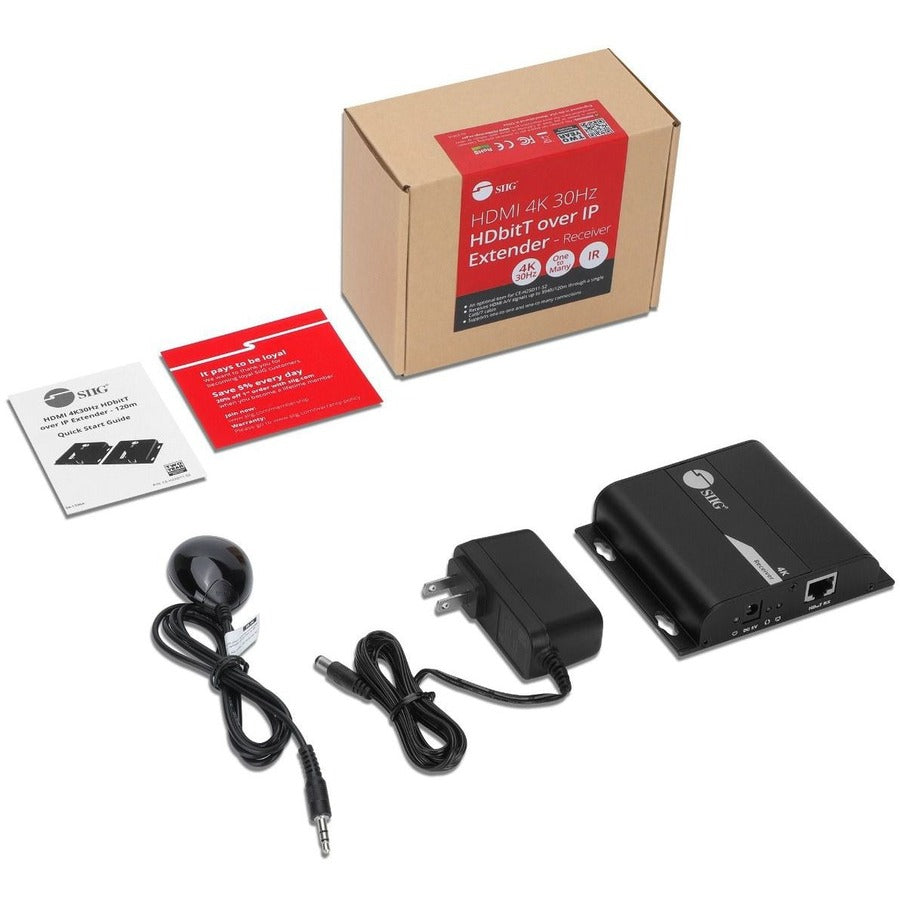

Package Contents:
- HDMI 4K30Hz HDbitT over IP Extender - Receiver
- Power Adapter
- IR Receiver Extension Cable
- Quick Start Guide
Product Color:
Black
Product Type:
Video Extender Receiver
Receiver Depth:
3.70"
Receiver Height:
0.93"
Receiver Weight (Approximate):
5.92 oz
Receiver Width:
4.22"
Twisted Pair Cable Standard:
Category 7
