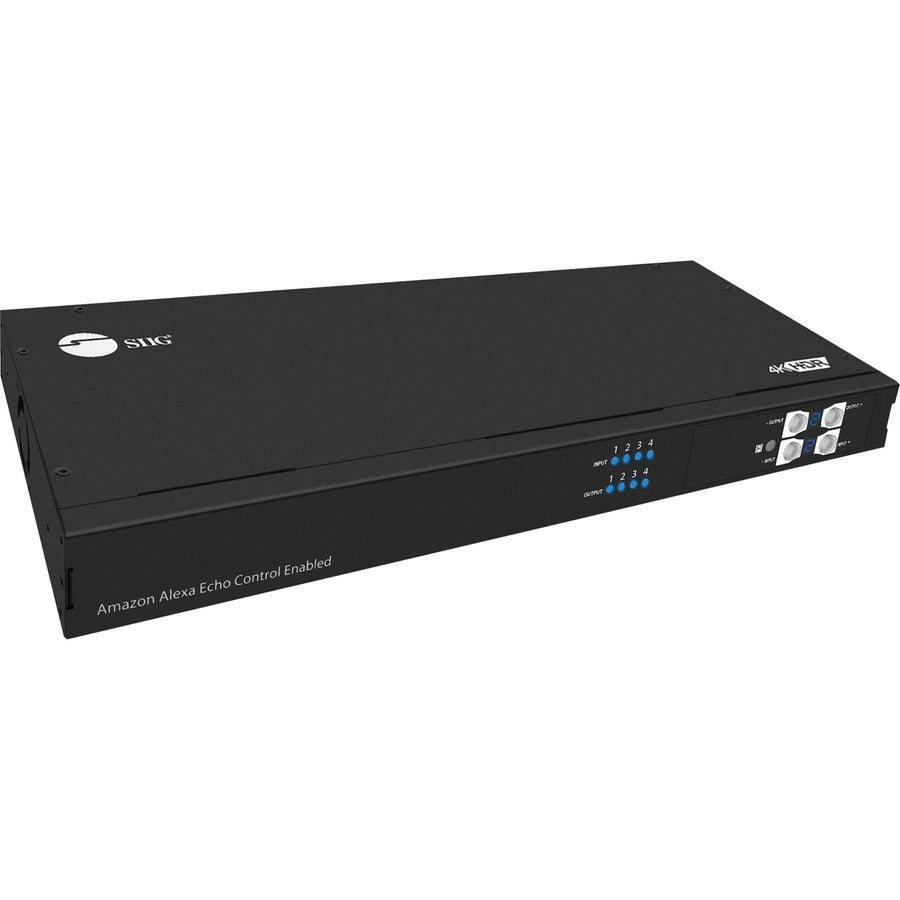

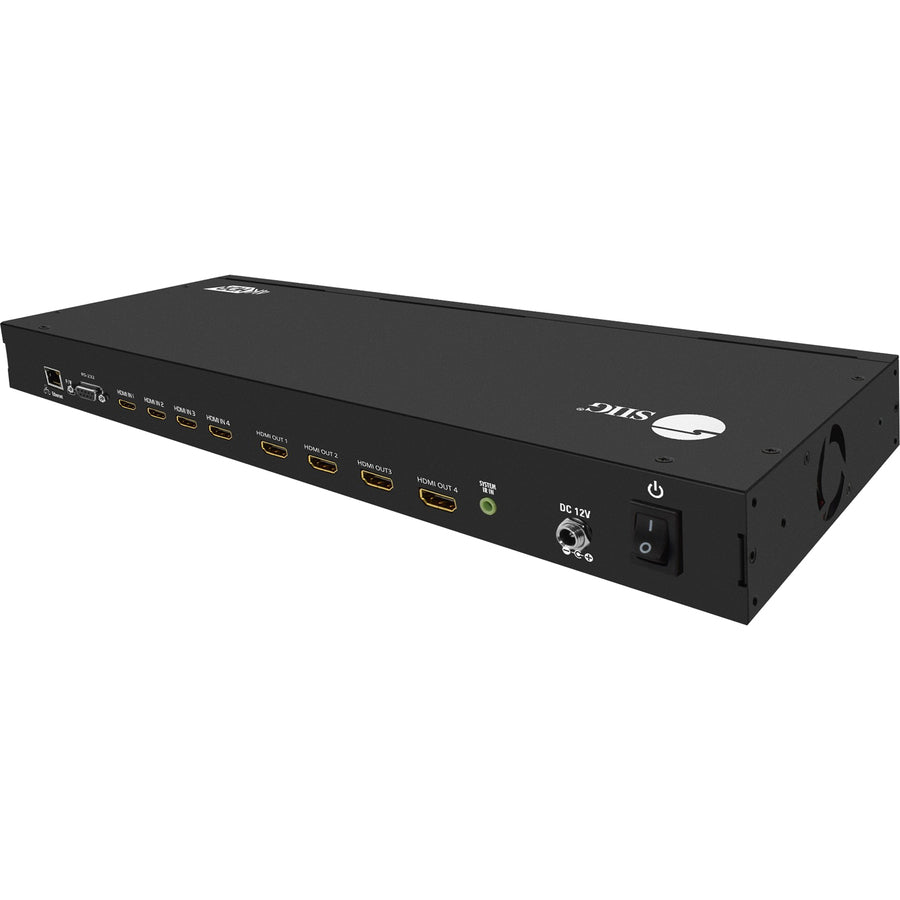

SIIG HDMI 2.0 4x4 Matrix with Amazon Echo Control Enabled

SKU: CE-H23H11-S1

Allows you to select and switch between any of the 4 HDMI source devices to display on any of the 4 HDMI displays simultaneously

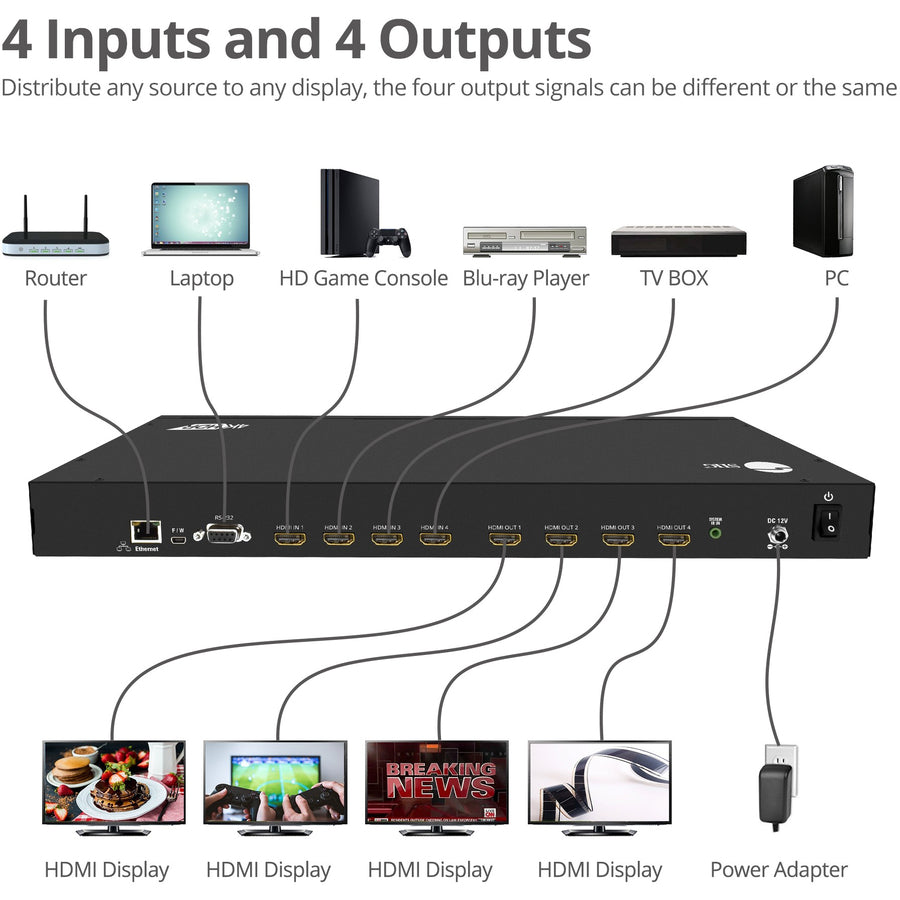

  • Allows any of the four HDMI monitors to display content from any of the four HDMI sources simultaneously

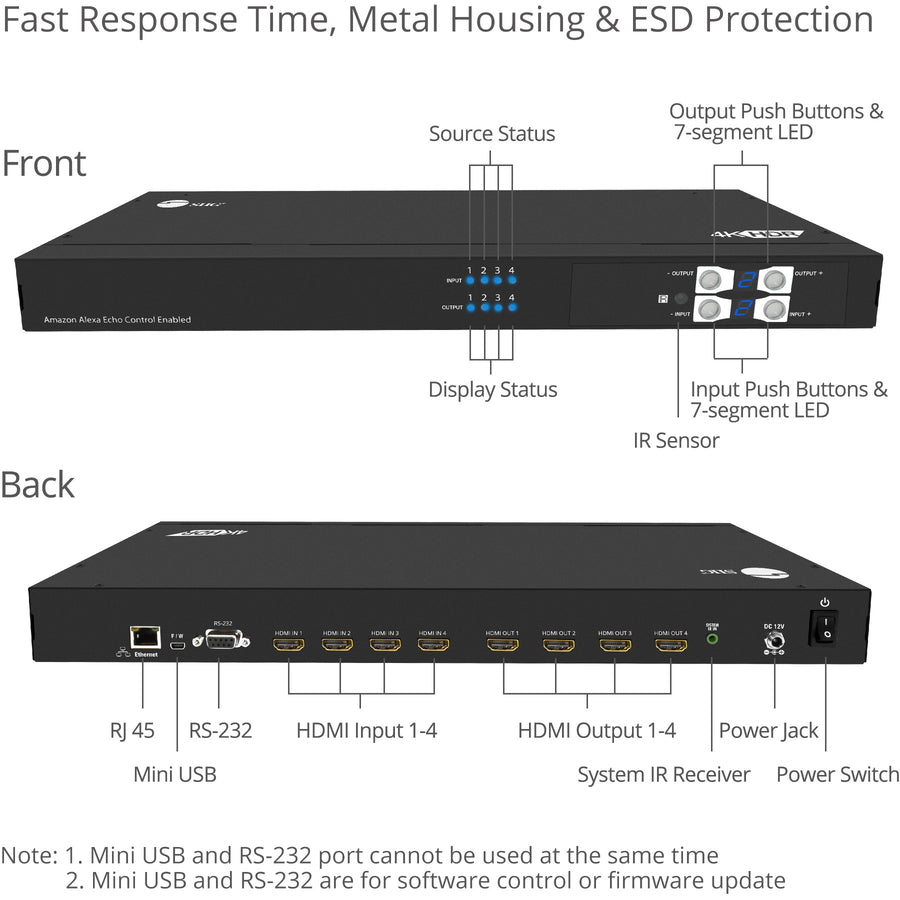

  • Easily switch between HDMI source and display using push button, IR remote control, RS-232, and Ethernet control
  • Supports fast HDMI link response time below 3 sec for device switching
  • Supports resolution up to 4Kx2K @60Hz YUV 4:4:4, 8bit
  • Supports HDR 4Kx2K @60Hz YUV 4:2:0, 10bit
  • Supports default EDID and EDID learning of the connected displays
  • Metal housing for excellent RF shielding and heat dissipation, delivers reliable performance and long life
  • Included mounting ears let you easily mount this product on the wall or shelf
  • Works with Amazon Alexa Echo voice control for convenient device and display switching
  • Use this audio video switchbox and eliminate the need to manually switch cables between sources
  • A great solution for connecting display
  • 4096 x 2160 resolution for high-quality video delivery

Call for Availability

Regular price $537.16 Sale price $839.99
On Sale

Shipping calculated at checkout

Details

Allows you to select and switch between any of the 4 HDMI source devices to display on any of the 4 HDMI displays simultaneously

  • Allows any of the four HDMI monitors to display content from any of the four HDMI sources simultaneously
  • Easily switch between HDMI source and display using push button, IR remote control, RS-232, and Ethernet control
  • Supports fast HDMI link response time below 3 sec for device switching
  • Supports resolution up to 4Kx2K @60Hz YUV 4:4:4, 8bit
  • Supports HDR 4Kx2K @60Hz YUV 4:2:0, 10bit
  • Supports default EDID and EDID learning of the connected displays
  • Metal housing for excellent RF shielding and heat dissipation, delivers reliable performance and long life
  • Included mounting ears let you easily mount this product on the wall or shelf
  • Works with Amazon Alexa Echo voice control for convenient device and display switching
  • Use this audio video switchbox and eliminate the need to manually switch cables between sources
  • A great solution for connecting display
  • 4096 x 2160 resolution for high-quality video delivery
Specifications
Connectivity (RJ-45):
Yes
Connectivity Technology:
Cable
Country of Origin:
Taiwan
Device Supported:
Display,Gaming Console,Blu-ray Disc Player,TV,Computer,DVD Player,Media Player,Notebook,Set-top Box
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Form Factor:
Wall Mountable,Rack-mountable
Graphics Modes:
4K
HDMI In:
Yes
HDMI Out:
Yes
Limited Warranty:
3 Year
Manufacturer:
SIIG, Inc
Manufacturer Website Address:
http://www.siig.com
Maximum Operating Distance:
32.81 ft
Maximum Video Resolution:
4096 x 2160
Number of Connectivity (RJ-45) Ports:
1
Number of Displays Supported:
4
Number of HDMI Inputs:
4
Number of HDMI Outputs:
4
Number of Input Devices Supported:
4
Number of USB Ports:
1

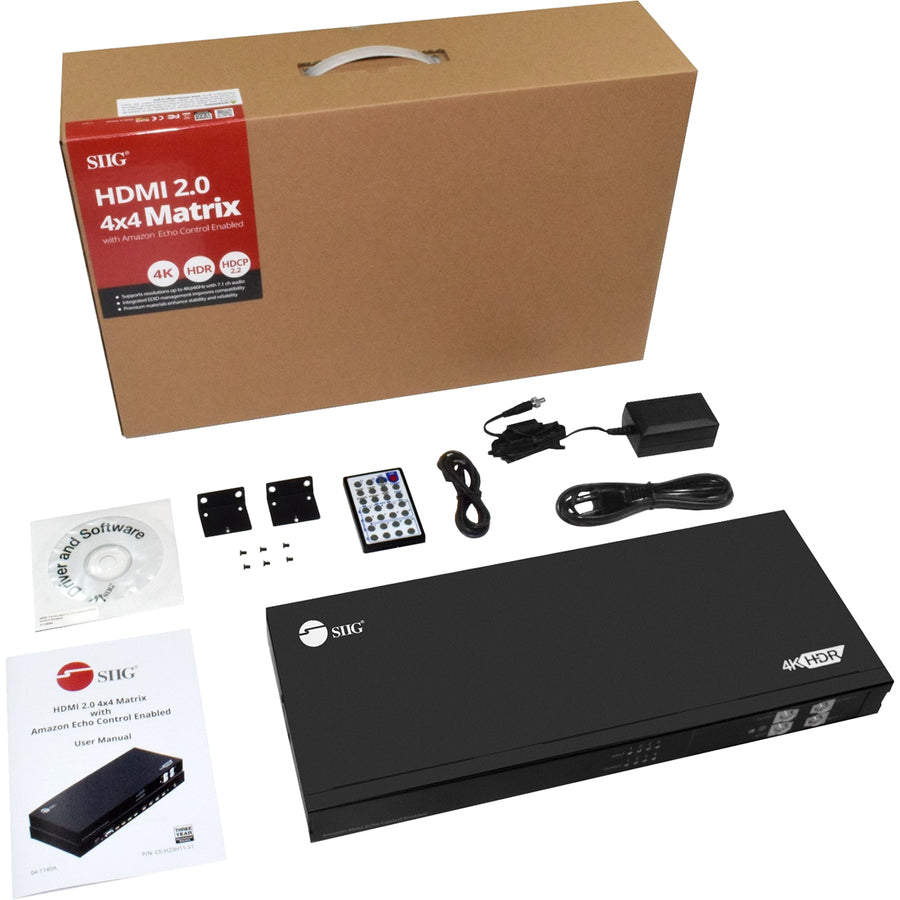

Package Contents:

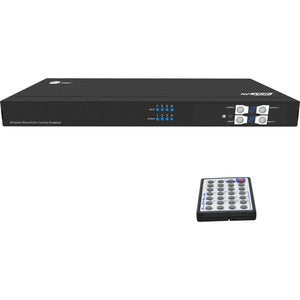

  • HDMI 2.0 4x4 Matrix with Amazon Echo Control Enabled
  • Remote Control
  • IR Receiver
  • Power Adapter 12V/2A & power cord
  • Power Cord
  • 2 x Rack-Mounting Ears
  • 6 x Screws
  • Software CD
  • User Manual
Product Type:
Audio/Video Switchbox
TAA Compliant:
Yes
