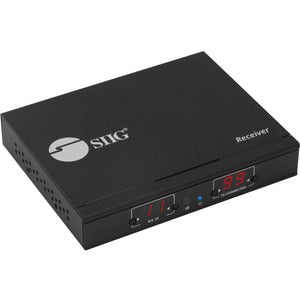

SIIG HDMI 2.0 4K60Hz Over IP Extender / Matrix with IR - Decoder (RX)
SKU: CE-H25C11-S1

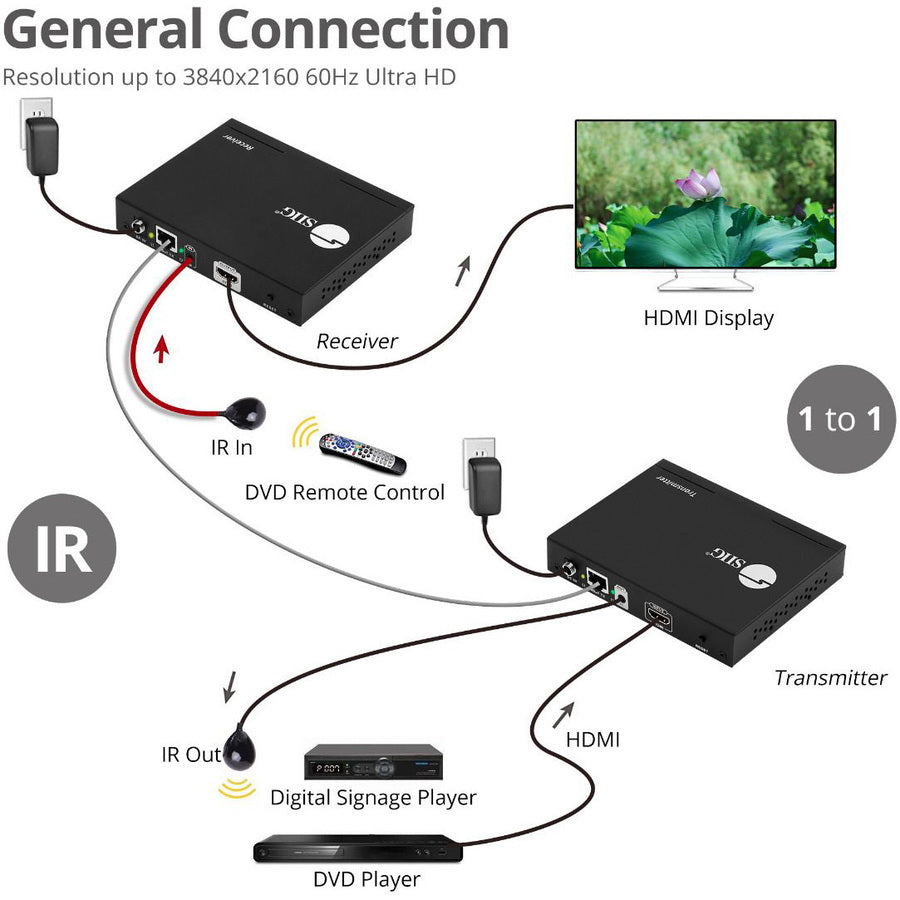

Receives 4K HDMI signals through economical Cat5e/6/7 cabling from transmiter unit up to 120 meters away, use with HDMI 2.0 4K60Hz Over IP Extender/Matrix with IR - Encoder (TX)(part # CE-H25B11-S1) sold separately
- Receives HDMI signals with stereo audio and transmits it to a remote display over Cat5e/6/7 cabling up to 120 meters, requires HDMI 2.0 4K60Hz Over IP Extender/Matrix with IR - Encoder (TX) (part # CE-H25B11-S1) sold separately
- Note: A good quality Cat5e/6/7 cable is essential in delivering quality content. Cat6/6a/7 is recommended over Cat5e

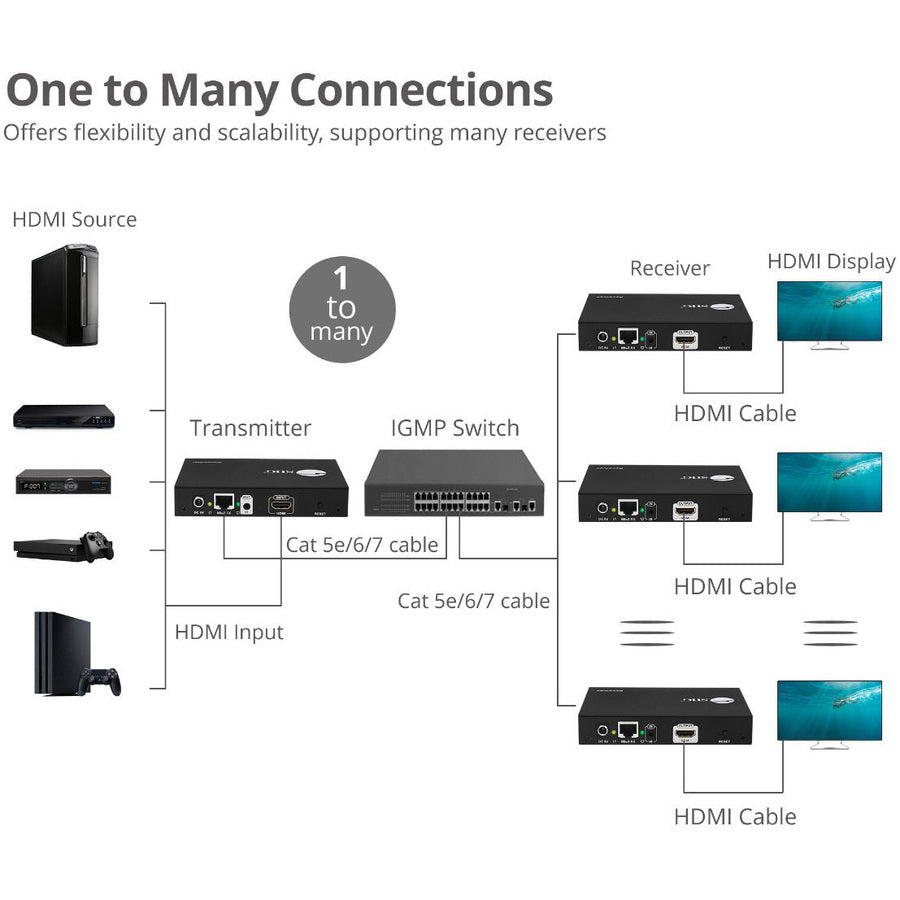

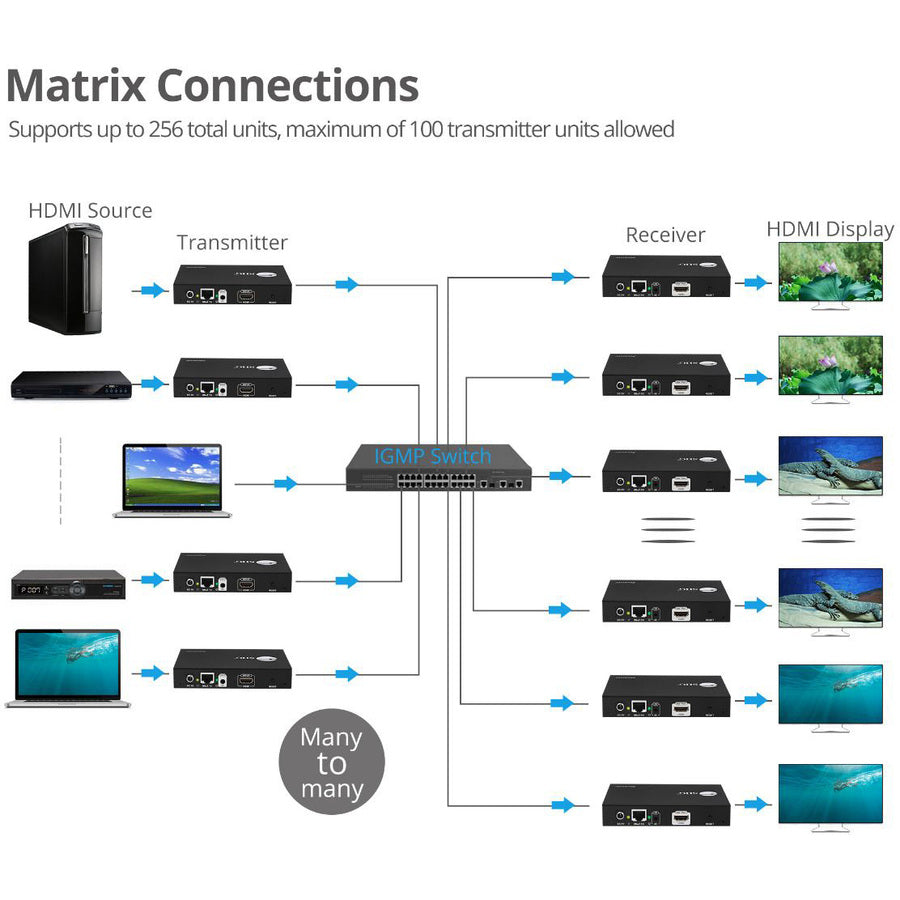

- Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional encoder (TX)units (part # CE-H25B11-S1) and Extender/Matrix Kits (part # CE-H25A11-S1) sold separately
- Note: Dedicated unmanaged IGMP Gigabit Switch is recommended for best performance and reliability

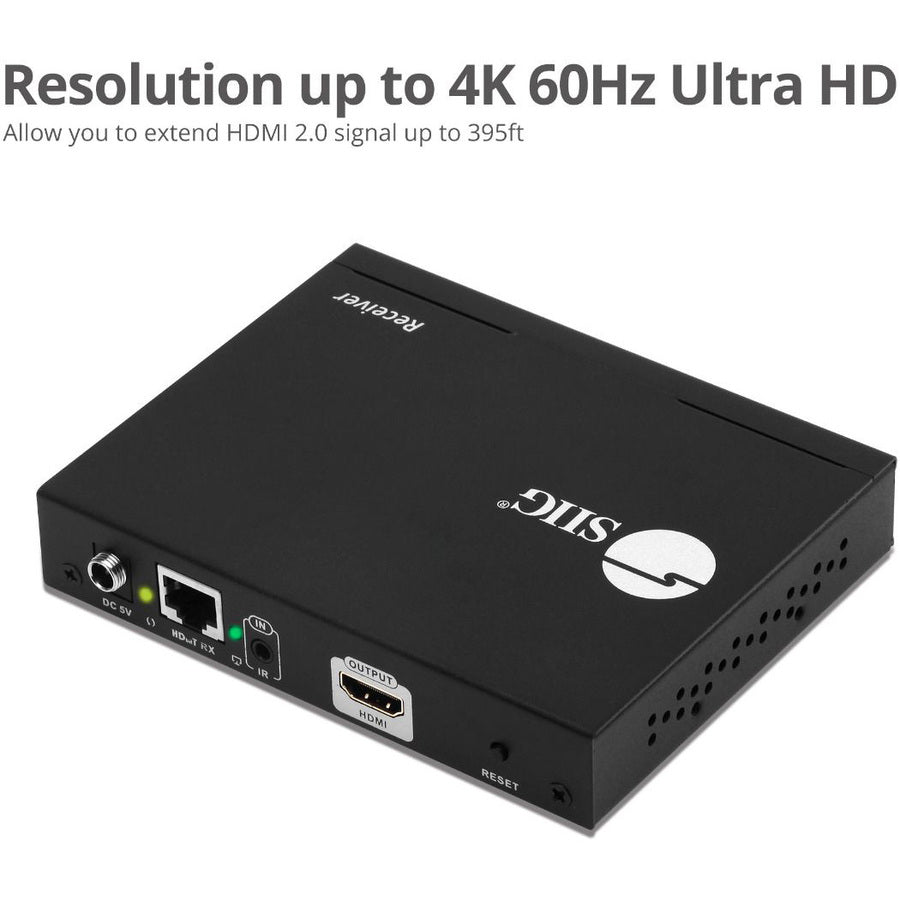

- Delivers up to 4K@60Hz video resolution to deliver stunning and crystal clear images
- IR pass back function to control the source device from RX location
- Computer control software to select and switch between source devices (Matrix only)
- HDbitT protocol with H.264 compression over IP delivers superior performance and reliability
- Video Extender Receiver is all you need for dependable and productive audio/video transmission
- HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- 1 output devices supported for maximum productive usability
- 393.70 ft maximum operating distance to allow efficient coverage and maximum usability
- 4K graphics mode for stunning, lively video quality
Call for Availability
Regular price
$234.83
Sale price
$319.99
On Sale
Shipping calculated at checkout
Receives 4K HDMI signals through economical Cat5e/6/7 cabling from transmiter unit up to 120 meters away, use with HDMI 2.0 4K60Hz Over IP Extender/Matrix with IR - Encoder (TX)(part # CE-H25B11-S1) sold separately
- Receives HDMI signals with stereo audio and transmits it to a remote display over Cat5e/6/7 cabling up to 120 meters, requires HDMI 2.0 4K60Hz Over IP Extender/Matrix with IR - Encoder (TX) (part # CE-H25B11-S1) sold separately
- Note: A good quality Cat5e/6/7 cable is essential in delivering quality content. Cat6/6a/7 is recommended over Cat5e
- Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional encoder (TX)units (part # CE-H25B11-S1) and Extender/Matrix Kits (part # CE-H25A11-S1) sold separately
- Note: Dedicated unmanaged IGMP Gigabit Switch is recommended for best performance and reliability
- Delivers up to 4K@60Hz video resolution to deliver stunning and crystal clear images
- IR pass back function to control the source device from RX location
- Computer control software to select and switch between source devices (Matrix only)
- HDbitT protocol with H.264 compression over IP delivers superior performance and reliability
- Video Extender Receiver is all you need for dependable and productive audio/video transmission
- HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- 1 output devices supported for maximum productive usability
- 393.70 ft maximum operating distance to allow efficient coverage and maximum usability
- 4K graphics mode for stunning, lively video quality
Connectivity Technology:
Wired
Country of Origin:
China
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Graphics Modes:
4K
HDMI Out:
Yes
Limited Warranty:
4 Year
Manufacturer:
SIIG, Inc
Manufacturer Website Address:
http://www.siig.com
Maximum Operating Distance:
393.70 ft
Media Type Supported:
Twisted Pair
Network (RJ-45):
Yes
Number of HDMI Outputs:
1
Number of Network (RJ-45) Ports:
1
Number of Output Devices Supported:
1

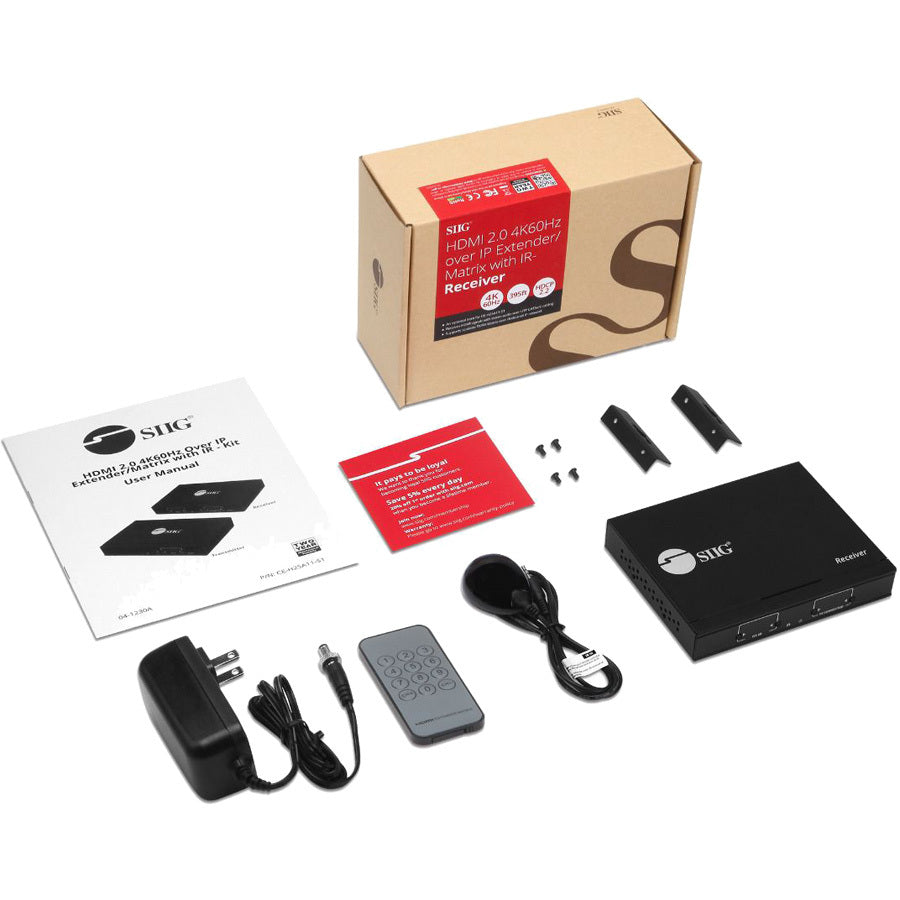

Package Contents:
- HDMI 2.0 4K60Hz Over IP Extender / Matrix with IR - Receiver
- Power Adapter
- IR Receiver Cable
- Mounting Ear (2pcs) and Screw (4pcs)
- Remote Control
- Insert Card
- User Manual
Product Color:
Black
Product Type:
Video Extender Receiver

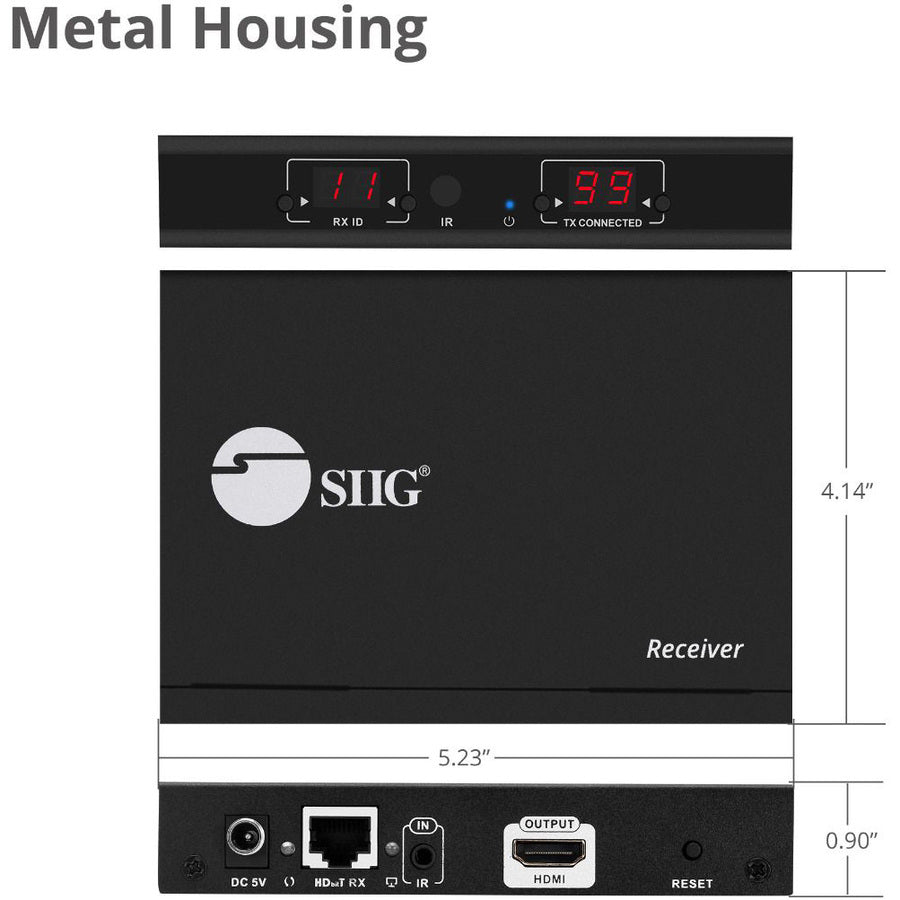

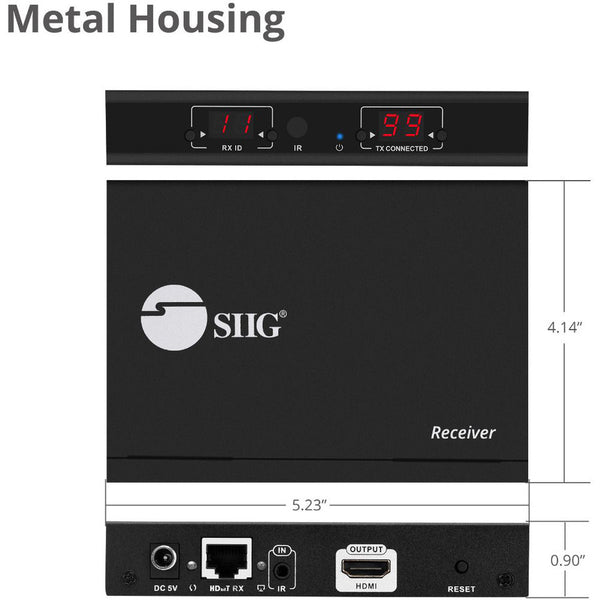

Receiver Depth:
5.28"
Receiver Height:
1.18"
Receiver Weight (Approximate):
11.52 oz
Receiver Width:
4.33"
Twisted Pair Cable Standard:
Category 7
