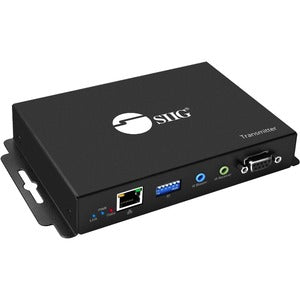

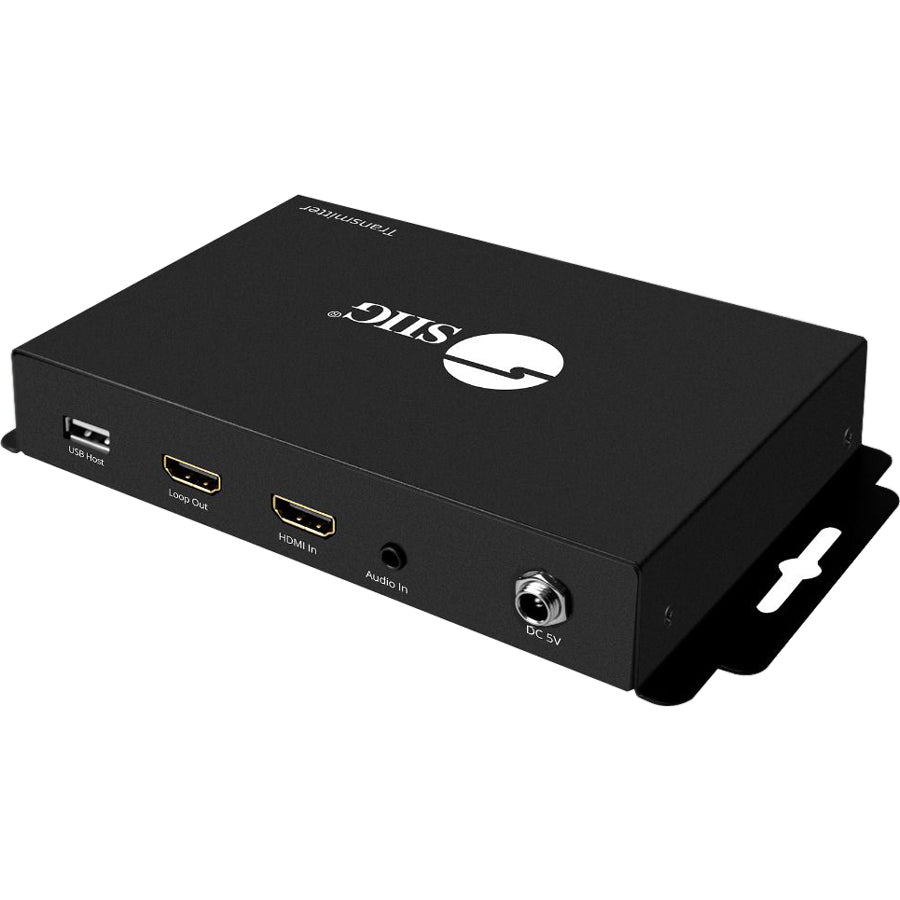

SIIG HDMI 2.0 4k@60Hz Over IP Matrix and Video Wall - Transmitter
SKU: CE-H25211-S1
Extends HDMI audio/video signals through IP networks up to 394ft (120m), matrix and video wall configurable on the fly
- HDMI 2.0a and HDCP 2.2 compliant
- Supports HDMI input up to 4Kx2K@60Hz YUV 4:4:4 8bit, HDMI output up to 4Kx2K@30Hz
- Flexible and scalable video broadcasting by IGMP Gigabit Ethernet Router/Switch

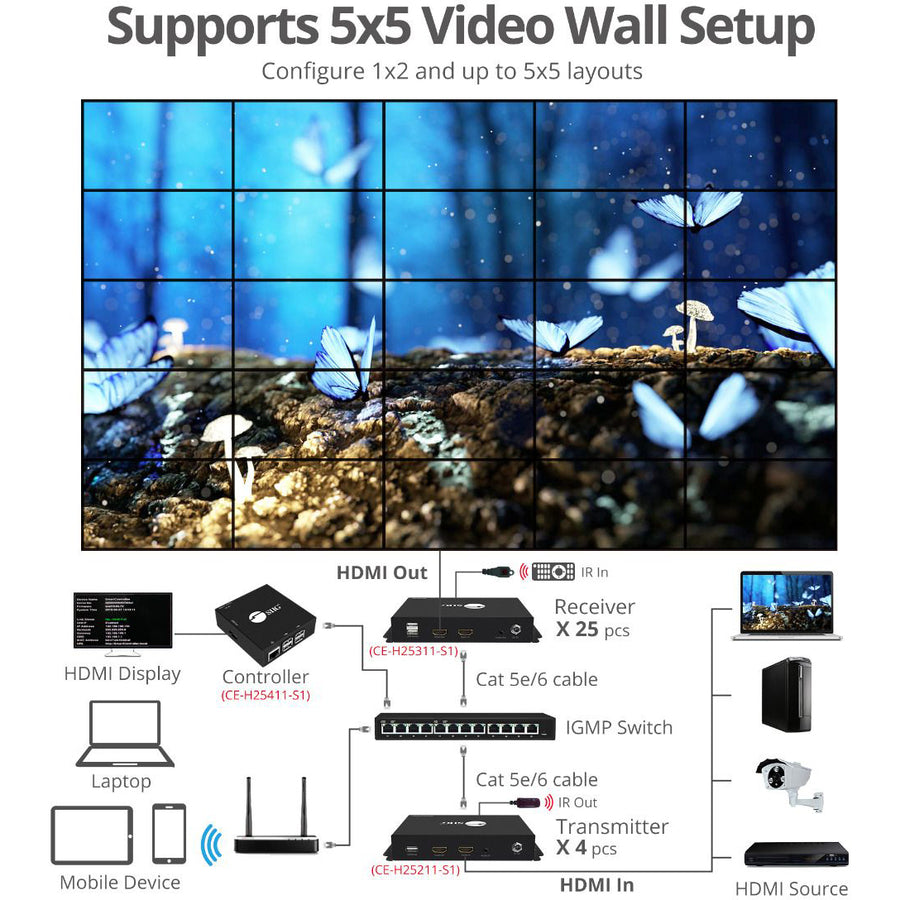

- Supports 4K signals including High Dynamic Range (HDR), PoE, Bi-directional IR path, and Video Wall. Due to the video compression, some distortion may occur in HDR mode

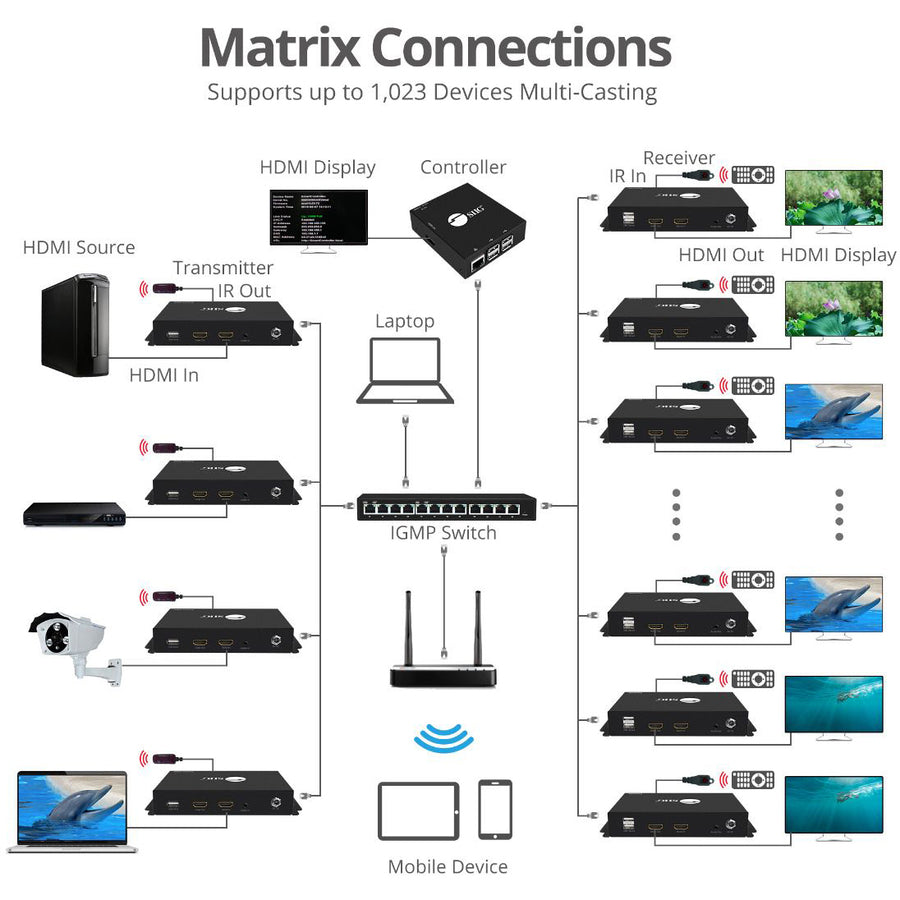

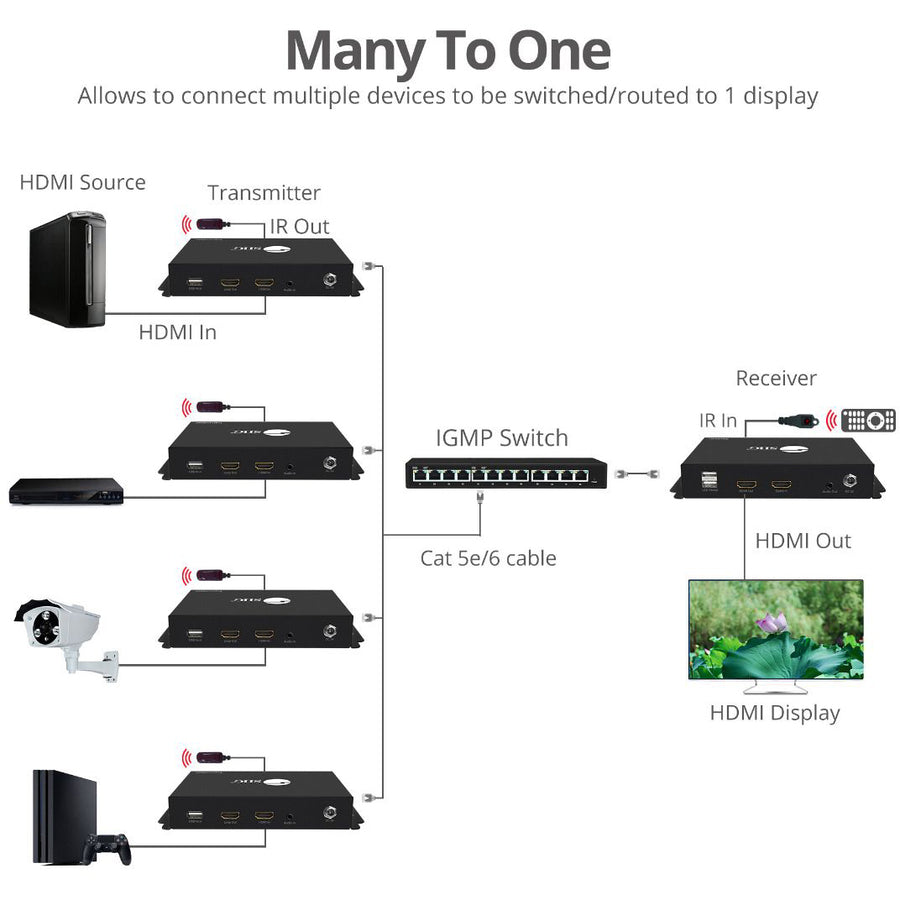

- Supports One-to-one, One-to-many, and Many-to-many broadcasting architecture
- Easy DIP switch matching for multi-casting group configuration
- Supports full frequency IR signal from 20KHz to 60KHz
- Full Duplex RS-232 control up to 115,200 bps
- Supports 180° and 270° clockwise image rotation
- Designed to work with HDMI 2.0 Video Wall Over IP Multicast System - Receiver, part # CE-H25311-S1 sold separately, and HDMI 2.0 Video Wall Over IP Multicast System - Controller, part # CE-H25411-S1 sold separately
- Video Extender Transmitter is a reliable audio/video transmission extending solution
- HDMI out enables you to transfer data from your devices to video extender transmitter with added efficiency
- Download media from your memory card with the built-in USB along with adequate power supply
- 1 input devices supported for maximum productive usability
- 1 output devices supported for maximum feasibility and usage convenience
- 394 ft maximum operating distance for reliable coverage and maximum portability
- 4K graphics mode for stunning, lively video quality
Call for Availability
Regular price
$323.93
Sale price
$439.99
On Sale
Shipping calculated at checkout
Extends HDMI audio/video signals through IP networks up to 394ft (120m), matrix and video wall configurable on the fly
- HDMI 2.0a and HDCP 2.2 compliant
- Supports HDMI input up to 4Kx2K@60Hz YUV 4:4:4 8bit, HDMI output up to 4Kx2K@30Hz
- Flexible and scalable video broadcasting by IGMP Gigabit Ethernet Router/Switch
- Supports 4K signals including High Dynamic Range (HDR), PoE, Bi-directional IR path, and Video Wall. Due to the video compression, some distortion may occur in HDR mode
- Supports One-to-one, One-to-many, and Many-to-many broadcasting architecture
- Easy DIP switch matching for multi-casting group configuration
- Supports full frequency IR signal from 20KHz to 60KHz
- Full Duplex RS-232 control up to 115,200 bps
- Supports 180° and 270° clockwise image rotation
- Designed to work with HDMI 2.0 Video Wall Over IP Multicast System - Receiver, part # CE-H25311-S1 sold separately, and HDMI 2.0 Video Wall Over IP Multicast System - Controller, part # CE-H25411-S1 sold separately
- Video Extender Transmitter is a reliable audio/video transmission extending solution
- HDMI out enables you to transfer data from your devices to video extender transmitter with added efficiency
- Download media from your memory card with the built-in USB along with adequate power supply
- 1 input devices supported for maximum productive usability
- 1 output devices supported for maximum feasibility and usage convenience
- 394 ft maximum operating distance for reliable coverage and maximum portability
- 4K graphics mode for stunning, lively video quality
Connectivity Technology:
Wired
Country of Origin:
Taiwan
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Graphics Modes:
4K
HDMI In:
Yes
HDMI Out:
Yes
Limited Warranty:
3 Year
Manufacturer:
SIIG, Inc
Manufacturer Website Address:
http://www.siig.com
Maximum Operating Distance:
394 ft
Media Type Supported:
Twisted Pair
Network (RJ-45):
Yes
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1
Number of Input Devices Supported:
1
Number of Network (RJ-45) Ports:
1
Number of Output Devices Supported:
1
Number of USB Ports:
1

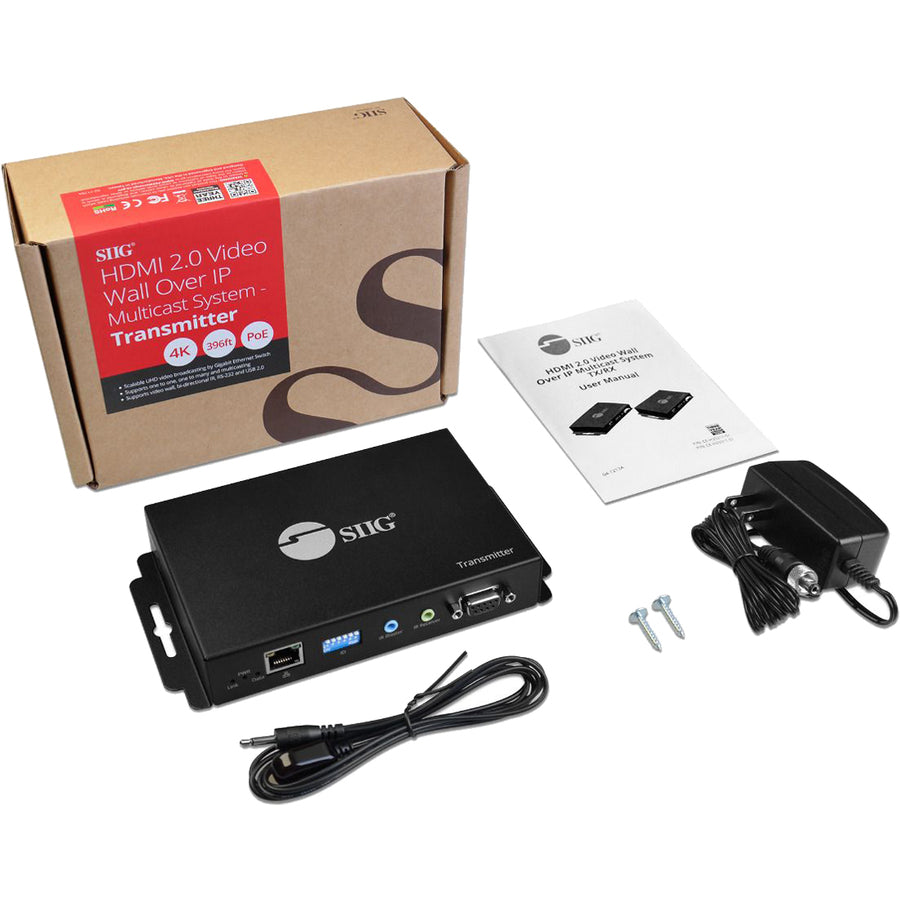

Package Contents:
- HDMI 2.0 Over IP Matrix and Video Wall - Transmitter
- Power Adapter 5V/2A
- 1 x IR Blaster Cable
- 2 x Screw Kit
- Insert Card
- User Manual
Product Color:
Black
Product Type:
Video Extender Transmitter
TAA Compliant:
Yes

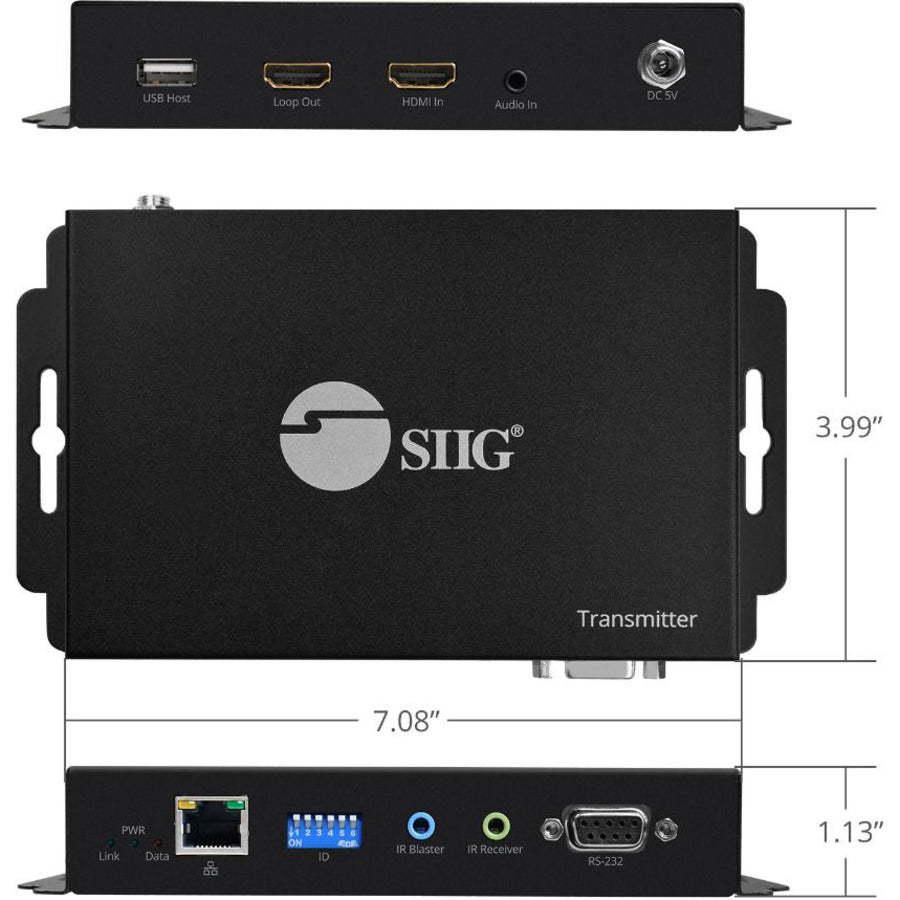

Transmitter Depth:
7.09"
Transmitter Height:
1.13"
Transmitter Weight (Approximate):
1.08 lb
Transmitter Width:
4"
Twisted Pair Cable Standard:
Category 5e
USB:
Yes
