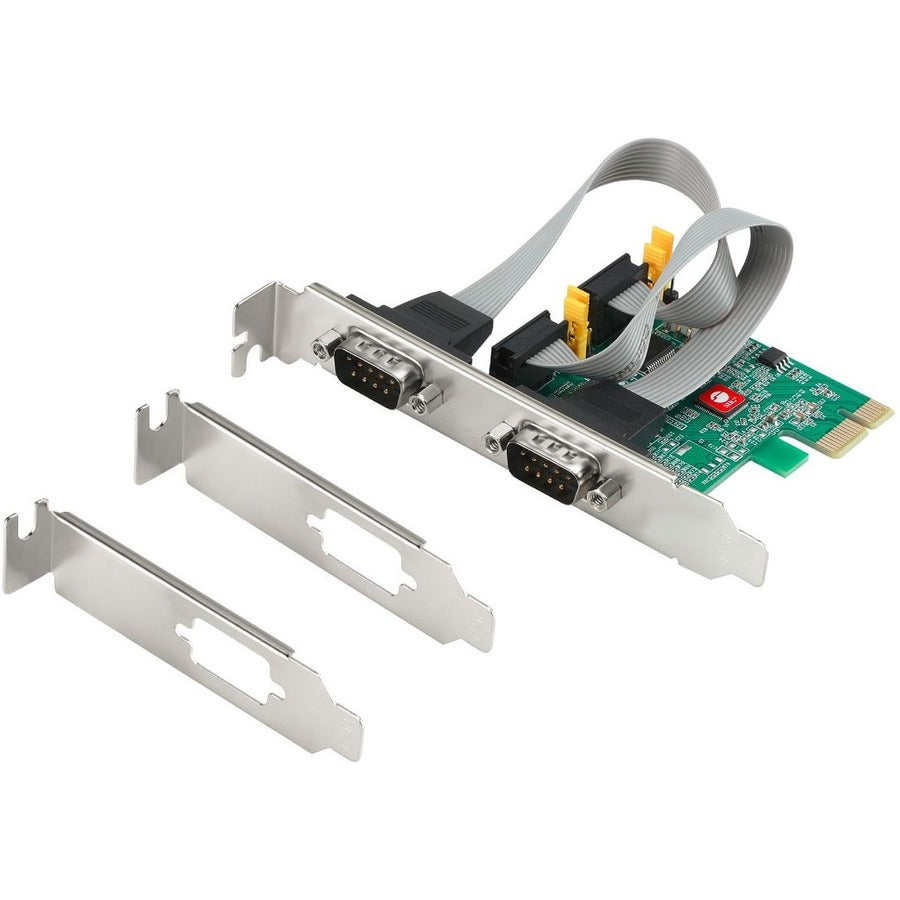

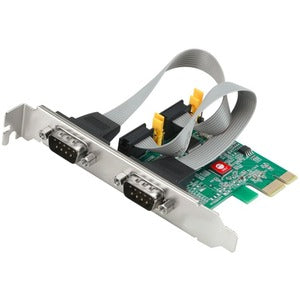

SIIG 2 Port DP Cyber RS-232 2S PCIe Card - 250Kbps
SKU: JJ-E20711-S1
Add two 16650 RS232 ports to your PCI Express system
Features- Adds two 9-pin RS-232 serial ports to PCIe enabled desktop computers
- Two 16C650 UART serial ports support data transfer rate up to 250Kbps
- Compliant with PCI Express 2.0 Gen 1
- Single-lane (x1) PCI Express End-point Controller with PHY integrated
- Full serial modem control with hardware and software flow control
- Supports 5, 6, 7, 8 and 9-bit serial formats
- Supports Even, Odd, None, Space and Mark parity
- On chip 256-byte FIFO buffers in transmit and receive path for each serial port
- Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
- Supports PCI Bus Power Management Interface Specification Revision 1.2
- Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets
- Installs into any PCI Express slot of any lane width
- Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc
- Adds two 9-pin RS-232 serial ports to PCIe enabled desktop computers
- Two 16C650 UART serial ports support data transfer rate up to 250Kbps
- Compliant with PCI Express 2.0 Gen 1
- Single-lane (x1) PCI Express End-point Controller with PHY integrated
- Full serial modem control with hardware and software flow control
- Supports 5, 6, 7, 8 and 9-bit serial formats
- Supports Even, Odd, None, Space and Mark parity
- On chip 256-byte FIFO buffers in transmit and receive path for each serial port
- Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
- Supports PCI Bus Power Management Interface Specification Revision 1.2
Call for Availability
Regular price
$43.43
Shipping calculated at checkout
Add two 16650 RS232 ports to your PCI Express system
Features- Adds two 9-pin RS-232 serial ports to PCIe enabled desktop computers
- Two 16C650 UART serial ports support data transfer rate up to 250Kbps
- Compliant with PCI Express 2.0 Gen 1
- Single-lane (x1) PCI Express End-point Controller with PHY integrated
- Full serial modem control with hardware and software flow control
- Supports 5, 6, 7, 8 and 9-bit serial formats
- Supports Even, Odd, None, Space and Mark parity
- On chip 256-byte FIFO buffers in transmit and receive path for each serial port
- Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
- Supports PCI Bus Power Management Interface Specification Revision 1.2
- Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets
- Installs into any PCI Express slot of any lane width
- Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc
- Adds two 9-pin RS-232 serial ports to PCIe enabled desktop computers
- Two 16C650 UART serial ports support data transfer rate up to 250Kbps
- Compliant with PCI Express 2.0 Gen 1
- Single-lane (x1) PCI Express End-point Controller with PHY integrated
- Full serial modem control with hardware and software flow control
- Supports 5, 6, 7, 8 and 9-bit serial formats
- Supports Even, Odd, None, Space and Mark parity
- On chip 256-byte FIFO buffers in transmit and receive path for each serial port
- Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
- Supports PCI Bus Power Management Interface Specification Revision 1.2
Card Height:
Full-height/Low-profile
Country of Origin:
China
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Form Factor:
Plug-in Card
Host Interface:
PCI Express 2.0 x1
Limited Warranty:
2 Year
Manufacturer:
SIIG, Inc
Manufacturer Website Address:
http://www.siig.com
Number of Serial Ports (External):
2

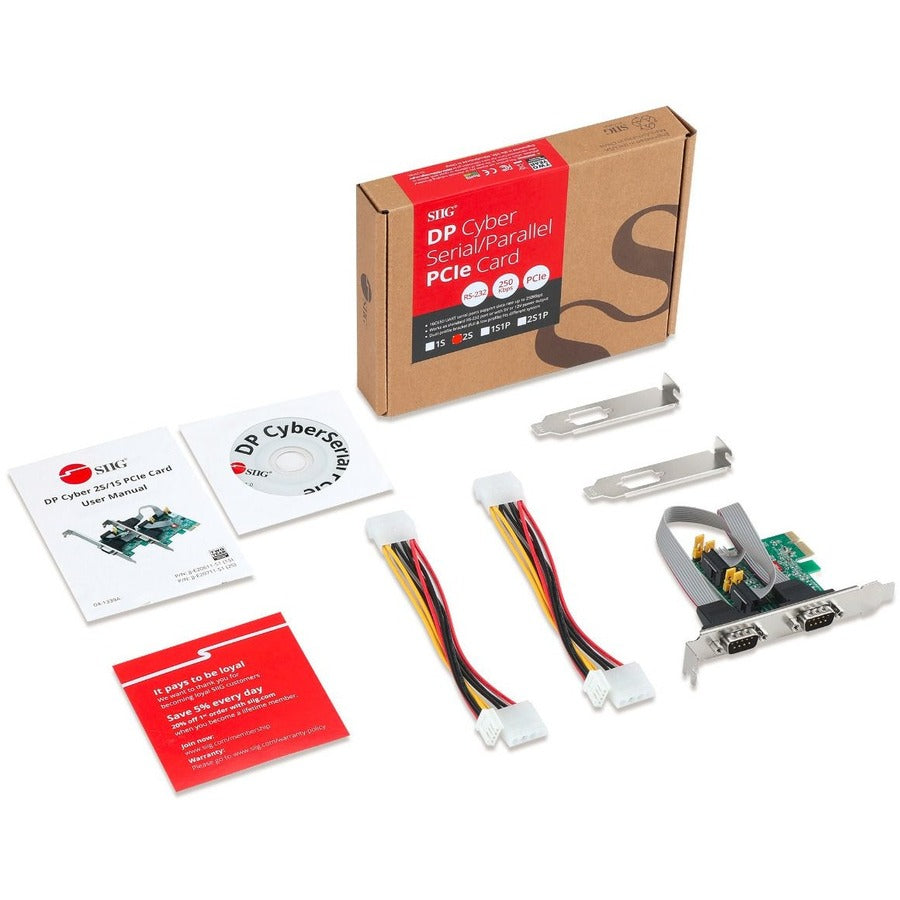

Package Contents:
- DP Cyber 2S PCIe Card
- Full Height Bracket
- 2 x Low Profile Bracket
- 1 x Y-Split Power Cable
- 4 x Voltage Jumper
- Software CD
- User Manual
Platform Supported:
PC
Product Type:
Serial Adapter
