SIIG 1x4 1080p HDMI Splitter HDbitT over IP Extender Kit - 120m
SKU: CE-H26V11-S1

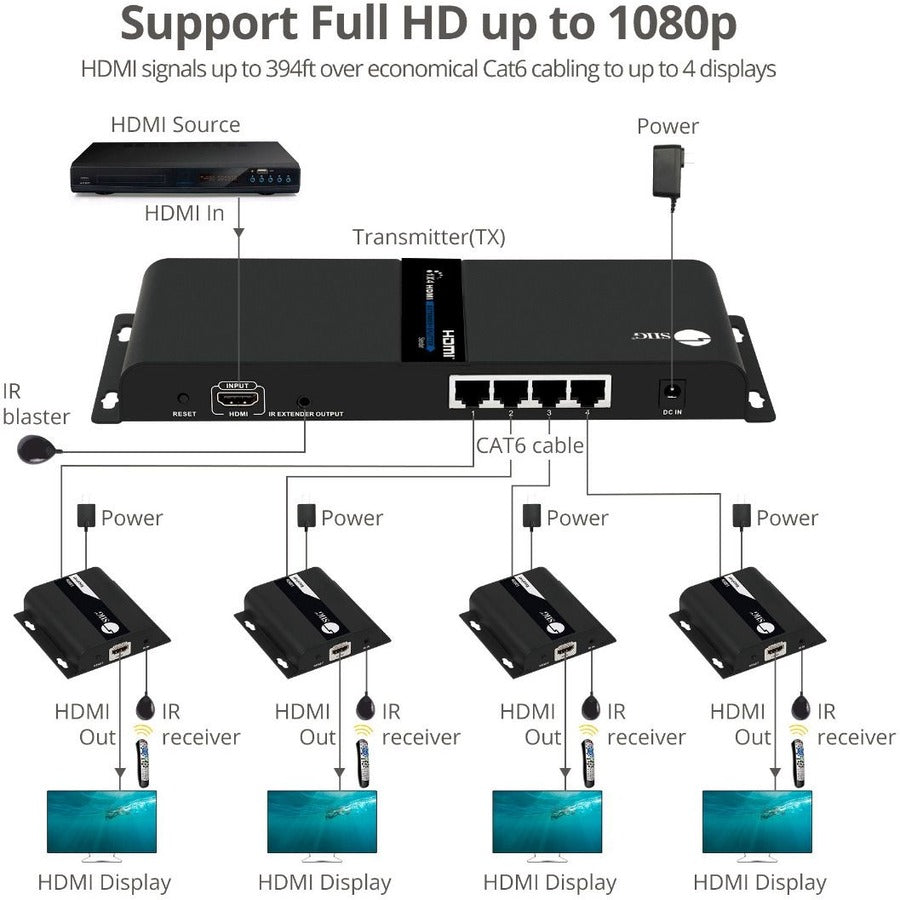

Extends 1080p HDMI signal up to 394ft over Cat6 cable to up to 4 displays, IR control, works with dedicated Gigabit network switches for more displays and extension
- With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft (120m) with our 1x4 HDMI Splitter HDbitT over IP Extender Kit - 120m. Direct 1-to-1 connection, 1-to-Many through Gigabit network switches. Additional receivers, part# CE-H26U11-S1), are sold separately

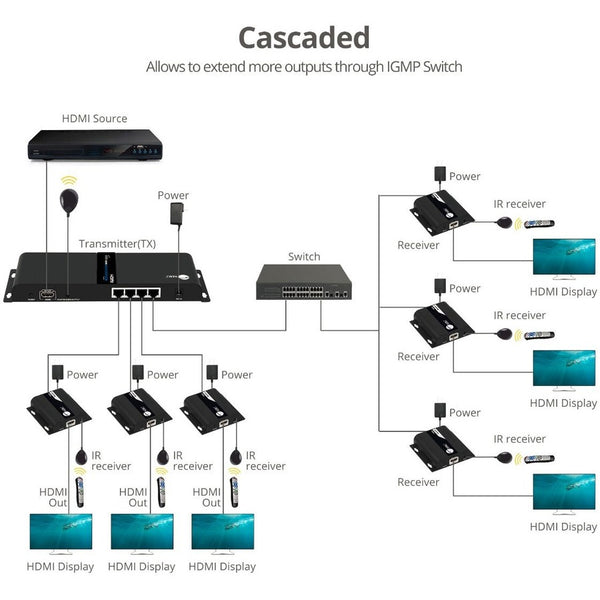

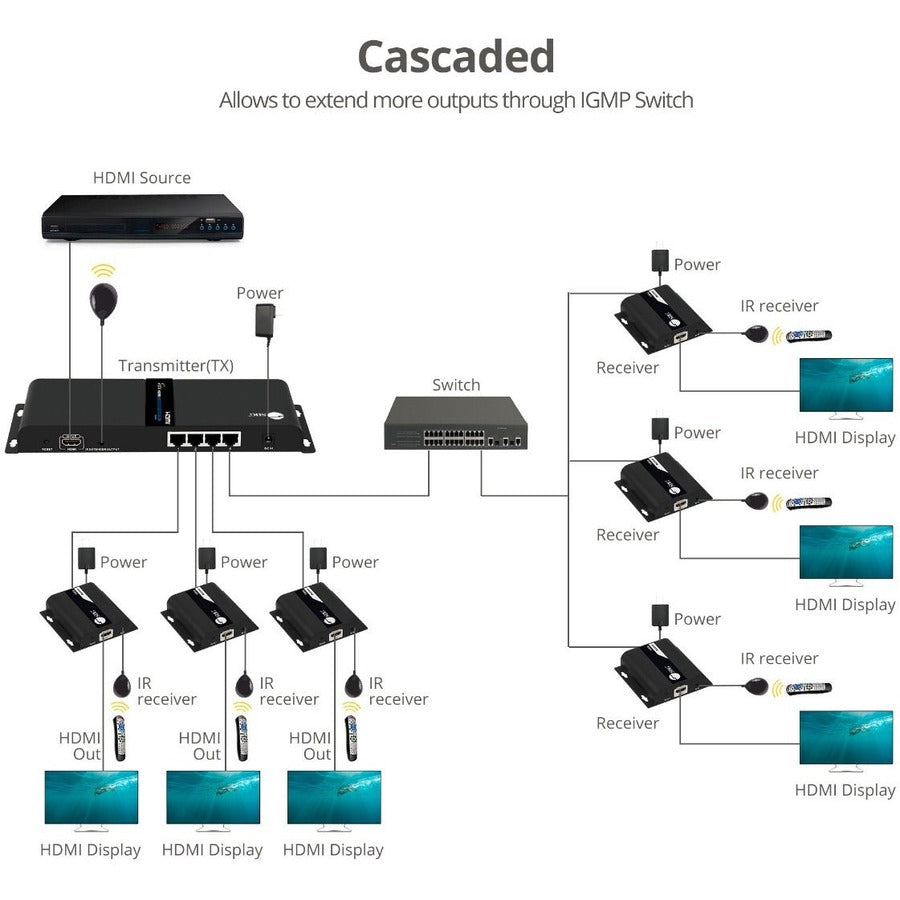

- Features cascade connection of up to 30 receivers per transmitter. 1-to-many configuration through 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Many-to-many configuration is also supported via VLAN setups. Note that each VLAN can only accommodate 1 transmitter (TX). Note: We recommend using SIIG's 24-port AV Over IP Smart Ethernet Switch, part# CE-SW0111-S1, sold separately
- Delivers crystal clear Full HD content up to 1080p@60Hz resolution. Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video/audio experience. Supports 2-channel Stereo Audio. * Note: There's a 250ms or less delay/latency due to data compression. Not recommended for real-time applications, such as PC gaming
- IR remote control through Cat6 cable allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a Cat6 cable for convenience. We recommend using high performance pure COPPER Cat6 cables to ensure reliable performance
- High quality durable surface mountable metal housing with ventilation panels provides excellent heat dissipation and a higher level of RF/EMI shielding to ensure reliable performance and system stability during long hours of non-stop operation
- Plug-n-Play installation, no software installation required, backed by a 2-year limited warranty
Call for Availability
Regular price
$862.35
Shipping calculated at checkout
Extends 1080p HDMI signal up to 394ft over Cat6 cable to up to 4 displays, IR control, works with dedicated Gigabit network switches for more displays and extension
- With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft (120m) with our 1x4 HDMI Splitter HDbitT over IP Extender Kit - 120m. Direct 1-to-1 connection, 1-to-Many through Gigabit network switches. Additional receivers, part# CE-H26U11-S1), are sold separately
- Features cascade connection of up to 30 receivers per transmitter. 1-to-many configuration through 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Many-to-many configuration is also supported via VLAN setups. Note that each VLAN can only accommodate 1 transmitter (TX). Note: We recommend using SIIG's 24-port AV Over IP Smart Ethernet Switch, part# CE-SW0111-S1, sold separately
- Delivers crystal clear Full HD content up to 1080p@60Hz resolution. Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video/audio experience. Supports 2-channel Stereo Audio. * Note: There's a 250ms or less delay/latency due to data compression. Not recommended for real-time applications, such as PC gaming
- IR remote control through Cat6 cable allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a Cat6 cable for convenience. We recommend using high performance pure COPPER Cat6 cables to ensure reliable performance
- High quality durable surface mountable metal housing with ventilation panels provides excellent heat dissipation and a higher level of RF/EMI shielding to ensure reliable performance and system stability during long hours of non-stop operation
- Plug-n-Play installation, no software installation required, backed by a 2-year limited warranty
Connectivity Technology:
Wired
Country of Origin:
China
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Form Factor:
Wall Mountable,Surface-mountable
Graphics Modes:
Full HD
HDMI In:
Yes
HDMI Out:
Yes
Limited Warranty:
2 Year
Manufacturer:
SIIG, Inc
Manufacturer Website Address:
http://www.siig.com
Maximum Operating Distance:
393.70 ft
Maximum Video Resolution:
1920 x 1080
Media Type Supported:
Twisted Pair
Network (RJ-45):
Yes
Number of HDMI Inputs:
1
Number of HDMI Outputs:
4
Number of Input Devices Supported:
1
Number of Network (RJ-45) Ports:
8
Number of Output Devices Supported:
4

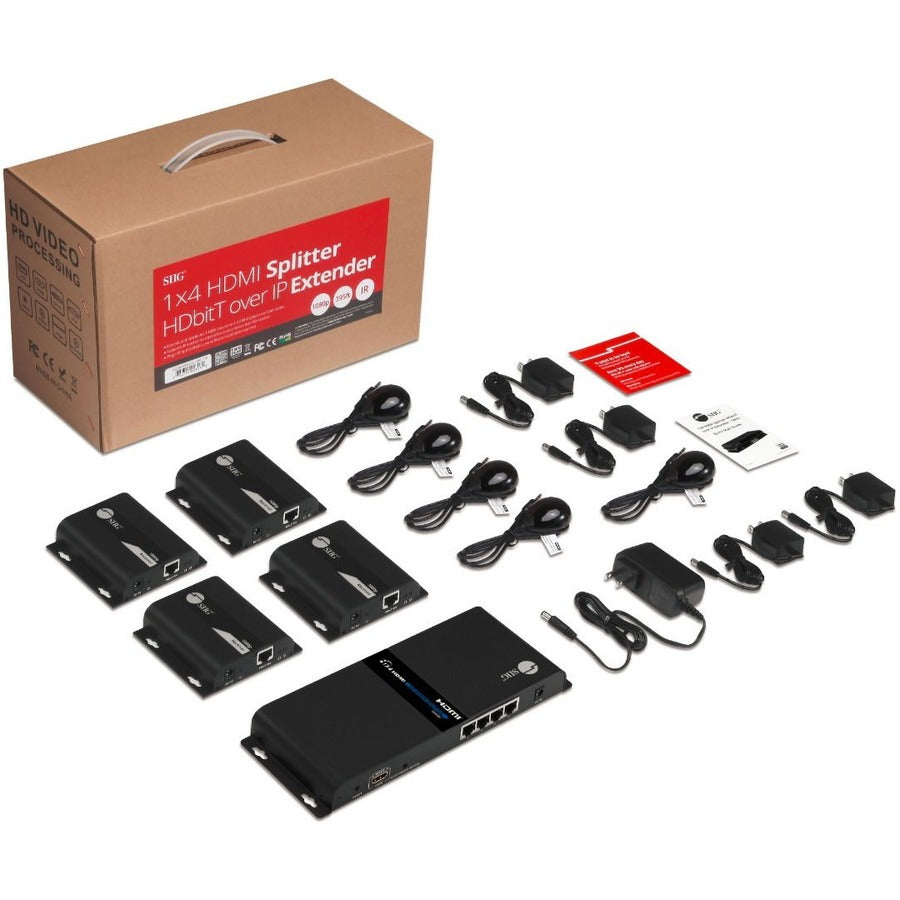

Package Contents:

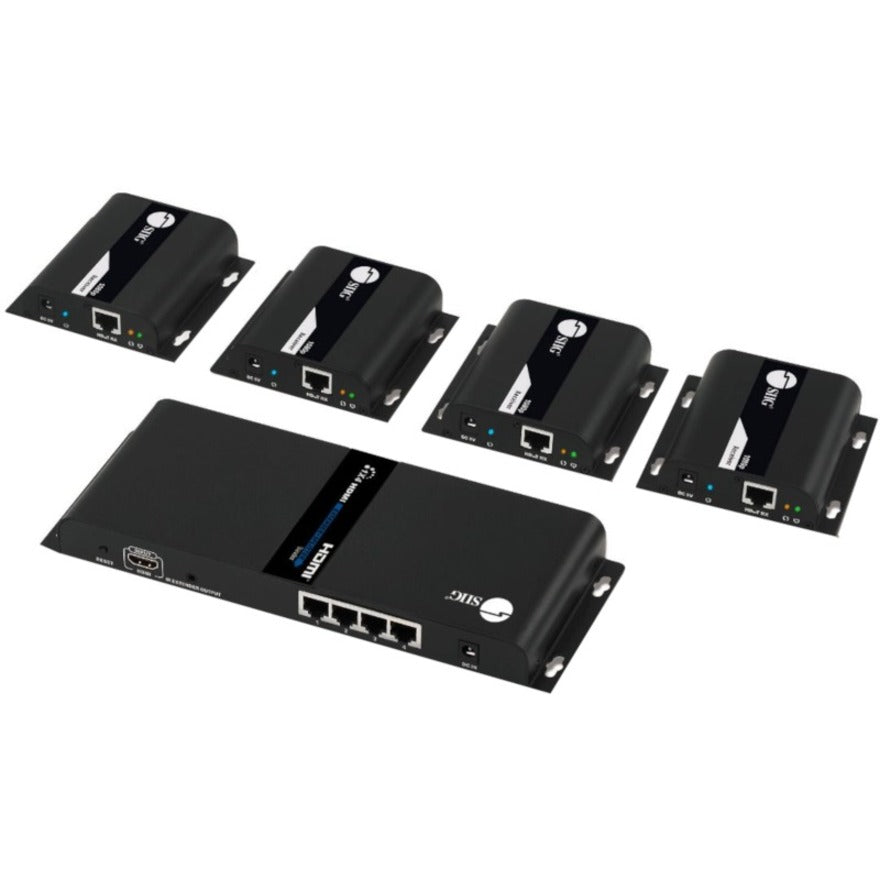

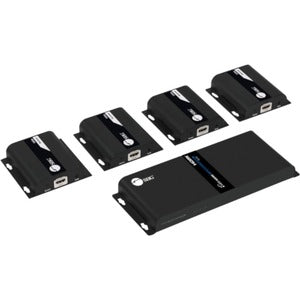

- 1x4 HDMI Splitter HDbitT over IP Extender Kit - 120m
- 5 x Power Adapters
- 1 x IR Blaster Cable
- 4 x IR Receiver Cable
- Quick Start Guide
Product Type:
Video Extender Transmitter/Receiver
Receiver Depth:
3.81"
Receiver Height:
0.93"
Receiver Weight (Approximate):
5.28 oz
Receiver Width:
3.70"
Transmitter Depth:
9.92"
Transmitter Height:
0.98"
Transmitter Weight (Approximate):
1.34 lb
Transmitter Width:
3.82"
Twisted Pair Cable Standard:
Category 7
