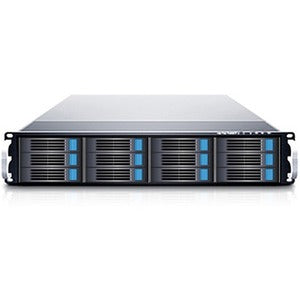

Sans Digital EliteSTOR ES212X12HP - 2U 12 Bay 12G SAS/SATA to 12G Expander with 12G PCIe 3.0 RAID 6 Controller
SKU: KT-ES212X12HP
The EliteSTOR ES212X12HP is a complete 2U 12G SAS RAID solution for performance hungry RAID storage solution. Utilizing the latest 12G SAS expander technology, the ES212X12HP provides up to 48Gb/s or 4800MB/s of data bandwidth to fulfill the most demanding application. The ES212X12HP supports SATA or SAS 12Gb/s hard drives or SSD and is backward compatible to 6Gb/s SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES212X12HP supports up to 12 SAS or SATA drives using only one HD mini-SAS (SFF-8644) cable. A built-in SAS expansion port enables the system to connect up to 256 drives drives daisy-chained together. The system comes with a high performance RAID controller card, and the ES212X12HP is capable of delivering over in 3,000MB/s read and write performance, doubling the existing 6G SAS expander bandwidth. Dedicated dual-core RAID engines provides RAID 0, 1, 3, 5, 6, 10, 50, 60 support with enterprises features and performances. System status information is provided by the LED, including hard drives, power supply and cooling fan status, as well as RAID controller's event log and e-mail notification system. All necessary hardware comes standard including RAID controller card, mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES212X12HP is an ideal storage expansion solution for servers or high performance video editing workstations. Support Windows (Vista or up, Server 2003 or up), Apple (OS X 10.4 or up), Linux and BSD. VMware ESX and Microsoft Hyper-V is also supported.
- DAS Storage System offers maximum storage efficiency and convenience
- Holds up to 12 HDDs to let you expand limitlessly
- Through RAID levels (0, 1, 3, 5, 6, 10, 30, 50, 60, 100, 1e, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- Up to 48 tb Data Storage Capacity - great for demanding organizational needs
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable das storage system allows maximum space utilization with easy and convenient access and retrieval of the data
Call for Availability
Regular price
$4,271.18
Shipping calculated at checkout
The EliteSTOR ES212X12HP is a complete 2U 12G SAS RAID solution for performance hungry RAID storage solution. Utilizing the latest 12G SAS expander technology, the ES212X12HP provides up to 48Gb/s or 4800MB/s of data bandwidth to fulfill the most demanding application. The ES212X12HP supports SATA or SAS 12Gb/s hard drives or SSD and is backward compatible to 6Gb/s SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES212X12HP supports up to 12 SAS or SATA drives using only one HD mini-SAS (SFF-8644) cable. A built-in SAS expansion port enables the system to connect up to 256 drives drives daisy-chained together. The system comes with a high performance RAID controller card, and the ES212X12HP is capable of delivering over in 3,000MB/s read and write performance, doubling the existing 6G SAS expander bandwidth. Dedicated dual-core RAID engines provides RAID 0, 1, 3, 5, 6, 10, 50, 60 support with enterprises features and performances. System status information is provided by the LED, including hard drives, power supply and cooling fan status, as well as RAID controller's event log and e-mail notification system. All necessary hardware comes standard including RAID controller card, mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES212X12HP is an ideal storage expansion solution for servers or high performance video editing workstations. Support Windows (Vista or up, Server 2003 or up), Apple (OS X 10.4 or up), Linux and BSD. VMware ESX and Microsoft Hyper-V is also supported.
- DAS Storage System offers maximum storage efficiency and convenience
- Holds up to 12 HDDs to let you expand limitlessly
- Through RAID levels (0, 1, 3, 5, 6, 10, 30, 50, 60, 100, 1e, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- Up to 48 tb Data Storage Capacity - great for demanding organizational needs
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable das storage system allows maximum space utilization with easy and convenient access and retrieval of the data
Controller Type:
12Gb/s SAS,Serial ATA/600
Environmentally Friendly:
Yes
Form Factor:
Rack-mountable
Host Interface:
Mini-SAS
Limited Warranty:
3 Year
Manufacturer:
Sans Digital
Manufacturer Website Address:
http://www.sansdigital.com
Maximum Power Supply Wattage:
380 W
Number of 3.5" Bays:
12
Number of Hard Drives Supported:
12
Number of Power Supplies Installed:
2
Number of Solid State Drive Supported:
12
Number of Total Expansion Bays:
12
Package Contents:
- EliteSTOR ES212X12HP DAS Array

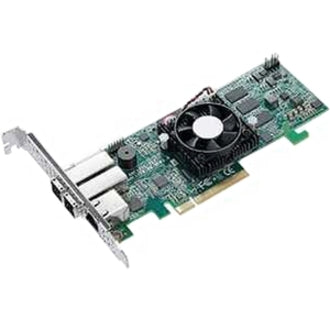

- 12G PCIe 3.0 RAID Controller
- HD Mini-SAS Cable
- Cooling Fan

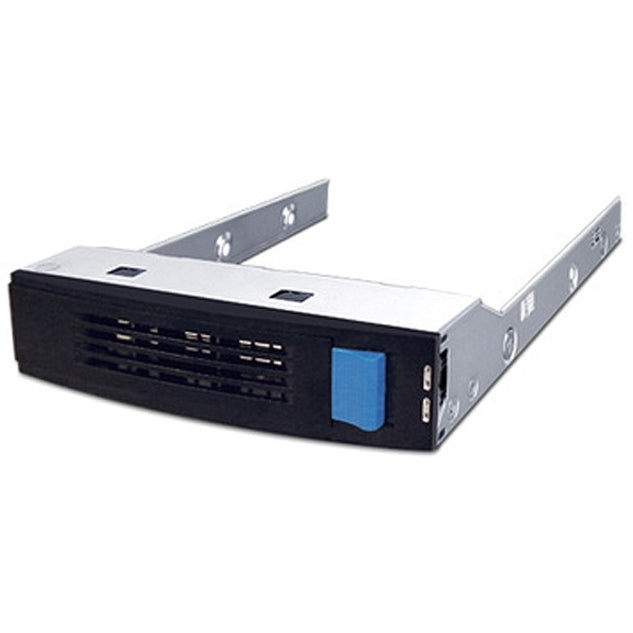

- Tray Modules
- Build-in Mounting Rail
- Bracket
Product Line:
EliteSTOR
Product Model:
ES212X12HP
Product Type:
DAS Storage System
Rack Height:
2U
RAID Levels:
0, 1, 3, 5, 6, 10, 30, 50, 60, 100, 1E, JBOD
RAID Supported:
Yes
Redundant Power Supply:
Yes
Total Hard Drive Capacity Supported:
48 TB
