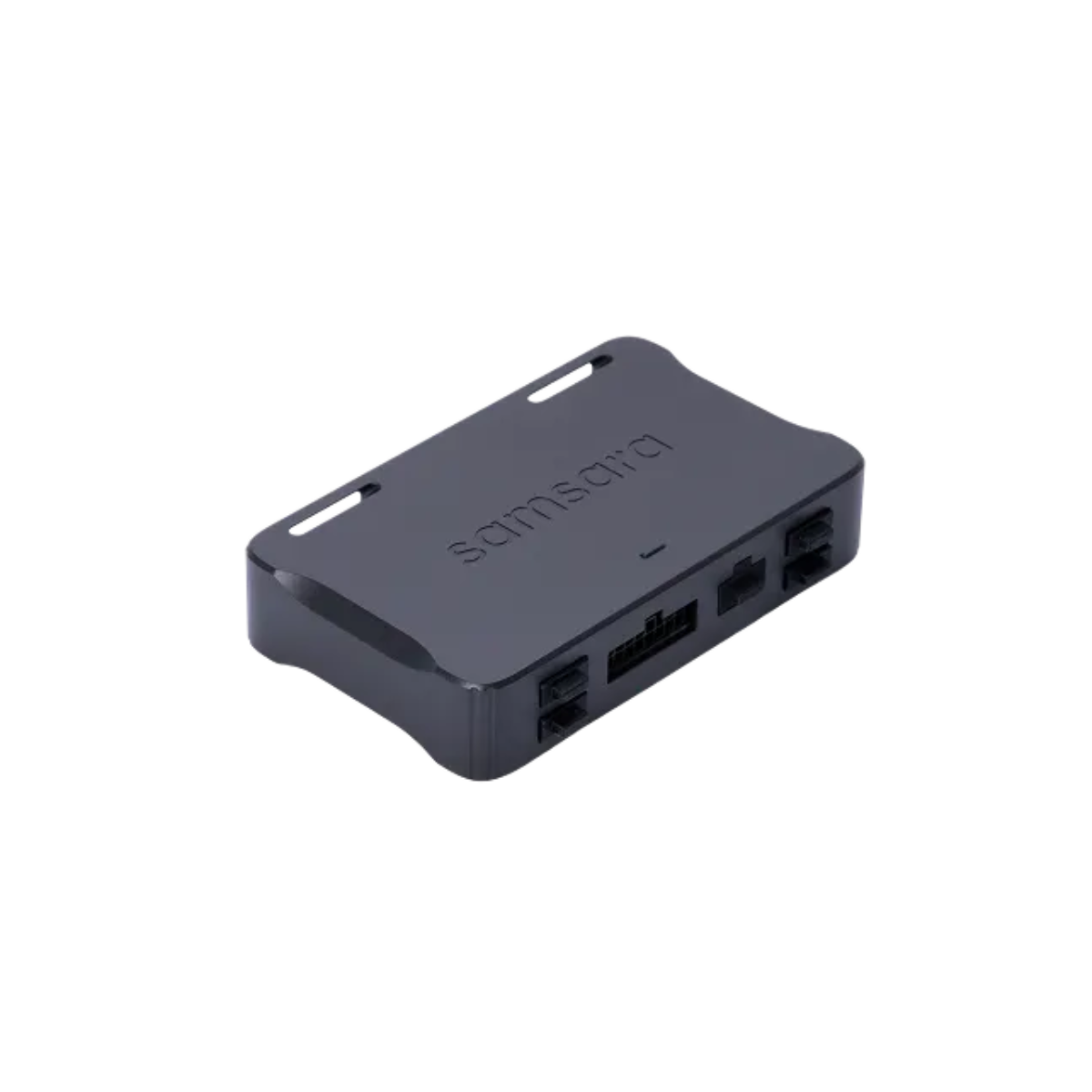

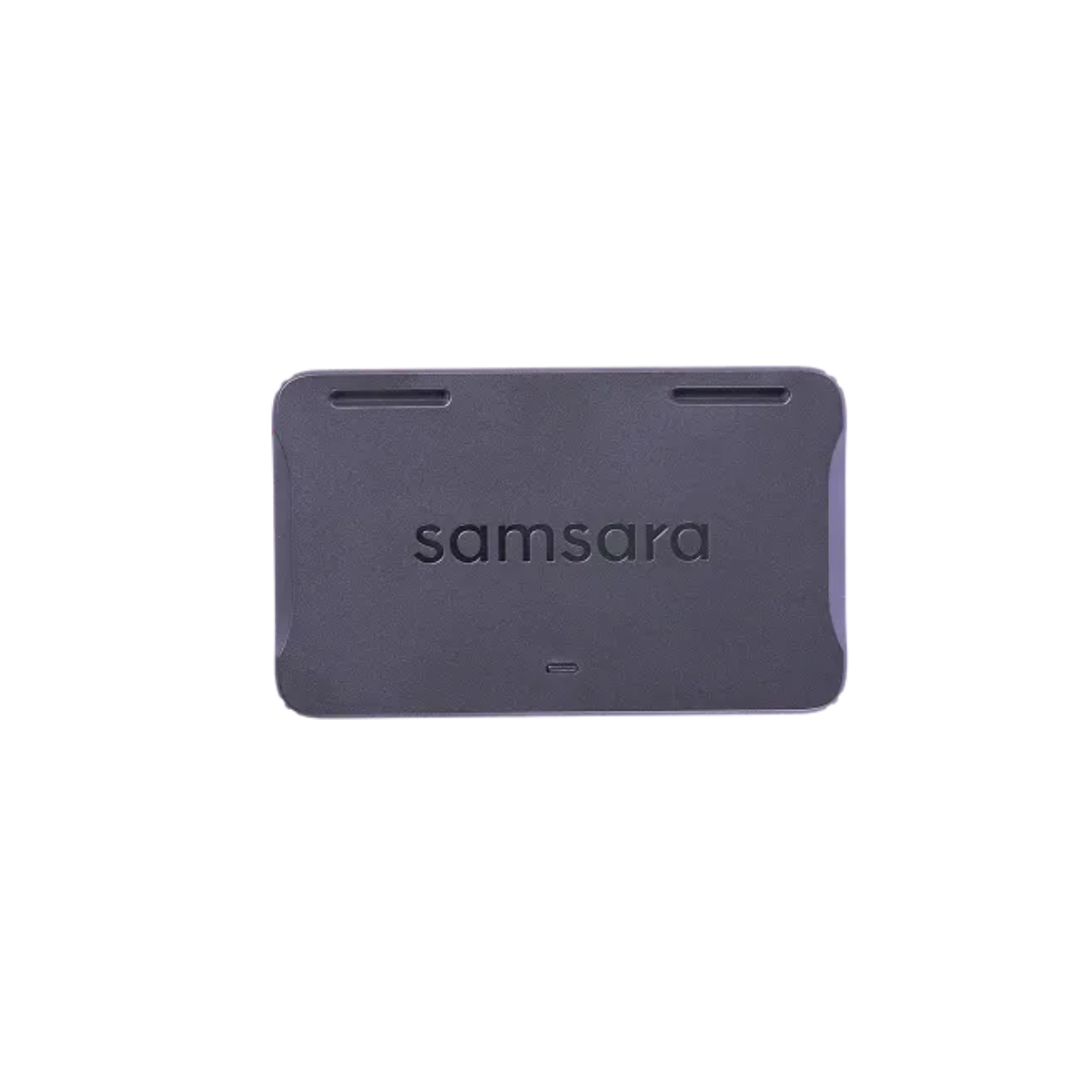

Samsara HW-VG54-NA Vehicle IoT Gateway

Regular price $1,584.00

In stock

Product Specifications

Specs

Material Polycarbonate
Encasing Size 71mm x 118mm x 23mm
Weight 173 g
USB Port 4 USB 2.0 Ports
AUX Line Port 8 Pin Molex Connector
Diagnostic Port 16 Pin Molex Connector
Supported AUX Lines 5 Digital Inputs, 1 Digital Output
Input Voltage Range (Power) 0-24V
Input Voltage Range (AUX) 0-30V
Temperature Range -40ºC - 85ºC
Accessible Cellular Networks - North America AT&T
Cellular Generation Support 4G & LTE
GNSS (Global Navigation Satellite System) Supported GPS L1, Glonass L1, & Galileo
Supports External GNSS Antenna Yes (only HW-VG54- NAE)
Supports GNSS Jamming Detection Yes
Wi-Fi Protocols 802.11 a/b/g/n 2.4GHz and 5GHz
Product Resources
Overview PDF
