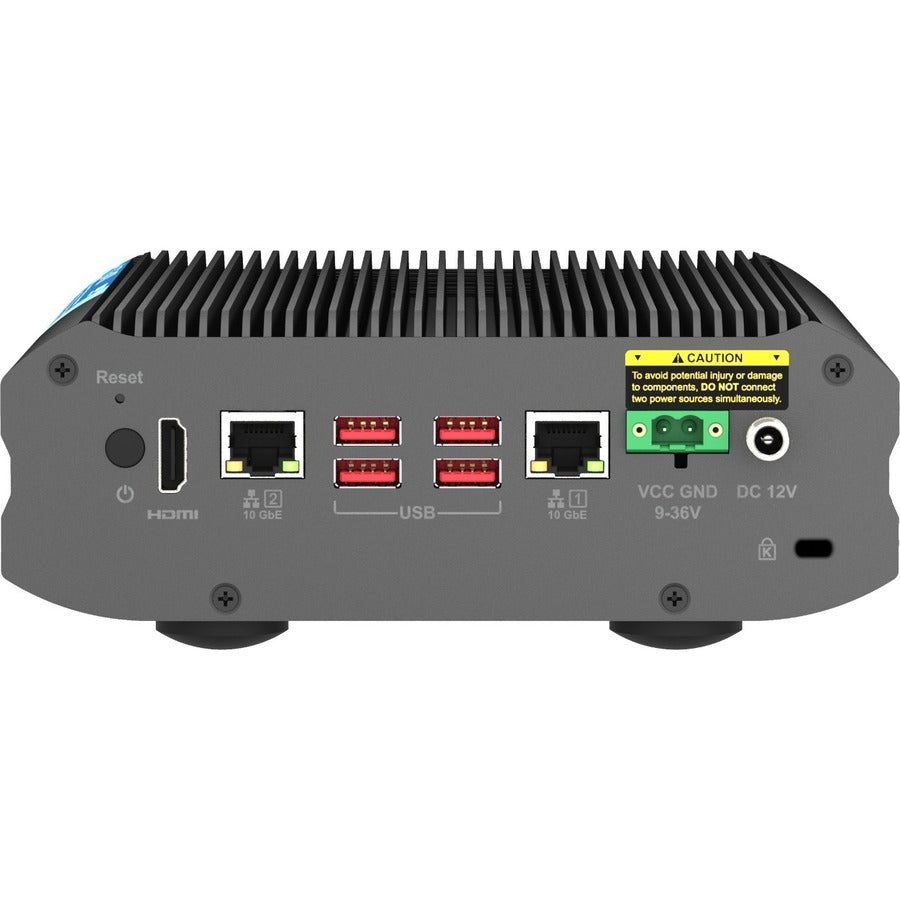

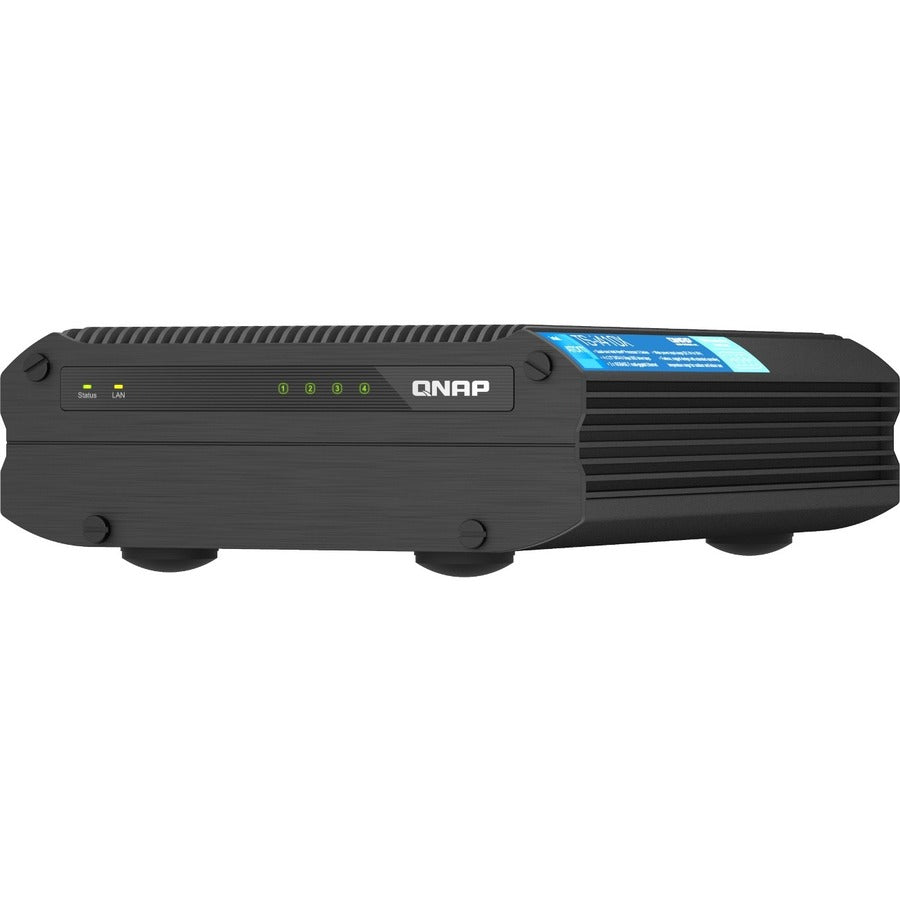

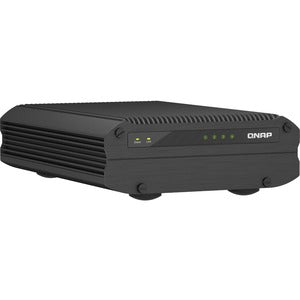

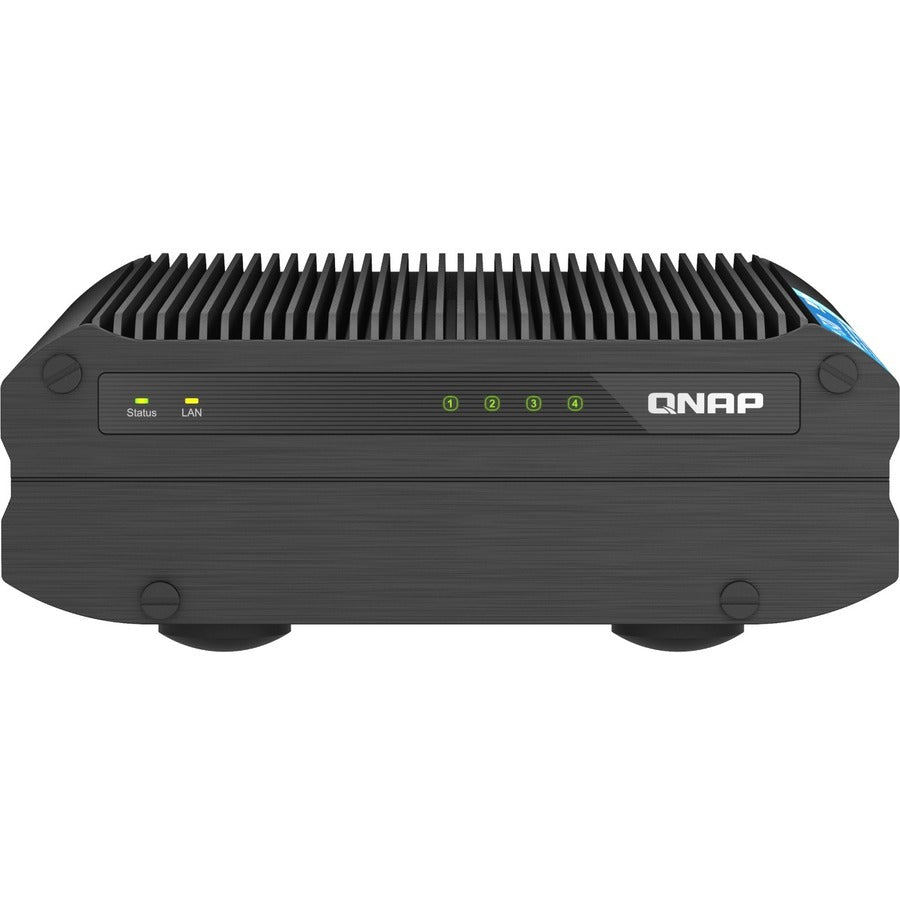

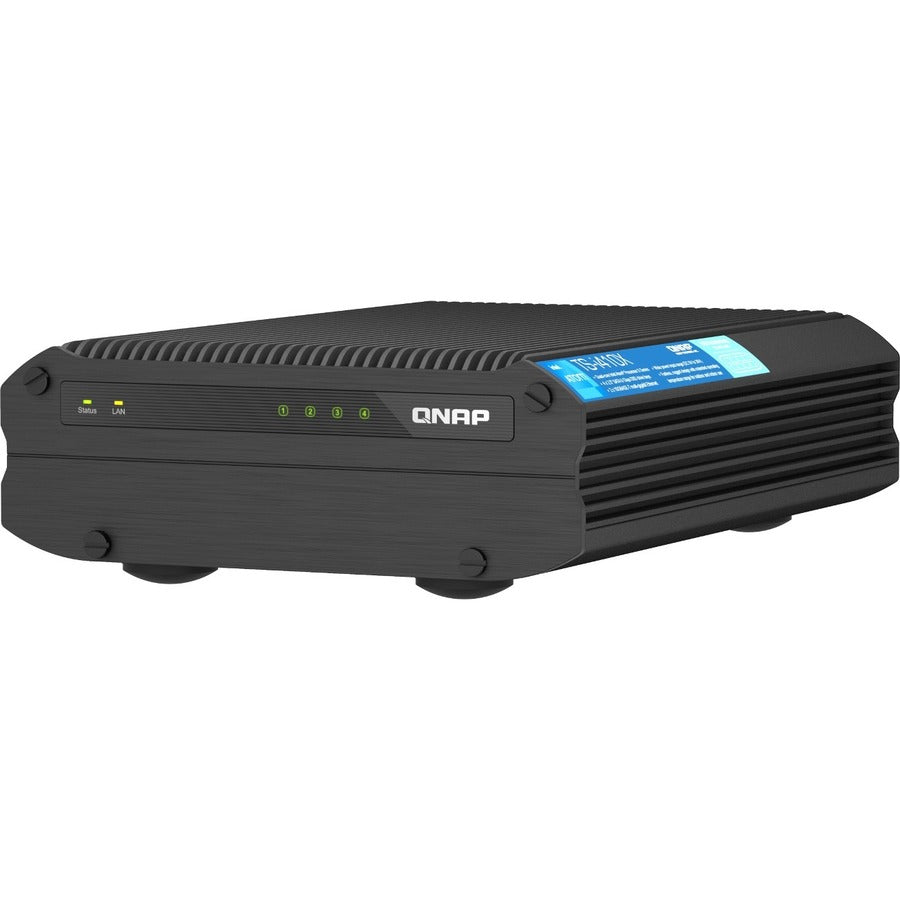

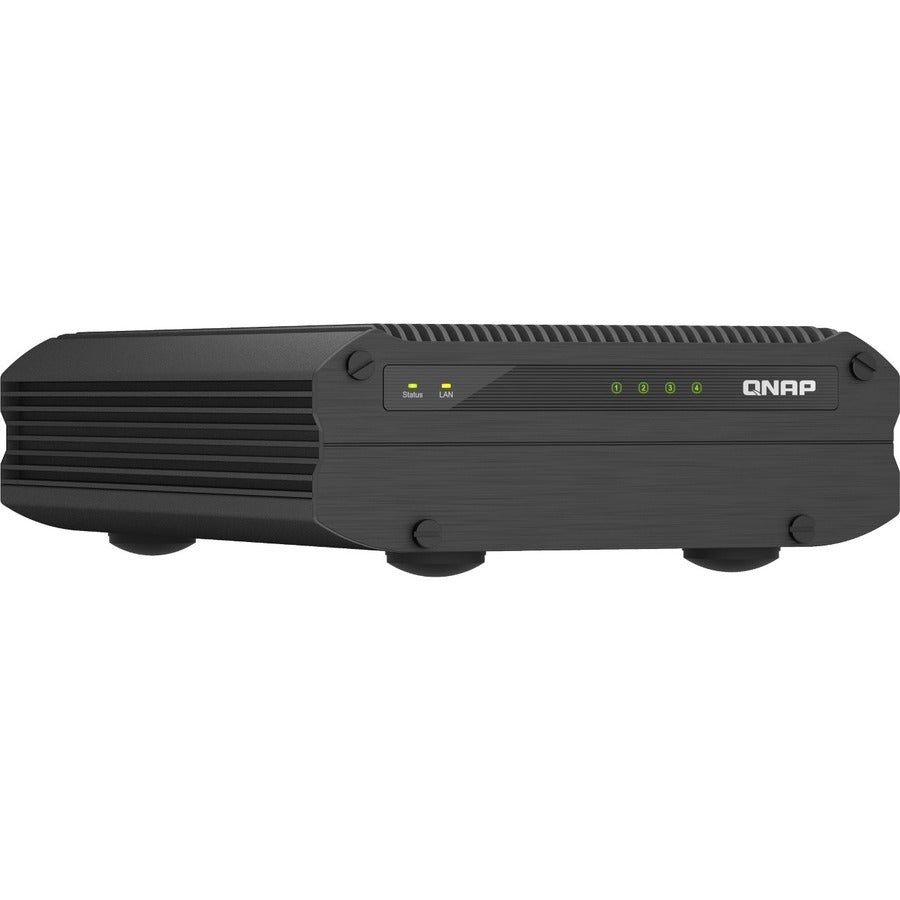

QNAP TS-I410X-8G SAN/NAS Storage System
With a fanless design and rock-solid chassis, the TS-i410X industrial grade NAS is designed for harsh environments. The TS-i410X can operate in temperatures of -40 ~ 70 Celsius (-40°F ~ 158°F) while its 9V ~ 36V DC wide-range power supply is ideal for factories, warehouses, transportation, and other rugged operating environments.
-
10GbE connectivity
Two 10GBASE-T/NBASE-T RJ45 ports accelerate virtualization tasks, high speed backup/recovery, file sharing, and video transmission.
-
4K HDMI output
Supports 4K playback and real-time transcoding.
-
Optimized SSD performance and lifespan
Install SATA 6Gb/s SSDs and activate SSD caching for increased IOPS performance.
-
Virtualization applications
Host multiple virtual machines and containers to run a wide range of applications and microservices.
-
Data backup and recovery
Protect PC/Macs, virtual machines, software containers, and cloud data.
-
Hybrid cloud applications
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.
Available Models | TS-i410X-8G
-
Intel® Atom® x6425E 4-core/4-thread processor, burst up to 3.0 GHz, 8 GB on board (non-expandable)
Quad cores up to 3.0 GHz with AES-NI accelerated encryption
The TS-i410X is powered by Intel® Atom® x6425E quad-core processor (burst up to 3.0 GHz) and equipped with 8 GB dual-channel memory. With hardware-accelerated AES-NI encryption, the TS-i410X also provides unmatched encryption performance while ensuring the safety of sensitive business data stored in the NAS. The TS-i410X has four 2.5-inch SATA 6Gb/s SSD slots for allocating SSDs (industrial SSDs are recommended) to greatly boost IOPS to meet the performance requirements of demanding applications.
Industrial-grade hardened hardware design with 9V ~ 36V DC wide-range power supply
With a fanless design and rock-solid chassis and compliant with the military-grade MIL-STD-810H the TS-i410X can operate in -40 ~ 70 Celsius (-40°F ~ 158°F) environments. It can be used as a set-top box, or used with the optional VESA 75 wall-mount to provide installation flexibility. With the 9V ~ 36V DC wide-range power supply, the TS-i410X is suitable for industrial and transportation applications with a variety of input voltage requirements.
Use with industrial wide temperature SSDs
When using industrial wide temperature SSDs, adjust the disk warning setting to 85°C (185°F) in the Storage & Snapshots to match the upper limit of SSD operating temperature. (The default temperature is 70°C for SSDs)
- SAN/NAS Storage System offers maximum storage productivity with added dependability
- Can hold 4 HDDs simultaneously
- Through RAID levels (0, 1, 5, 6, 10, 50, 60, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- Enjoy quick web browsing and efficiently deal with your crazy work weeks or playtime marathons with the Intel Atom 2 ghz processor that kicks execution into high gear
- Tower form factor is ideal for running internal applications, serving public websites or storing sensitive customer data with maximum productivity
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- QTS 5.0.0 OS with all the creative and productive tools you need
Call for Availability
Shipping calculated at checkout
With a fanless design and rock-solid chassis, the TS-i410X industrial grade NAS is designed for harsh environments. The TS-i410X can operate in temperatures of -40 ~ 70 Celsius (-40°F ~ 158°F) while its 9V ~ 36V DC wide-range power supply is ideal for factories, warehouses, transportation, and other rugged operating environments.
-
10GbE connectivity
Two 10GBASE-T/NBASE-T RJ45 ports accelerate virtualization tasks, high speed backup/recovery, file sharing, and video transmission.
-
4K HDMI output
Supports 4K playback and real-time transcoding.
-
Optimized SSD performance and lifespan
Install SATA 6Gb/s SSDs and activate SSD caching for increased IOPS performance.
-
Virtualization applications
Host multiple virtual machines and containers to run a wide range of applications and microservices.
-
Data backup and recovery
Protect PC/Macs, virtual machines, software containers, and cloud data.
-
Hybrid cloud applications
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.
Available Models | TS-i410X-8G
-
Intel® Atom® x6425E 4-core/4-thread processor, burst up to 3.0 GHz, 8 GB on board (non-expandable)
Quad cores up to 3.0 GHz with AES-NI accelerated encryption
The TS-i410X is powered by Intel® Atom® x6425E quad-core processor (burst up to 3.0 GHz) and equipped with 8 GB dual-channel memory. With hardware-accelerated AES-NI encryption, the TS-i410X also provides unmatched encryption performance while ensuring the safety of sensitive business data stored in the NAS. The TS-i410X has four 2.5-inch SATA 6Gb/s SSD slots for allocating SSDs (industrial SSDs are recommended) to greatly boost IOPS to meet the performance requirements of demanding applications.
Industrial-grade hardened hardware design with 9V ~ 36V DC wide-range power supply
With a fanless design and rock-solid chassis and compliant with the military-grade MIL-STD-810H the TS-i410X can operate in -40 ~ 70 Celsius (-40°F ~ 158°F) environments. It can be used as a set-top box, or used with the optional VESA 75 wall-mount to provide installation flexibility. With the 9V ~ 36V DC wide-range power supply, the TS-i410X is suitable for industrial and transportation applications with a variety of input voltage requirements.
Use with industrial wide temperature SSDs
When using industrial wide temperature SSDs, adjust the disk warning setting to 85°C (185°F) in the Storage & Snapshots to match the upper limit of SSD operating temperature. (The default temperature is 70°C for SSDs)
- SAN/NAS Storage System offers maximum storage productivity with added dependability
- Can hold 4 HDDs simultaneously
- Through RAID levels (0, 1, 5, 6, 10, 50, 60, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- Enjoy quick web browsing and efficiently deal with your crazy work weeks or playtime marathons with the Intel Atom 2 ghz processor that kicks execution into high gear
- Tower form factor is ideal for running internal applications, serving public websites or storing sensitive customer data with maximum productivity
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- QTS 5.0.0 OS with all the creative and productive tools you need
The TS-i410X is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
- TS-I410X-8G SAN/NAS Storage System
- 1 x 10GBASE-T Ethernet Cable
- 1 x Power Cord
- 16 x Flat Head Screws (for 2.5" HDD)
- Quick Installation Guide (QIG)
- AC Adapter
