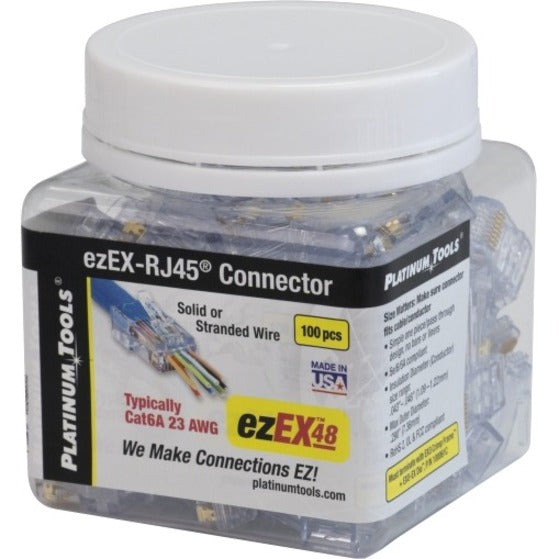

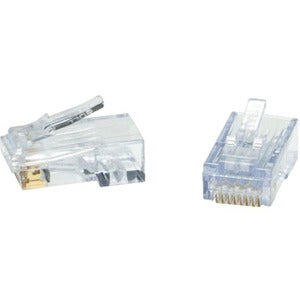

Platinum Tools ezEX48 - ezEX-RJ45 CAT6A Connector
SKU: 202048J

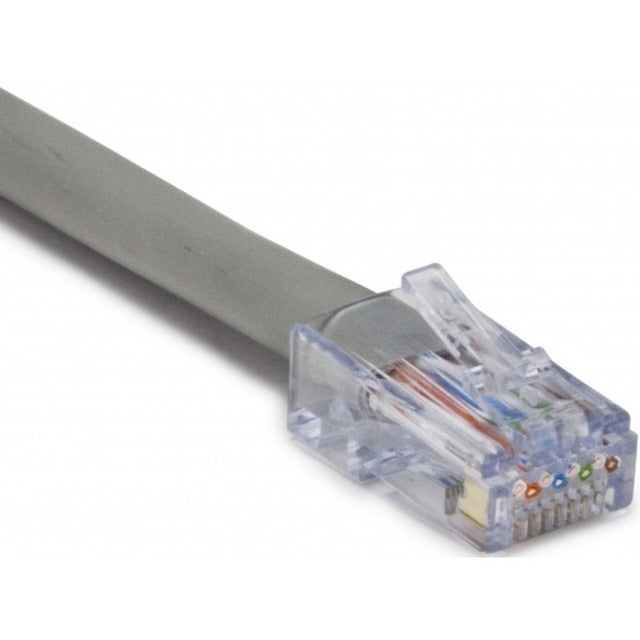

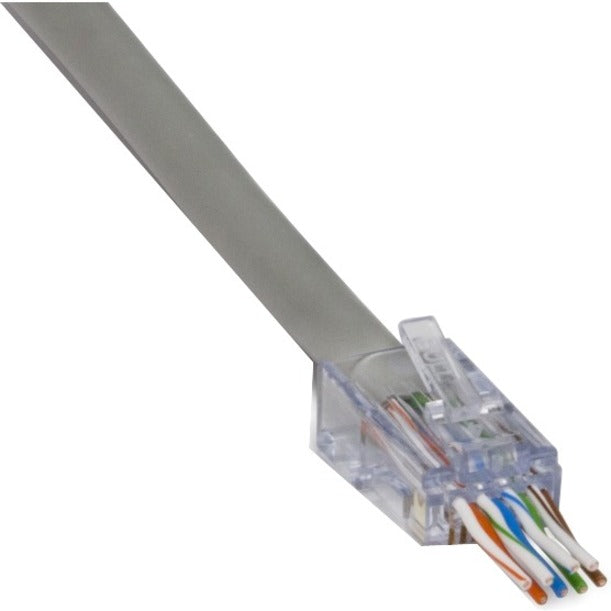

The patented ezEX48 connectors feature a unique integrated Hi-Lo stagger load bar and allows 'big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6A (Lg. Cat6) cabling and is recommended for PoE/PoE+ and Data applications. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C).
- Hi-Lo stagger isolates each conductor for higher performance
- Simple one piece/pass through design, no bars or liners
- Insulation Diameter (Conductor) Size range: .043" - .048" (1.09 -1.22mm)
- Max outer diameter: .290" (7.36mm)
- 50 micron gold plated contacts
- Solid or Stranded 23-22 AWG
- TIA, TAA, RoHS, UL & FCC compliant
- Typically used with Cat6A & Lg Cat6
- Made in the USA
- US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
Call for Availability
Regular price
$99.81
Shipping calculated at checkout
The patented ezEX48 connectors feature a unique integrated Hi-Lo stagger load bar and allows 'big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6A (Lg. Cat6) cabling and is recommended for PoE/PoE+ and Data applications. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C).
- Hi-Lo stagger isolates each conductor for higher performance
- Simple one piece/pass through design, no bars or liners
- Insulation Diameter (Conductor) Size range: .043" - .048" (1.09 -1.22mm)
- Max outer diameter: .290" (7.36mm)
- 50 micron gold plated contacts
- Solid or Stranded 23-22 AWG
- TIA, TAA, RoHS, UL & FCC compliant
- Typically used with Cat6A & Lg Cat6
- Made in the USA
- US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
Connector Details:
1 x RJ-45 Network - Male
Connector Type:
RJ-45 Network - Male
Contact Plating:
Gold
Country of Origin:
United States
Environmentally Friendly:
Yes
Features:
PoE+,PoE,Stranded
Manufacturer:
NSI Industries
Manufacturer Website Address:
http://www.platinumtools.com
Packaged Quantity:
100
Packing:
Jar
Product Line:
ezEX48
Product Type:
Network Connector
TAA Compliant:
Yes
