Peerless Flat Panel Pull-out Swivel Wall Mount

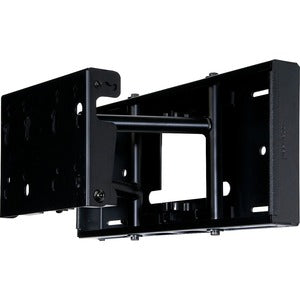

The SP850 Pull-Out Pivot Mount combines the best features of a wall mount and a pivot arm. In the closed position, the SP850 acts as a flat or tilting wall mount. At only 2.31" from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the SP850's sturdy arm construction smoothly glides the display out 10.68" from the wall and allows the flat panel display to pivot up to 45°. This feature not only enables the display to be positioned foran optimal viewing angle, but it also provides easy access to the back of the display for hassle-free maintenance. The SP850 is also ideal in applications where the display needs to be recessed into the wall, custom framed or aligned into a multi-display wall.
- Makes it quick, convenient, and simple to adjust and reposition connectors in a modular mounting system
- Can withstand a maximum weight of 150 lb
- Supports 58" displays
- Built with steel product material to offer great versatility and allow creativity and innovation in design and construction
Call for Availability
Shipping calculated at checkout
The SP850 Pull-Out Pivot Mount combines the best features of a wall mount and a pivot arm. In the closed position, the SP850 acts as a flat or tilting wall mount. At only 2.31" from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the SP850's sturdy arm construction smoothly glides the display out 10.68" from the wall and allows the flat panel display to pivot up to 45°. This feature not only enables the display to be positioned foran optimal viewing angle, but it also provides easy access to the back of the display for hassle-free maintenance. The SP850 is also ideal in applications where the display needs to be recessed into the wall, custom framed or aligned into a multi-display wall.
- Makes it quick, convenient, and simple to adjust and reposition connectors in a modular mounting system
- Can withstand a maximum weight of 150 lb
- Supports 58" displays
- Built with steel product material to offer great versatility and allow creativity and innovation in design and construction
26"-58" LCD and Plasma Screens
- 1 x Wall mount assembly
- 1 x Locking tab
- 1 x Spacer (0.219 ID x 0.5 OD x 0.125H)
- 4 x Hex head wood screw (14 x 2.5")
- 4 x Alligator anchor
- 2 x Polyester mesh sleeve (18")
- 4 x Cable tie
- 2 x Phillips screw (M4 x 5 mm)
- 1 x bumper strip
- 2 x Plastic cable mount
- 4 x Socket head screw (M10 x 15 mm)
- 4 x Retaining spacer (0.198 x 0.313 x 0.437H)
- 1 x Security allen wrench (4 mm)
- 4 x Phillips screw (M3 x 4 mm)
- 2 x Spring clip
- 5 x Screw (M5 x 10 mm)
- 4 x Screw (M4 x 12 mm)
- 4 x Screw (M4 x 20 mm)
- 1 x Screw (M5 x 40 mm)
