Parsec Antenna
SKU: PRO13N8L4WG-L

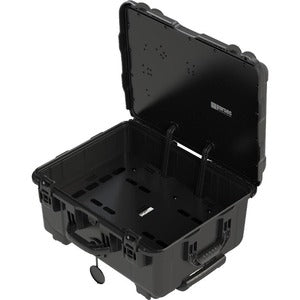

The "Newfoundland" Emergency Hot spot is a large IP67 case with built-in antennas that are optimized for the extra thick(3.5mm) plastic used in industry strength cases. Both sets of LTE and Wi-Fi antennas were designed for maximum performance even in remote areas where the cellular infrastructure may have been compromised. Parsec has taken the unique approach to design all the antennas to fit safely into the lid of the case reducing damage and loss of performance due to hard use. The Newfoundland is configurable up to a 13 in 1 with up to 2 sets of 4X4 MIMO LTE, 4X4 MIMO WIFI and GPS/GNSS capable of running dual SIM's simultaneously. This 5G ready, 600 MHz - 6 GHz antenna is both portable and IP67 rated.
Customers have the option of buying the Newfoundland in a standard antenna only format or a fully dressed out and ready for immediate deployment version that has the router baseplate, cover and cable management already installed. The only things you need to add are the router, sim card and optional battery.
Parsec has done the extra step by doing a complete design including thermal analysis and added fans and exhaust ports for extended temperature operation.
Customers have the option of buying the Newfoundland in a standard antenna only format or a fully dressed out and ready for immediate deployment version that has the router baseplate, cover and cable management already installed. The only things you need to add are the router, sim card and optional battery.
Parsec has done the extra step by doing a complete design including thermal analysis and added fans and exhaust ports for extended temperature operation.
- PORTABLE
- 5G
- CAT 18
- 617 MHz - 5925 MHz
- HIGH PERFORMANCE
Call for Availability
Regular price
$4,106.44
Shipping calculated at checkout
The "Newfoundland" Emergency Hot spot is a large IP67 case with built-in antennas that are optimized for the extra thick(3.5mm) plastic used in industry strength cases. Both sets of LTE and Wi-Fi antennas were designed for maximum performance even in remote areas where the cellular infrastructure may have been compromised. Parsec has taken the unique approach to design all the antennas to fit safely into the lid of the case reducing damage and loss of performance due to hard use. The Newfoundland is configurable up to a 13 in 1 with up to 2 sets of 4X4 MIMO LTE, 4X4 MIMO WIFI and GPS/GNSS capable of running dual SIM's simultaneously. This 5G ready, 600 MHz - 6 GHz antenna is both portable and IP67 rated.
Customers have the option of buying the Newfoundland in a standard antenna only format or a fully dressed out and ready for immediate deployment version that has the router baseplate, cover and cable management already installed. The only things you need to add are the router, sim card and optional battery.
Parsec has done the extra step by doing a complete design including thermal analysis and added fans and exhaust ports for extended temperature operation.
Customers have the option of buying the Newfoundland in a standard antenna only format or a fully dressed out and ready for immediate deployment version that has the router baseplate, cover and cable management already installed. The only things you need to add are the router, sim card and optional battery.
Parsec has done the extra step by doing a complete design including thermal analysis and added fans and exhaust ports for extended temperature operation.
- PORTABLE
- 5G
- CAT 18
- 617 MHz - 5925 MHz
- HIGH PERFORMANCE
Antenna Gain (Isotropic):
8 dBi
Application/Usage:
GPS,Cellular Network,Wireless Data Network,Wireless Router
Compatibility:
Routers:
- Cradlepoint E3000
- Cradlepoint AER2200
- Cradlepoint IBR1700-1200M
- Cradlepoint IBR900-1200M
- Sierra Wireless AirLink MG90
- Sierra Wireless AirLink MP70
- Inseego Skyus 500
- Inseego Skyus 300
Connector Type:
SMA,RP-SMA,RJ-45
Country of Origin:
United States
Form Factor:
Portable
Manufacturer:
Parsec Technologies, Inc.
Manufacturer Website Address:
http://parsec-t.com
Operating Frequency Range:
617 MHz to 894 MHz,1710 MHz to 2700 MHz,3400 MHz to 3800 MHz,5150 MHz to 5925 MHz,2400 MHz to 2483.5 MHz,4900 MHz to 5900 MHz
Package Contents:
- Antenna
- 4 x Ethernet Cord
- 2 x USB Cord
- 1 x Surge Protector
Product Color:
Black
Product Line:
Newfoundland
Product Type:
Antenna
USB:
Yes
