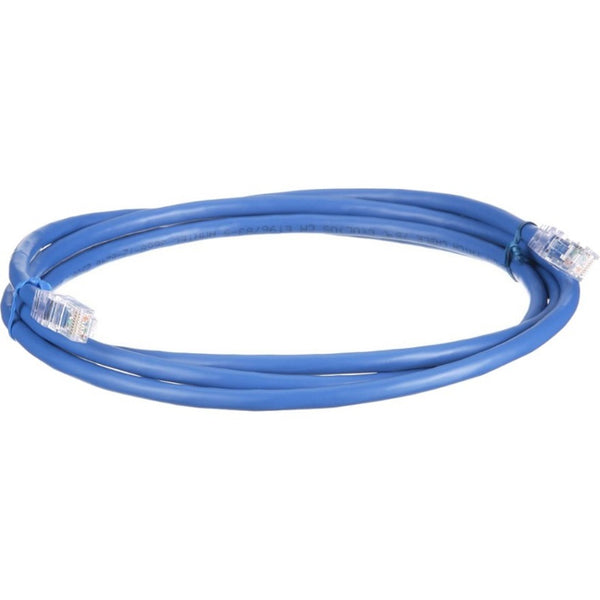

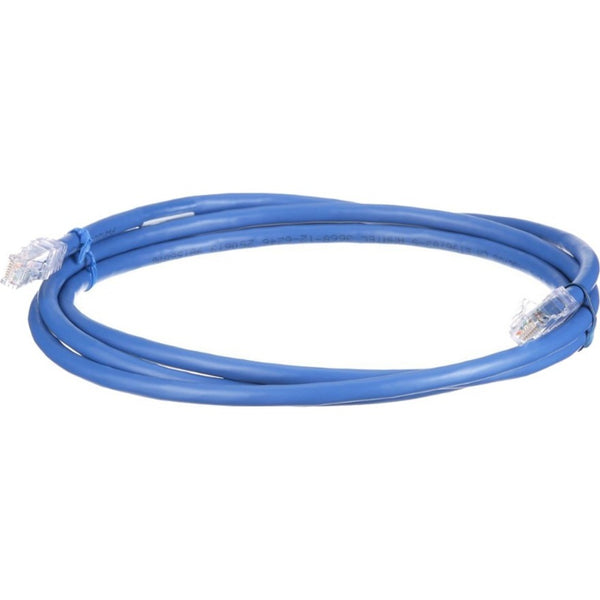

PanNet TX6A 10Gig Cat.6a UTP Patch Network Cable
SKU: UTP6AX0.2MBU
Patch Cords
The TX6A™ 10Gig UTP Patch Cord is constructed of 24 AWG solid copper cable with an enhanced performance modular plug on each end. The conductors are twisted in pairs and separated by a quadrant separator. All four pairs are surrounded by solid foil tape and a flame retardant jacket. The tape suppresses alien crosstalk and allows 10 Gb/s transmission. The patented tangle-free latch prevents snags and provides easy release to provide reliability. This patch cord is 0.2 meters and available in Blue.- 100% performance tested Confidence that each patch cord delivers specified performance
- Superior headroom warranty Provides the highest margins above the industry standard for both electrical and alien crosstalk performance
- Flexible cable design Improved cable management in high density applications enabling easier installations
- Center de-embedded plug Performs in center of ANSI/TIA-568.2-D component range ensuring interoperability and superior performance
- Integral pair manager Optimizes performance, consistency, and reliability by reducing untwist at plug
- Patented tangle-free latch Prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds, and changes
- Slender strain relief boot Provides easy access in high-density applications
- Robust construction Rated to 2500 mating cycles
- Identification Provides identification of performance level, length, and quality control number for future traceability
- Variety of cable colors and lengths Meets individual length and color-coding requirements for greater system flexibility
Call for Availability
Regular price
$19.49
Sale price
$23.32
On Sale
Shipping calculated at checkout
Patch Cords
The TX6A™ 10Gig UTP Patch Cord is constructed of 24 AWG solid copper cable with an enhanced performance modular plug on each end. The conductors are twisted in pairs and separated by a quadrant separator. All four pairs are surrounded by solid foil tape and a flame retardant jacket. The tape suppresses alien crosstalk and allows 10 Gb/s transmission. The patented tangle-free latch prevents snags and provides easy release to provide reliability. This patch cord is 0.2 meters and available in Blue.- 100% performance tested Confidence that each patch cord delivers specified performance
- Superior headroom warranty Provides the highest margins above the industry standard for both electrical and alien crosstalk performance
- Flexible cable design Improved cable management in high density applications enabling easier installations
- Center de-embedded plug Performs in center of ANSI/TIA-568.2-D component range ensuring interoperability and superior performance
- Integral pair manager Optimizes performance, consistency, and reliability by reducing untwist at plug
- Patented tangle-free latch Prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds, and changes
- Slender strain relief boot Provides easy access in high-density applications
- Robust construction Rated to 2500 mating cycles
- Identification Provides identification of performance level, length, and quality control number for future traceability
- Variety of cable colors and lengths Meets individual length and color-coding requirements for greater system flexibility
American Wire Gauge:
24 AWG
Boot Color:
Clear
Cable Characteristic:
Patch Cable
Cable Length:
7.87"
Cable Type:
Category 6a
Color Family:
Blue
Connector on First End Details:
1 x RJ-45 Network - Male
Connector on Second End Details:
1 x RJ-45 Network - Male
Connector Type on First End:
RJ-45 Network - Male
Connector Type on Second End:
RJ-45 Network - Male
Contact Plating:
Gold
Country of Origin:
China
Data Transfer Rate:
10 Gbit/s
Device Supported:
Network Device,Server
Environmentally Friendly:
Yes
Features:
Flame Retardant,Tangle-free,Snag Resistant,PoE++,PoE+,PoE,Alien Cross Talk (AXT),Flexible,Strain Relief,Booted,Latching Connector,MaTriX Technology
Jacket Material:
Polyvinyl Chloride (PVC)
Jacket Type:
CM
Limited Warranty:
1 Year
Manufacturer:
PANDUIT CORP
Manufacturer Website Address:
http://www.panduit.com
Packaged Quantity:
1
Product Color:
Blue
Product Line:
TX6A 10Gig
Product Material:
Copper
Product Type:
Network Cable
Shielding:
No
