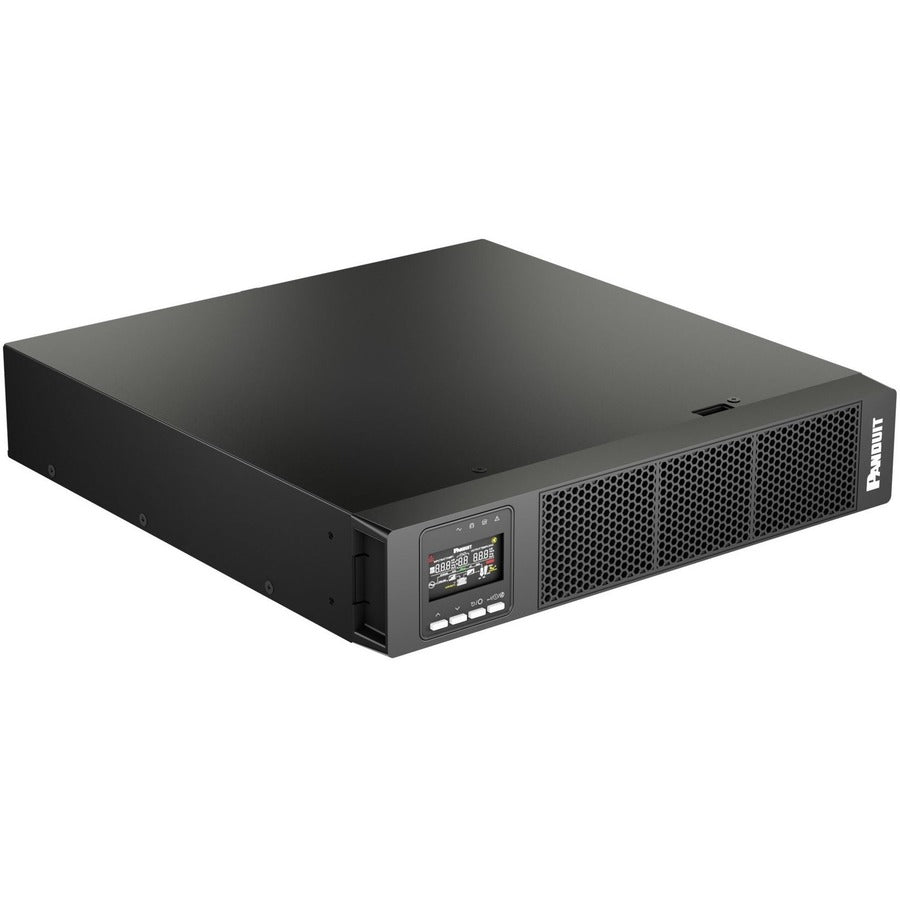

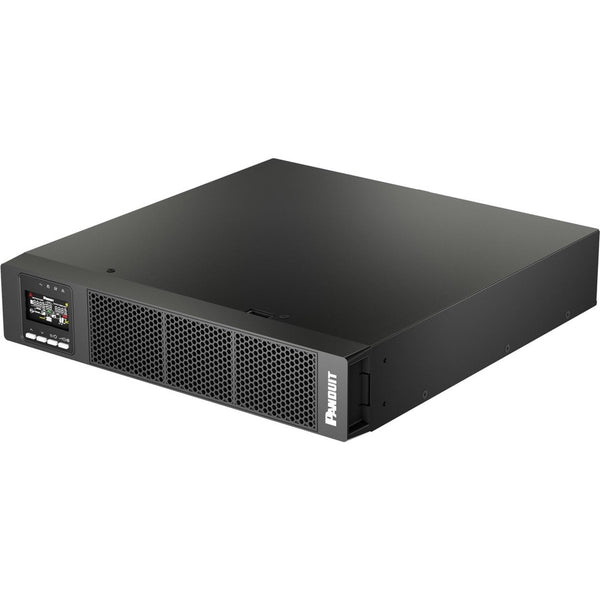

Panduit SmartZone U03S11V 3000VA Rack/Tower UPS
SKU: U03S11V
The Panduit ® SmartZone™ UPS with maintenance free VRLA battery, 1-3kVA single phase 120 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR ® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.

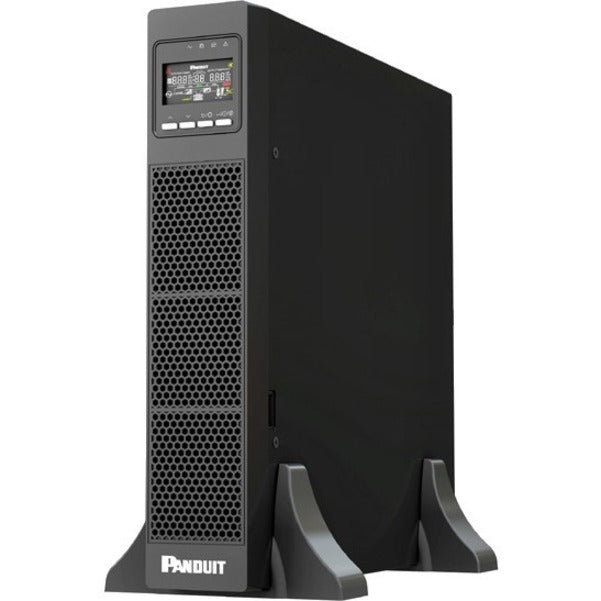

- Rack/Tower convertible: Supports rack /tower installation with rotatable colorful LCD display
- Online Double Conversion with fully digital control: Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
- Wide input voltage range: 110-300 VAC for EU units and 55-150 VAC for NA units, covering extended voltage range, applicable for severe situation such as large power grid fluctuation
- High efficiency: Up to 96.5%, reducing the energy waste and the cost of electricity
- Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
- Green design: RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
- Output unity power factor: Means more active power for IT equipment load
- Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
- Expandable battery packs: Allows to connect maximum four external battery packs, extending the UPS backup running time
- Intelligent Battery Management: The most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life
Call for Availability
Regular price
$1,682.96
Sale price
$1,828.80
On Sale
Shipping calculated at checkout
The Panduit ® SmartZone™ UPS with maintenance free VRLA battery, 1-3kVA single phase 120 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR ® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
- Rack/Tower convertible: Supports rack /tower installation with rotatable colorful LCD display
- Online Double Conversion with fully digital control: Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
- Wide input voltage range: 110-300 VAC for EU units and 55-150 VAC for NA units, covering extended voltage range, applicable for severe situation such as large power grid fluctuation
- High efficiency: Up to 96.5%, reducing the energy waste and the cost of electricity
- Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
- Green design: RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
- Output unity power factor: Means more active power for IT equipment load
- Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
- Expandable battery packs: Allows to connect maximum four external battery packs, extending the UPS backup running time
- Intelligent Battery Management: The most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life
Additional Warranty Information:
- 3 Years for UPS
- 2 Years for Internal Battery and EBP
Alarm:
Yes
Application/Usage:
Data Center,IT Equipment,Enterprise,Computer,Edge Computing
AVR:
Yes
Backup/Run Time With External Battery Cabinet (Full Load):
4.60 Minute
Backup/Run Time With External Battery Cabinet (Half Load):
14.10 Minute
Battery Capacity:
9000 mAh
Battery Chemistry:
Sealed Lead Acid (VRLA)
Battery Life:
5 Year
Battery Size:
12V
Dataline Protection:
RJ-45
DC System Voltage:
72 V DC
Energy Efficiency Certification:
ENERGY STAR 2.0
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
EPO Port:
Yes
Form Factor:
Rack/Tower,Rail Mountable
Hot Swappable:
Yes
Input Frequency:
70 Hz
Input Voltage:
120 V AC
Input Voltage Range:
55 V AC - 150 V AC,100 V AC - 125 V AC
Limited Warranty:
5 Year
Load Capacity (VA):
3000 VA
Load Capacity (Watt):
3000 W
Manufacturer:
PANDUIT CORP
Manufacturer Website Address:
http://www.panduit.com
Maximum Operating Elevation:
9842.52 ft
Maximum Operating Temperature:
104°F (40°C)
Network (RJ-45):
Yes
Number of Batteries:
6
Output Frequency:
60 Hz
Output Voltage:
100 V AC,110 V AC,120 V AC,115 V AC,125 V AC
Overload Protection:
Yes
Phase:
Single Phase
Plug/Connector Type:
NEMA L5-30P
Product Color:
Black
Product Line:
SmartZone
Product Model:
U03S11V
Product Type:
Double Conversion Online UPS
Rack Height:
2U

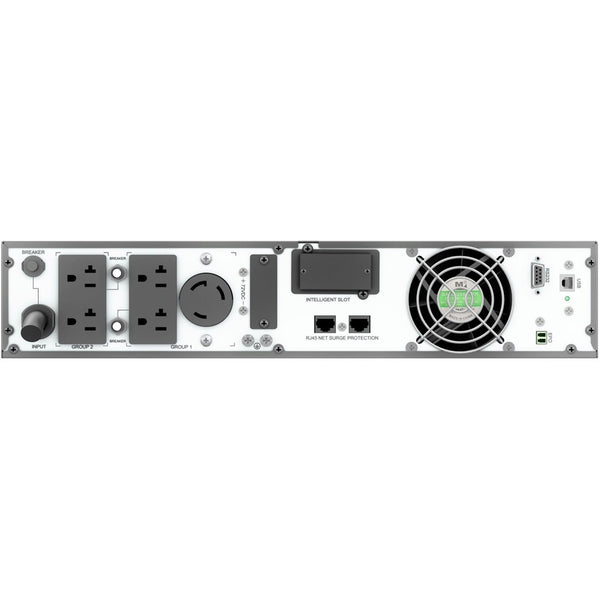

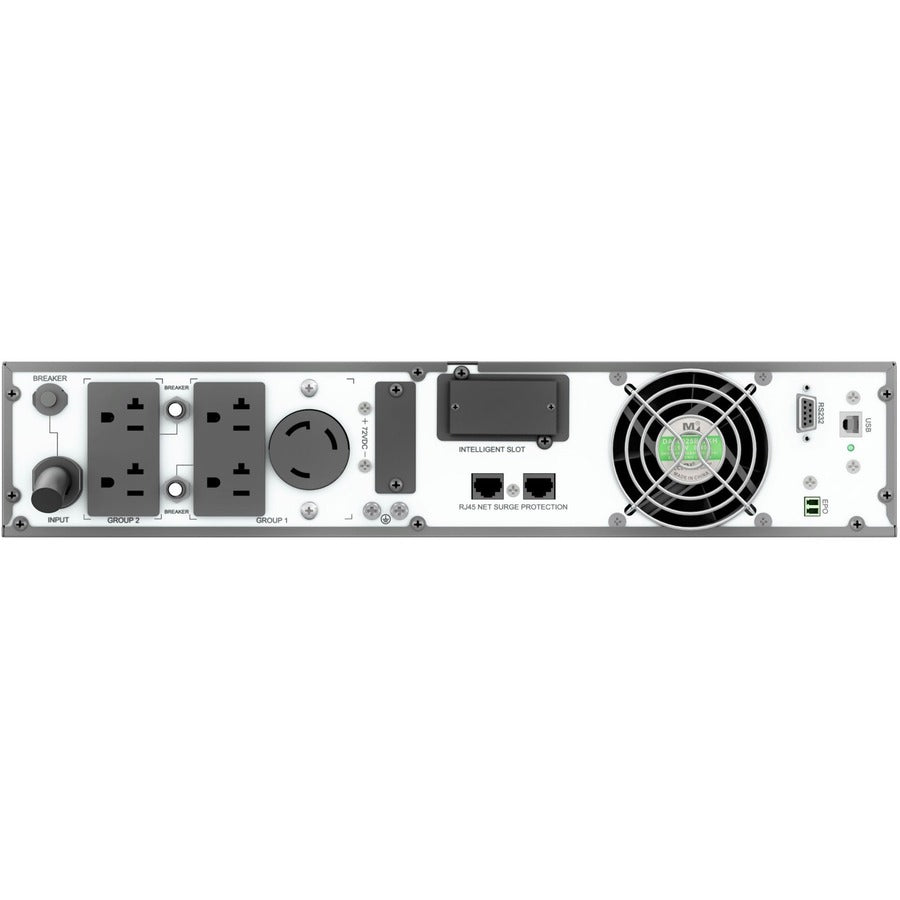

Receptacle Detail:
1 x NEMA L5-30R,4 x NEMA 5-20R
Receptacle Type:
NEMA 5-20R,NEMA L5-30R
Replaceable Battery:
Yes
Serial Port:
Yes
Sound Emission:
55 dB
Status Indicators:
Colorful LCD with four buttons and LED indicators
Storage Temperature:
-13°F (-25°C) - 131°F (55°C)
Thermal Dissipation:
234.75 W
Transfer Time:
0 ns
Typical Battery Recharge Time:
6 Hour
USB (HID Compliant) Port:
Yes
Waveform Type:
Pure Sine Wave
