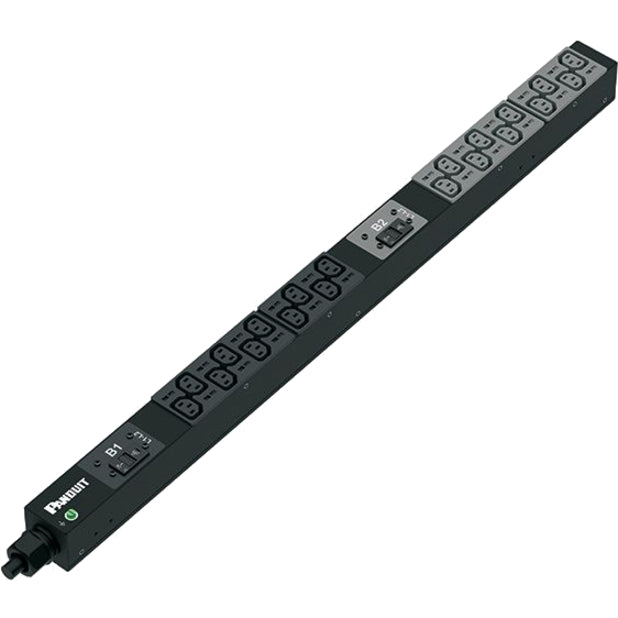

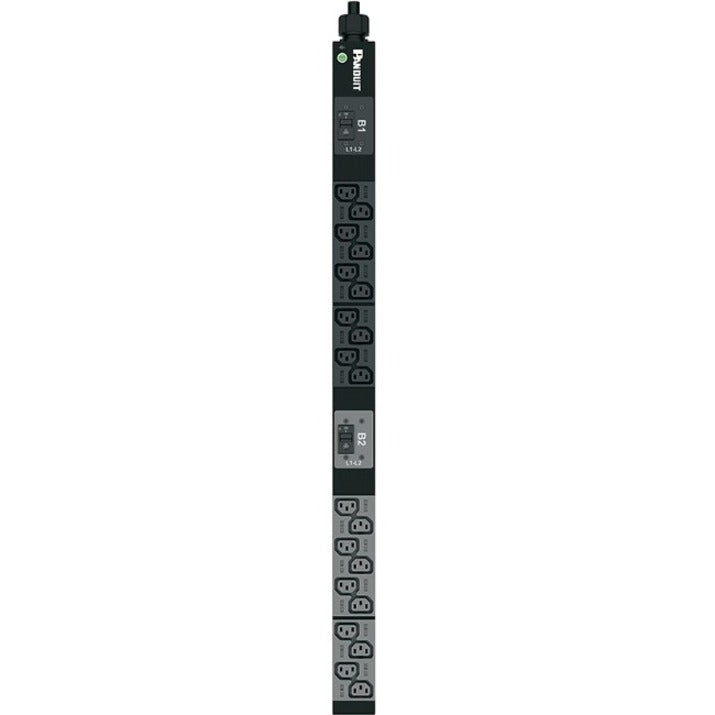

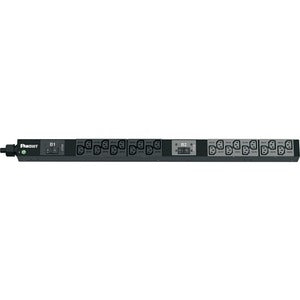

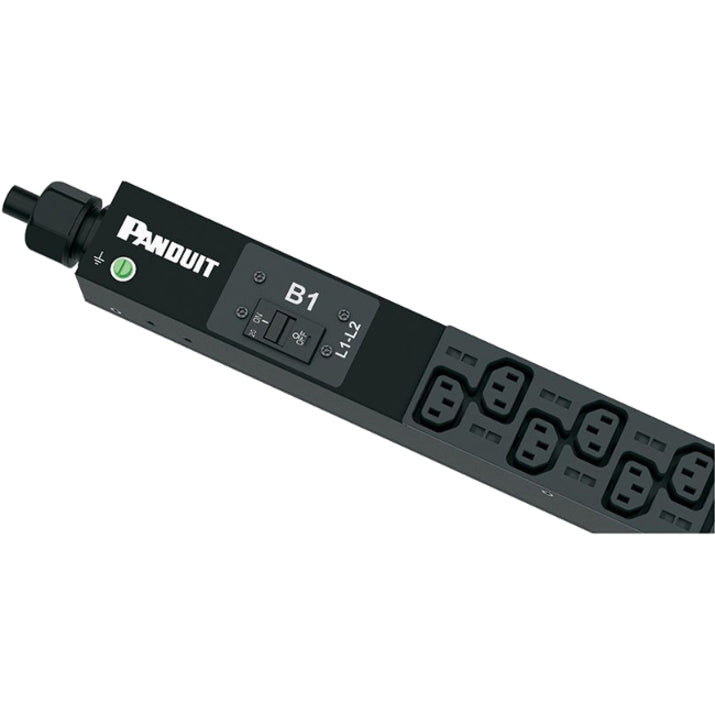

Panduit P20B16M Vertical Basic Power Distribution Unit
SKU: P20B16M
Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13, C19, or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
- Single Phase phase PDU provides optimal power output with added usability
- NEMA L6-30P plug/connector type for efficient connectivity and feasible power output
- 208 V AC input voltage for optimal performance with maximum usability
- 208 V AC output voltage for maximum dependability and added productivity
Call for Availability
Regular price
$400.87
Shipping calculated at checkout
Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13, C19, or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
- Single Phase phase PDU provides optimal power output with added usability
- NEMA L6-30P plug/connector type for efficient connectivity and feasible power output
- 208 V AC input voltage for optimal performance with maximum usability
- 208 V AC output voltage for maximum dependability and added productivity
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Input Current:
30 A
Input Voltage:
208 V AC
Limited Warranty:
3 Year
Manufacturer:
PANDUIT CORP
Manufacturer Website Address:
http://www.panduit.com
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Output Voltage:
208 V AC
Output Voltage Range:
120 V AC - 240 V AC
Packaged Quantity:
1
PDU Type:
Basic
Phase:
Single Phase
Plug/Connector Type:
NEMA L6-30P
Power Rating (VA):
5000 VA
Product Line:
SmartZone
Product Model:
P20B16M
Product Type:
PDU
Protection Type:
Double Pole
Rack Height:
0U
Receptacle Detail:
20 x IEC 60320 C13
Receptacle Type:
IEC 60320 C13
Remote Outlet Switching:
No
