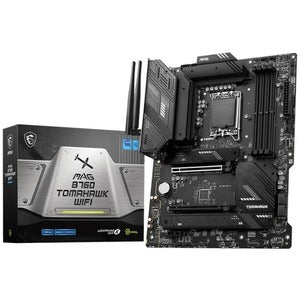

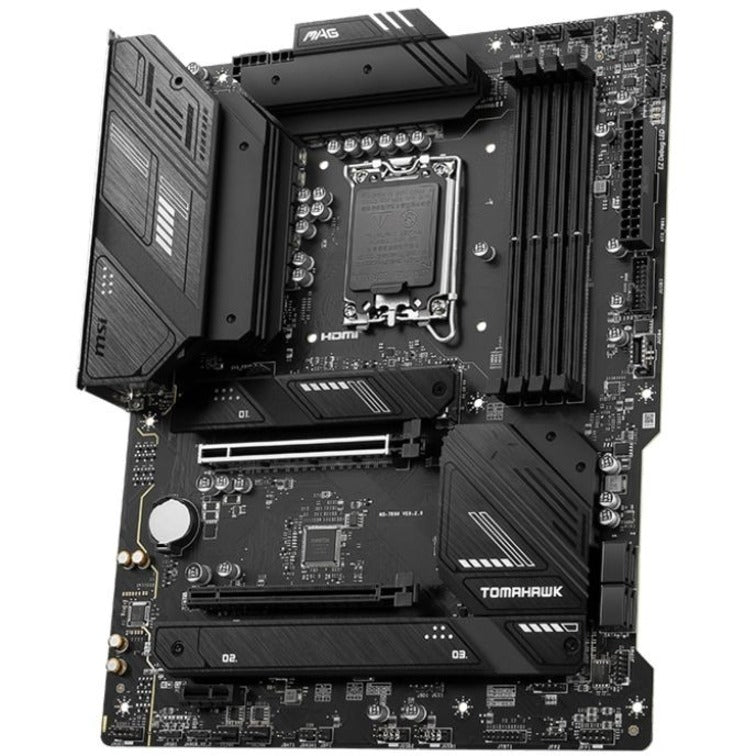

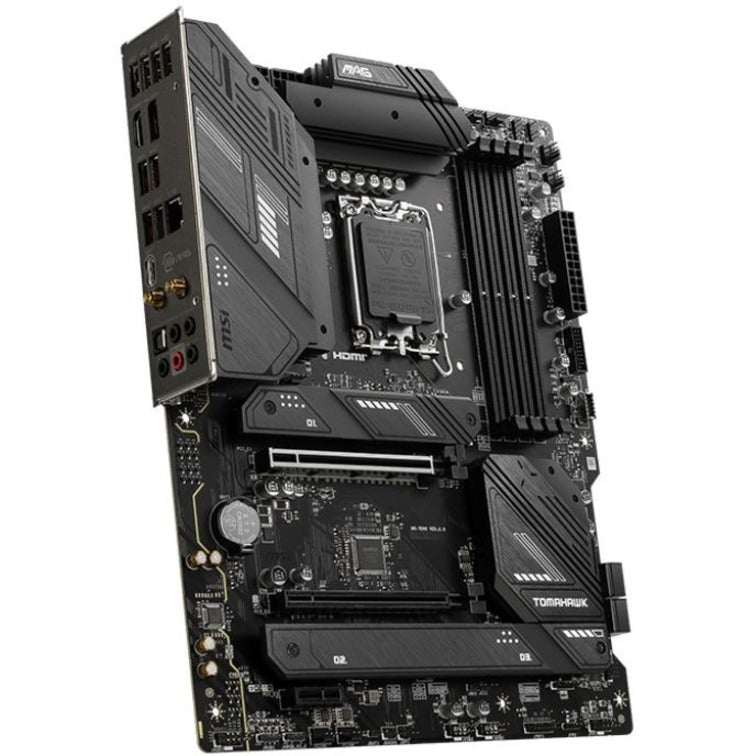

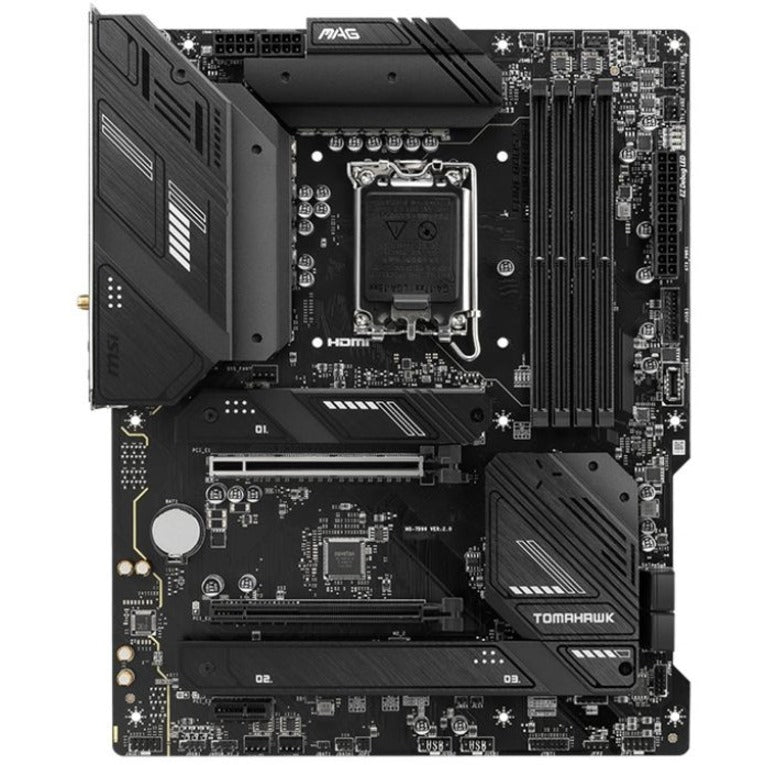

MSI MAG B760 TOMAHAWK WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX
SKU: B760TAMAWIFI
The MAG B760 Tomahawk Wifi fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
- Lightning Gen 5
- The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
- Latest DDR5 Memory
- A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Wi-Fi 6E
- The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
- 2.5G Network Solution
- Featuring premium 2.5G LAN to deliver better network experience.
- 6 Layer PCB with 2oz Thickened Copper
- An Enhanced PCB design provides higher performance and longlasting system stability without any compromise.
- Lightning USB 20G
- Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
- M.2 Shield FROZR
- M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Memory Boost
- Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- Core Boost
- With premium layout and fully digital power design to support more cores and provide better performance.
- Audio Boost
- Reward your ears with studio grade sound quality for the most immersive audio experience.
Call for Availability
Regular price
$199.99
Shipping calculated at checkout
The MAG B760 Tomahawk Wifi fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
- Lightning Gen 5
- The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
- Latest DDR5 Memory
- A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Wi-Fi 6E
- The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
- 2.5G Network Solution
- Featuring premium 2.5G LAN to deliver better network experience.
- 6 Layer PCB with 2oz Thickened Copper
- An Enhanced PCB design provides higher performance and longlasting system stability without any compromise.
- Lightning USB 20G
- Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
- M.2 Shield FROZR
- M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Memory Boost
- Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- Core Boost
- With premium layout and fully digital power design to support more cores and provide better performance.
- Audio Boost
- Reward your ears with studio grade sound quality for the most immersive audio experience.
2.5Gigabit Ethernet:
Yes
Audio Channels:
7.1
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 5.3
Chipset Manufacturer:
Intel
Chipset Model:
B760
Controller Type:
Serial ATA/600
Country of Origin:
China
DisplayPort:
Yes
Form Factor:
ATX
Gigabit Ethernet:
Yes
HDMI:
Yes
HDMI Version:
2.1
Limited Warranty:
3 Year
Manufacturer:
MSI
Manufacturer Website Address:
http://www.msi.com
Maximum Memory Supported:
128 GB
Memory Form Factor:
DIMM,UDIMM
Memory Speed Supported:
7000 MHz,6800 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz
Memory Technology:
DDR5 SDRAM
Number of M.2 Interfaces:
3
Number of Memory Slots:
4
Number of Network (RJ-45) Ports:
1
Number of Onboard USB 2.0 Ports:
4
Number of PCI Express x16 Slots:
2
Number of PCI Express x1 Slots:
1
Number of SATA Interfaces:
4
Number of USB 2.0 Ports:
4
Number of USB 3.2 Gen 2 Type-A Ports:
4
Onboard Video:
CPU Dependent Video
Package Contents:
- MAG B760 TOMAHAWK WIFI Gaming Desktop Motherboard
- Quick Installation Guide
- SATA Cable
- EZ M.2 Clip
- Cable Stickers
- Wi-Fi Antenna
- European Union Regulatory Notice
PCI Express Standard:
PCI Express 5.0,PCI Express 4.0,PCI Express 3.0
Processor Generation Supported:
12th Gen,13th Gen
Processor Socket:
Socket LGA-1700
Processor Supported:
Core,Celeron,Pentium Gold
Product Line:
MAG
Product Model:
B760 TOMAHAWK WIFI
Product Type:
Gaming Desktop Motherboard
RAID Levels:
0,1,5,10
RAID Supported:
Yes
S/PDIF:
Yes
Total Number of Expansion Slots:
3
Total Number of Onboard USB Ports:
7
Total Number of PCI Express Slots:
3
Total Number of USB Ports:
9
Total Processor Supported:
1
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11 a/b/g/n/ac/ax
