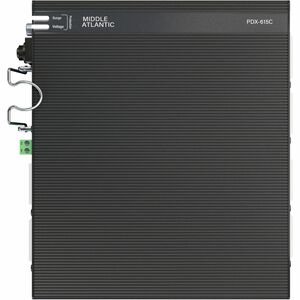

Middle Atlantic NEXSYS Series Compact Power Distribution Unit - 15 Amp, 6 Outlet PDU

SKU: PDX-615C
The Middle Atlantic PDX-615C is a compact NEXSYS PDU designed for 'behind-the-display' applications, particularly digital signage. It features (6) NEMA 5-15R outlets and operates at 15A. The PDU offers flexible mounting options with both clamp and L-brackets, which can be easily attached to a Lever Lock plate for tool-free installation inside a rack, kiosk, or in-wall box. It includes multi-stage MOV surge protection with 3 stages and visual indicators of surge status on the front and side. The selectable on/off voltage protection from the dry contact port helps safeguard sensitive equipment from over/under voltage scenarios by automatically turning off the outlets during such events and restoring them once the power is within the acceptable range. The PDU also supports cleaner cable management with a standard 2ft power cord and allows for the use of both outlets without obstruction, thanks to the orientation designed for easier plugging of DC transformers (wall warts).
  • 15A with (6) NEMA 5-15R Outlets
  • Oh Snap! It's Compact!
  • The compact design of this NEXSYS PDU is perfect for "behind-the-display" applications, especially digital signage.
  • It's very flexible.
  • The NEXSYS Compact PDU includes (2) mounting options for mounting flexibility, a clamp and L-brackets.
  • Easily attach both mounting solutions to a Lever Lock™ plate for tool-free mounting inside a rack, kiosk, in-wall box, etc.
  • Multi-stage MOV surge protection
  • 3 stages of surge protection
  • Visual Indicators of surge status on the front and side of the PDU
  • Worried about the under/over voltage? Don't.
  • With the selectable on/off voltage protection from the dry contact port, it gives the option to protect sensitive equipment from over/under voltage scenarios.
  • If the voltage protection is on and an over or under voltage event happens the outlets will automatically be turned off to protect the equipment. Once the power restores within the acceptable voltage range the PDU will automatically turn the outlets back on.
  • IEC Inlet:
  • Allows for cleaner cable management by selecting your desired length of power cord.
  • A standard 2' cord is included with all models
  • Tired of blocked outlets?
  • You pay for 6 outlets and we think you should be able to use all 6 outlets! The outlets are oriented for easier plugging of DC transformers (wall warts) eliminating blocked outlets.

13 in stock

Regular price $237.25 Sale price $448.00
On Sale

Shipping calculated at checkout

Details
The Middle Atlantic PDX-615C is a compact NEXSYS PDU designed for 'behind-the-display' applications, particularly digital signage. It features (6) NEMA 5-15R outlets and operates at 15A. The PDU offers flexible mounting options with both clamp and L-brackets, which can be easily attached to a Lever Lock plate for tool-free installation inside a rack, kiosk, or in-wall box. It includes multi-stage MOV surge protection with 3 stages and visual indicators of surge status on the front and side. The selectable on/off voltage protection from the dry contact port helps safeguard sensitive equipment from over/under voltage scenarios by automatically turning off the outlets during such events and restoring them once the power is within the acceptable range. The PDU also supports cleaner cable management with a standard 2ft power cord and allows for the use of both outlets without obstruction, thanks to the orientation designed for easier plugging of DC transformers (wall warts).
  • 15A with (6) NEMA 5-15R Outlets
  • Oh Snap! It's Compact!
  • The compact design of this NEXSYS PDU is perfect for "behind-the-display" applications, especially digital signage.
  • It's very flexible.
  • The NEXSYS Compact PDU includes (2) mounting options for mounting flexibility, a clamp and L-brackets.
  • Easily attach both mounting solutions to a Lever Lock™ plate for tool-free mounting inside a rack, kiosk, in-wall box, etc.
  • Multi-stage MOV surge protection
  • 3 stages of surge protection
  • Visual Indicators of surge status on the front and side of the PDU
  • Worried about the under/over voltage? Don't.
  • With the selectable on/off voltage protection from the dry contact port, it gives the option to protect sensitive equipment from over/under voltage scenarios.
  • If the voltage protection is on and an over or under voltage event happens the outlets will automatically be turned off to protect the equipment. Once the power restores within the acceptable voltage range the PDU will automatically turn the outlets back on.
  • IEC Inlet:
  • Allows for cleaner cable management by selecting your desired length of power cord.
  • A standard 2' cord is included with all models
  • Tired of blocked outlets?
  • You pay for 6 outlets and we think you should be able to use all 6 outlets! The outlets are oriented for easier plugging of DC transformers (wall warts) eliminating blocked outlets.
Specifications
Country of Origin:
Malaysia
Features:
Compact
Form Factor:
Rack
Input Current:
15 A
Input Voltage:
120 V AC
Limited Warranty:
3 Year
Manufacturer:
Legrand Group
Manufacturer Website Address:
http://www.legrand.us
Mount Type:
Rack-mountable,Wall-mountable
Output Voltage:
120 V AC
Package Contents:
  • NEXSYS Compact Power Multi-Stage Surge Protection - PDX-615C
  • Clamp
  • L-brackets
  • Standard 2' Cord
Plug/Connector Type:
NEMA 5-15P
Product Line:
NEXSYS
Product Model:
PDX-615C
Product Type:
PDU
Protection Type:
Surge Protection
Rack Height:
0U
Receptacle Detail:
6 x NEMA 5-15R
Receptacle Type:
NEMA 5-15R
