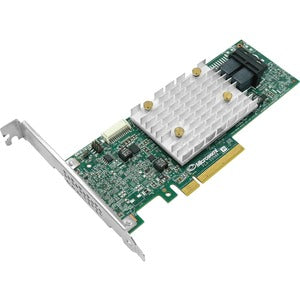

Microchip Adaptec® HBA 1100-8i Single
SKU: 2293200-R
The 12 Gbps Adaptec HBA 1100-8i Host Bus Adapter has 8 internal SAS/SATA ports in a x8 PCIe Gen 3 low-profile, MD2 form factor. Quality and reliability are assured through the unified hardened Smart Storage stack, now deployed to over 30 million servers. Built on the Microchip SmartIOC 2100 SAS/SATA protocol controller, HBA 1100-8i adapters can aggregate the performance of devices to the limits of the PCIe Gen 3 host bus at 6.6 Gbps, and achieve up to 1.5M IOPS without additional overhead or latency. The HBA 1100 adapters also have 40 percent power savings compared to previous generations, and significant power advantages versus competing solutions.
The HBA 1100, with its broad operating system support and ecosystem compatibility, is easy to implement and scale, and the unified maxView management tools and drivers across the Microchip HBA, RAID, and expander solutions enable easy manageability across the entire product line. HBA 1100 adapters are ideal solutions that support SAS/SATA HDDs, tape devices, and SSDs.
The HBA 1100, with its broad operating system support and ecosystem compatibility, is easy to implement and scale, and the unified maxView management tools and drivers across the Microchip HBA, RAID, and expander solutions enable easy manageability across the entire product line. HBA 1100 adapters are ideal solutions that support SAS/SATA HDDs, tape devices, and SSDs.
- BMC support
- Enclosure management: SES-2, SES-3; SFF-8485, SGPIO; SFF-8489, IBPI
- Multi-initiator (host)/clustering for SAS (HBA devices only)
- S.M.A.R.T.
- MPIO support
- SATA NCQ
- Hot plug drive support
- TLR
- Multi-LUN support
- SAS expander support
- Support for up to 256 SAS/SATA target devices (238 SSD/HDDs maximum support and remainder are reserved for expanders and enclosure management)
- Key Software Features
- CPU Platform Diversity -Support for Intel, AMD, and Cavium ThunderX2 (ARM)
- Open Source Management tools
- 12 Gbps SAS data rates using mini-SAS HD connectors
- Proven compatibility with existing Adaptec Smart solutions, multiple operating systems, servers, enclosures, SSDs, HDDs, and LTO tape drives
- Familiar GUI, CLI, and pre-boot tools ensures consistent performance and user experience across all products
- 28 nm SmartIOC 2100 SAS/ SATA protocol controller
- +1.5M 4K random read IOPS; 40% lower power than previous generations
- 8 internal native SAS/SATA ports in low-profile/ MD2 form factor
- Quality and reliability through the unified, hardened Smart Storage stack, which is deployed in over 30 million servers
Call for Availability
Regular price
$352.67
Sale price
$353.72
On Sale
Tax included
Shipping calculated at checkout
The 12 Gbps Adaptec HBA 1100-8i Host Bus Adapter has 8 internal SAS/SATA ports in a x8 PCIe Gen 3 low-profile, MD2 form factor. Quality and reliability are assured through the unified hardened Smart Storage stack, now deployed to over 30 million servers. Built on the Microchip SmartIOC 2100 SAS/SATA protocol controller, HBA 1100-8i adapters can aggregate the performance of devices to the limits of the PCIe Gen 3 host bus at 6.6 Gbps, and achieve up to 1.5M IOPS without additional overhead or latency. The HBA 1100 adapters also have 40 percent power savings compared to previous generations, and significant power advantages versus competing solutions.
The HBA 1100, with its broad operating system support and ecosystem compatibility, is easy to implement and scale, and the unified maxView management tools and drivers across the Microchip HBA, RAID, and expander solutions enable easy manageability across the entire product line. HBA 1100 adapters are ideal solutions that support SAS/SATA HDDs, tape devices, and SSDs.
The HBA 1100, with its broad operating system support and ecosystem compatibility, is easy to implement and scale, and the unified maxView management tools and drivers across the Microchip HBA, RAID, and expander solutions enable easy manageability across the entire product line. HBA 1100 adapters are ideal solutions that support SAS/SATA HDDs, tape devices, and SSDs.
- BMC support
- Enclosure management: SES-2, SES-3; SFF-8485, SGPIO; SFF-8489, IBPI
- Multi-initiator (host)/clustering for SAS (HBA devices only)
- S.M.A.R.T.
- MPIO support
- SATA NCQ
- Hot plug drive support
- TLR
- Multi-LUN support
- SAS expander support
- Support for up to 256 SAS/SATA target devices (238 SSD/HDDs maximum support and remainder are reserved for expanders and enclosure management)
- Key Software Features
- CPU Platform Diversity -Support for Intel, AMD, and Cavium ThunderX2 (ARM)
- Open Source Management tools
- 12 Gbps SAS data rates using mini-SAS HD connectors
- Proven compatibility with existing Adaptec Smart solutions, multiple operating systems, servers, enclosures, SSDs, HDDs, and LTO tape drives
- Familiar GUI, CLI, and pre-boot tools ensures consistent performance and user experience across all products
- 28 nm SmartIOC 2100 SAS/ SATA protocol controller
- +1.5M 4K random read IOPS; 40% lower power than previous generations
- 8 internal native SAS/SATA ports in low-profile/ MD2 form factor
- Quality and reliability through the unified, hardened Smart Storage stack, which is deployed in over 30 million servers
Controller Type:
12Gb/s SAS
Country of Origin:
Singapore
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Form Factor:
Plug-in Card
Host Interface:
PCI Express 3.0 x8
Length:
6.6"
Limited Warranty:
3 Year
Manufacturer:
Microchip Technology Inc.
Manufacturer Website Address:
http://www.microchip.com
Number of SAS Ports (Internal):
8
Package Contents:
- HBA 1100-8i Single
- Additional Low Profile Vented Bracket
Platform Supported:
PC,Linux
Product Model:
AHA-1100-8i
Product Series:
1100
Product Type:
SAS Controller
SAS Connector Details:
2 x SFF-8643
Total Number of SAS Ports:
8
